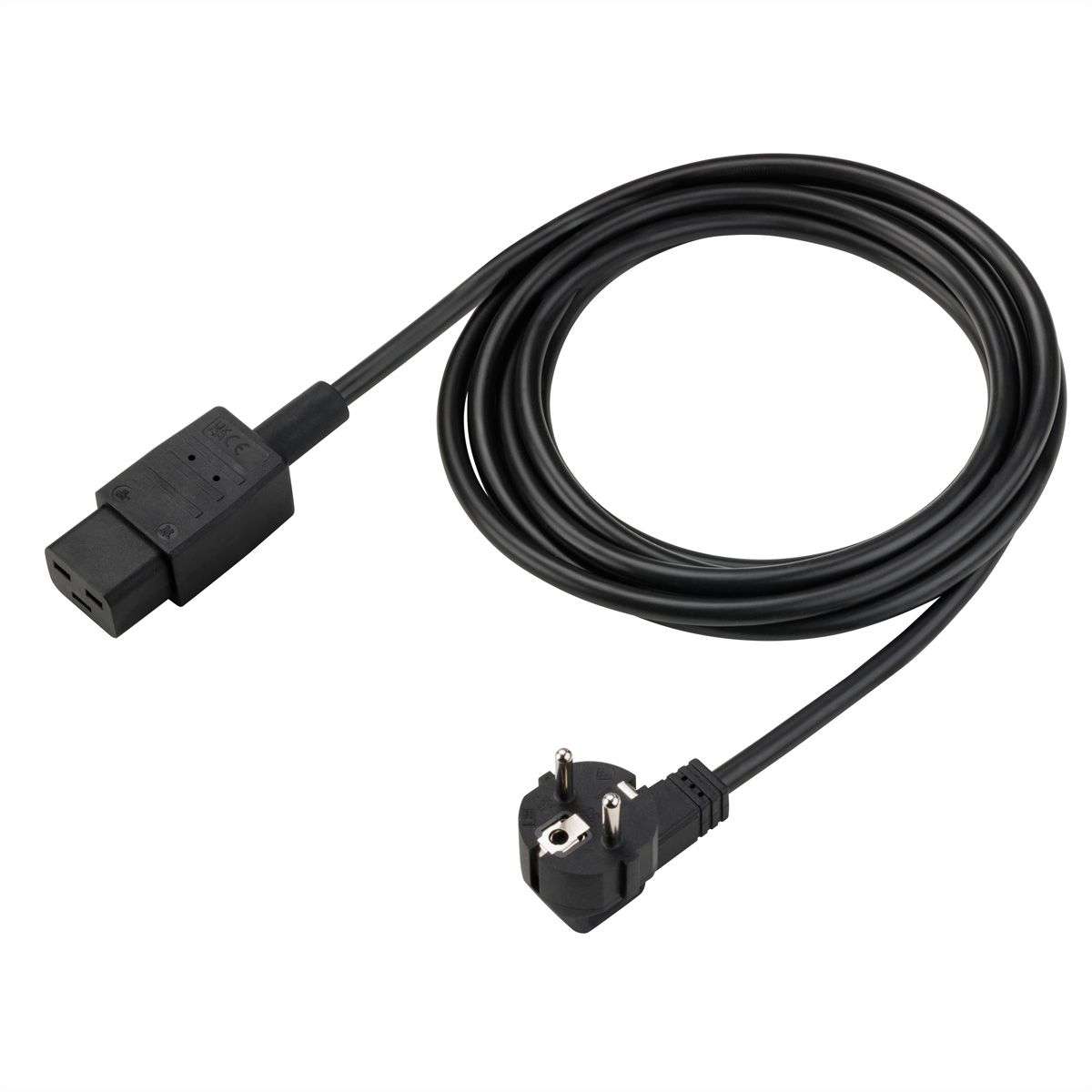

BACHMANN mains cable earthing contact - IEC320-C19 16A/250V, black, 3 m

Item no. 19071644 Brand / Manufacturer BACHMANN Manuf. item no. 352.175 EAN 4016514031405 Item weight 0.37 kg
BACHMANN
Colour:
Length:

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

16A power connection cable with IEC320 C19 socket and earthing contact plug for connecting UPS or blade servers.

Connection cable 16 A with IEC320 C19 socket and earthing contact plug, often used for UPS from 3000VA and for connecting blade servers

Specifications

Manufacturer
BACHMANN
Product group
Power Cables
Product type
Connection cable
Colour
black
Length
3 m
Connection ports
3P. German, CEE 7/7, Type-E/F Male / IEC320 C19, 16A Female
Max. current
16 A
Max. voltage
250V
Max. power
3600 w
Cable material
H05VV-F
Conductor cross section (mm²)
1,5mm²
Quantity of wires
3
Side 1 description
Schuko
Side 1 Connection type
Schuko
Side 1 connector external diameter (mm)
40 mm
Side 2 description
Kaltgeräte
Side 2 Connection type
IEC320 C19
Side 2 connector external diameter (mm)
20 x 28 mm
Side 1 Connector Type
3P. German, CEE 7/7, Type-E/F
Side 1 Connector Gender
Male
Side 2 Connector Type
IEC320 C19, 16A
Side 2 Connector Gender
Female
Regional use
  • Germany, Austria, Netherlands
  • France, Czech Republic, Slovakia
Height
36 mm
Width
210 mm
Depth
210 mm
Weight
389 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
210 mm
Depth of packaging (single piece)
230 mm
Package weight (single piece)
0.37 kg

Downloads

Manufacturer data sheet - English (69.8 KB) Technical drawing - English (158.6 KB)

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
