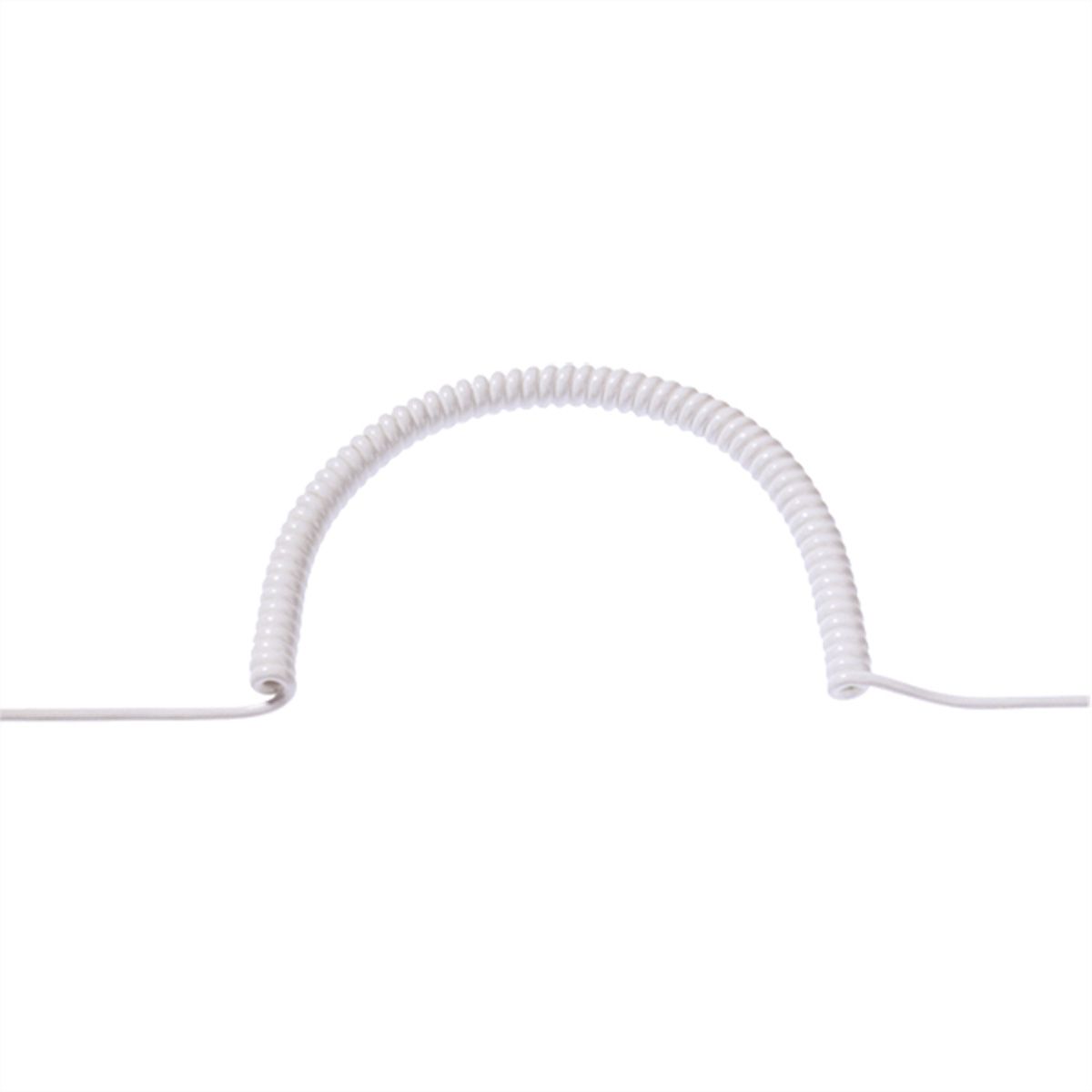

BACHMANN Wendelleitung 0,4m-1,6m ws 0,2m gerade, H05VV-F 3G1,5mm², teilw.abgemantelt AEH

Item no. 19072496 Brand / Manufacturer BACHMANN Manuf. item no. BM0010713 EAN 4057298180927 Item weight 0.378 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

Spiralleitung H05VV-F 3G1,5mm² L:0,4m ws AEH

Spiralleitung - 400 mm, 1.600 mm, 27 mm, 10 mm H05VV-F 3G 1,5 mm² - weiß, 140mm, davon 80mm abgemantelt - Aderendhülsen, 140mm, davon 80mm abgemantelt - Aderendhülsen - unverpackt

Remark: Picture similar

Specifications

Manufacturer
BACHMANN
Product group
Stromversorgung
Product type
Stromkabel
Colour
white
Length
0.4 m
Scope of delivery
1x spiraalkabel
Connection ports
offenes Ende / offenes Ende
Max. current
16A
Max. voltage
250V~
Cable material
PVC
Conductor cross section (mm²)
1,5 mm²
Material identification
H05VV-F
External diameter of cable
8,4 mm
Quantity of wires
3
Side 1 Connector Type
offenes Ende
Side 2 Connector Type
offenes Ende
Regional use
Ohne Einschränkung
Technical particularity
Anschluss nur durch eine qualifizierte Elektrofachkraft
Height
30 mm
Width
200 mm
Depth
200 mm
Weight
359 g
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
180 mm
Depth of packaging (single piece)
260 mm
Package weight (single piece)
0.378 kg

Downloads

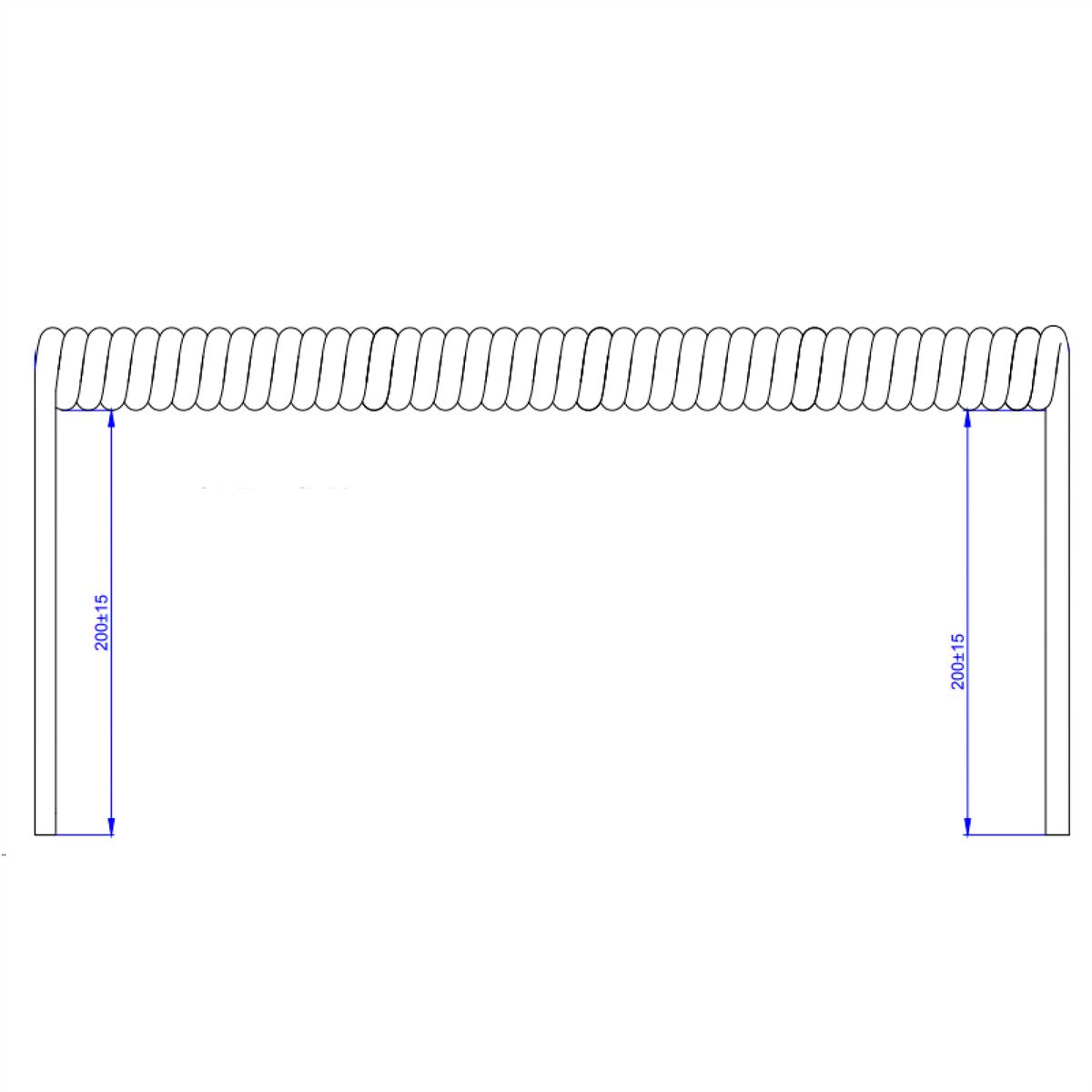

Manufacturer data sheet - English (68.9 KB) Technical drawing - English (317.9 KB)
