Description

A wall/ceiling-mounted multi-gig WiFi 7 AP designed for shopping and office complexes, busy stations, stadium, and campuses.

• Qualcomm 1.5 GHz Quad-Core CPU
• 6-Stream Tri-Band Wi-Fi 7
• 5.7 Gbps + 4.3 Gbps + 688 Mbps
• 1× 10G SFP, 1× 2.5GbE PoE IN
• 802.3at, Passive PoE, DC
• Multi-AP Management
• Captive Portal, Multi-SSID
• Watchdog, Schedule Reboot
• Covers 140 m² (1,500 ft²)
• 300 Connected Devices

Specifications

Manufacturer	Cudy
Product group	Network Components
Product type	Access Point
Colour	white

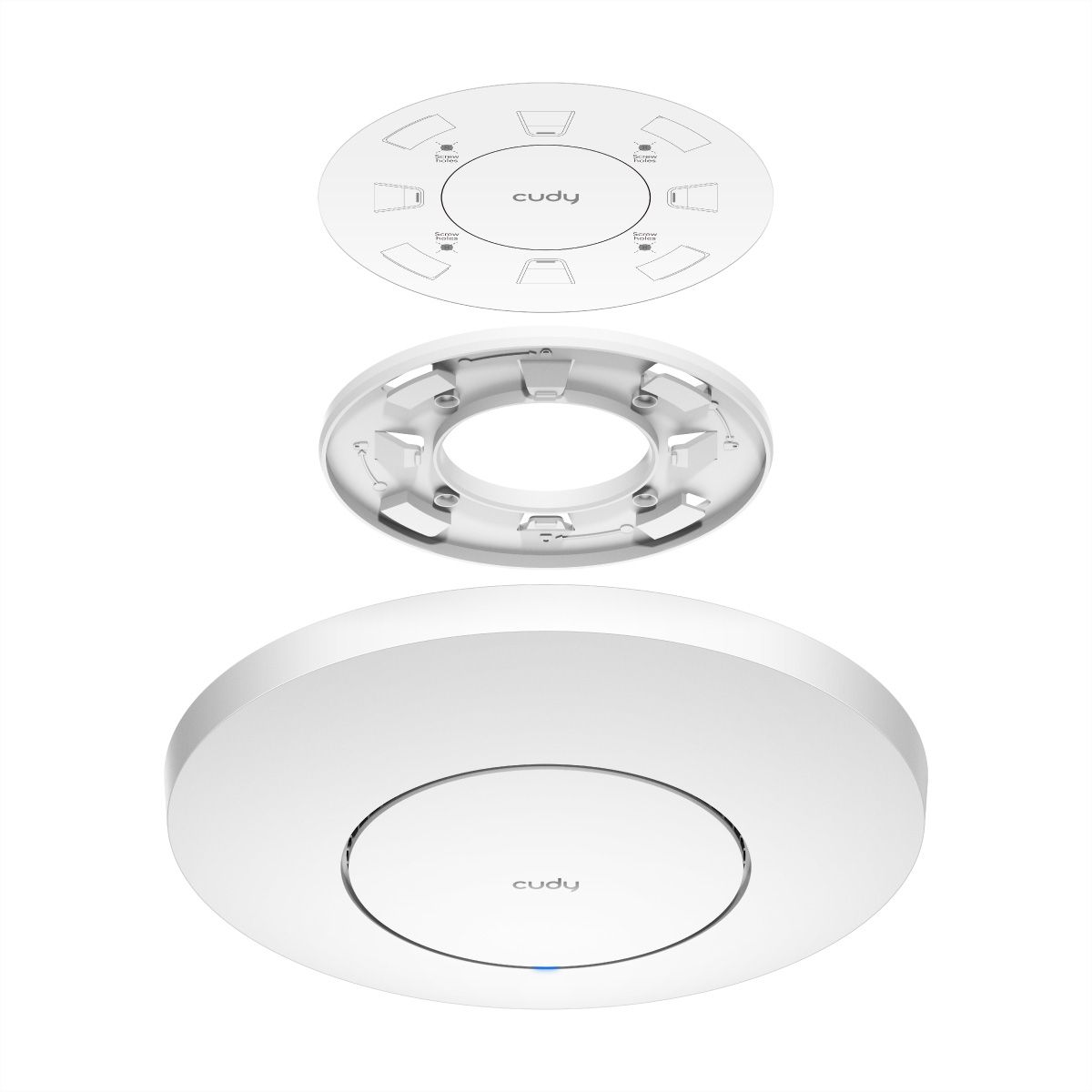

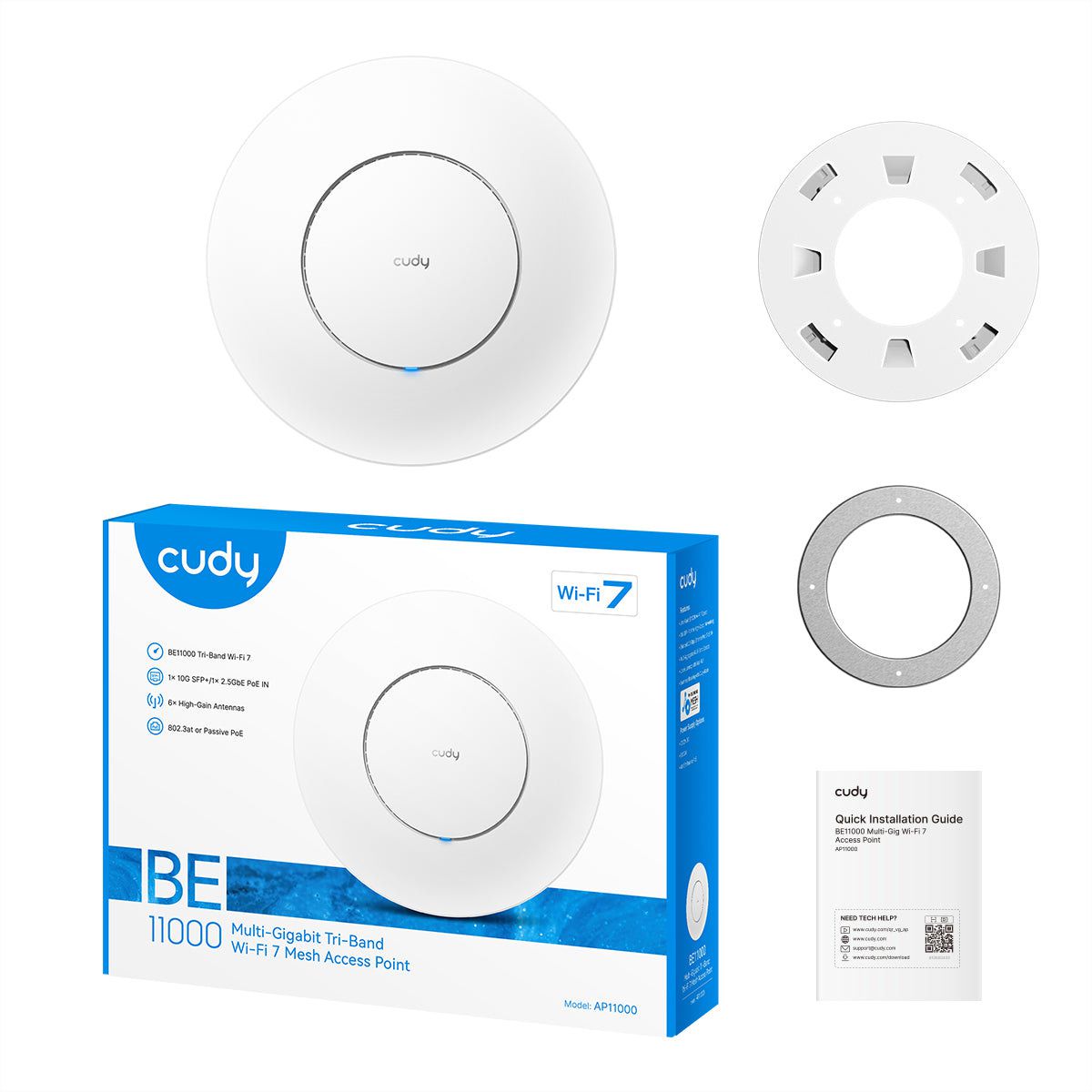

Scope of delivery	AP11000, Mounting Kit, Installation Guide
WiFi standard	WiFi 7 (IEEE 802.11be)
Maximum data transfer rate	11000 Mbit/s
Wi-Fi frequency band	Tri-Band
2.4 GHz data transfer rate	688 Mbit/s
5 GHz data transfer rate	4324 Mbit/s
6 GHz data transfer rate	5765 Mbit/s

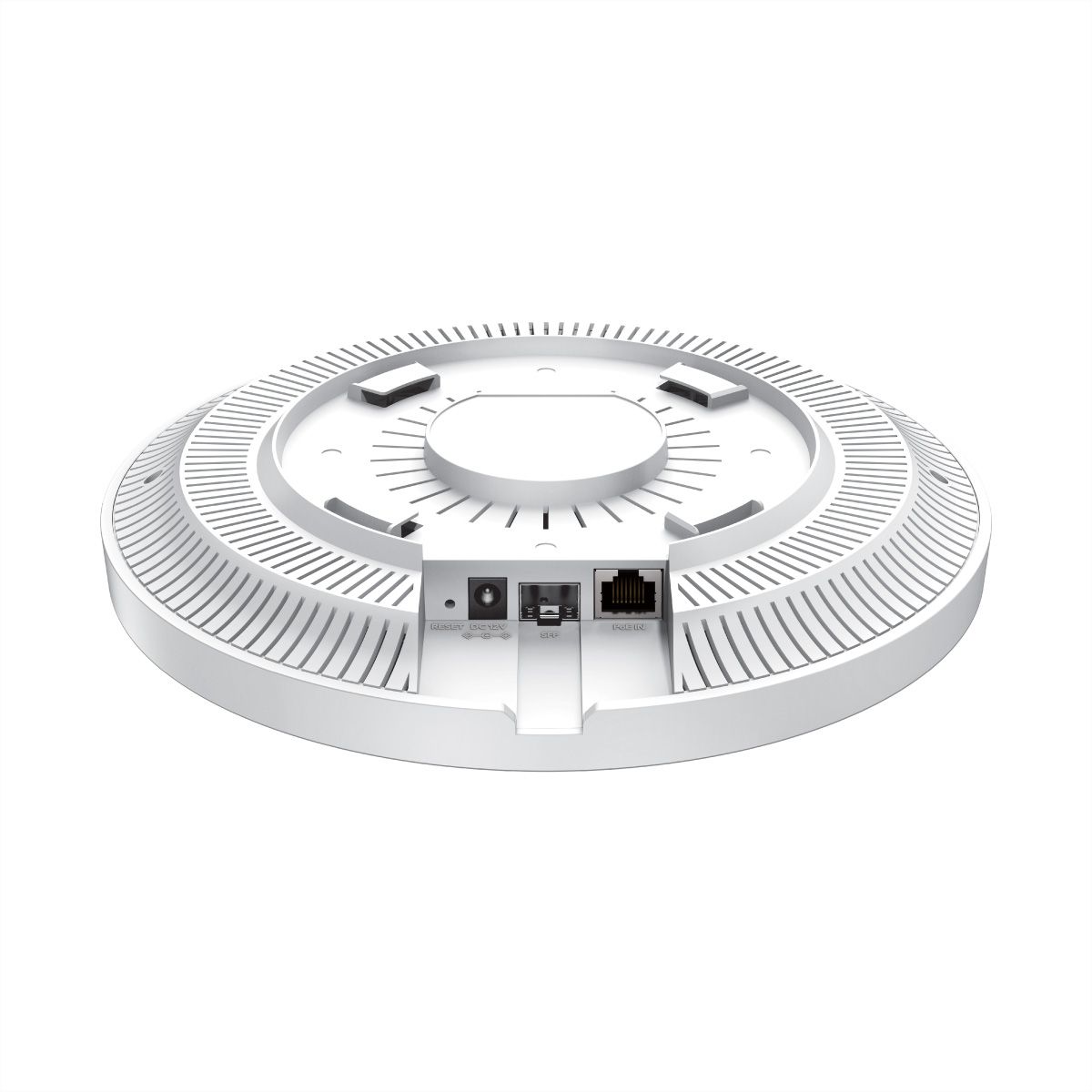

Interface	1× 10G SFP, 1× 2.5GbE PoE IN
Power over Ethernet (PoE)	yes
Operating temperature min.	0 °C
Operating temperature max.	40 °C
Height	57.1 mm
Width	231.9 mm
Depth	231.9 mm
Weight	718 g
Height of packaging (single piece)	90 mm
Width of packaging (single piece)	250 mm
Depth of packaging (single piece)	320 mm
Package weight (single piece)	1.03 kg

Downloads

Manufacturer data sheet - English (224.6 KB)

Download

Quick Installation Guide - English (114.8 KB)

Download

CUDY – Innovative networking solutions for global connectivity

Founded in 2018, CUDY is an internationally operating manufacturer of networking products for private users as well as businesses. The company’s mission is to provide reliable and innovative networking solutions that enable and enhance modern connectivity. CUDY stands for intelligent, high-performance networking in both private and professional environments. The product portfolio includes Wi-Fi routers, mesh systems, 4G/5G routers, PoE devices, network switches, access points, as well as outdoor and industrial networking equipment, including related peripherals.
