Description

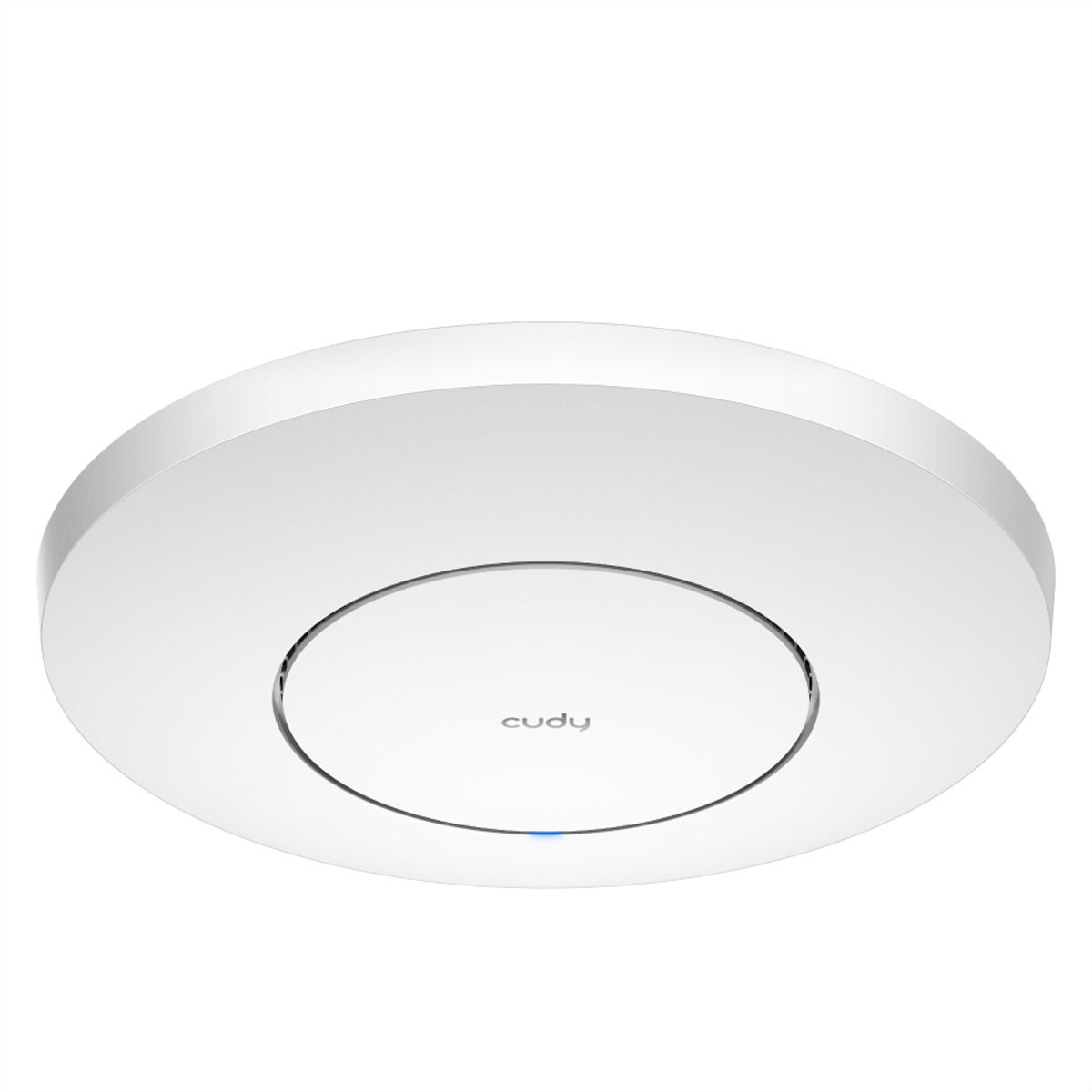

A wall/ceiling-mounted WiFi 7 AP designed for malls, offices, campuses, and other high-density scenarios, featuring a 2.5G PoE IN port and a PoE Out port.

• Broadcom 2 GHz Quad-Core CPU
• 4-Stream Dual-Band Wi-Fi 7
• 2882 Mbps + 688 Mbps Wi-Fi

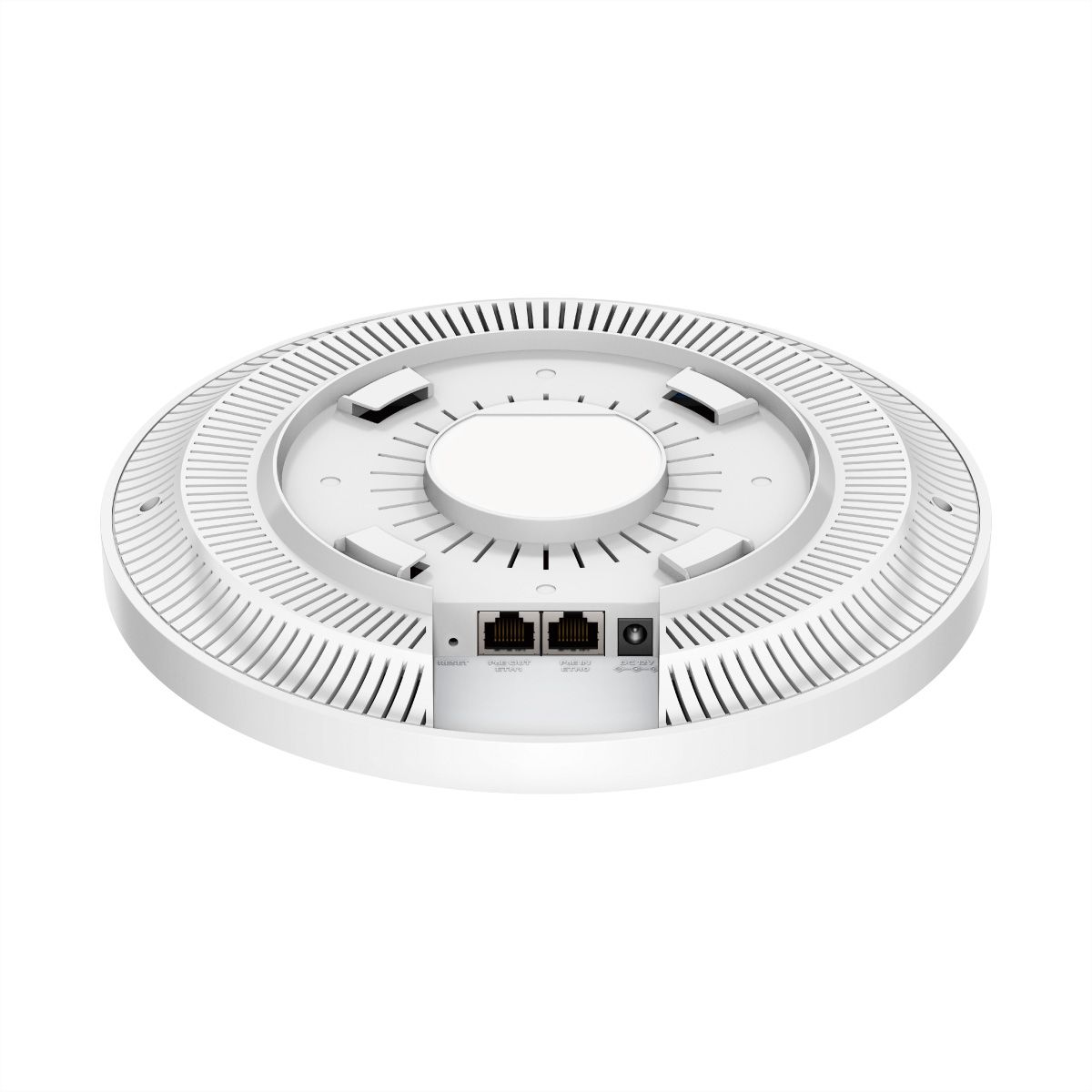

• 1x 2.5GbE PoE In, 1x GbE PoE Out
• 802.3at, Passive PoE, DC
• Watchdog, Schedule Reboot
• Multi-AP Management
• Captive Portal, Multi-SSID
• 200 Connected Devices
• Covers 120 m² (1,300 ft²)

Specifications

Manufacturer	Cudy
Product group	Network Components
Product type	Access Point
Colour	white

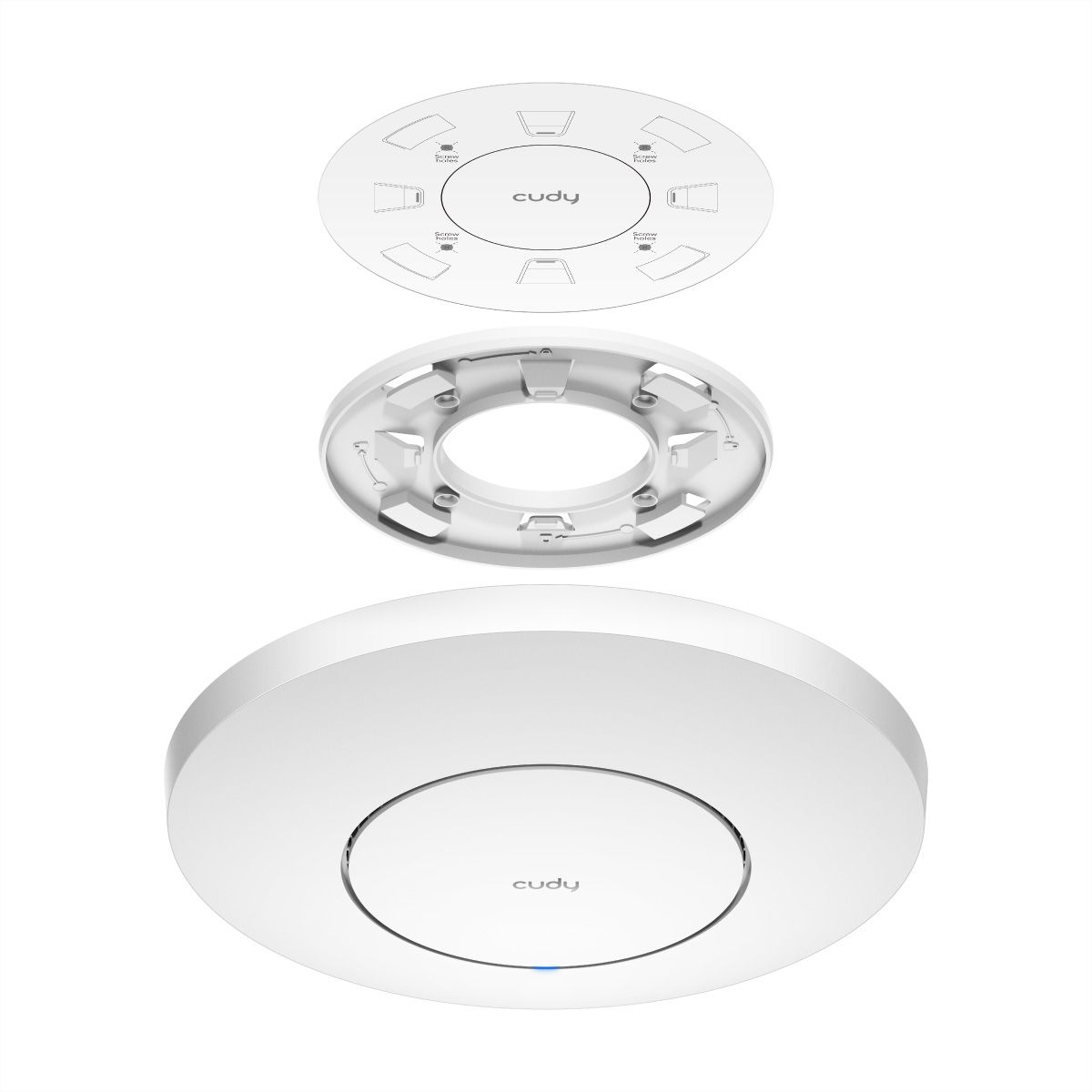

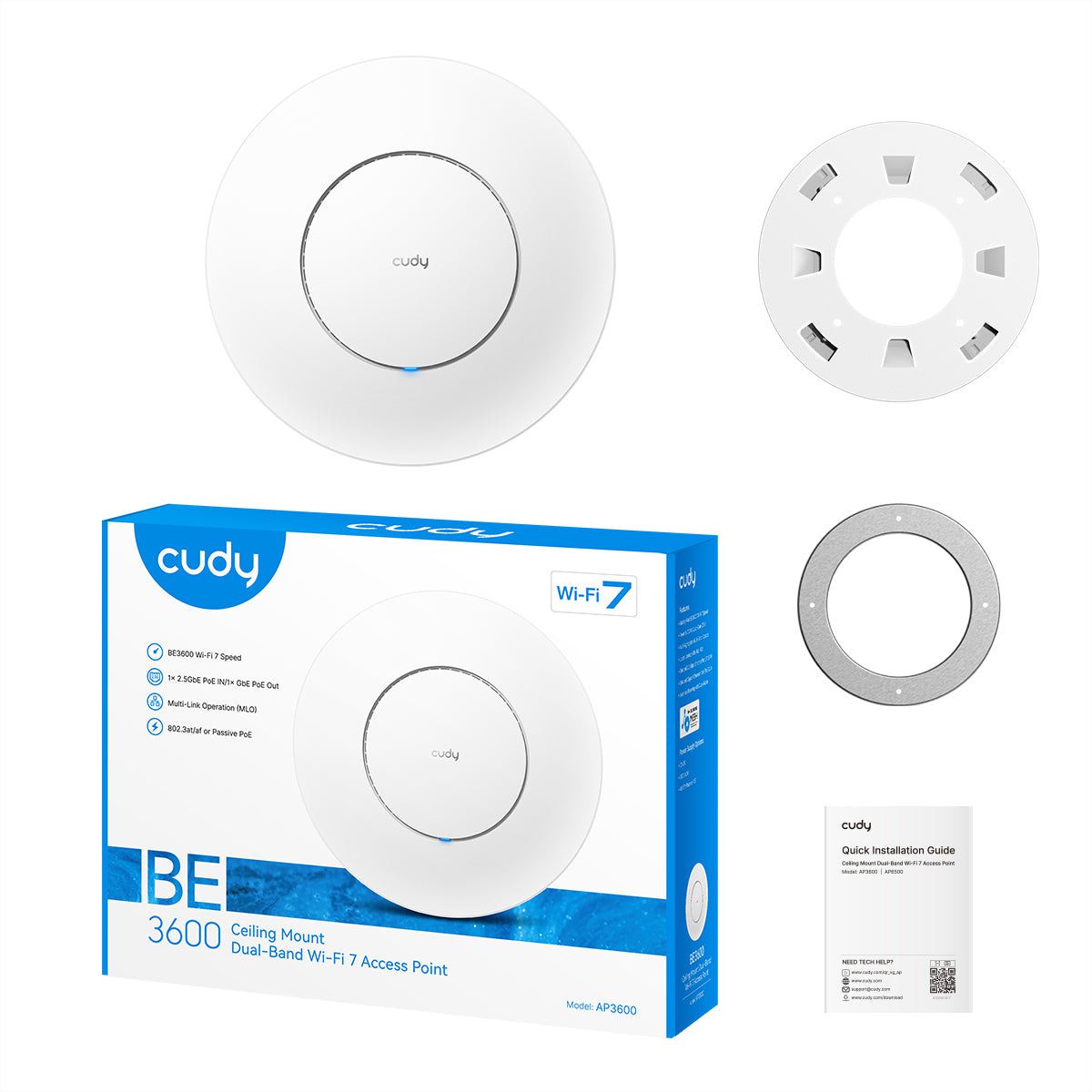

Scope of delivery	AP3600, Mounting Kit, Installation Guide
WiFi standard	WiFi 7 (IEEE 802.11be)
Maximum data transfer rate	3600 Mbit/s
Wi-Fi frequency band	Dual-Band
2.4 GHz data transfer rate	688 Mbit/s
5 GHz data transfer rate	2882 Mbit/s
Removable antenna	yes
Power over Ethernet (PoE)	yes
Operating temperature min.	0 °C
Operating temperature max.	40 °C
Height	57.1 mm
Width	231.9 mm
Depth	231.9 mm
Weight	594 g
Height of packaging (single piece)	80 mm
Width of packaging (single piece)	240 mm
Depth of packaging (single piece)	320 mm
Package weight (single piece)	0.899 kg

Downloads

Manufacturer data sheet - English (304.3 KB)

Download

Quick Installation Guide - English (1.1 MB)

Download

CUDY – Innovative networking solutions for global connectivity

Founded in 2018, CUDY is an internationally operating manufacturer of networking products for private users as well as businesses. The company’s mission is to provide reliable and innovative networking solutions that enable and enhance modern connectivity. CUDY stands for intelligent, high-performance networking in both private and professional environments. The product portfolio includes Wi-Fi routers, mesh systems, 4G/5G routers, PoE devices, network switches, access points, as well as outdoor and industrial networking equipment, including related peripherals.
