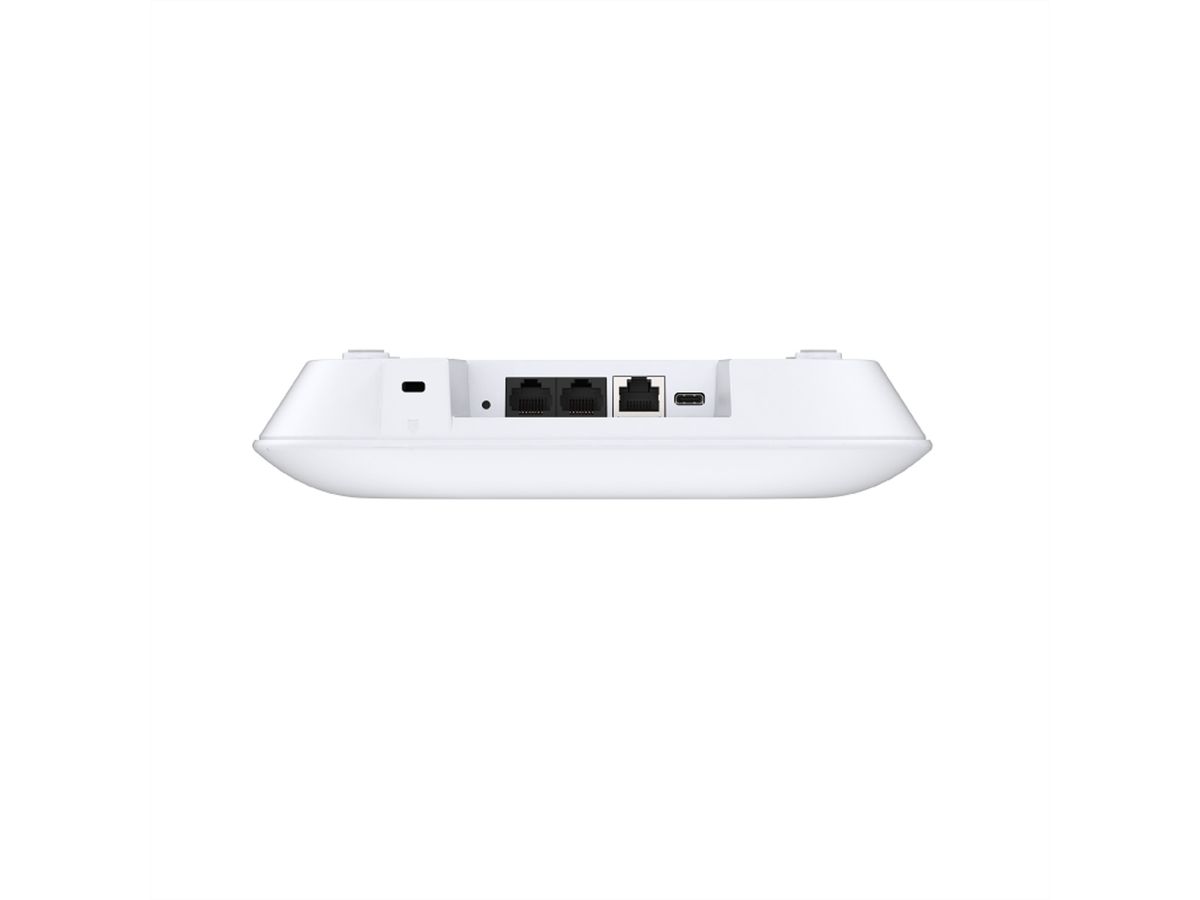

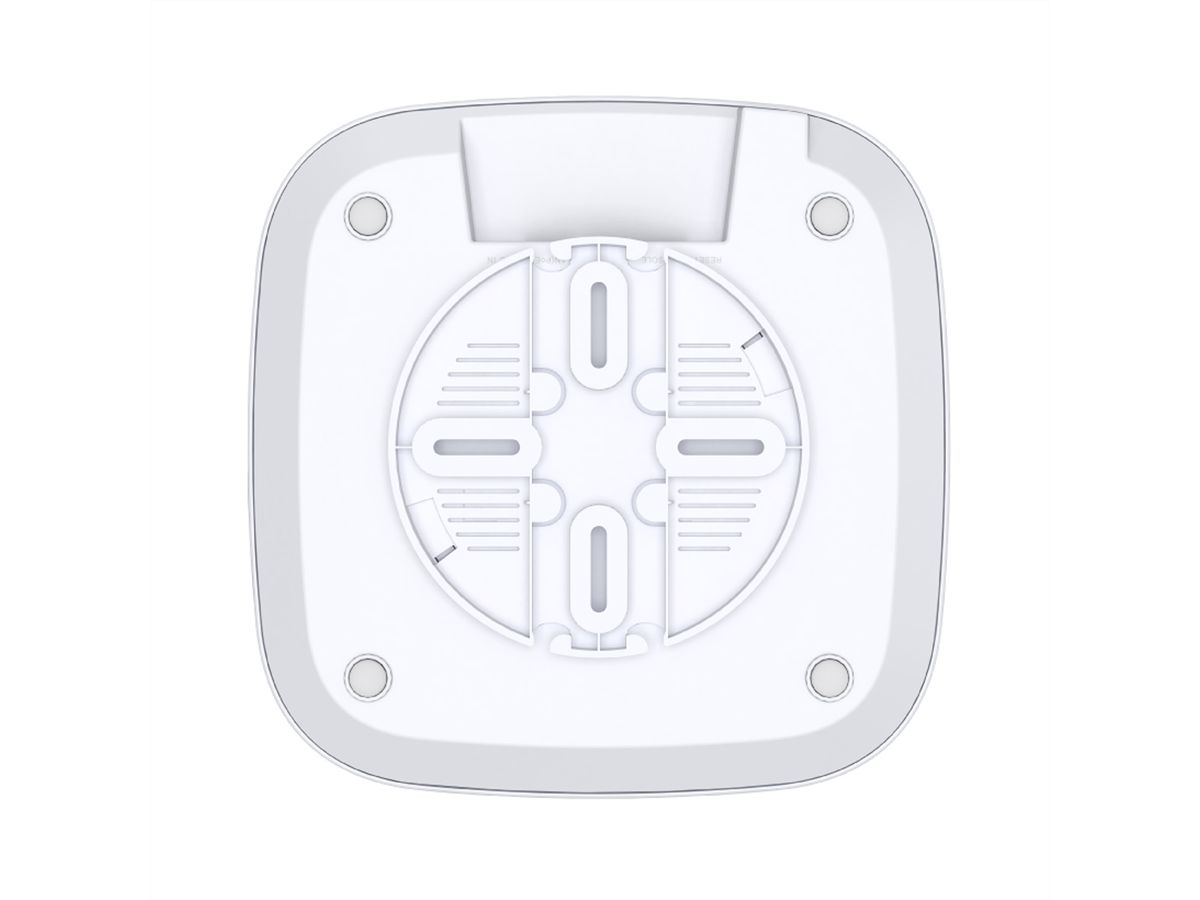

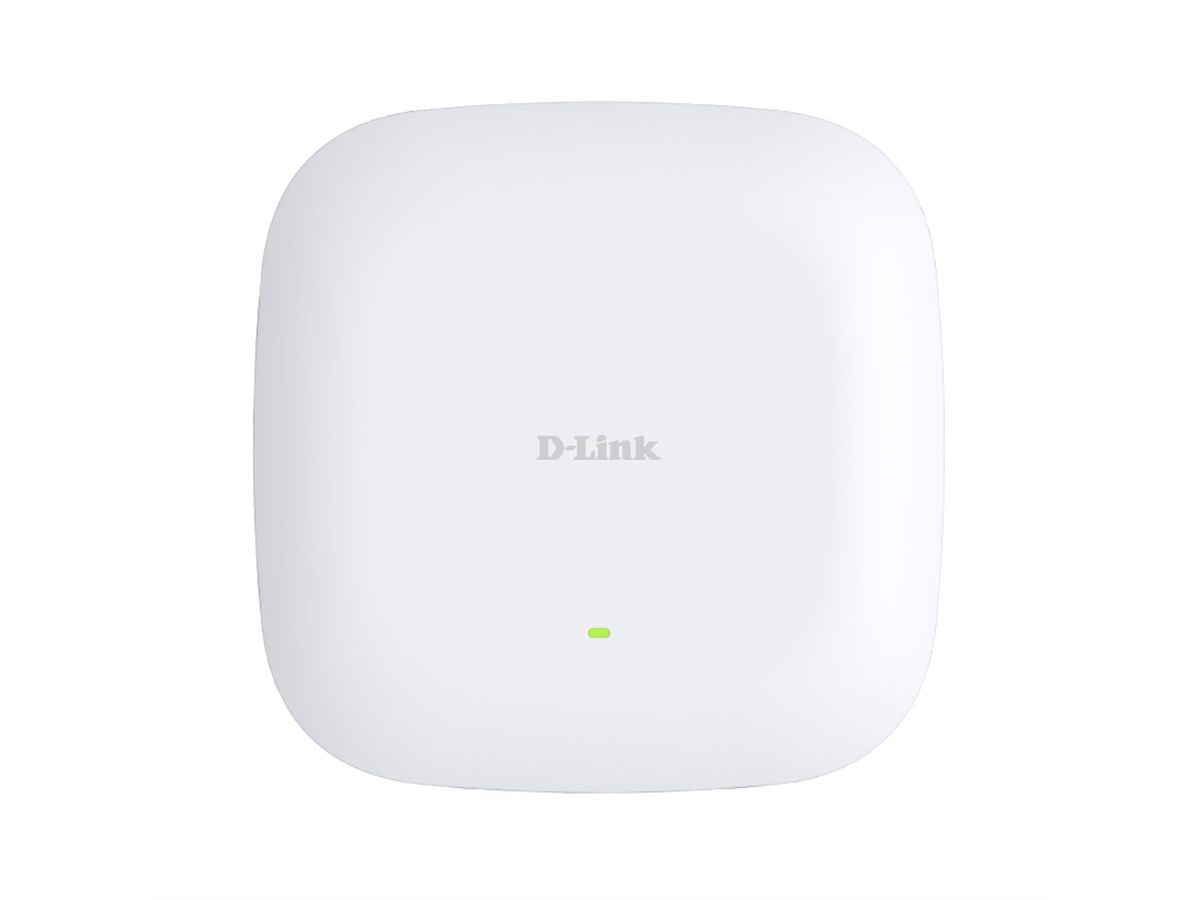

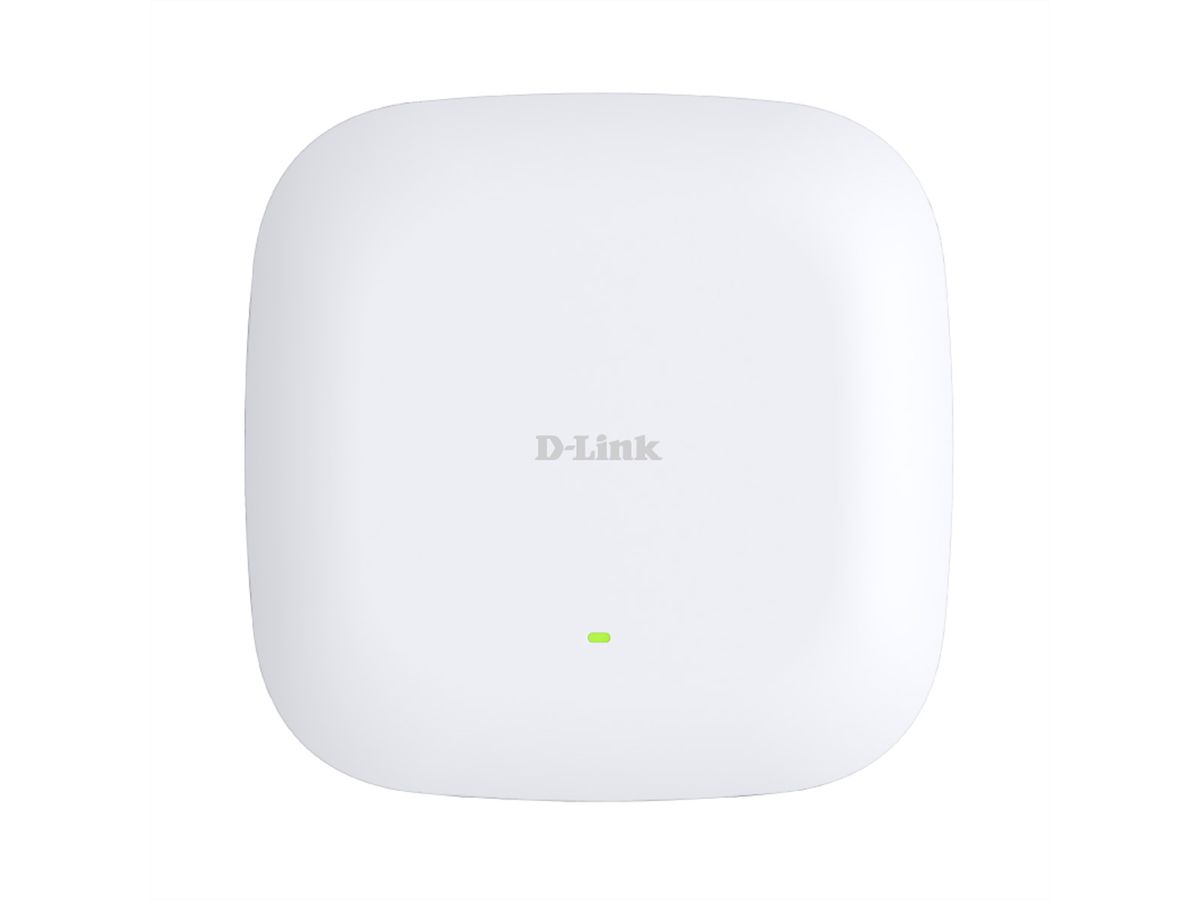

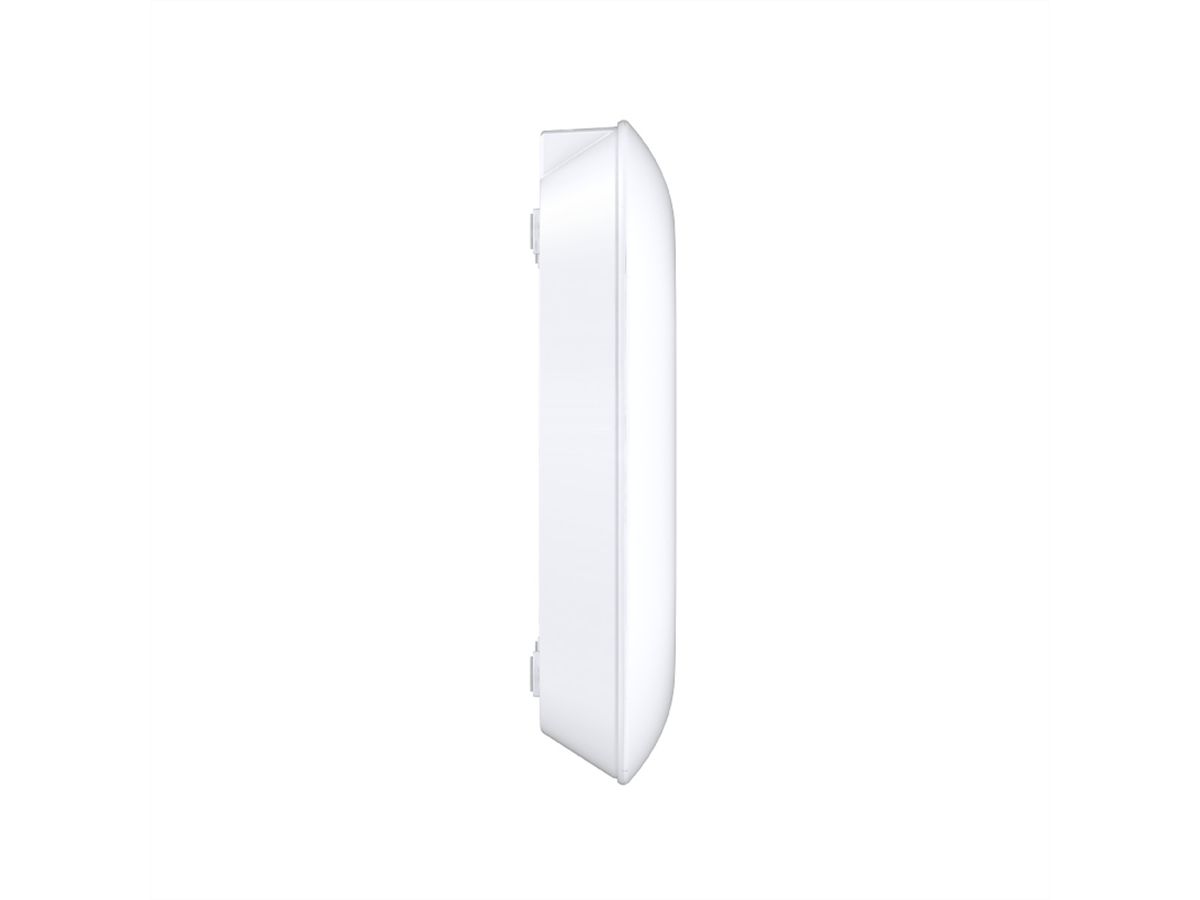

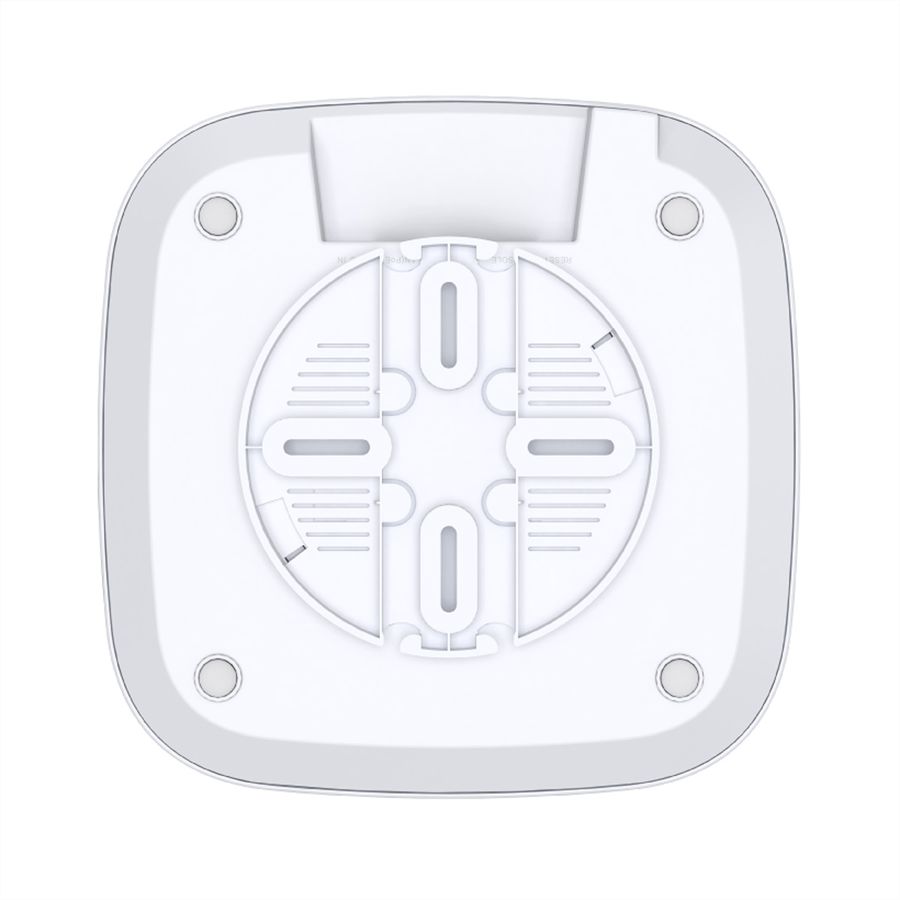

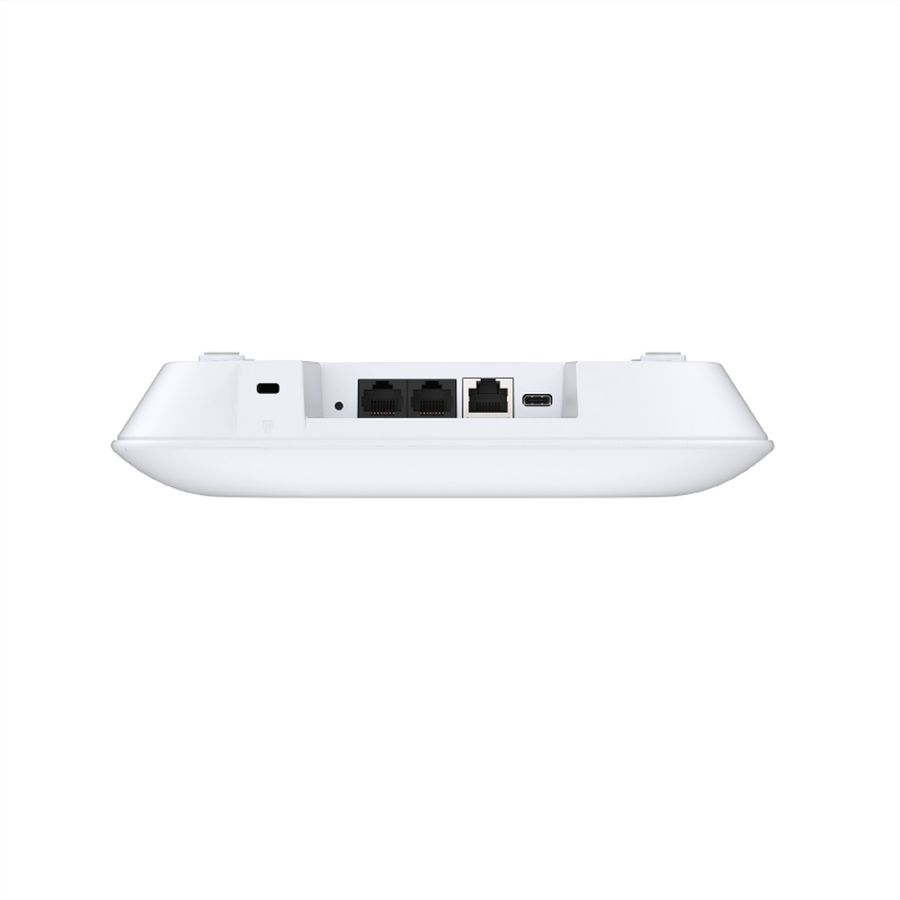

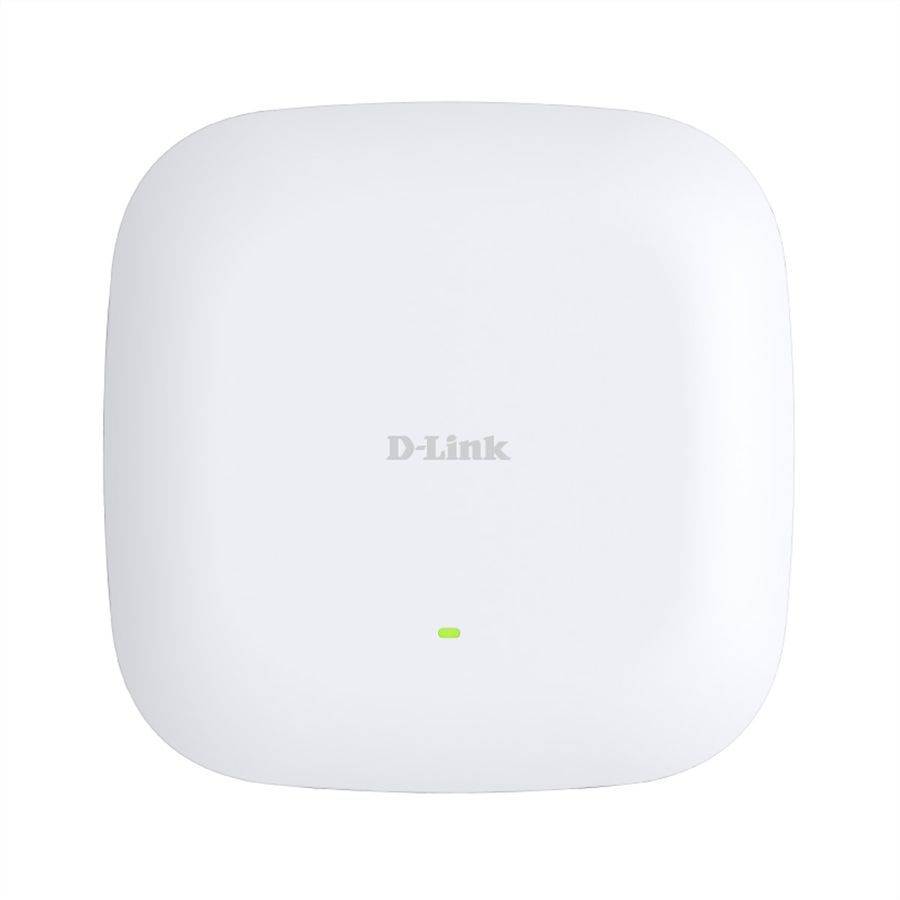

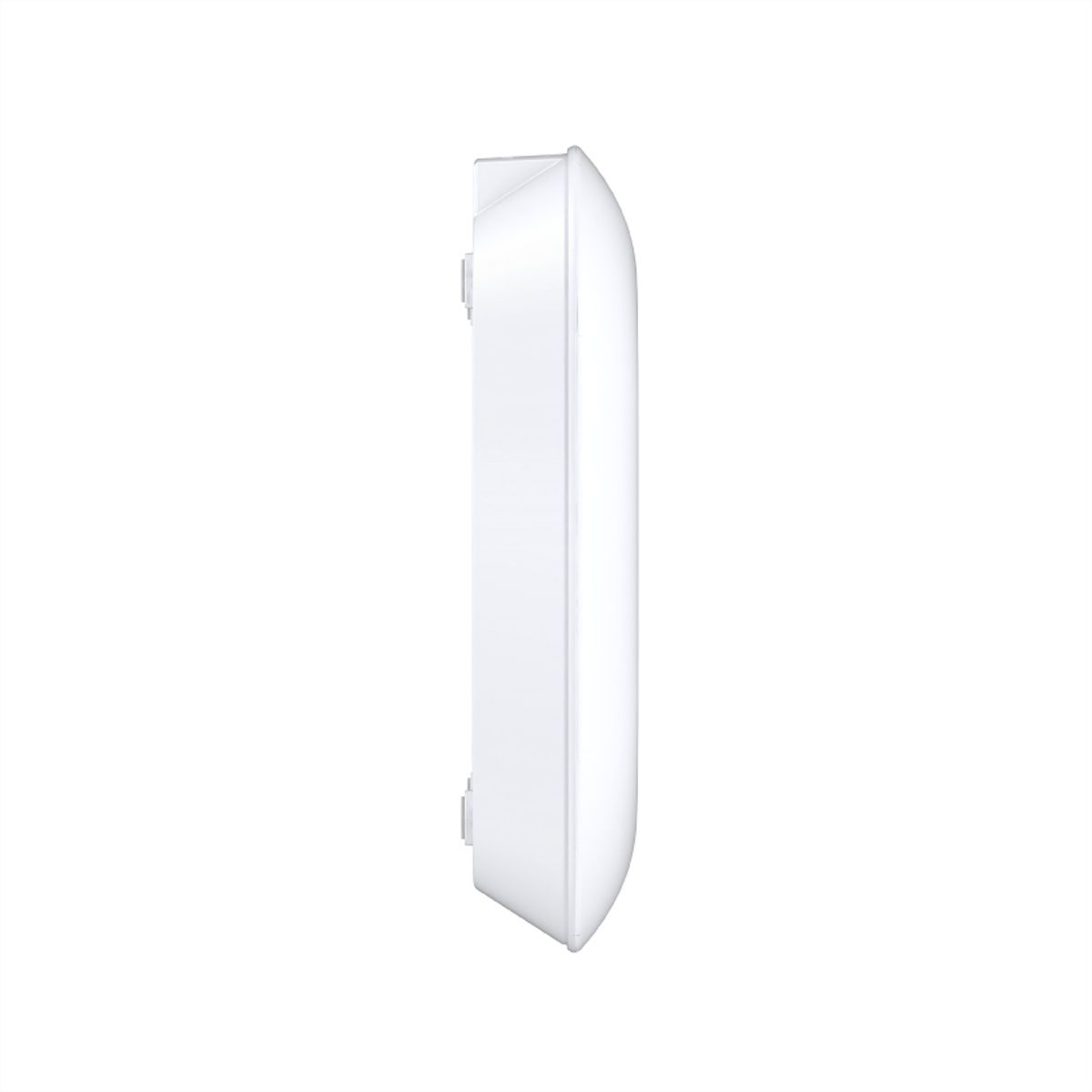

D-Link DAP-E9560 Access Point, Nuclias Connect BE9500 Wi-Fi 7

Item no. 21182516 Brand / Manufacturer D-LINK Manuf. item no. DAP-E9560 EAN 790069477355 Item weight 1.902 kg
D-LINK

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

Der D-Link DAP-E9560 WiFi 7 Access Point bietet ultraschnelles Tri-Band-WLAN bis zu BE9500. Mit 2.4/5/6 GHz, Multi-Link Operation, OFDMA und 4K-QAM liefert er maximale Geschwindigkeit und Effizienz. Ideal für Büros, Hotels, Schulen und hohe Clientdichten. Ausgestattet mit 2.5G Ethernet, PoE+, WPA3-Sicherheit und stabiler Deckenmontage – perfekte Wahl für professionelle, leistungsstarke Netzwerke.

Der D-Link DAP-E9560 ist ein leistungsstarker WiFi 7 BE9500 Access Point für professionelle Umgebungen. Er kombiniert tri-band WLAN (2.4 / 5 / 6 GHz) mit modernster Technologie wie Multi-Link Operation, OFDMA, MU-MIMO und 4K-QAM, um extrem hohe Geschwindigkeiten, niedrige Latenz und optimale Effizienz zu bieten. Durch den 2.5G-Ethernet-Port und PoE+ ist die Installation flexibel und einfach. Mit WPA3, Fast Roaming und stabiler Deckenmontage eignet sich der Access Point ideal für Büros, Hotels, Schulen oder öffentliche Bereiche mit hoher Gerätedichte.

Specifications

Manufacturer
D-LINK
Product group
Netzwerkkomponenten
Product type
Access Point
Colour
white
IEEE standard
802.11a/b/g/n/ac/ax/be
WiFi standard
WiFi 7 (IEEE 802.11be)
Maximum data transfer rate
9.5 Gbit/s
Automatic speed sensing
ja
Wi-Fi frequency band
Tri-Band
2.4 GHz data transfer rate
1147 Mbit/s
5 GHz data transfer rate
5765 Mbit/s
6 GHz data transfer rate
2882 Mbit/s
WLAN WEP encryption
nein
WLAN WPA encryption
nein
WLAN WPA2 encryption
ja
WLAN WPA3 encryption
ja
Interface
1x 2.5G Ethernet (PoE+)
Roaming
ja
Bridging functionality
ja
Removable antenna
nein
Power over Ethernet (PoE)
ja
Technical particularity
WiFi 7, Multi-Link Operation, 4K-QAM, OFDMA, MU-MIMO, Tri-Band, Ceiling Mount
Dimensions (HxWxD)
43 × 190 × 190 mm
Power supply
Power over Ethernet (PoE)
Protection class (IP Code)
IP30
Mains connection
Power over Ethernet (PoE)
Operating temperature min.
0 °C
Operating temperature max.
40 °C
Storage temperature min.
-20 °C
Storage temperature max.
60 °C
Height
43 mm
Width
190 mm
Depth
190 mm
Weight
650 g
Height of packaging (single piece)
110 mm
Width of packaging (single piece)
300 mm
Depth of packaging (single piece)
300 mm
Package weight (single piece)
1.902 kg
