Description

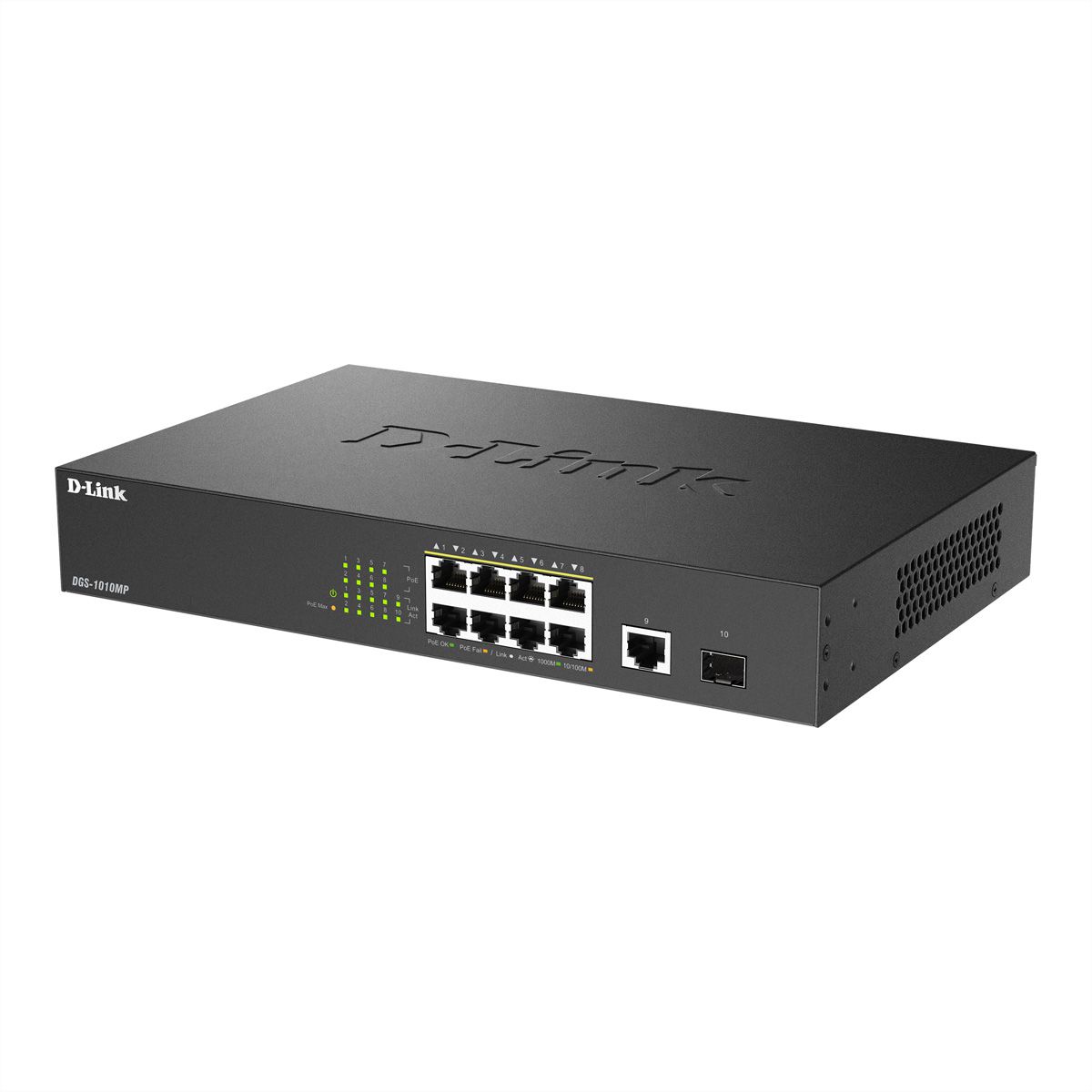

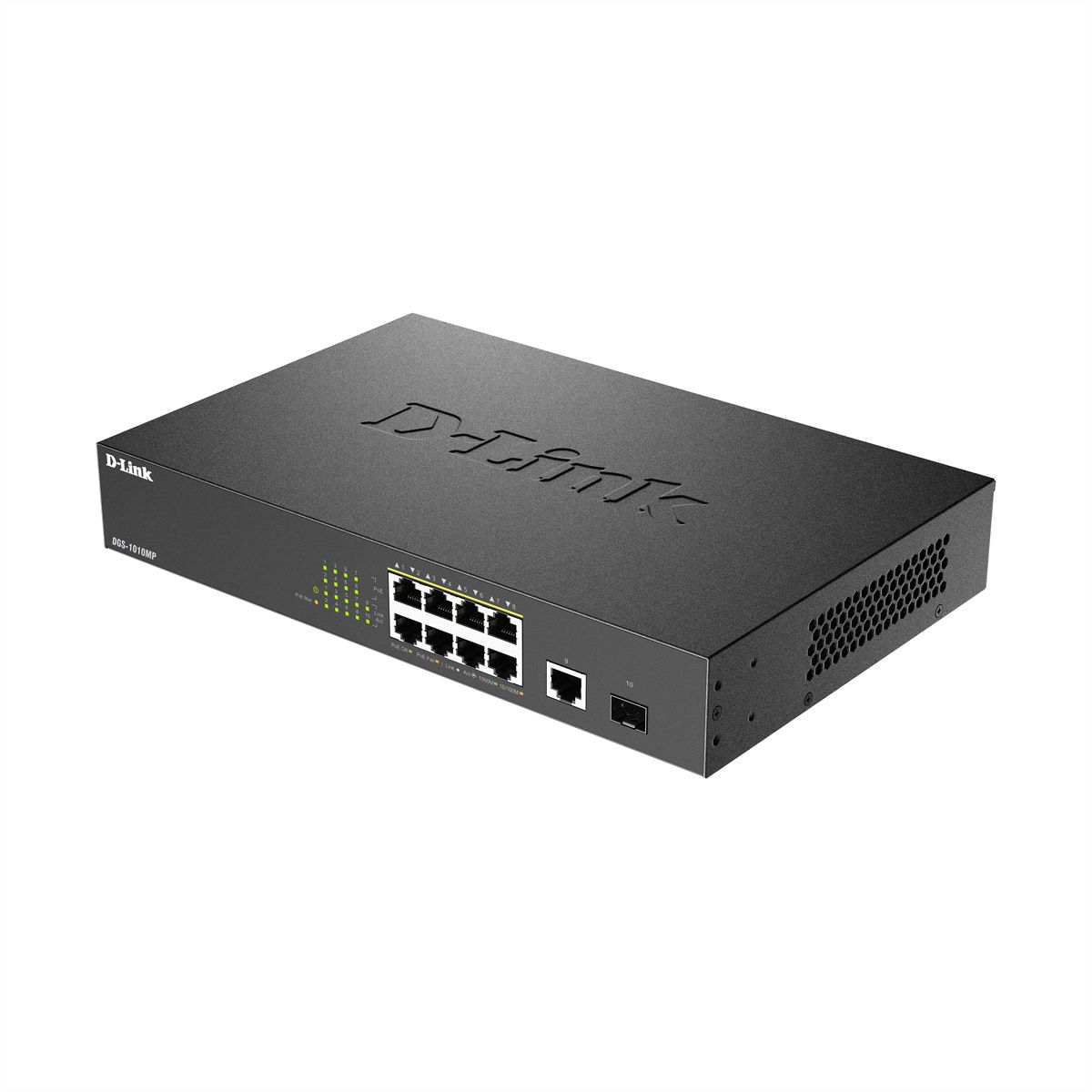

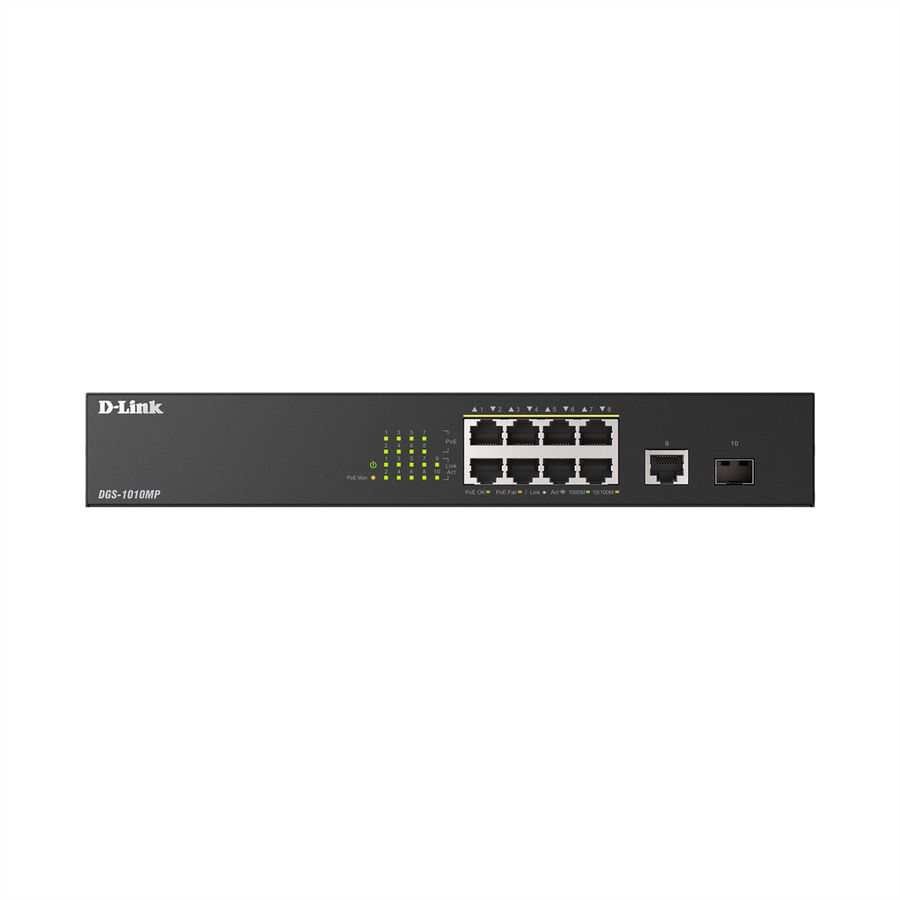

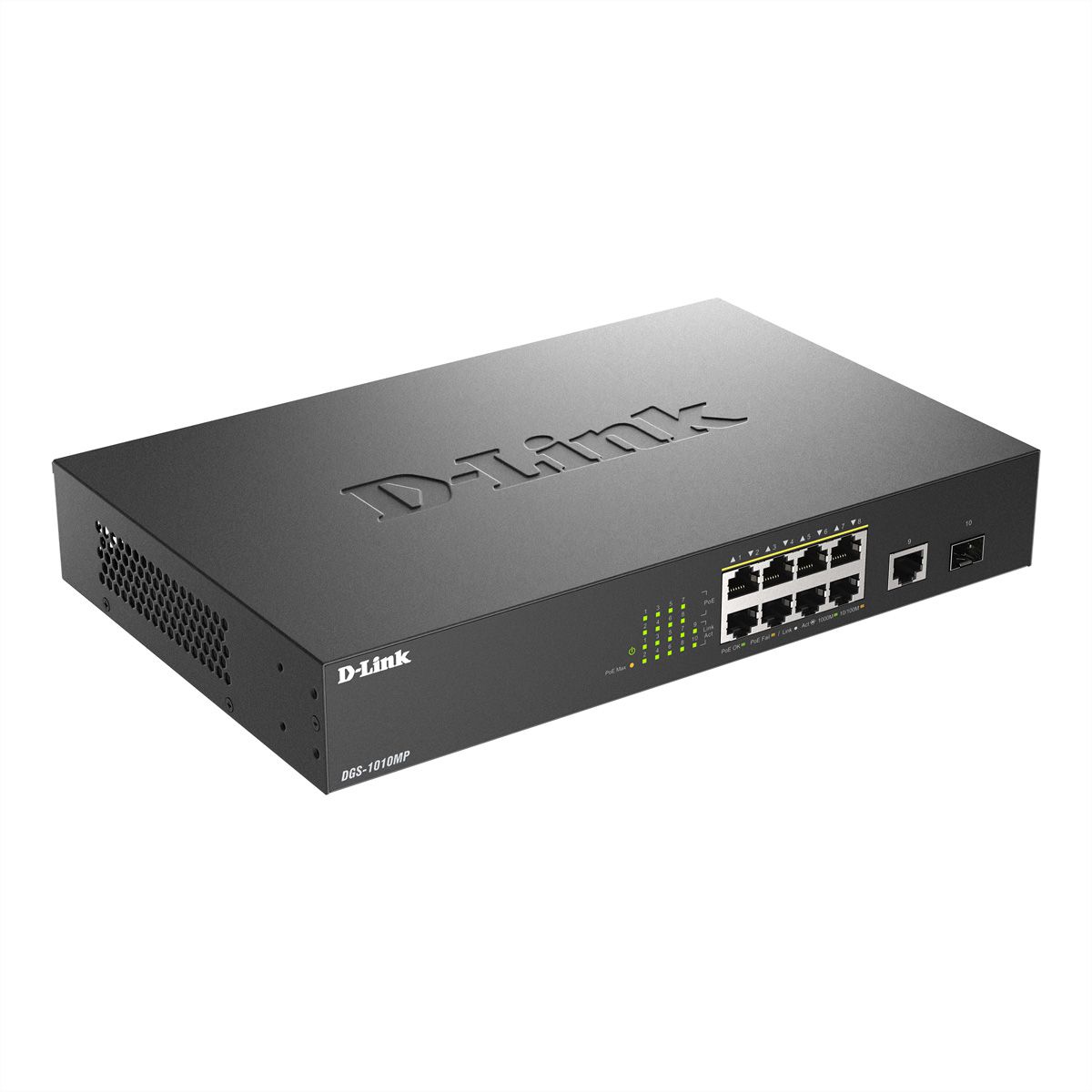

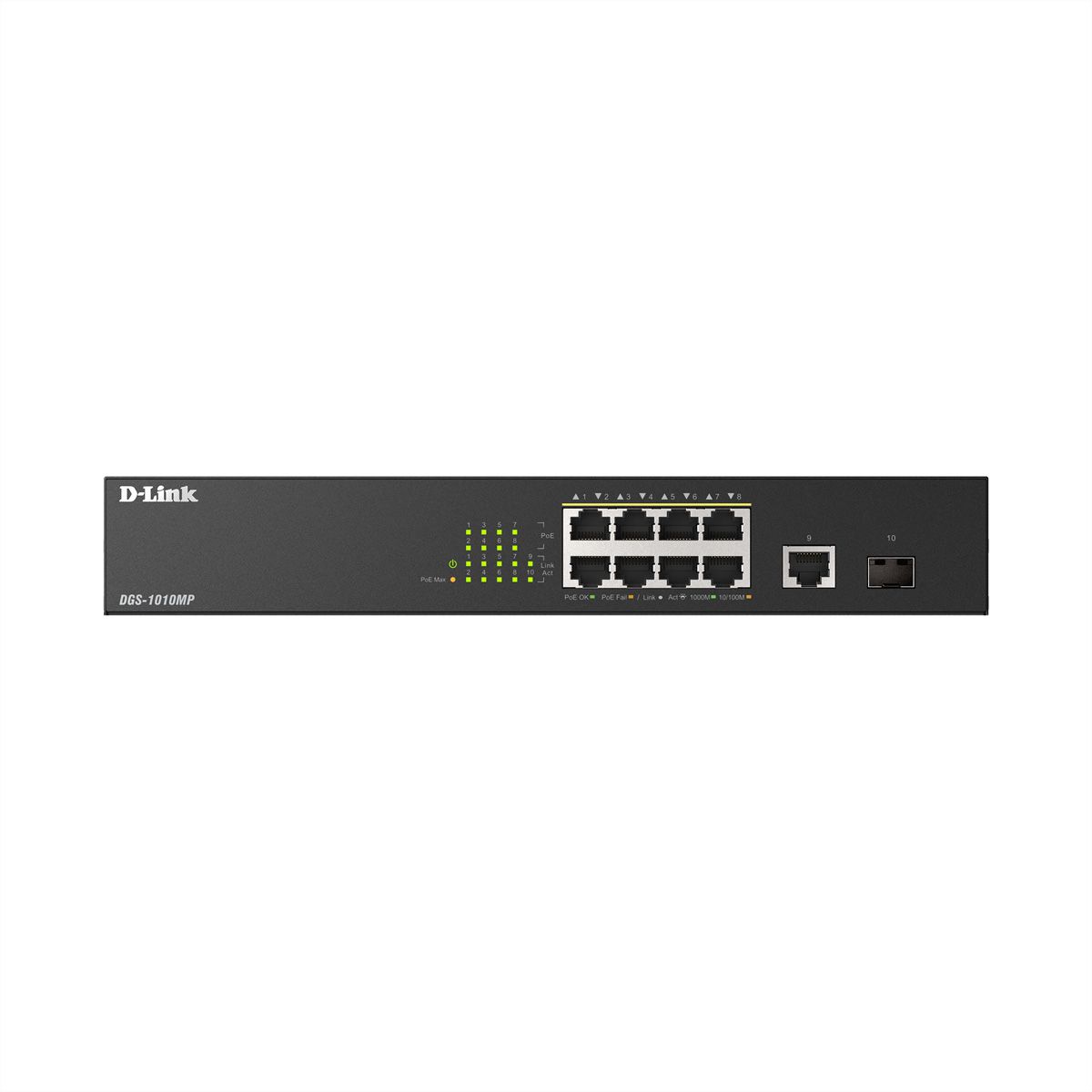

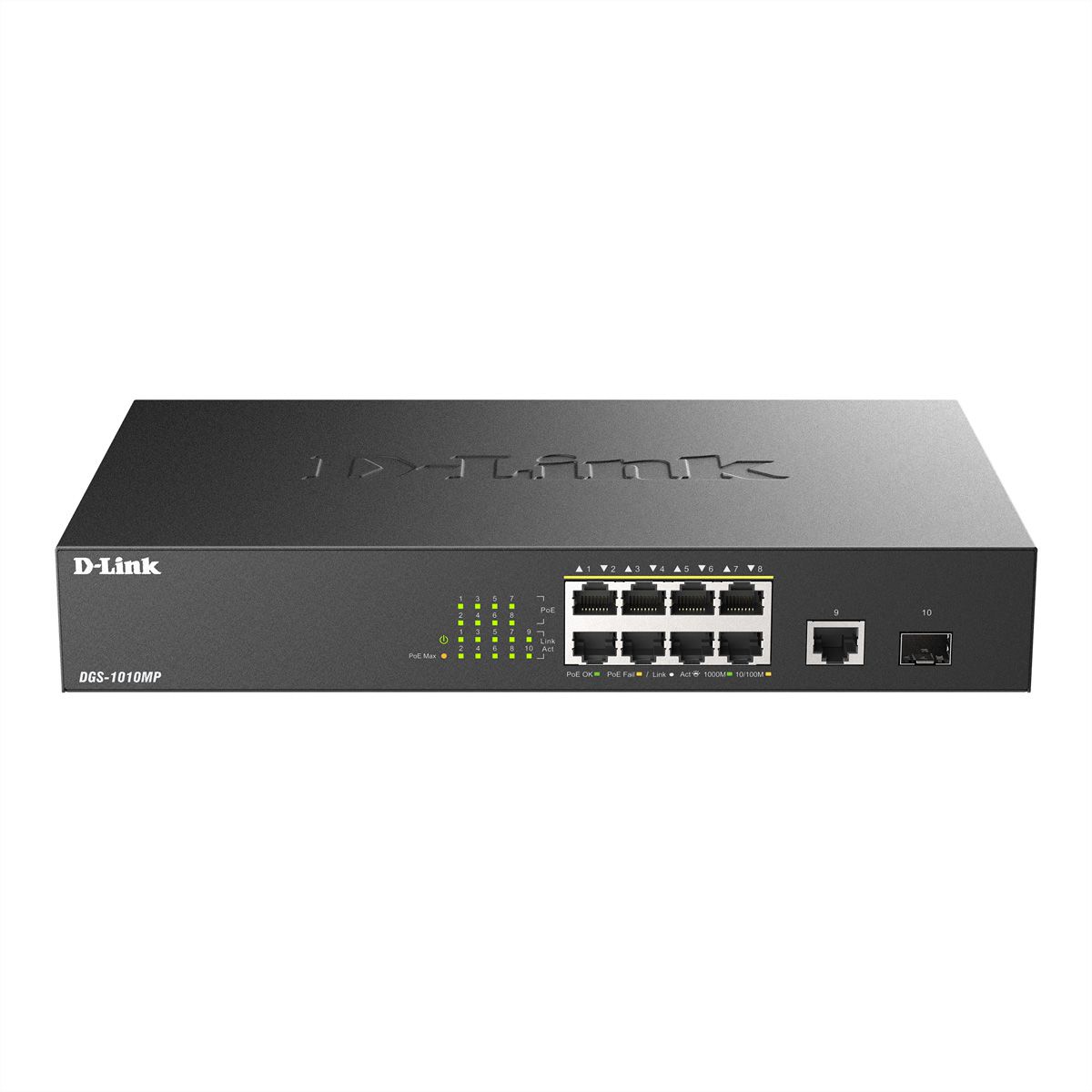

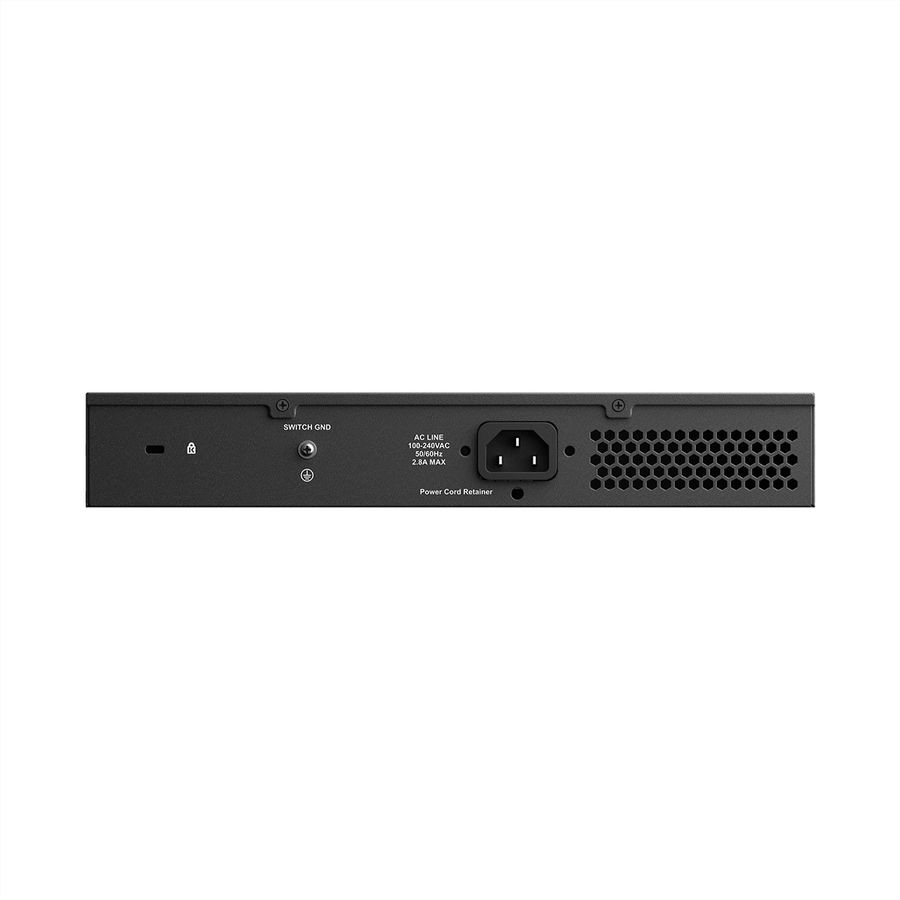

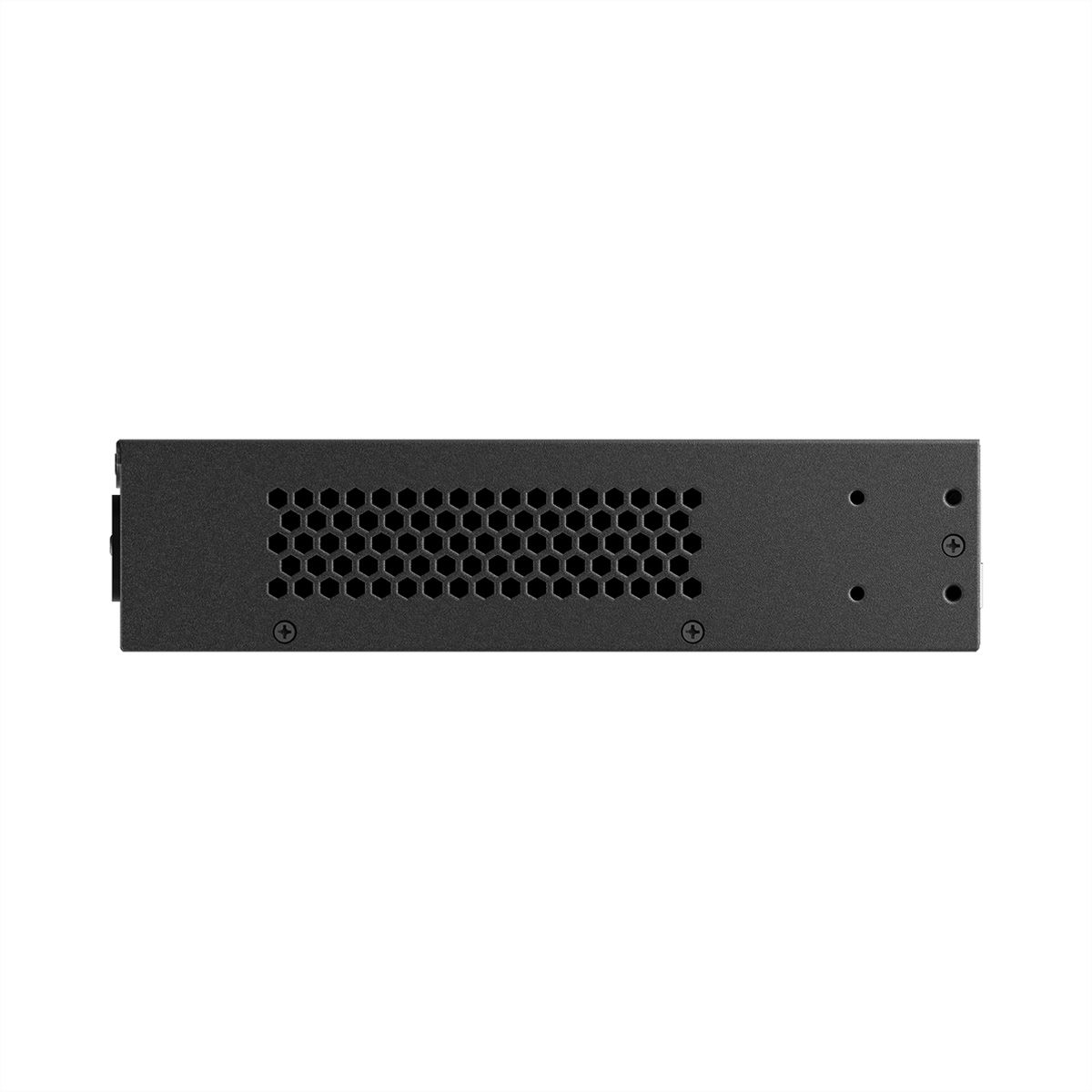

10-Port Gigabit PoE+ Unmanaged Switch with 1x SFP port and 1x Gigabit Uplink Port

• 8x 10/100/1000 Mbps PoE+ ports
• 1x 10/100/1000 Mbps port
• 1x SFP port
• Total PoE Power Budget: 125W
• 802.3af/at, up to 30W per port
• Auto MDI/MDI-X crossover for all ports
• 20 Gbps Switching Capacity
• 1U Rack Mountable

Specifications

Manufacturer	D-LINK
Product group	Network Switches
Product type	Gigabit Ethernet Switch
Colour	black
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	10
Gigabit Ethernet Ports RJ-45	8
Free slots for SFPs	1
Other connectors	1x 10/100/1000 Mbps Ethernet uplink port
Power over Ethernet (PoE)	PoE+ (IEEE 802.3at)
Quantity of PoE ports	8
Max. PoE output power per port	30 W
Max. PoE output power (total)	125 W
Mounting form	19" Rackmount
Management	Layer2

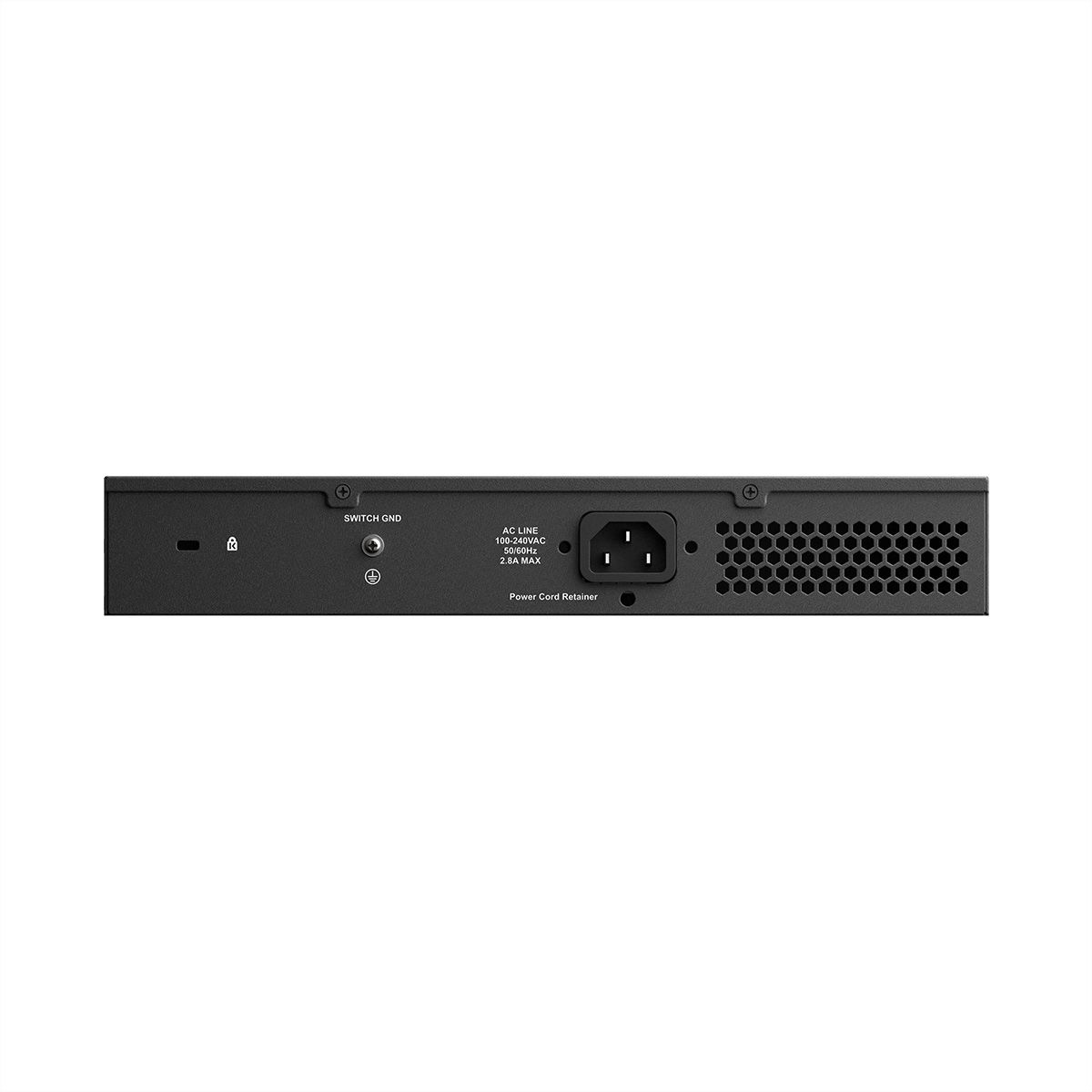

Power supply	Mains operation
Mains connection	Cold appliance connection
Operating temperature min.	0 °C
Operating temperature max.	40 °C
Storage temperature min.	-10 °C
Storage temperature max.	70 °C
Height	44 mm
Width	280 mm
Depth	180 mm
Weight	1.75 kg
Height of packaging (single piece)	260 mm
Width of packaging (single piece)	390 mm
Depth of packaging (single piece)	110 mm
Package weight (single piece)	2.461 kg

Downloads

Manufacturer data sheet - English (537.2 KB)

Download

For 30 years, the D-LINK brand has stood for high-quality network and monitoring technology as well as tailor-made complete solutions.

D-LINK's product portfolio not only offers technical solutions, but also consistently delivers practice-oriented innovations. Products and solutions are offered from a single source: wireless, switching and video surveillance. Starting with a simple WLAN router to complex network accessories, the D-LINK offers just about everything.

D-LINK products are suitable for private use as well as for professional use in industry and commerce.
