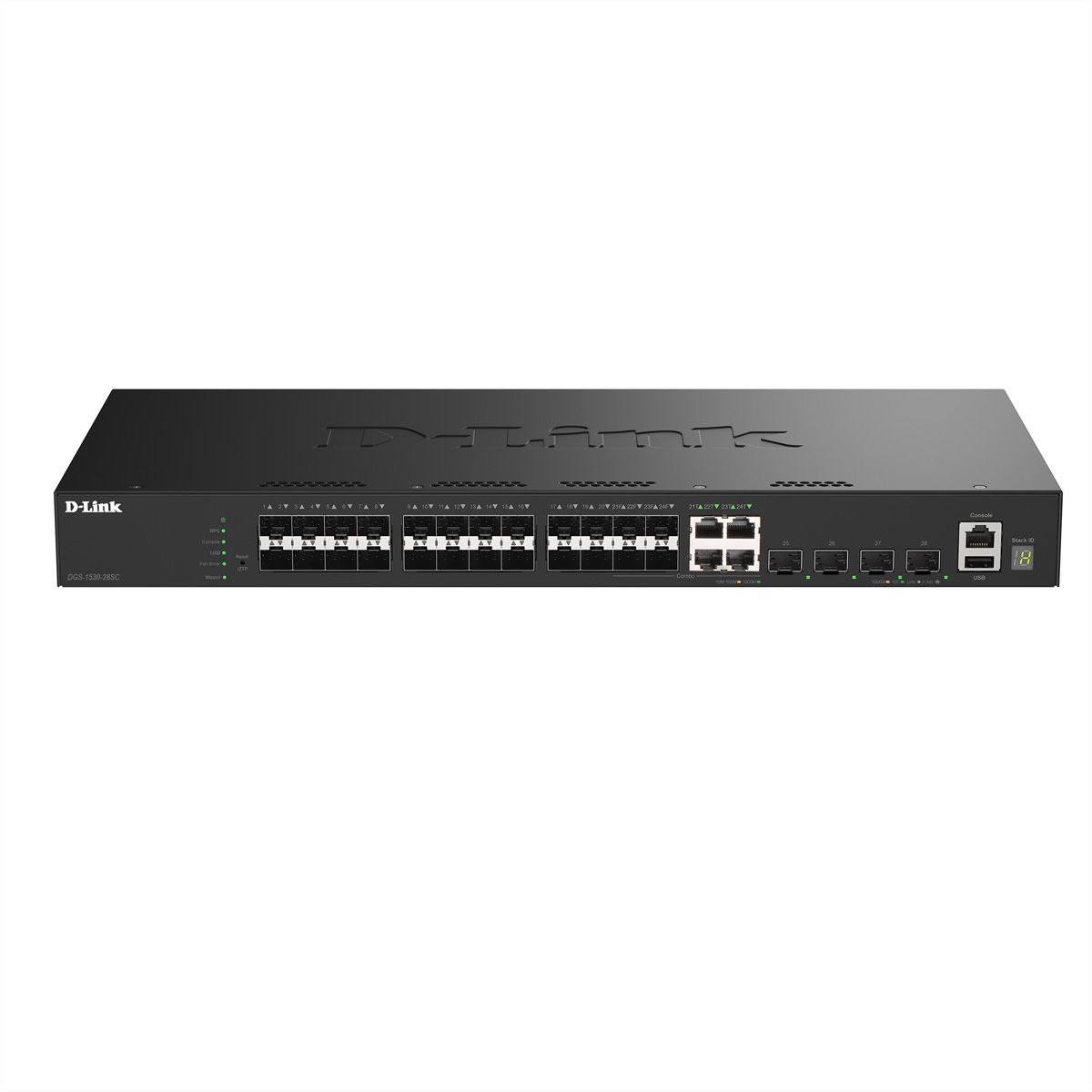

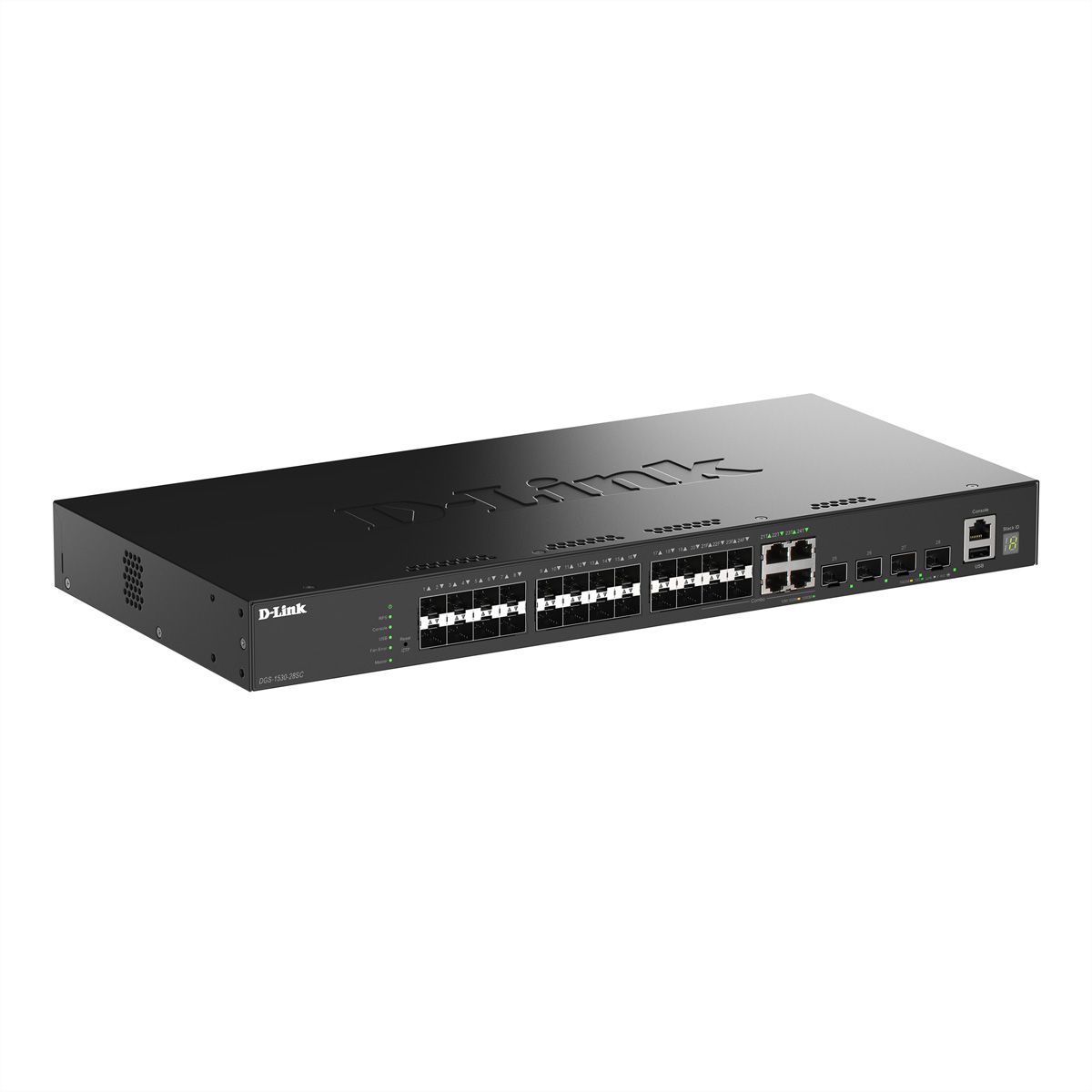

D-Link DGS-1530-28SC/E 28-Port Switch

Item no. 21182375 Brand / Manufacturer D-LINK Manuf. item no. DGS-1530-28SC/E EAN 790069474569 Item weight 4.274 kg

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 08/25/2026

Download PDF

Description

28-Port Gigabit Stackable Smart Managed Switch including 4 10G SFP+

20x 1Gbit/s Fiber (SFP) Slot
4x 1G SFP/RJ45 Combo Ports
4x 10Gbit/s Fiber (SFP+) Slot for Uplink or Stacking
Physical Stacking up to 6 units per stack. Physical Stacking Bandwidth of 40Gb. Topology Linear or Ring.
Switch Capacity 128Gbps
D-Link Green 3.0, 802.3az
Virtual stacking up to 32 devices.
Static route
IPv6 Management/Ready Logo
Half-/Full-Duplex, auto-negotiation, Auto MDI/MDIX
IEEE 802.3x Flow Control
802.3ad Link Aggregation
Asymmetric VLAN, Auto Voice VLAN, GVRP
802.1p priority queues
MAC/IP filtering
MAC/IP-based ACL
802.1X port-base Access Control, Port Security, traffic segmentation
D-Link Safequard Engine
D-Link Network Assist, web based management, compact CLI
Dual Image FW
19" Rackmount Installation

Specifications

Manufacturer: D-LINK
Product group: Network Switches
Product type: Network Switch
Colour: black
Network standard: Gigabit Ethernet
LAN (Mbps): 10/100/1000
Quantity of ports: 28
Gigabit Ethernet Ports RJ-45: 4
Free slots for SFPs: 24
Mounting form: 19" Rackmount
Mounting angle: Included in content of delivery
Management: Smart
Stackable: yes
Power supply: Mains operation
Mains connection: Cold appliance connection
Operating temperature min.: -5 °C
Operating temperature max.: 50 °C
Storage temperature min.: -20 °C
Storage temperature max.: 70 °C
Height: 44 mm
Width: 440 mm
Depth: 210 mm
Weight: 3.15 kg
Height of packaging (single piece): 90 mm
Width of packaging (single piece): 350 mm
Depth of packaging (single piece): 590 mm
Package weight (single piece): 4.274 kg

Downloads

Manufacturer data sheet - English (894.9 KB)
