Description

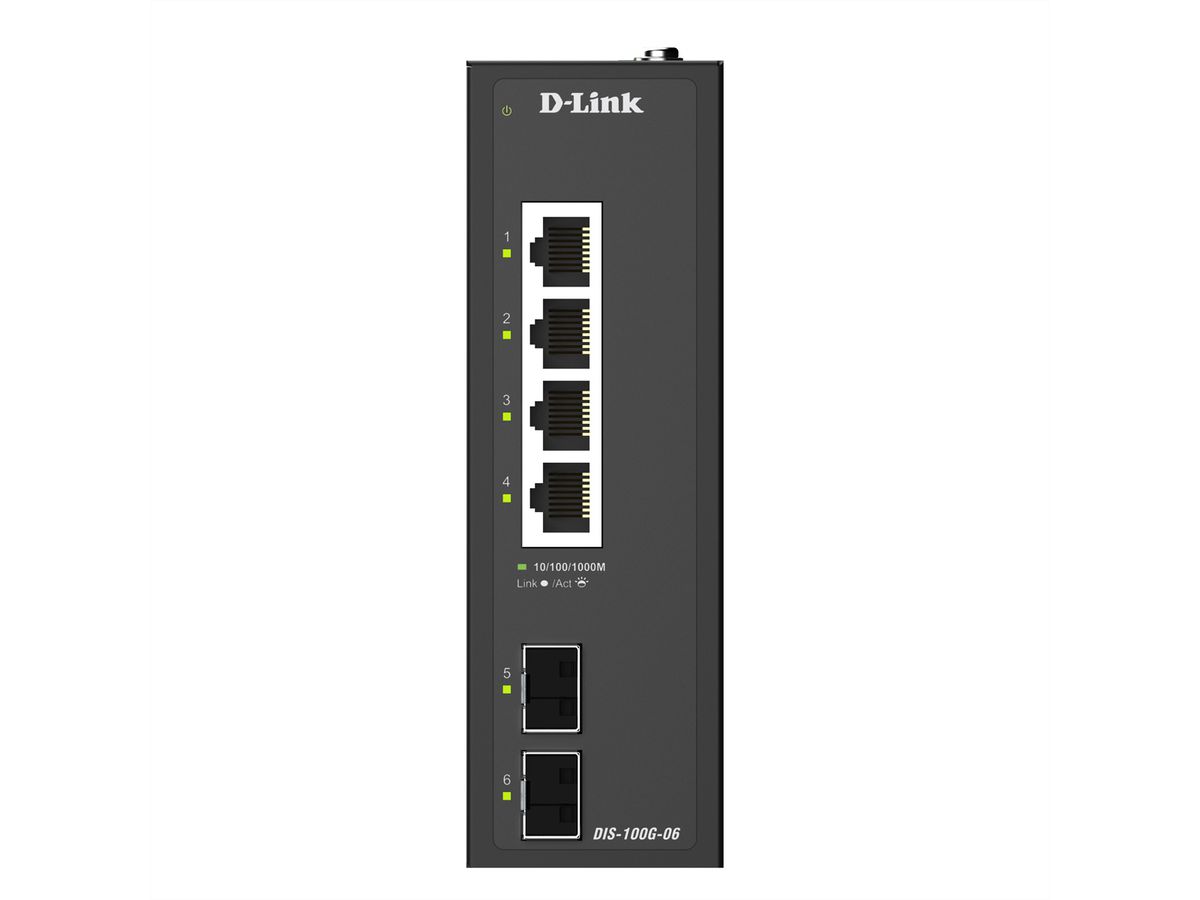

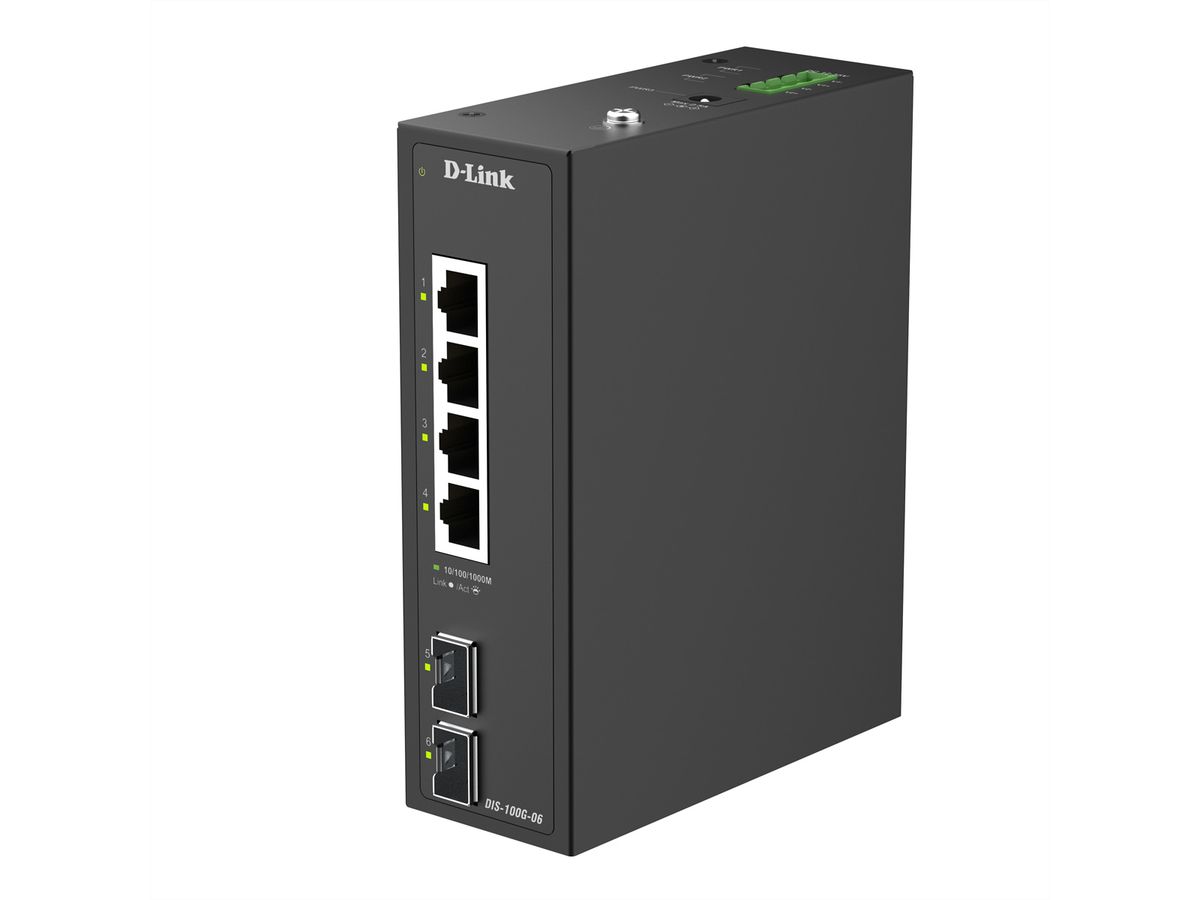

Die Gigabit Industrial Unmanaged Switches DIS-100G-06 und DIS-100G-10 verfügen über 10/100/1000BASE-T-Anschlüsse und SFP-Ports. Diese Switches zeichnen sich durch ein robustes Design aus. Darüber hinaus sind die DIS-100G-06 und DIS-100G-10 Plug-and-Play-fähig, was eine mühelose und schnelle Bereitstellung ermöglicht.

• Anzahl/Art der Ports: 4x 100/1000Mbit/s TP (RJ-45) Port; 2x SFP port
• SFP/SFP+ Anschlüsse: 2 / Nein
• 10G Anschlüsse: Nein
• Management Level: Unmanaged
• PoE Ports/PoE Power Budget: Nein/Nein
• OSI Level / Stackable: Layer 2 / Nein
• Lüfter: Nein
• Gehäuseform/-material: DIN-Schiene / Metall

Specifications

Manufacturer	D-LINK
Product group	Industrial Networking
Product type	Gigabit Ethernet Switch
Colour	black
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	6
Gigabit Ethernet Ports RJ-45	4
Free slots for SFPs	2
Mounting form	Hutschiene
Management	nein
Stackable	nein
Protection class (IP Code)	IP40
Operating temperature min.	-40 °C
Operating temperature max.	75 °C
Storage temperature min.	-40 °C
Storage temperature max.	85 °C
Height	44 mm
Width	138 mm
Depth	108 mm
Weight	0.61 kg
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg
