Description

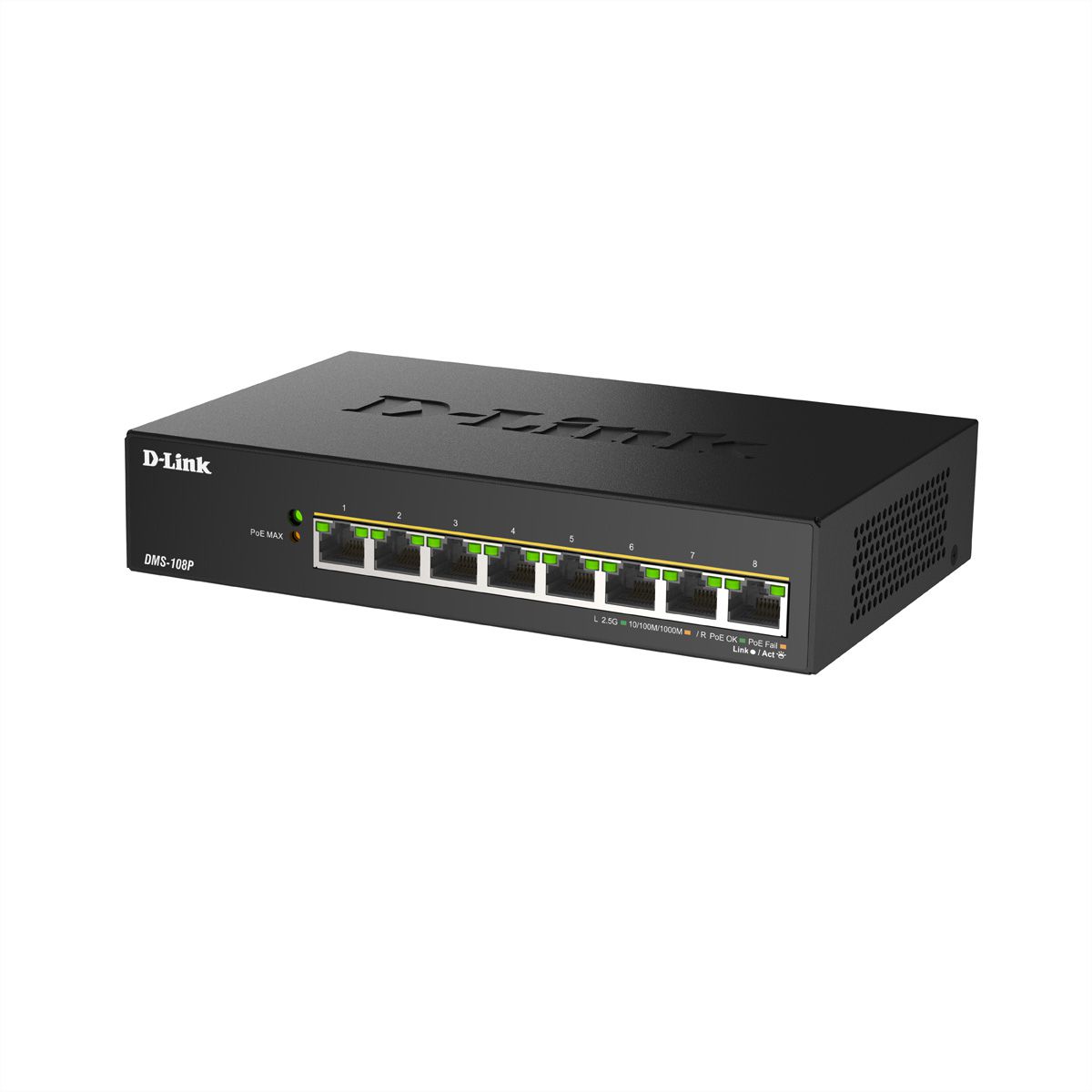

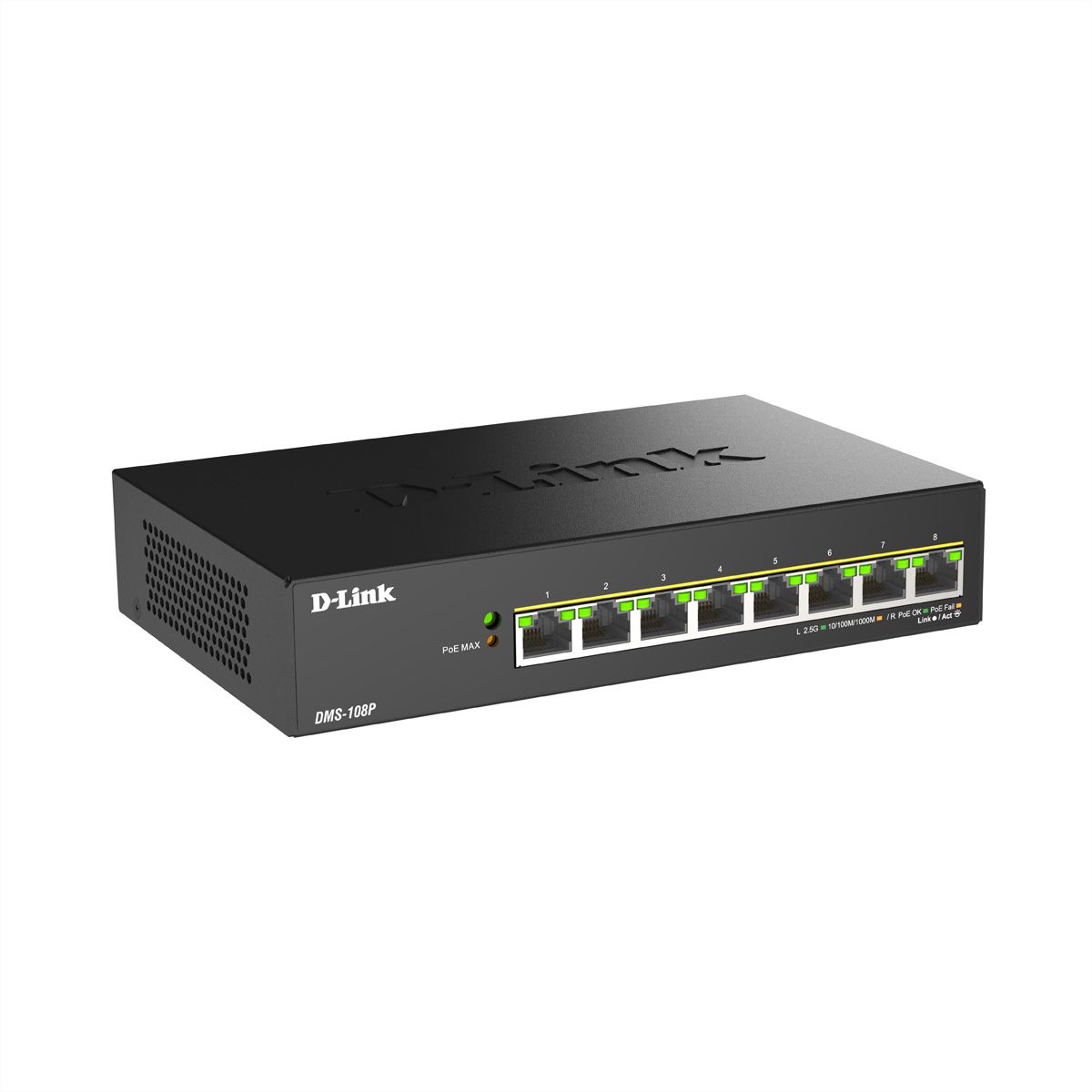

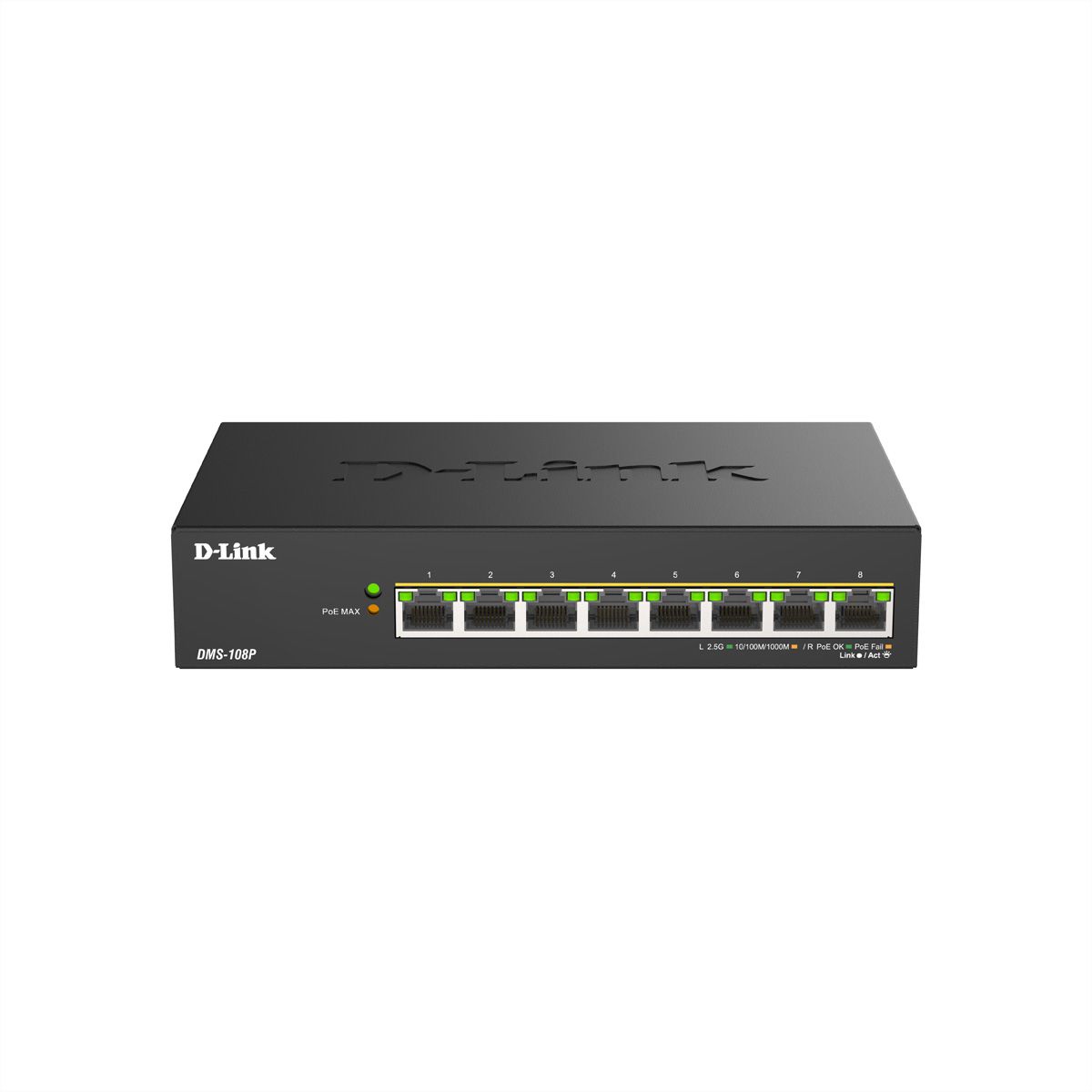

Der 8-Port Multi-Gigabit Unmanaged PoE Switch (DMS-108P) mit acht 2,5-Gigabit-Ports bietet eine schnelle und einfache Möglichkeit, Ihr Netzwerk aufzurüsten, indem Engpässe beseitigt werden, um Leistung und Durchsatz zu maximieren. Die 2,5-Gigabit-Ports bieten eine schnelle und zuverlässige Verbindung zu NAS-Geräten (Network Attached Storage), Wi-Fi 6-Routern/Zugangspunkten und zu mehreren Gaming-Computern und Arbeitsstationen ermöglichen. Er ist ideal für anspruchsvolle Unternehmens- oder Heimnetzwerke.

• 8x 10/100/1000/2500 Mbps PoE++ ports
• Total PoE Power Budget: 240W
• 802.3af/at/bt, up to 90W per port
• Compact Fanless Metal Housing design
• IGMP Snooping optimises multicast data streams for bandwidth-intensive applications such as IPTV
• Auto MDI/MDIX adjustment for all ports
• 802.3x Flow Control
• 802.1p QoS
• 802.3az Energy-Efficient Ethernet (EEE)
• Switching Capacity: 40 Gbps
• Transmission Method: Store-and-forward
• MAC Address Table: 4K entries

Specifications

Manufacturer	D-LINK
Product group	Netzwerkkomponenten
Product type	Gigabit Ethernet Switch
Colour	black
Network standard	2.5 Gigabit Ethernet
LAN (Mbps)	10/100/1000/2500
Quantity of ports	8
2.5 Gigabit Ethernet Ports RJ-45	8
Power over Ethernet (PoE)	ja
Quantity of PoE ports	8
Max. PoE output power per port	90 W
Max. PoE output power (total)	240 W
Management	nein
Operating temperature min.	0 °C
Operating temperature max.	40 °C
Storage temperature min.	-10 °C
Storage temperature max.	70 °C
Height	38 mm
Width	190 mm
Depth	120 mm
Weight	0.753 kg
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - English (184.3 KB)

Download

For 30 years, the D-LINK brand has stood for high-quality network and monitoring technology as well as tailor-made complete solutions.

D-LINK's product portfolio not only offers technical solutions, but also consistently delivers practice-oriented innovations. Products and solutions are offered from a single source: wireless, switching and video surveillance. Starting with a simple WLAN router to complex network accessories, the D-LINK offers just about everything.

D-LINK products are suitable for private use as well as for professional use in industry and commerce.
