Description

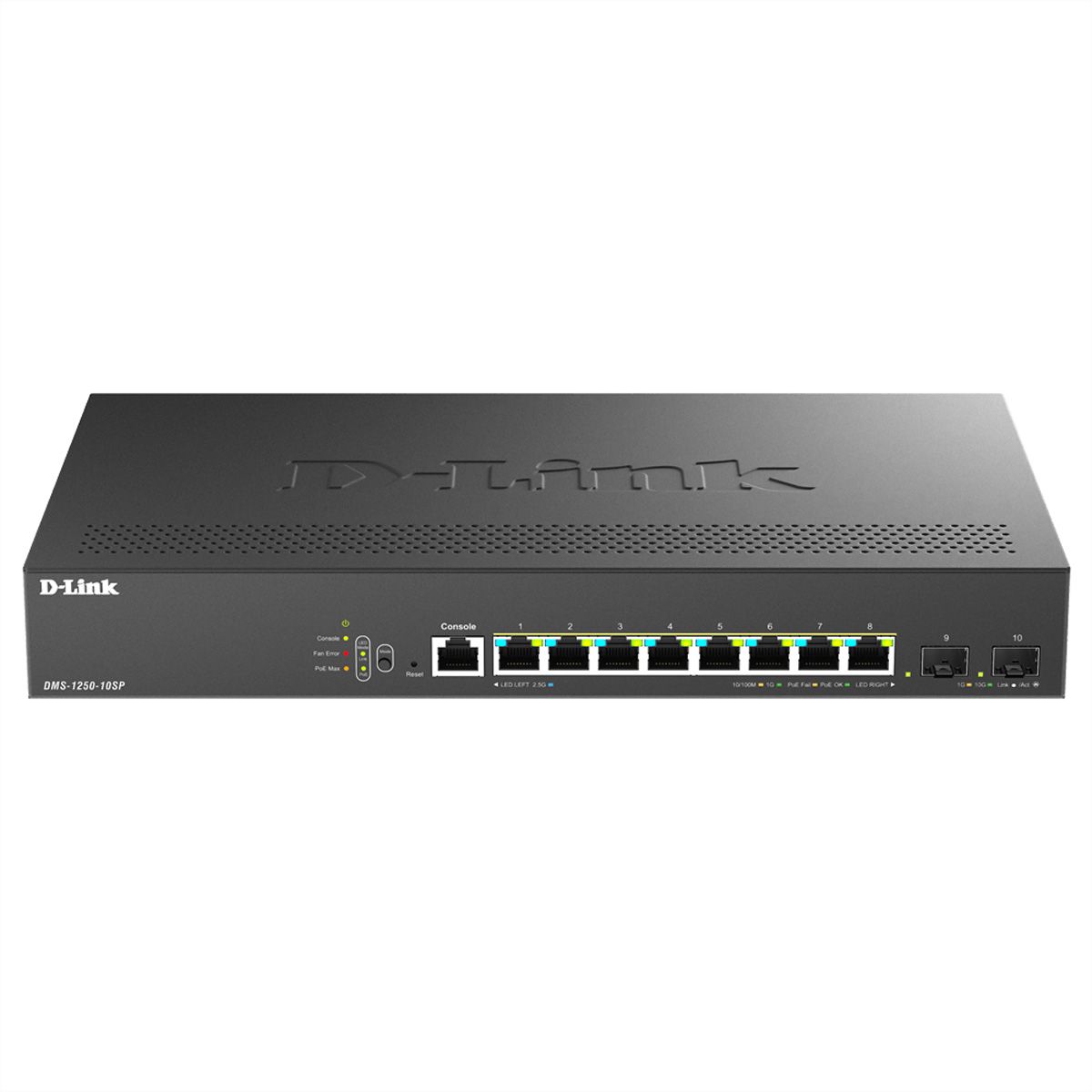

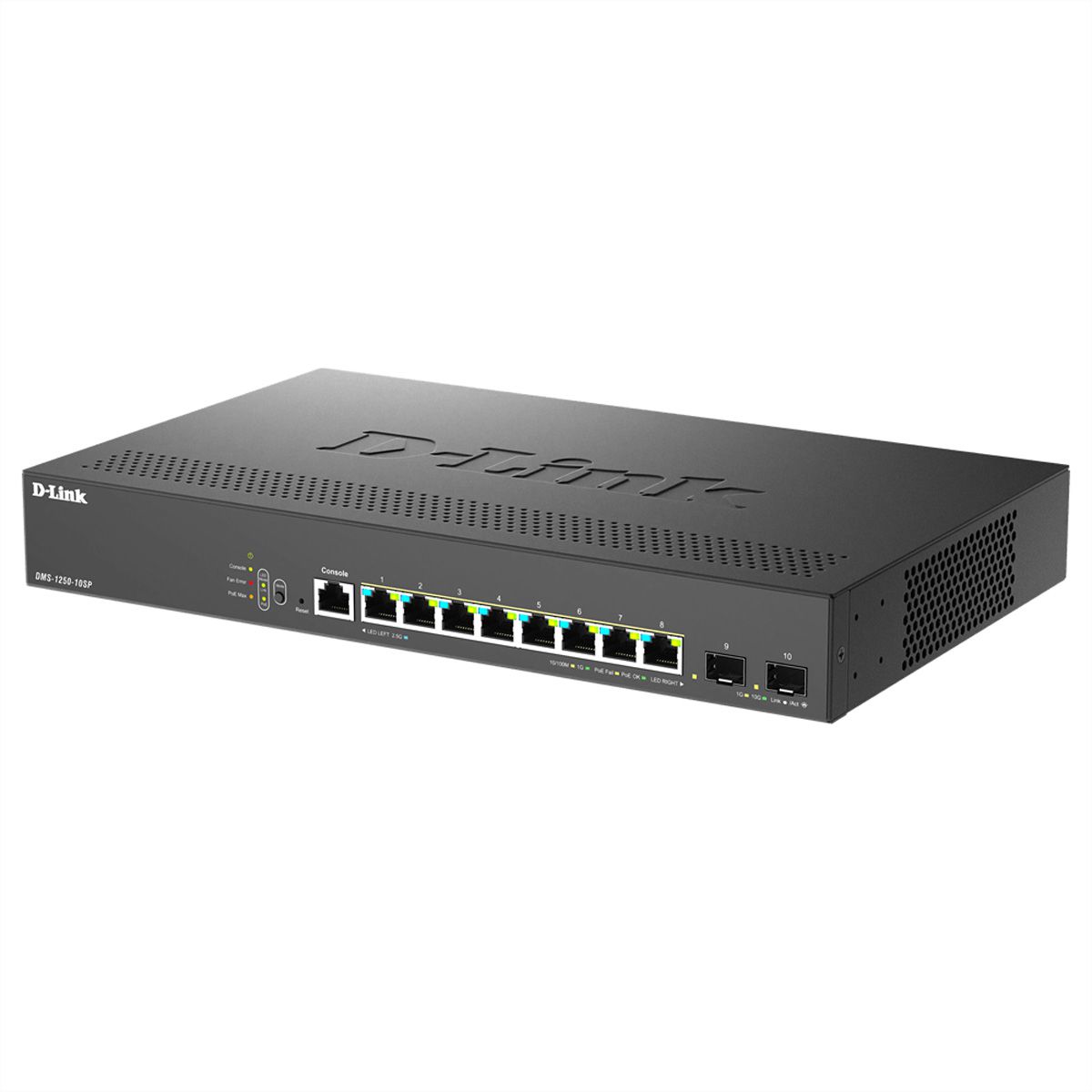

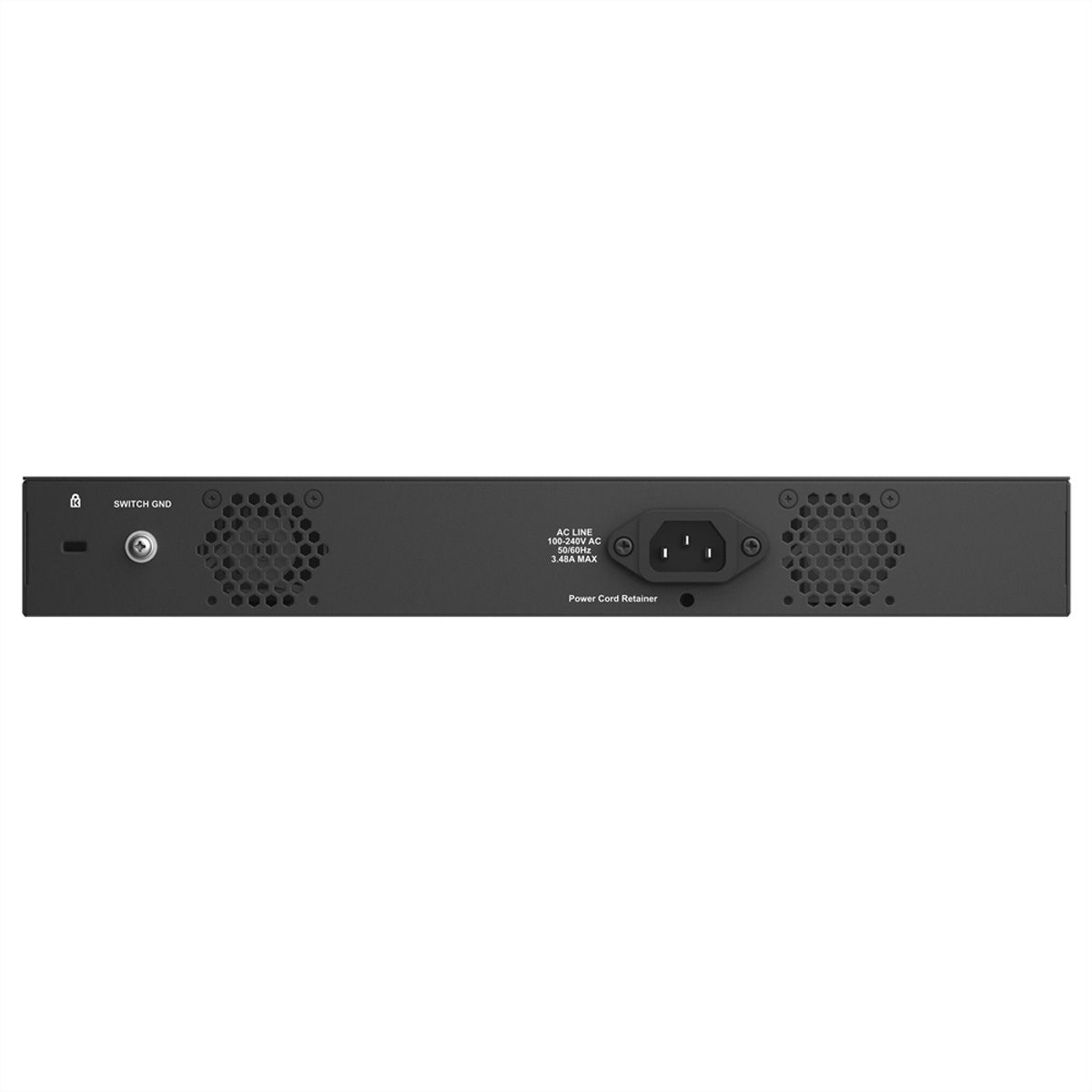

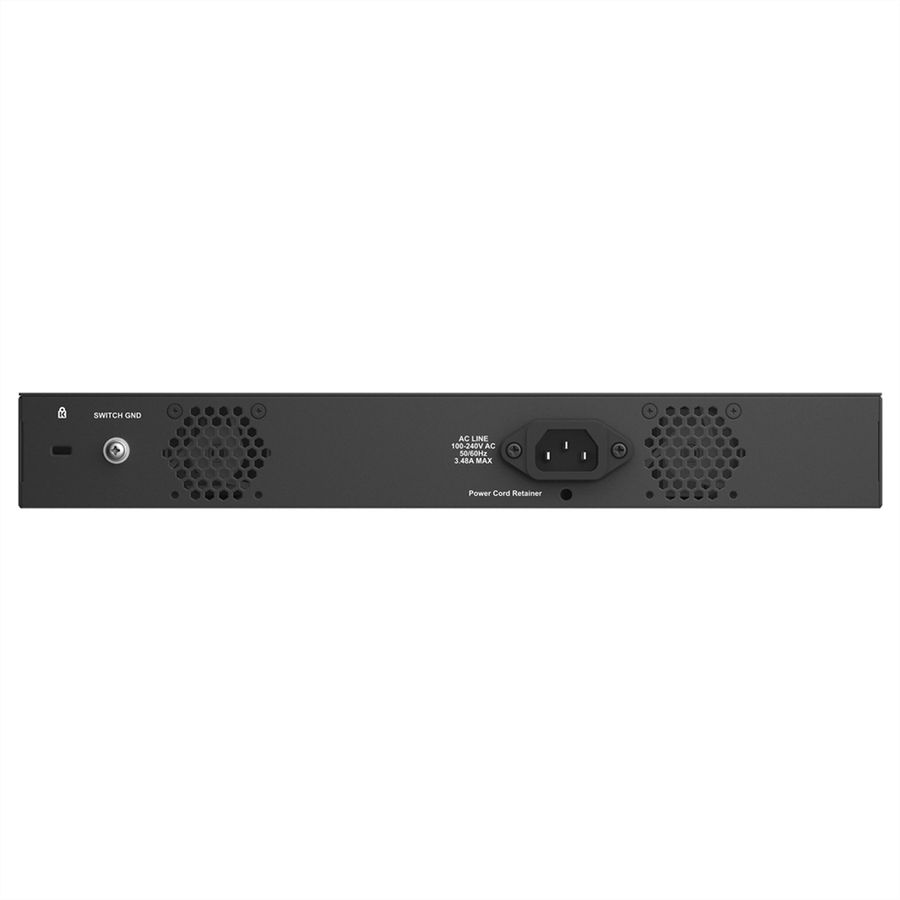

Smart Managed 8-Port-Multi-Gigabit-Switch

• 8 Ports 2.5GE PoE for downlink
• 2 Ports 10G SFP+ for uplink
• PoE IEEE802.3af/at options, power budget 240W
• 6kV surge protection on all 2.5G ethernet ports
• Support LACP 802.3ad Link Aggregation
• Support Static Routing & Loopback Detection
• Support Spanning Tree Protocol(STP/RSTP/MSTP)
• AAA support for RADIUS/TACACS+
• Support D-Link Safeguard Engine
• Manage through the Nuclias Network Controller

Specifications

Manufacturer	D-LINK
Product group	Network Switches
Product type	Gigabit Ethernet Switch
Colour	black
Network standard	2.5 Gigabit Ethernet
LAN (Mbps)	10/100/1000/2500
Quantity of ports	10
2.5 Gigabit Ethernet Ports RJ-45	8
Free slots for SFPs	2
Power over Ethernet (PoE)	yes
Quantity of PoE ports	8
Max. PoE output power (total)	240 W
Mounting form	Rack
Management	Layer2
Operating temperature min.	-5 °C
Operating temperature max.	50 °C
Height	44 mm
Width	330 mm
Depth	200 mm
Weight	2.377 kg
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - English (484.2 KB)

Download

For 30 years, the D-LINK brand has stood for high-quality network and monitoring technology as well as tailor-made complete solutions.

D-LINK's product portfolio not only offers technical solutions, but also consistently delivers practice-oriented innovations. Products and solutions are offered from a single source: wireless, switching and video surveillance. Starting with a simple WLAN router to complex network accessories, the D-LINK offers just about everything.

D-LINK products are suitable for private use as well as for professional use in industry and commerce.
