Description

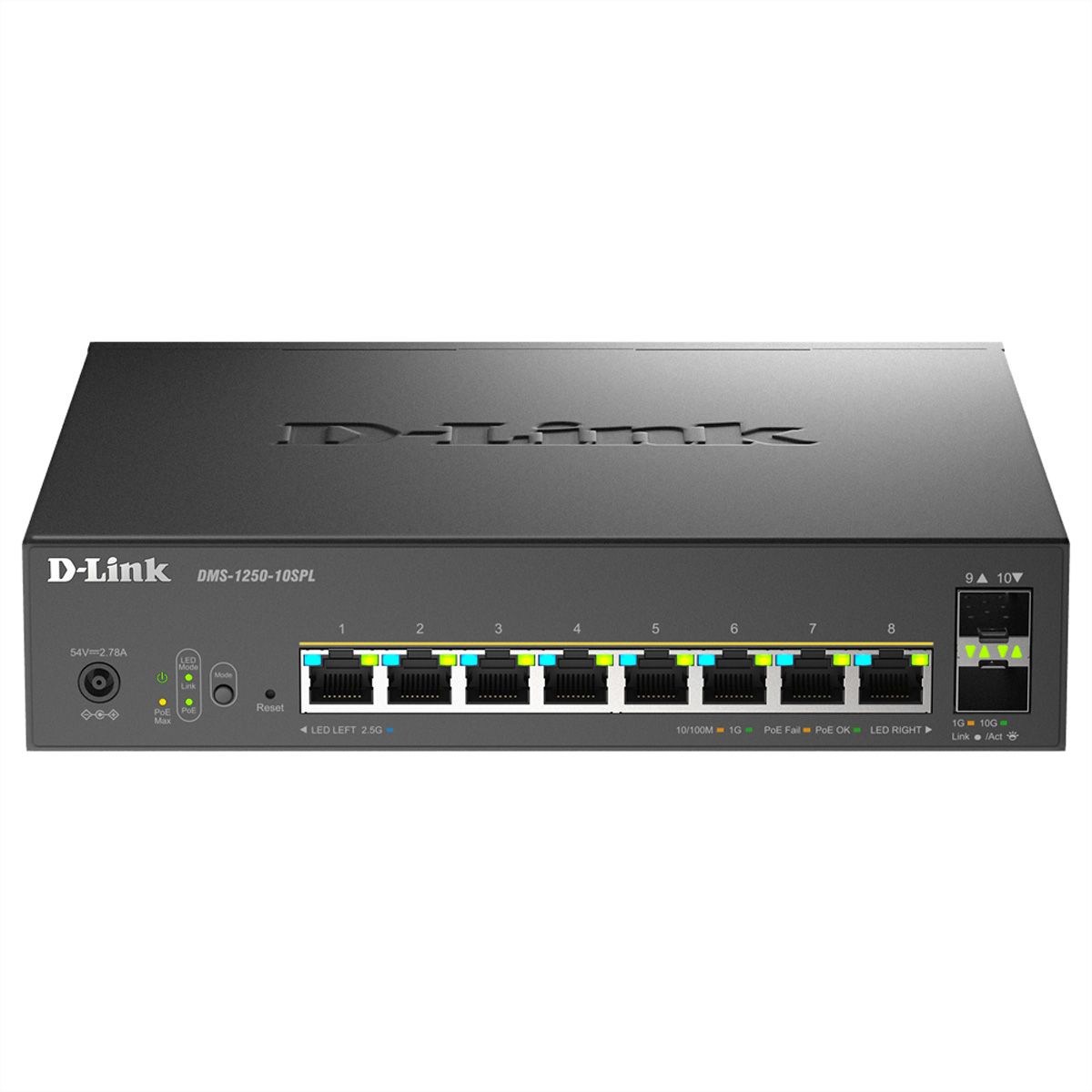

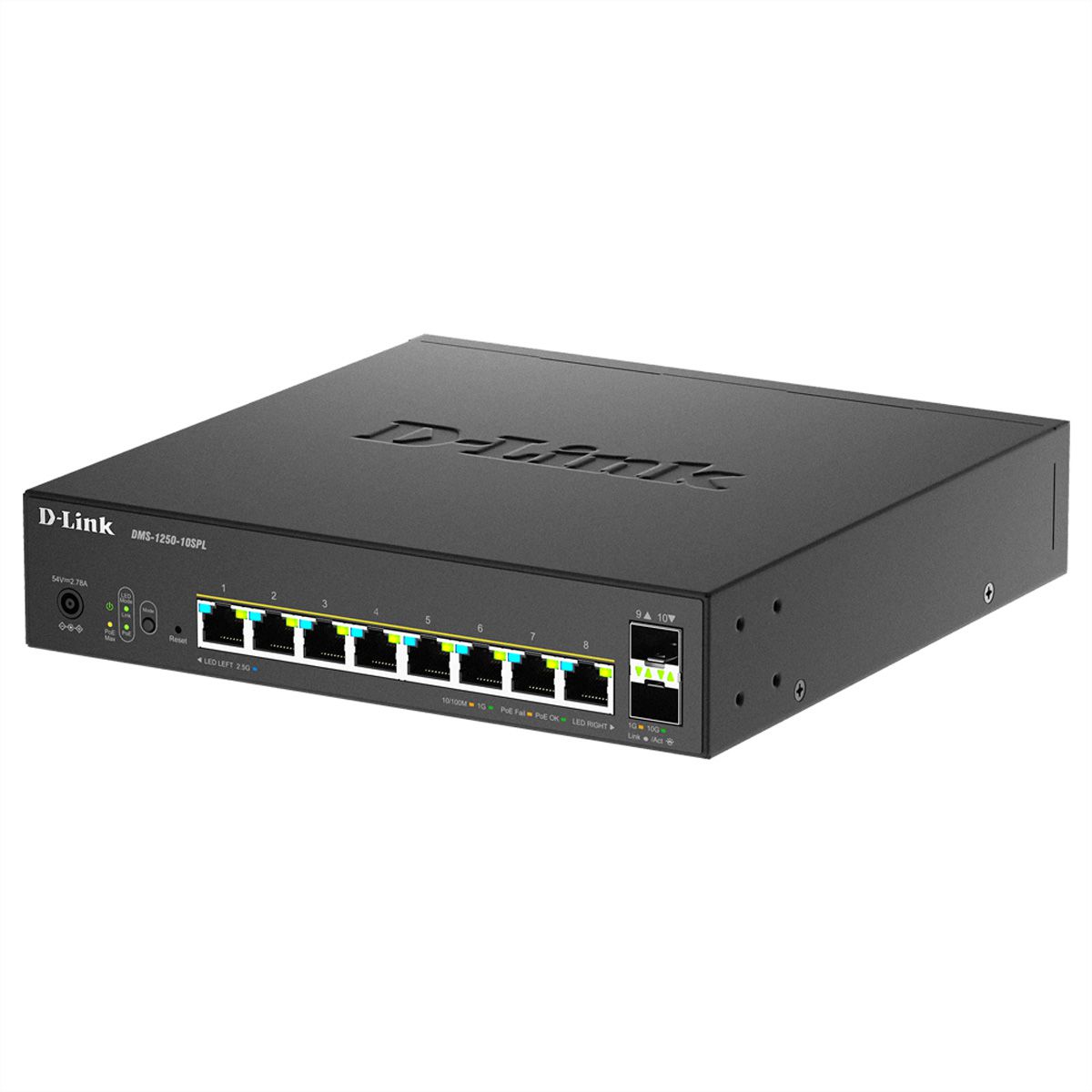

Smart Managed 8-Port-Multi-Gigabit-Switch

• Eight 2.5Gbps Multi-G Ethernet PoE Ports
• Additional 2x SFP+ Ports
• DNC / DNH ( D-Link Nuclias Connect / Hub ) and
• D-View 8 for centralized management
• Support IEEE802.3 af/at/bt
• PoE budget up to 120W
• D-Link Safeguard Engine helps the CPU resist broadcast/multicast/unicast flooding
• 6kV surge protection on all 2.5 Gigabit Ethernet Ports

Specifications

Manufacturer	D-LINK
Product group	Network Switches
Product type	Gigabit Ethernet Switch
Colour	black
Network standard	2.5 Gigabit Ethernet
LAN (Mbps)	10/100/1000/2500
Quantity of ports	10
2.5 Gigabit Ethernet Ports RJ-45	8
Free slots for SFPs	2
Power over Ethernet (PoE)	yes
Quantity of PoE ports	8
Max. PoE output power (total)	120 W
Mounting form	Desktop
Management	Layer2
Operating temperature min.	-5 °C
Operating temperature max.	50 °C
Height	44 mm
Width	330 mm
Depth	200 mm
Weight	2.377 kg
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - English (484.2 KB)

Download

For 30 years, the D-LINK brand has stood for high-quality network and monitoring technology as well as tailor-made complete solutions.

D-LINK's product portfolio not only offers technical solutions, but also consistently delivers practice-oriented innovations. Products and solutions are offered from a single source: wireless, switching and video surveillance. Starting with a simple WLAN router to complex network accessories, the D-LINK offers just about everything.

D-LINK products are suitable for private use as well as for professional use in industry and commerce.
