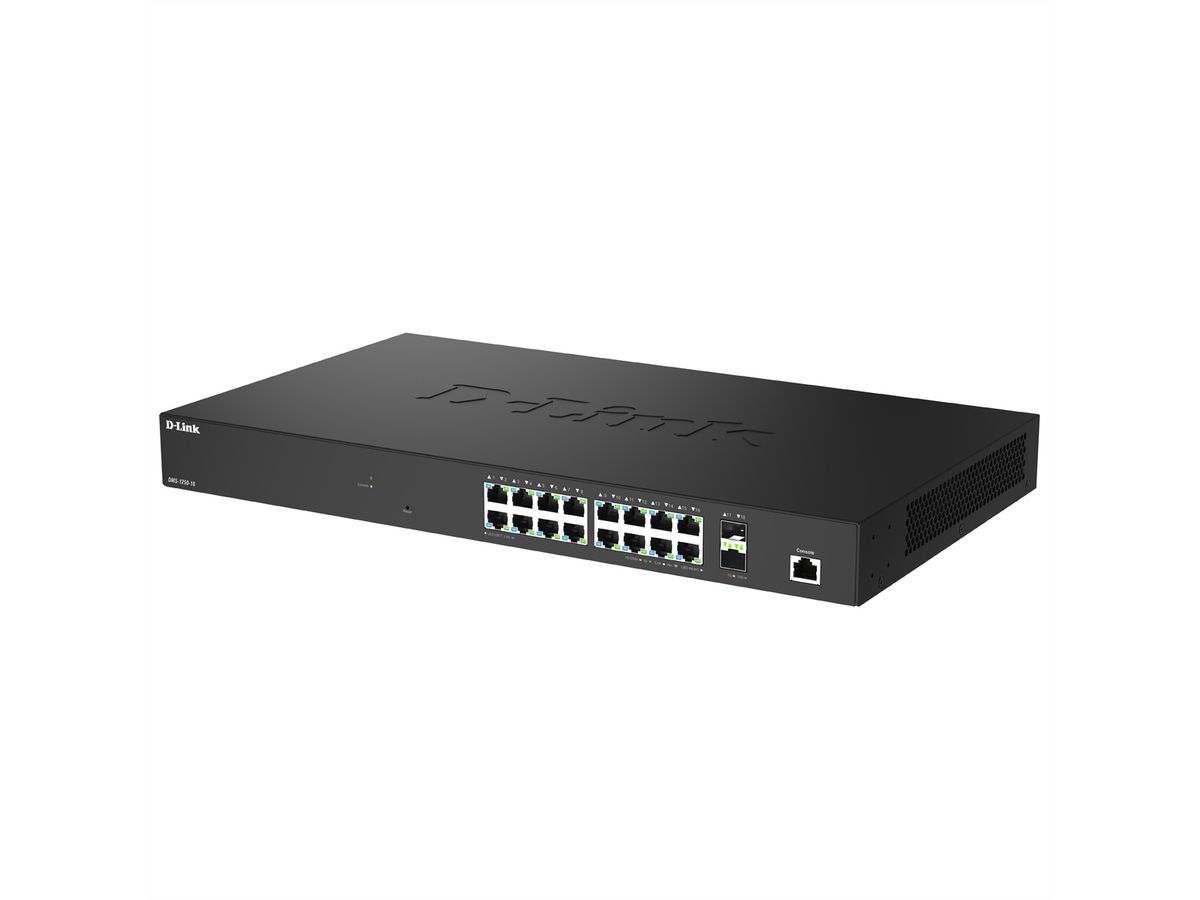

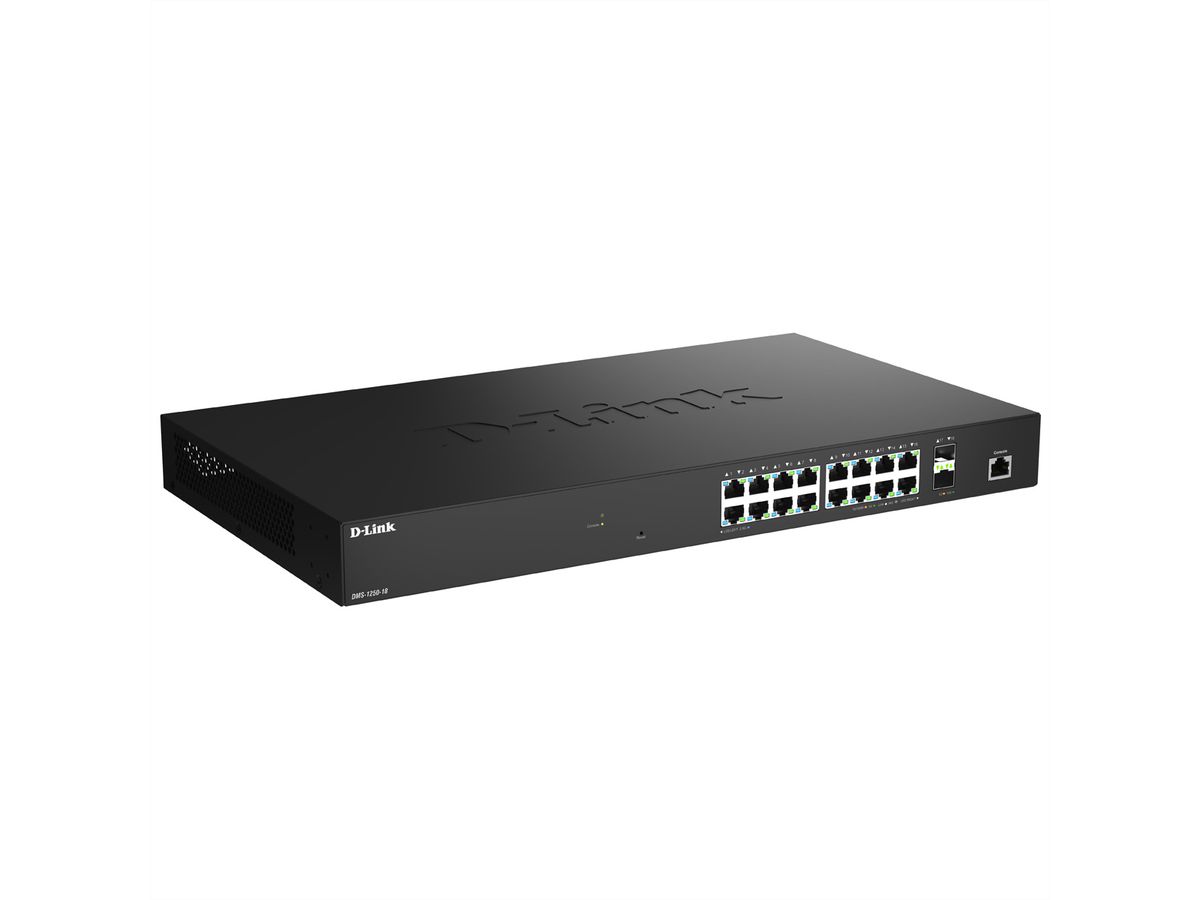

18-Port 2.5G Multi-Gigabit Smart Managed Switch mit 2 x 10G SFP+ Ports

• 16x 100/1000/2.5GBASE-T-Anschlüsse
• 2x 10G SFP+-Anschlüsse
• Erweiterte Sicherheitsfunktionen einschließlich Zugriffskontrolllisten (ACLs), D-Link Safeguard Engine hilft der CPU, Broadcast/Multicast/Unicast Flooding zu widerstehen, Port Security unterstützt bis zu 64 MAC-Adressen pro Port
• Lüfterlos
• Mehrsprachige Web UI
• Zentralisierte Verwaltung mit D-Link Nuclias Connect und D-Link Nuclias Connect Hub (Version 1.3.0 oder höher)
• Eingebaute SNMP MIB für Remote-NMS (D-View 8)
• Statische Weiterleitung
• Auto-Überwachung und Voice VLAN
• Zwei Software-Images
• Zwei Konfigurationsdateien
• 6kV-Überspannungsschutz an allen 2,5-Gigabit-Ethernet-Zugangsports
• Ideal für SMB- und MDU-Anwendungen
• Geringer Platzbedarf für den Einbau in Medienschränke für strukturierte Verkabelung

Specifications

Manufacturer	D-LINK
Product group	Netzwerkkomponenten
Product type	Gigabit Ethernet Switch
Colour	black
Network standard	2.5 Gigabit Ethernet
LAN (Mbps)	10/100/1000/2500
Quantity of ports	18
2.5 Gigabit Ethernet Ports RJ-45	16
Free slots for SFPs	2
Mounting form	Rack
Management	Layer2
Operating temperature min.	-5 °C
Operating temperature max.	50 °C
Storage temperature min.	-20 °C
Storage temperature max.	70 °C
Height	44 mm
Width	440 mm
Depth	250 mm
Weight	2.968 kg
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - English (484.2 KB)

Download
