Description

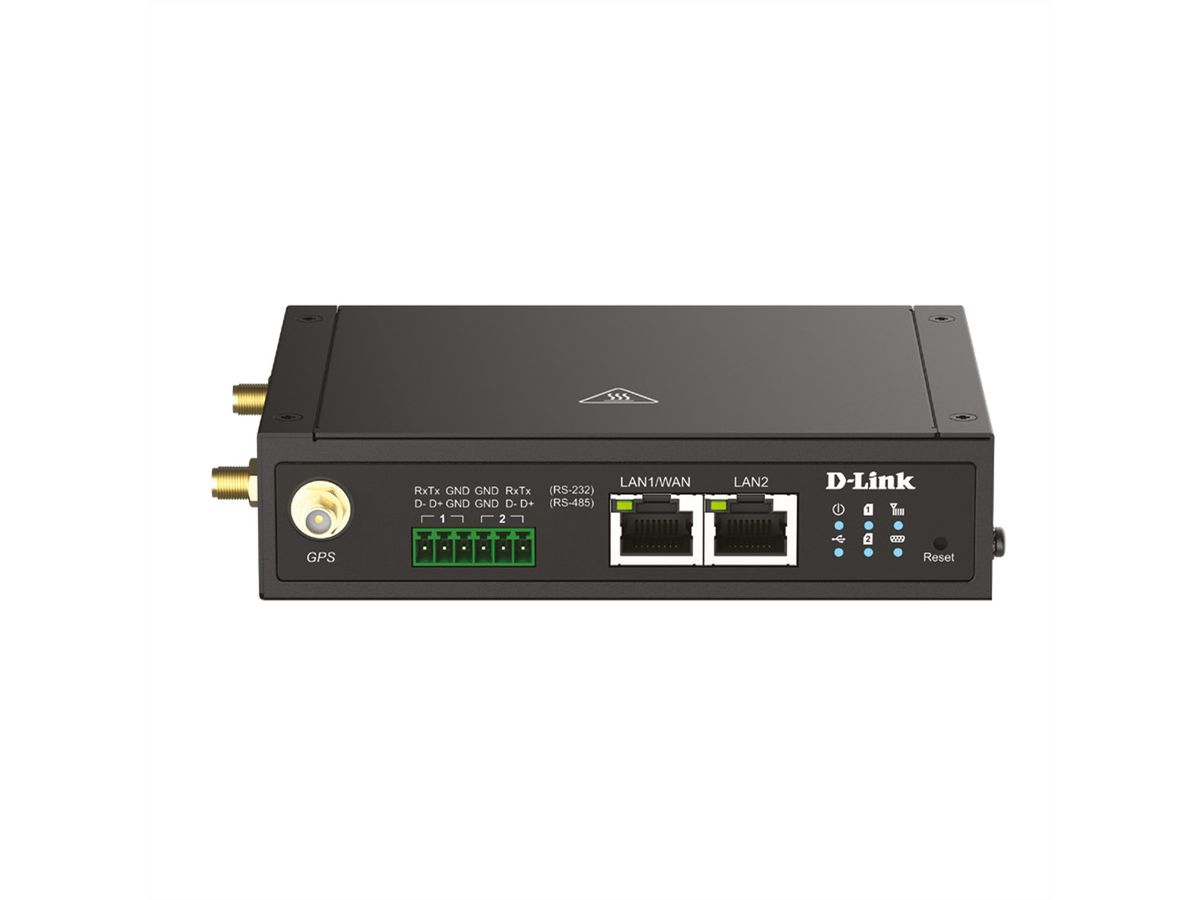

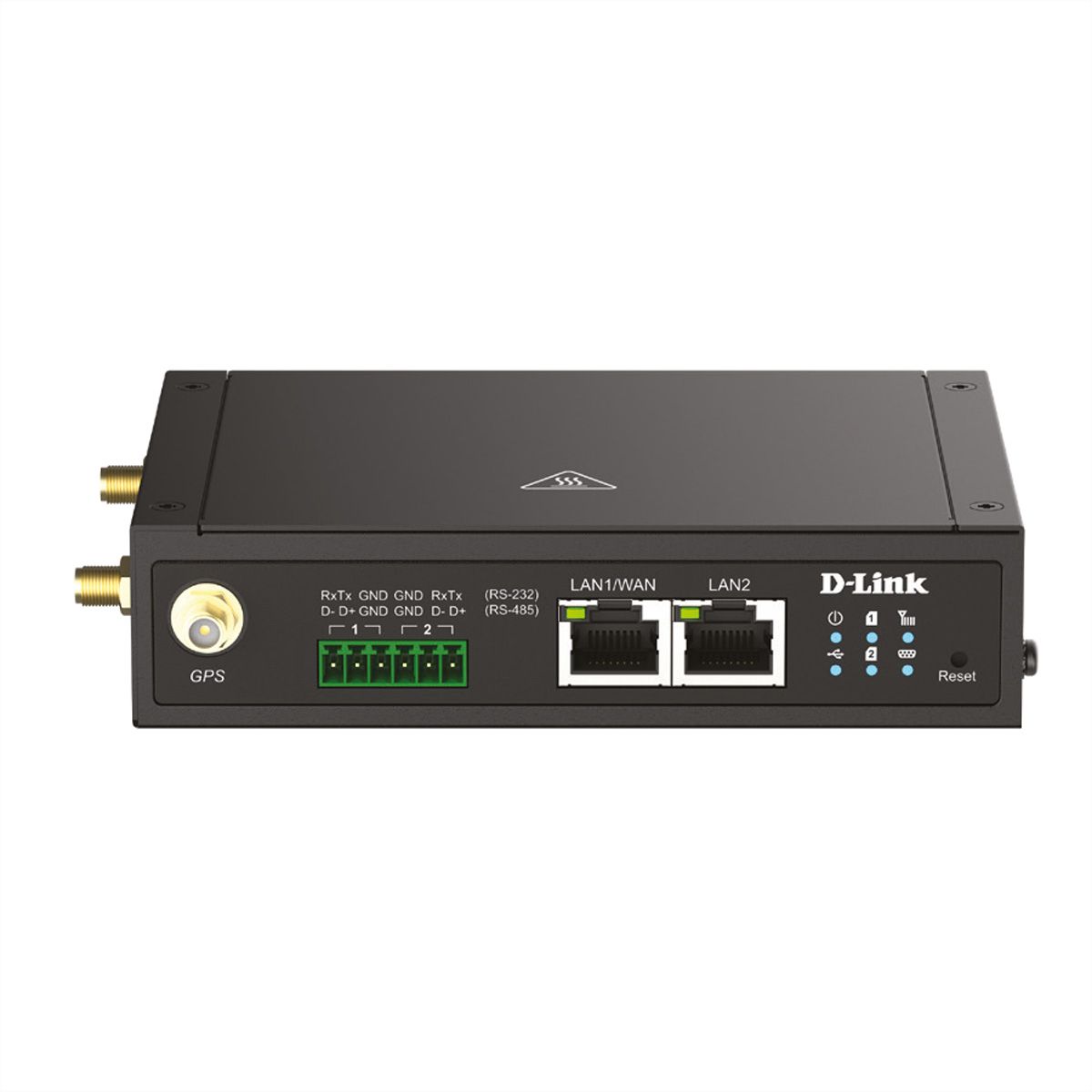

The DOM-530-TSO 4G IIoT Gateway offers LTE Cat.4 connectivity, dual Gigabit Ethernet ports with WAN failover, and dual SIM support for network reliability.

• Cellular Module: 4G LTE-Cat.4
• SIM Slot: 2*SIM(Micro SIM)
• Ethernet: 1*WAN/LAN GE, 1*LAN GE
• Serial Port: 2* (RS-232 or RS-485)(TB)
• Digital I/O: 1* DI(Isolated, “Logic 0”: 0~2V, “Logic 1”: 5V~30V), 1*DO(Relay Mode, Max. 30V) (TB)
• Micro SD Slot: 1*Micro SD for log.
• USB Port: 1* USB 2.0 Type A port for log.
• GNSS: GPS/GLONASS
• Power Input: DC 9-36V (TB)
• Antenna Connector: 2*SMA(F)-Cellular, 1*SMA(F)-GPS
• Maximum Cellular Data Throughput: LTE: 150 Mbps (DL) / 50 Mbps (UL)
• Mult-WAN: Cellular, Ether-WAN, WAN Failover
• Cellular: NAT, Bridge
• Ether-WAN: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Network Monitor: ICMP Check/DNS Query
• LAN & VLAN: DHCP Server/Relay, Port/Tag based VLAN
• Port Forward: NAT Loopback, DMZ, Virtual Server & Computer, VPN Passthrough
• Routing: Static, Dynamic RIPv1/v2, OSPF, BGP
• DDNS: DynDNS, No-IP, Dynamic DO
• IGMP, IPv4/v6

Specifications

Manufacturer	D-LINK
Product group	Network Components
Product type	Router
Colour	black
Radio standard 4G	yes
WAN interface	RJ-45
LAN connectors	1x Gigabit-Ethernet
Operating temperature min.	-30 °C
Operating temperature max.	70 °C
Storage temperature min.	-40 °C
Storage temperature max.	85 °C
Height	31 mm
Width	131 mm
Depth	99 mm
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg
