D-Link DOM-550-GSO 5G-IIoT-Gateway

Item no. 21182381 Brand / Manufacturer D-LINK Manuf. item no. DOM-550-GSO EAN 790069475214 Item weight 2.013 kg
D-LINK

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

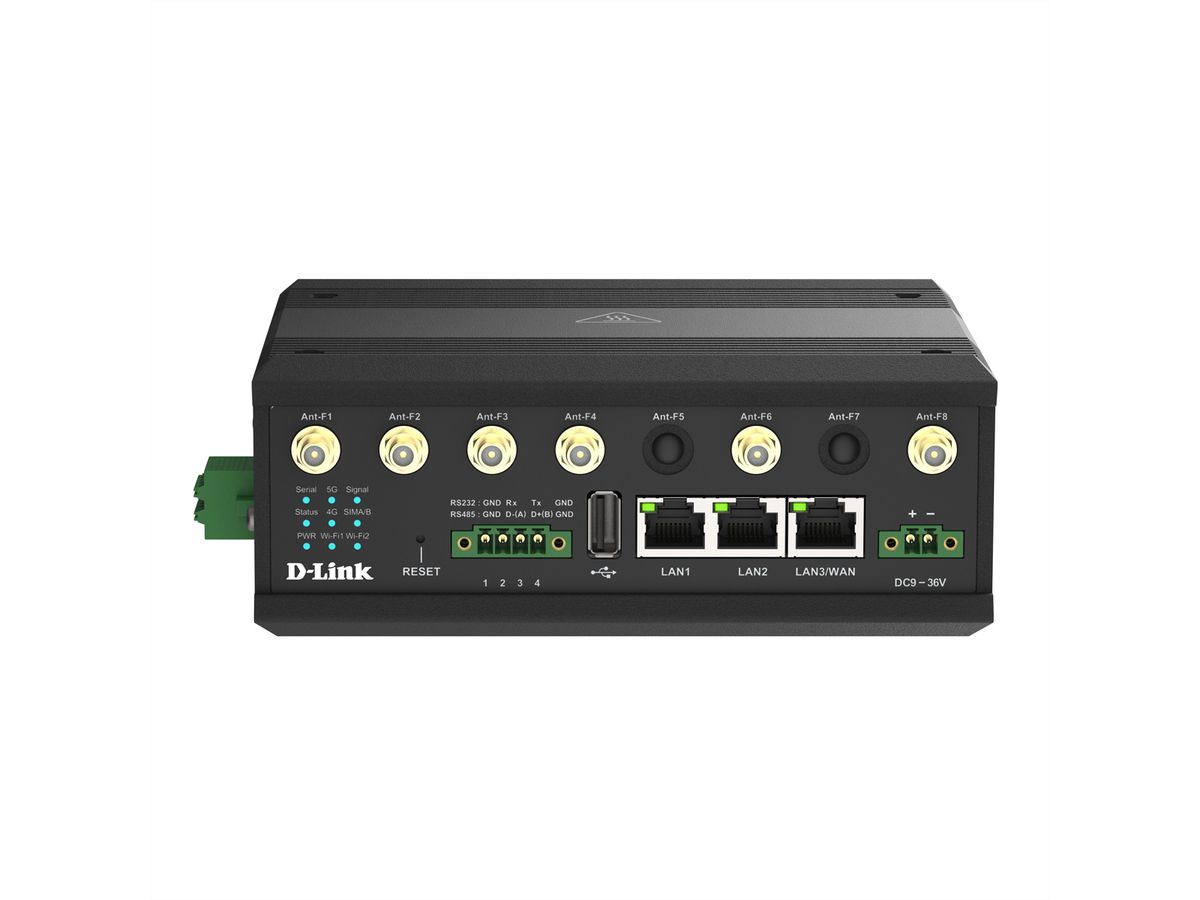

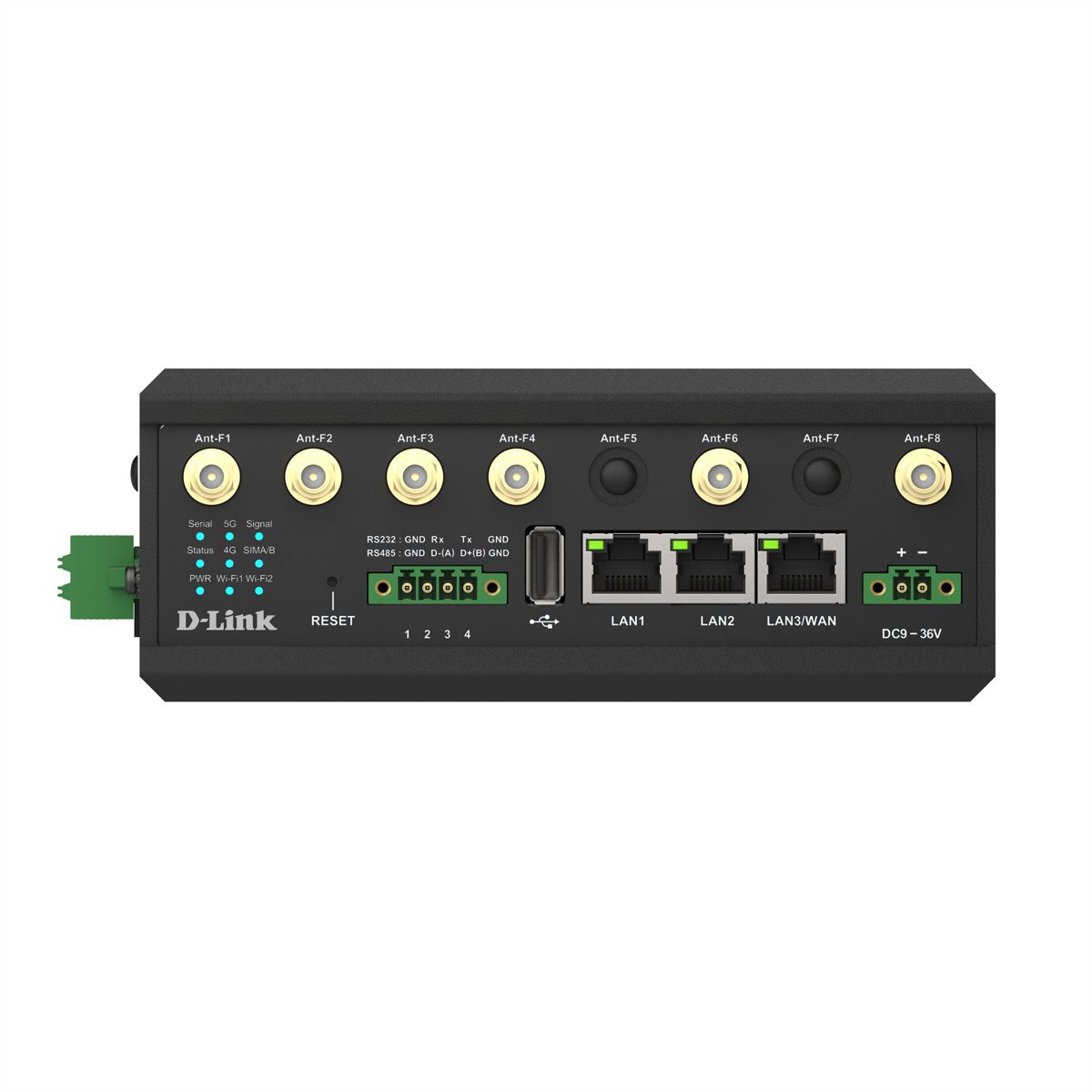

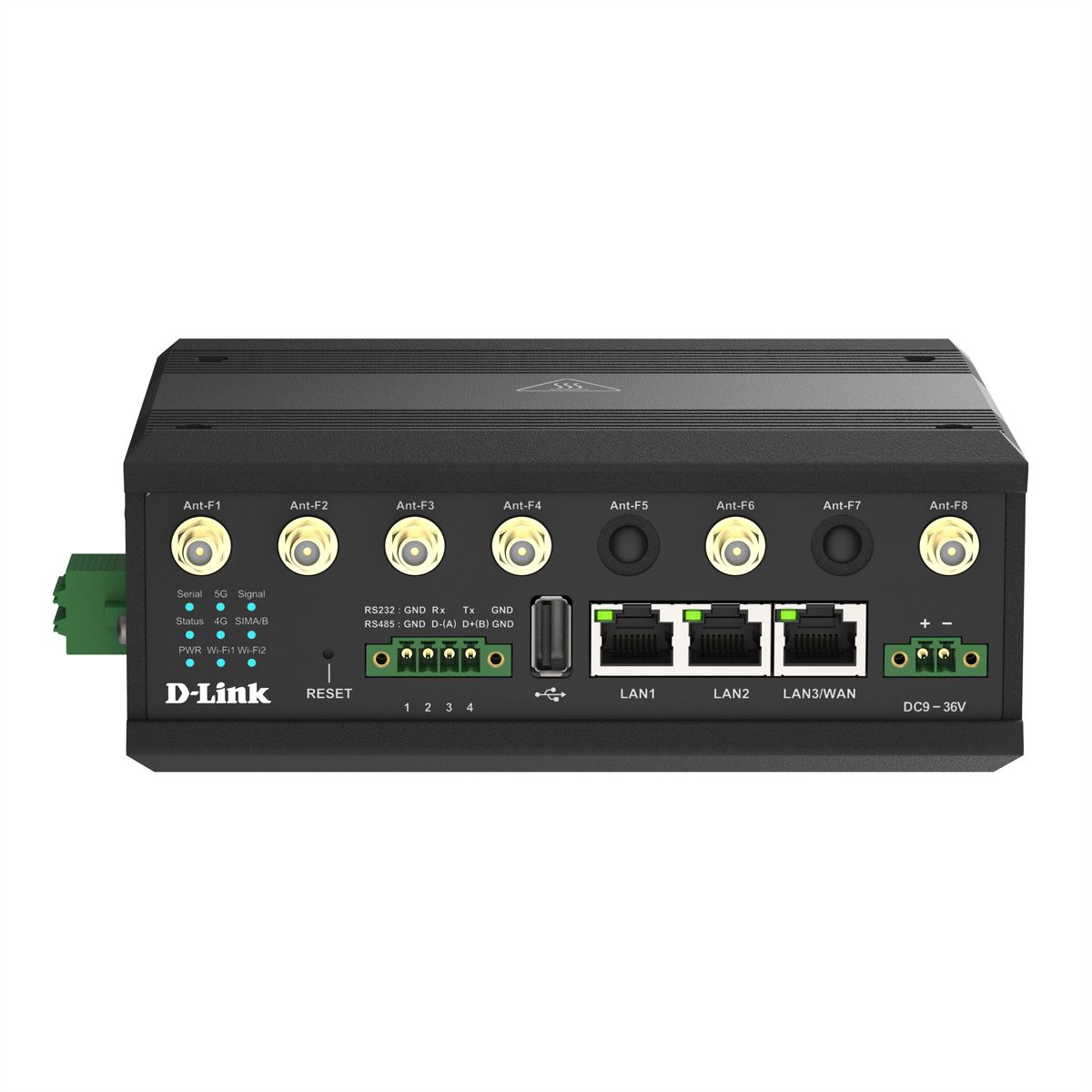

The DOM-550-GSO 5G IIoT Gateway offers dual-mode 5G NR and 4G LTE connectivity, delivering download speeds of up to 3.4 Gbps. It includes three Gigabit Ethernet ports - one configurable as an Ethernet WAN - for seamless switching between broadband and cellular networks.

  • 1x Gigabit Ethernet WAN/LAN port
  • 2x Gigabit Ethernet LAN port
  • Dual 3FF Micro-SIM slots
  • 5G NSA: 3.4 Gbps (DL) / 550 Mbps (UL)
  • 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
  • LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
  • Cellular/Ether‐WAN failover
  • 2x (RS-232 or RS-485) (Terminal Block)
  • 2x DI, 2x DO, ModBus
  • 2x AI
  • GPS / GLONASS
  • 1x USB port
  • 1x microSD card slot
  • 802.11a/b/g/n/ac Wi-Fi 5, up to 300 Mbps on the 2.4 GHz and 866 Mbps on the 5 GHz bands
  • WPA/WAP2, WPA2, WPA2-PSK(AES), WPA-PSK/WPA2-PSK(AES, TKIP/AES), 802.1x
  • IPv4/v6, Static Route, RIPv1/RIPv2, OSPF, BGP, QoS
  • IPS, MAC Control
  • IPsec, PPTP, L2TP, OpenVPN, WireGuard, GRE, VPN Pass-through
  • SMS service
  • Management via Web UI, SSH and D-ECS
  • Wide Operating Temperature Range (-30 to +70°C)
  • Power input: 2-pin TB for DC 9V-36V

Specifications

Manufacturer
D-LINK
Product group
Network Components
Product type
Router
Colour
black
SIM card slot
yes
Radio standard 4G
yes
Radio standard 5G
yes
WLAN support
yes
WAN interface
RJ-45
LAN connectors
2x Gigabit-Ethernet
WiFi standard
WiFi 5 (IEEE 802.11ac)
Wi-Fi frequency band
Dual-Band
Maximum data transfer rate
1200 Mbit/s
2.4 GHz data transfer rate
300 Mbit/s
5 GHz data transfer rate
866 Mbit/s
WLAN WEP encryption
yes
WLAN WPA encryption
yes
WLAN WPA2 encryption
yes
Operating temperature min.
-30 °C
Operating temperature max.
70 °C
Storage temperature min.
-40 °C
Storage temperature max.
85 °C
Height
62 mm
Width
160 mm
Depth
125 mm
Height of packaging (single piece)
150 mm
Width of packaging (single piece)
170 mm
Depth of packaging (single piece)
210 mm
Package weight (single piece)
2.013 kg

Downloads

Manufacturer data sheet - English (583.1 KB)
