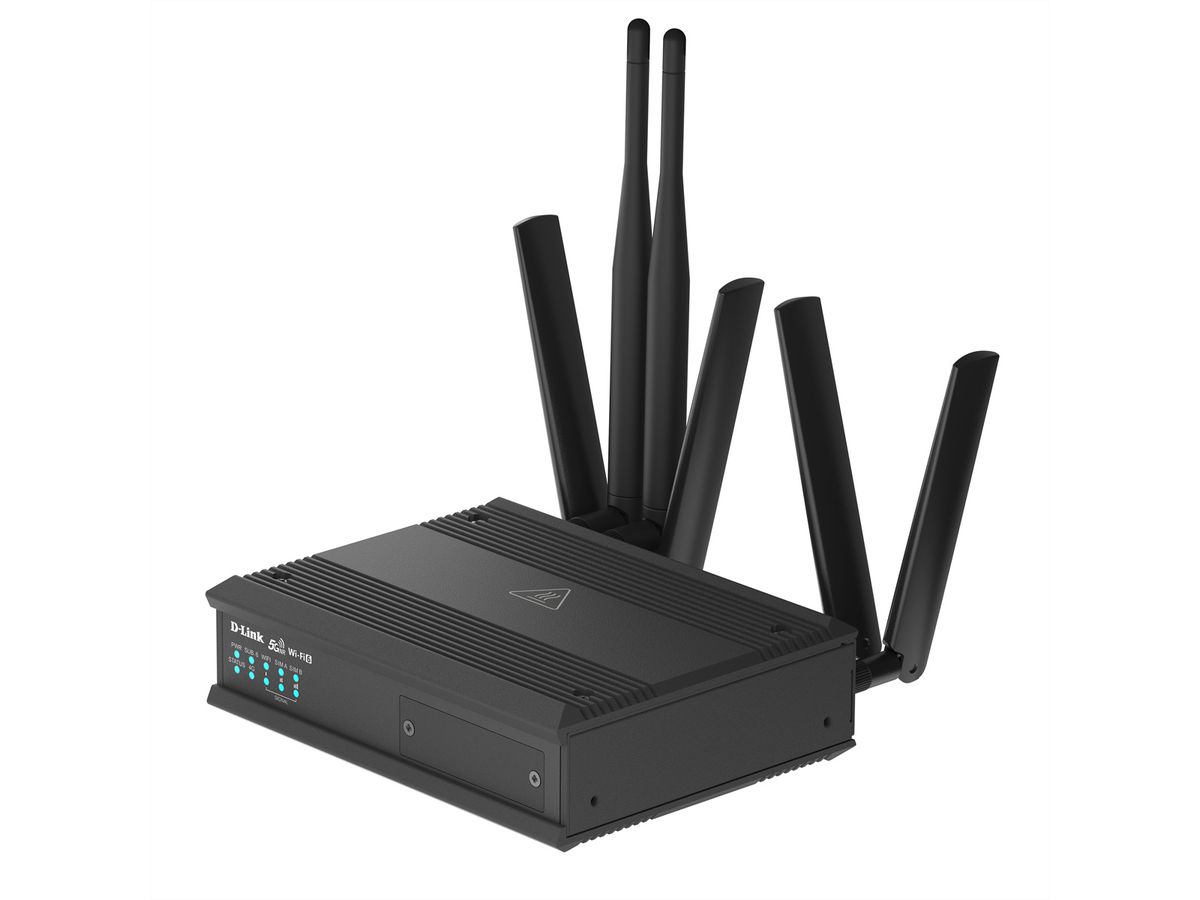

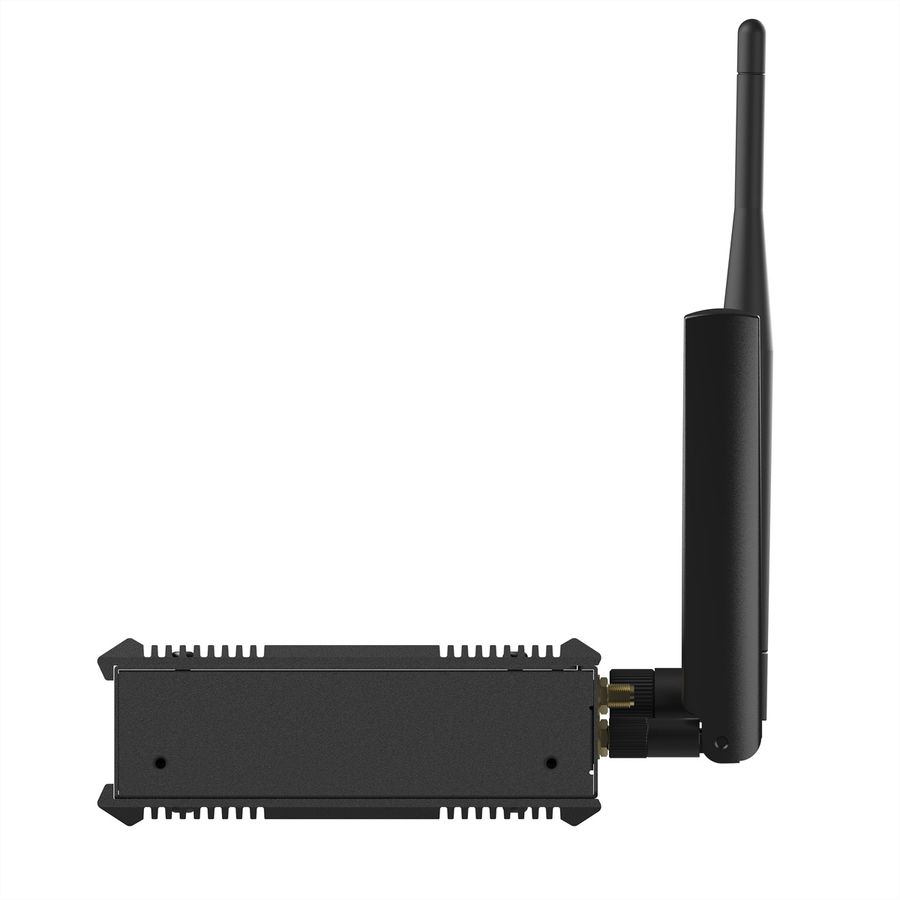

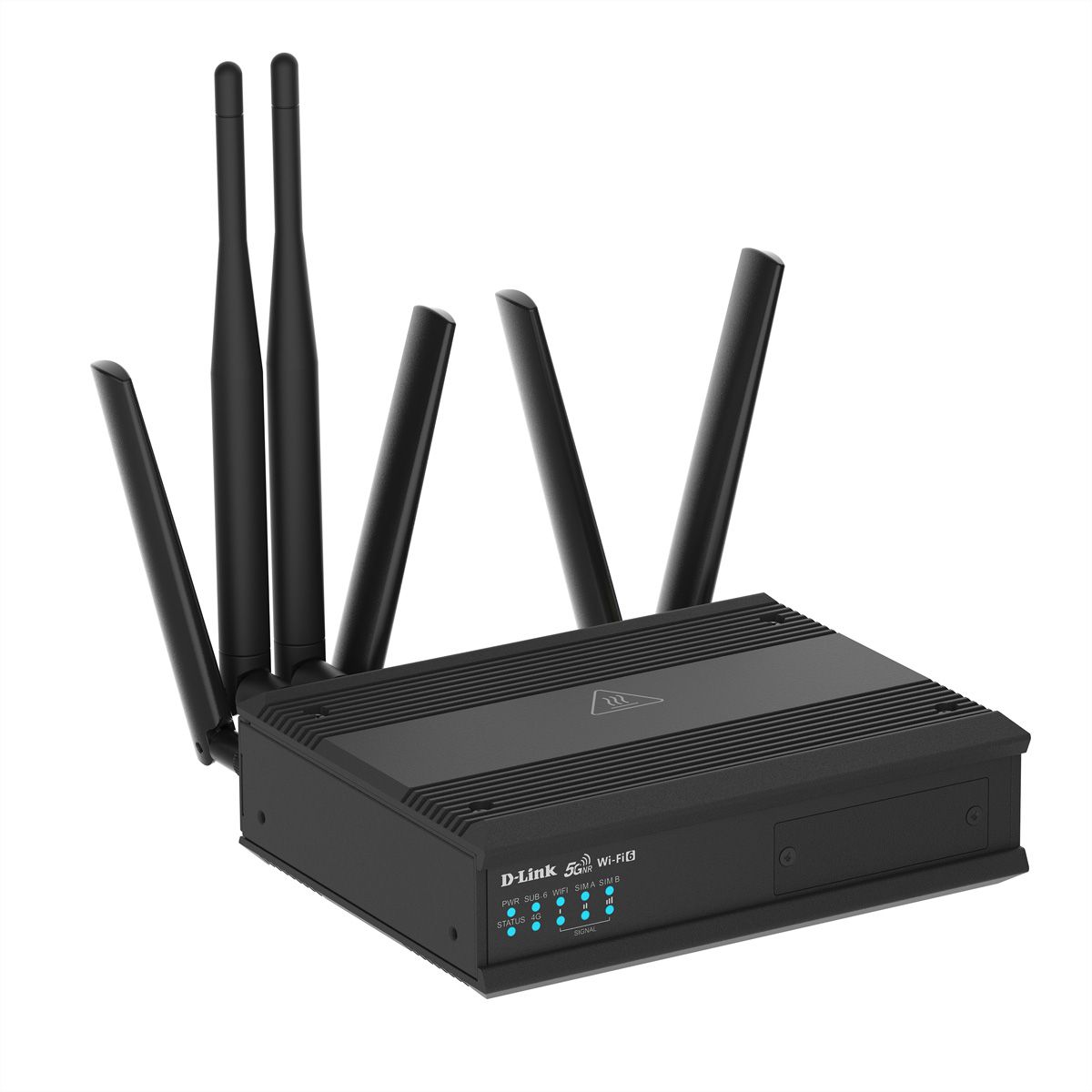

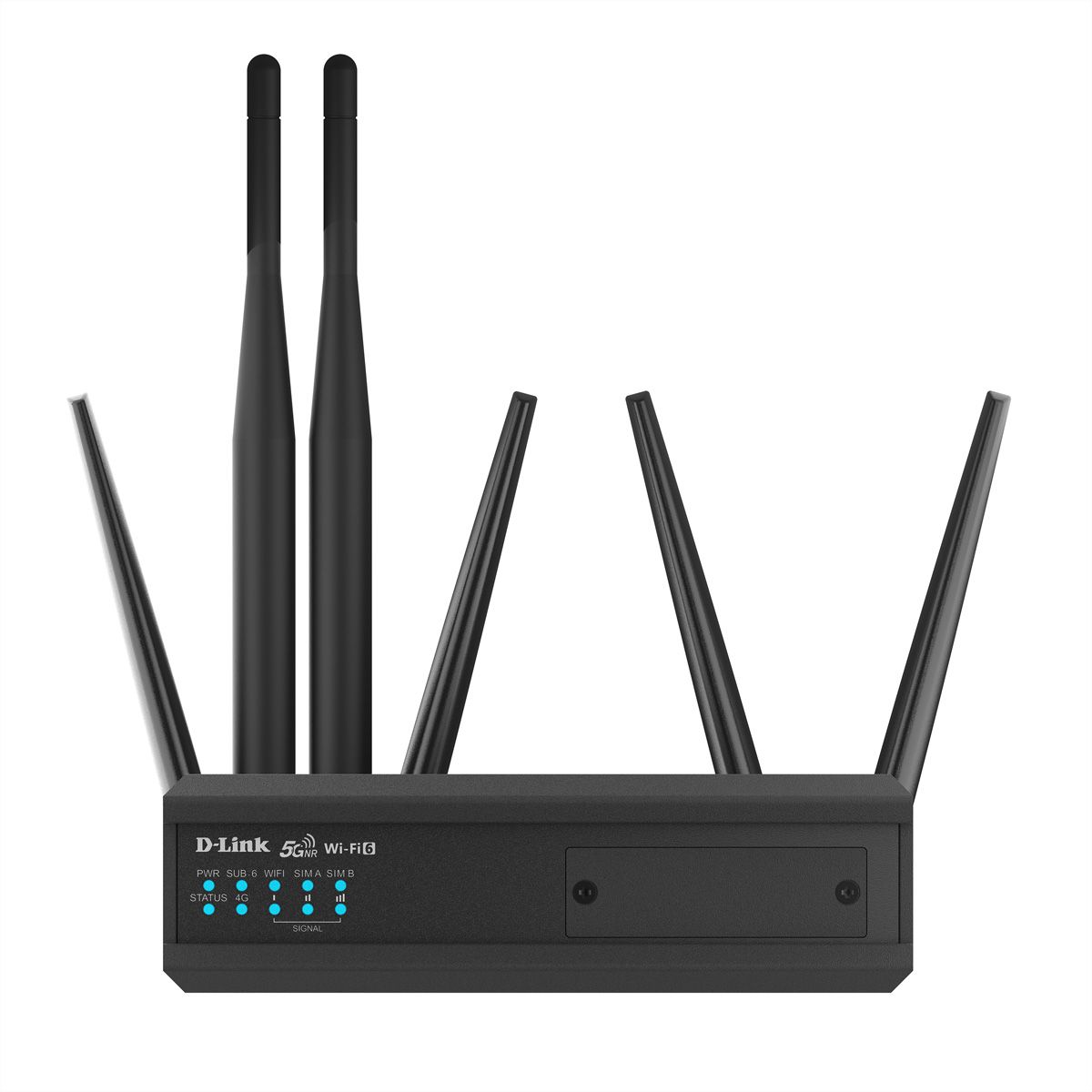

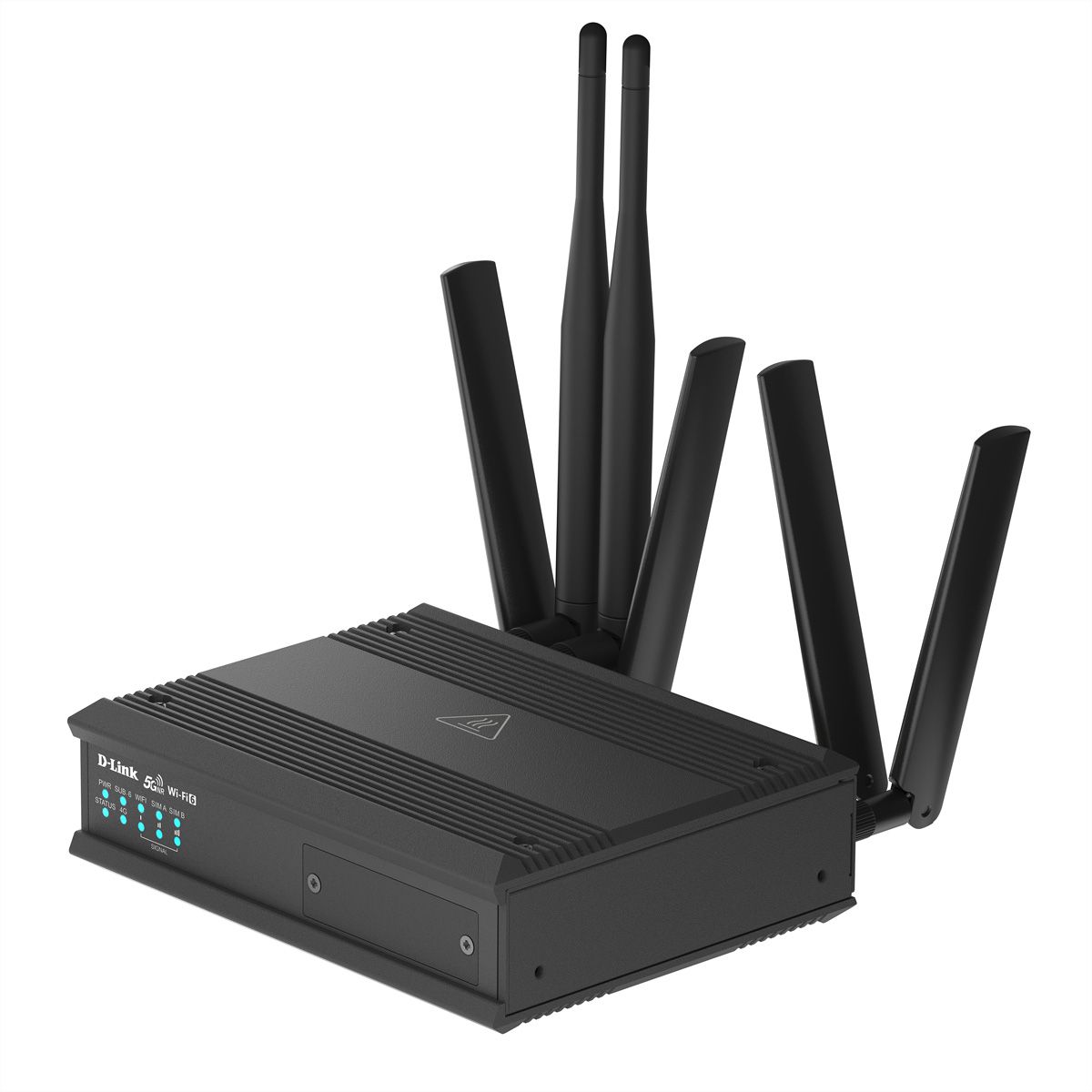

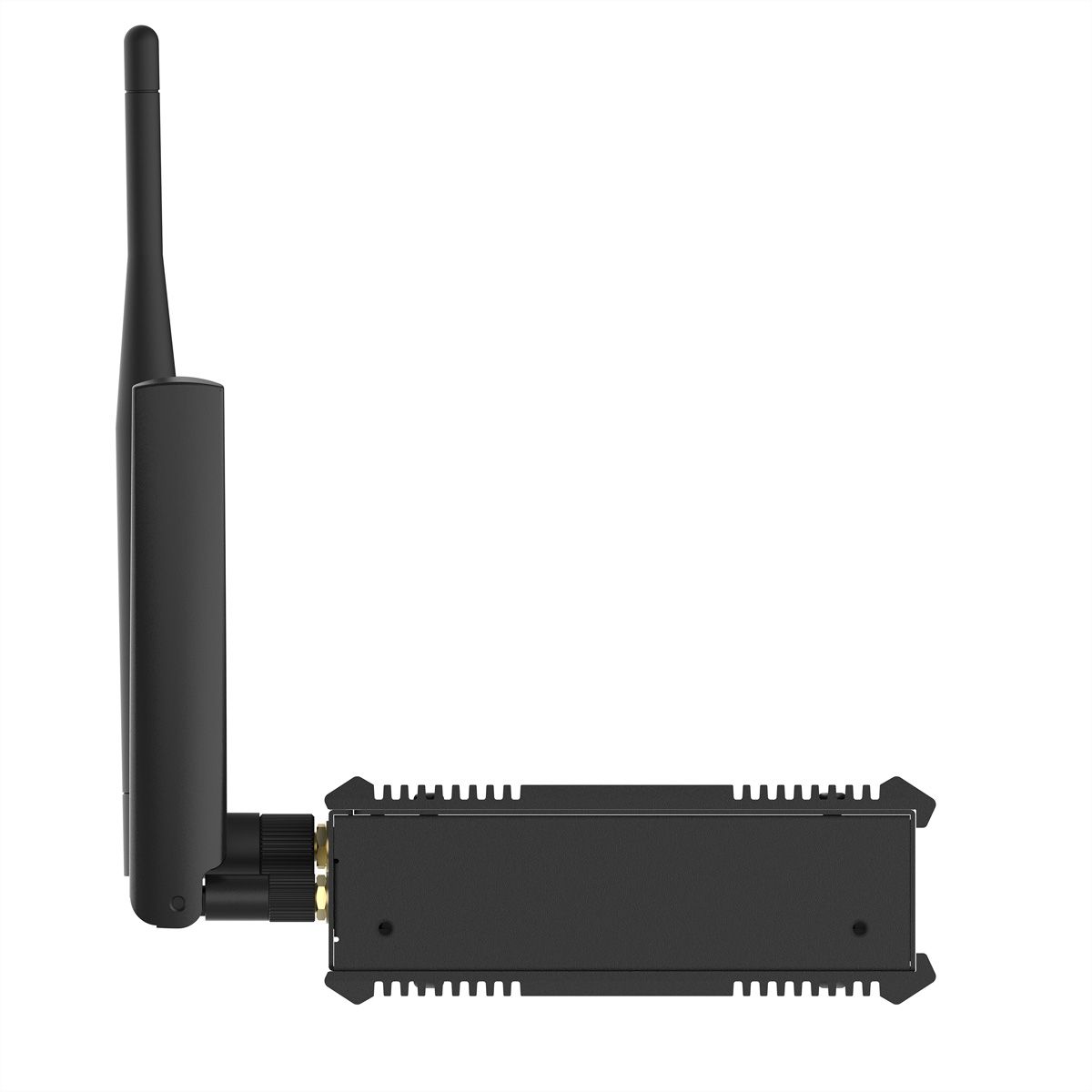

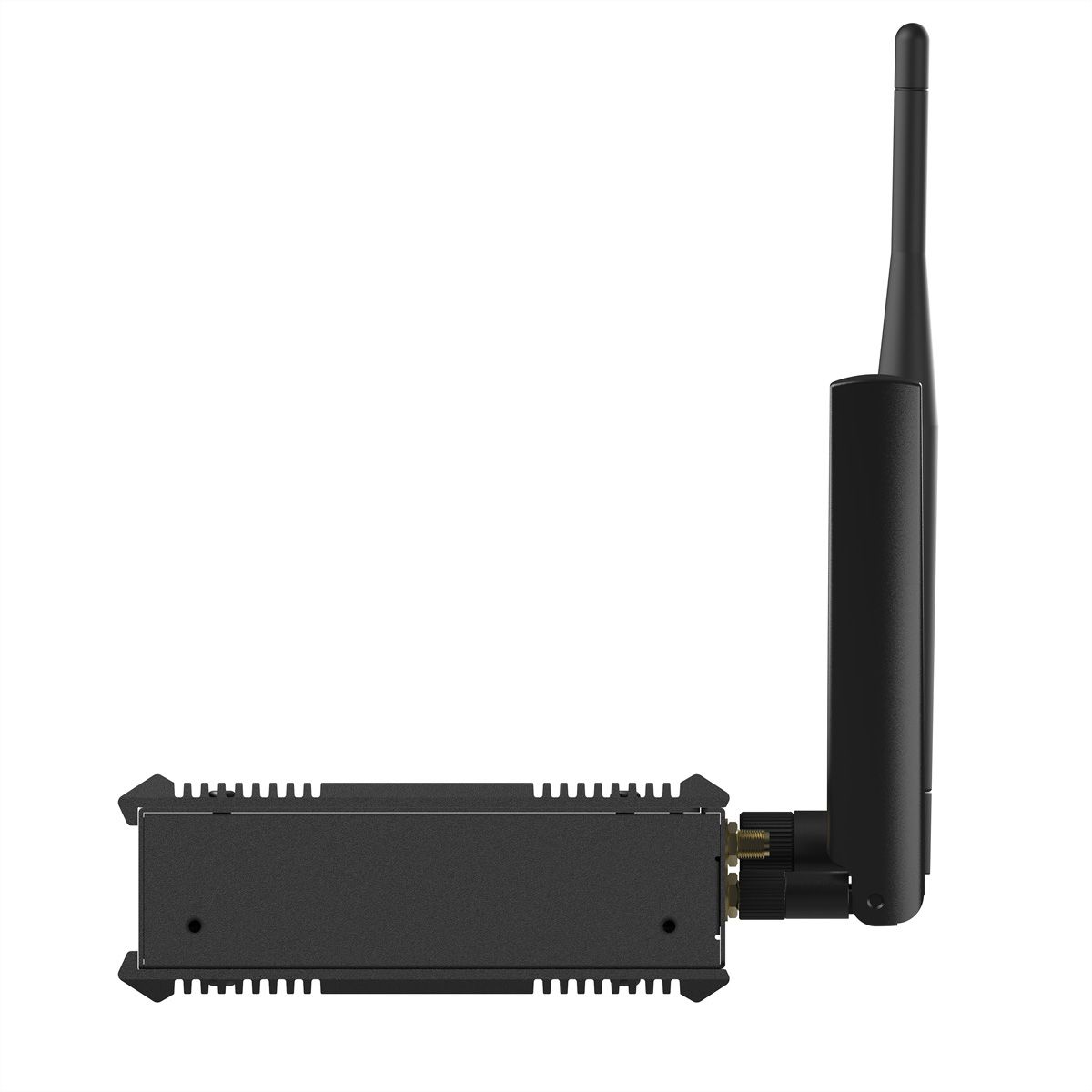

D-Link DTM-550-G 5G-Transit-Router

Item no. 21182384 Brand / Manufacturer D-LINK Manuf. item no. DTM-550-G EAN 790069480706 Item weight 1.629 kg

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

The D-Link DTM-550-G 5G Transit Gateway offers seamless 5G NR and LTE connectivity for wireless uplink and downlink. It features a 5G/4G cellular module with dual SIM slots, four Gigabit Ethernet ports, and Wi-Fi 6 AX1800 technology for high-capacity connections.

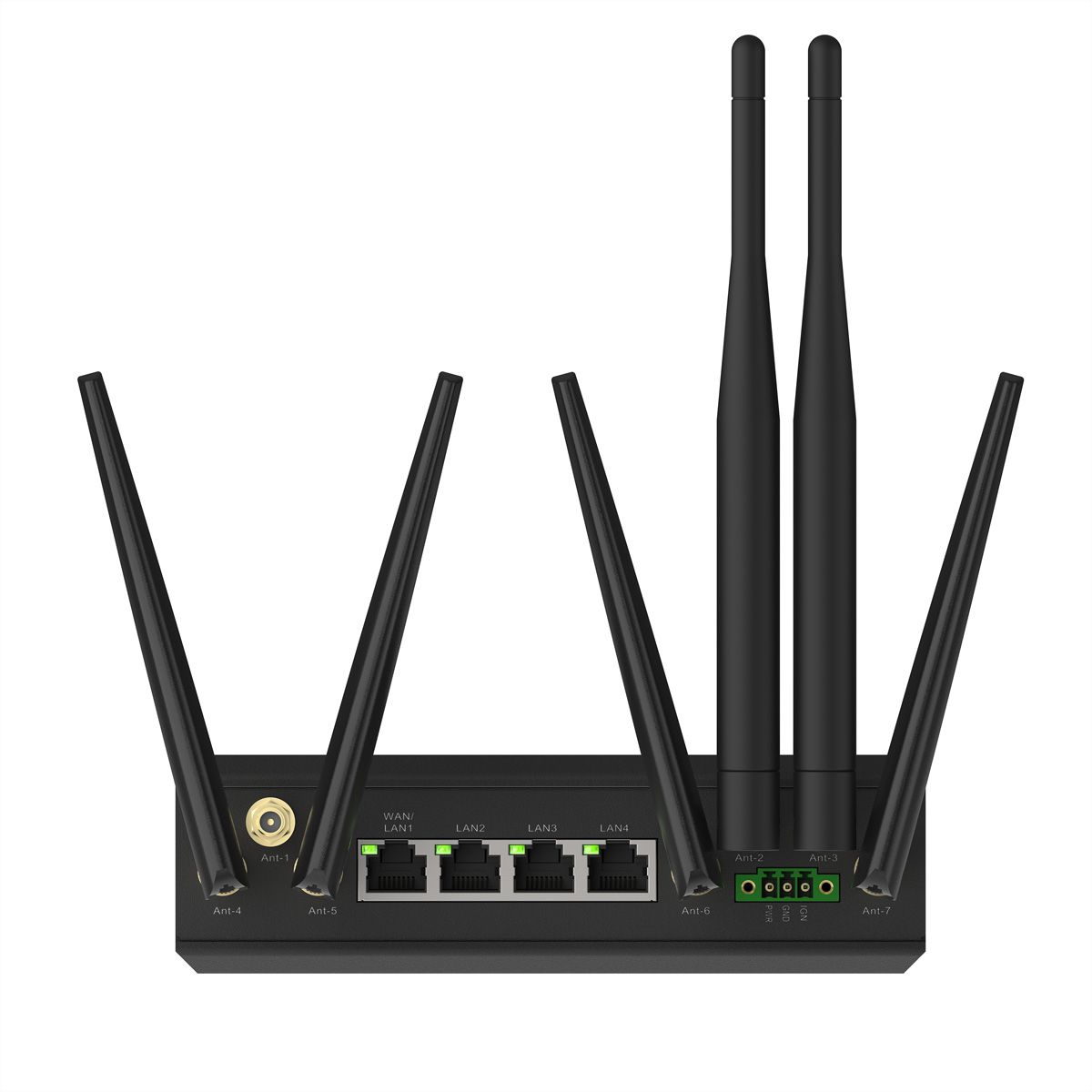

1x Gigabit Ethernet WAN/LAN port
3x Gigabit Ethernet LAN port
Dual 3FF Micro-SIM slots
5G NSA: 3.4 Gbps (DL) / 550 Mbps (UL)
5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
Cellular/Ether‐WAN failover
GPS / GLONASS
1x IGN (Ignition Sense)
802.11a/b/g/n/ac/ax Wi-Fi 6, up to 574 Mbps on the 2.4 GHz and 1201 Mbps on the 5 GHz bands
WPA2-PSK (AES), WPA2, WPA-PSK/WPA2-PSK(AES,TKIP/AES), WPA/WPA2, WPA3-SAE(AES), WPA2-PSK/WPA3-SAE(AES), WPA3-Enterprise, 802.1x
Routing: Static, Dynamic RIPv1/v2, OSPF, BGP
IGMP, IPv4/v6
VPN Tunnel: IPSec, OpenVPN, PPTP,L2TP,GRE, WireGuard
Firewall: SPI Firewall with Stealth Mode, IPS, Block WAN Ping
Configuration: Web UI, CLI, Command Script
Management: SNMPv1/2/3, D-Link D-ECS, RESTful API
Wide Operating Temperature Range (-30 to +70°C)
Power input: 2-pin TB for DC 12V-36V
EN50155, E-Mark

Specifications

Manufacturer: D-LINK
Product group: Network Components
Product type: Router
Colour: black
Scope of delivery: DTM-550-G, 4x Cellular SMA Antennas, 2x Wi-Fi RP-SMA Antennas, 1x RJ-45 Cable, 1x Terminal Block(3-pin), 2x Wall-Mount Brackets
SIM card slot: yes
Radio standard 4G: yes
Radio standard 5G: yes
WLAN support: yes
WAN interface: RJ-45
LAN connectors: 3x Gigabit-Ethernet
WLAN IEEE Standard: IEEE 802.11 ax/ac/n/g/b/a/h
WiFi standard: WiFi 6 (IEEE 802.11ax)
Wi-Fi frequency band: Dual-Band
Maximum data transfer rate: 1800 Mbit/s
2.4 GHz data transfer rate: 574 Mbit/s
5 GHz data transfer rate: 1201 Mbit/s
WLAN WPA encryption: yes
WLAN WPA2 encryption: yes
WLAN WPA3 encryption: yes
Operating temperature min.: -30 °C
Operating temperature max.: 70 °C
Storage temperature min.: -40 °C
Storage temperature max.: 85 °C
Height: 47 mm
Width: 160 mm
Depth: 125 mm
Height of packaging (single piece): 150 mm
Width of packaging (single piece): 170 mm
Depth of packaging (single piece): 210 mm
Package weight (single piece): 1.629 kg

Downloads

Manufacturer data sheet - English (460.8 KB)
