Description

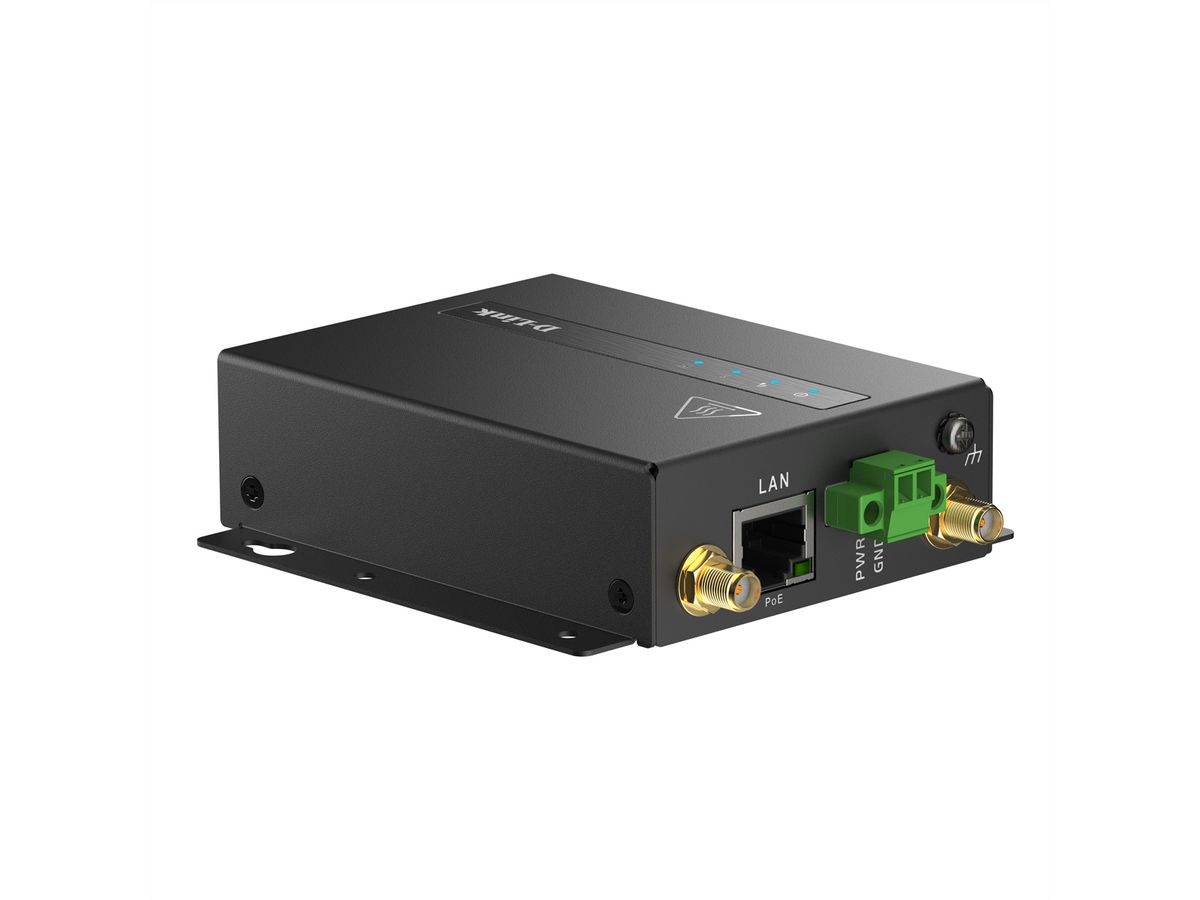

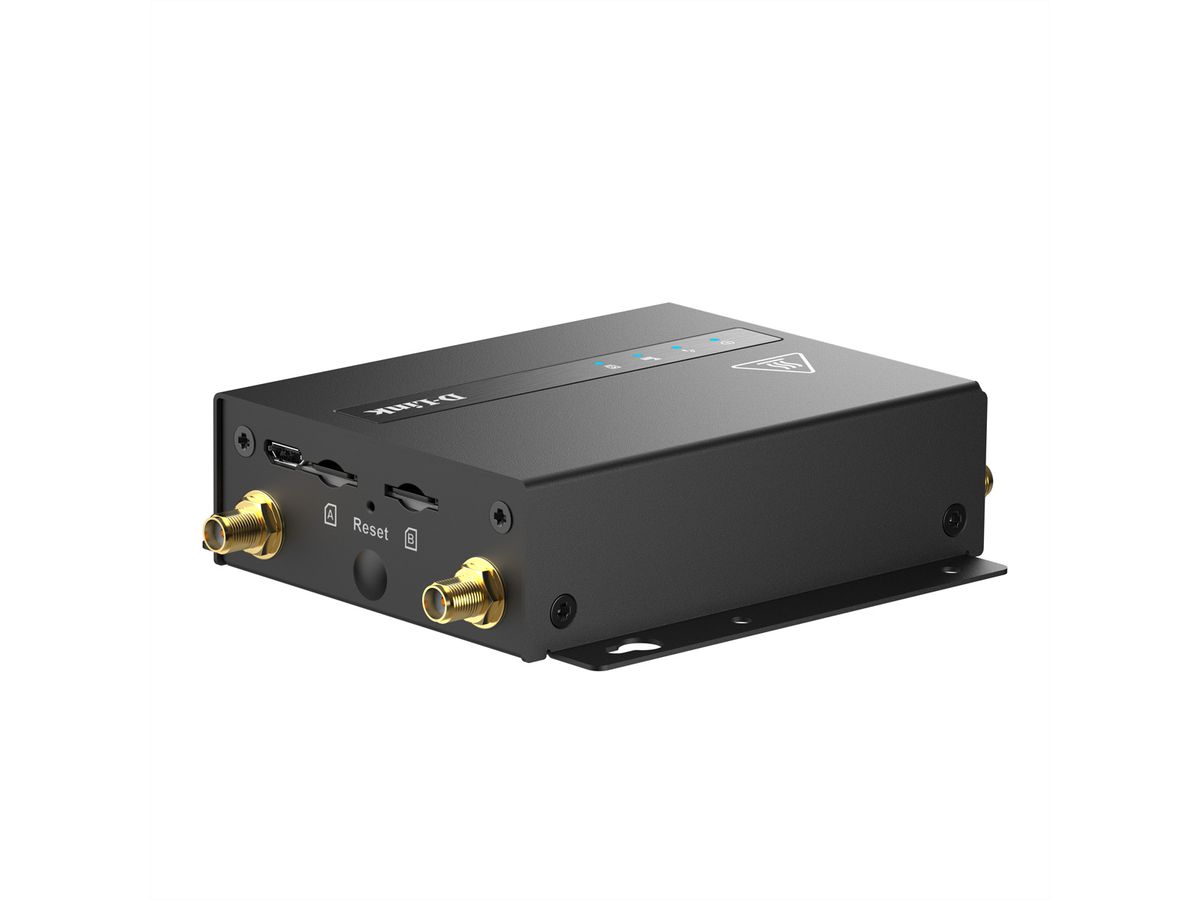

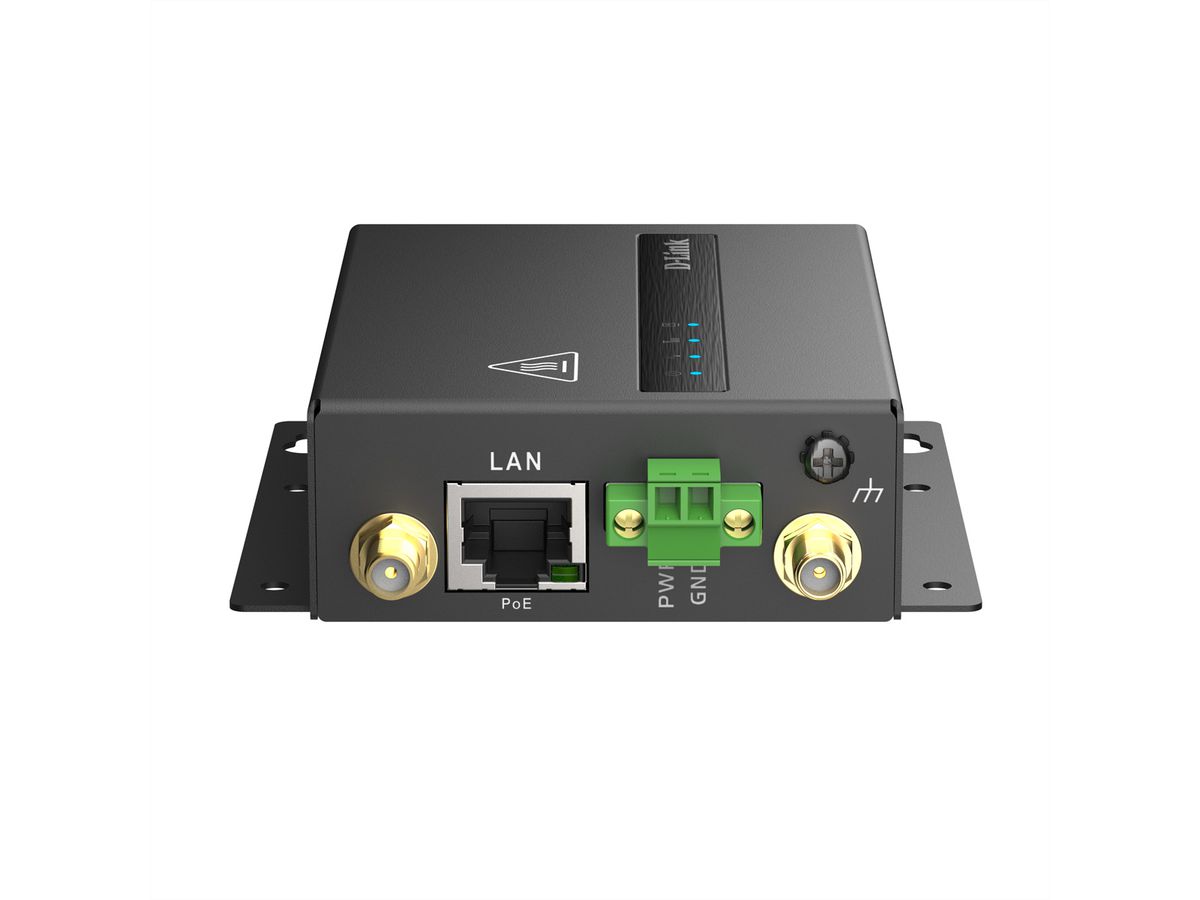

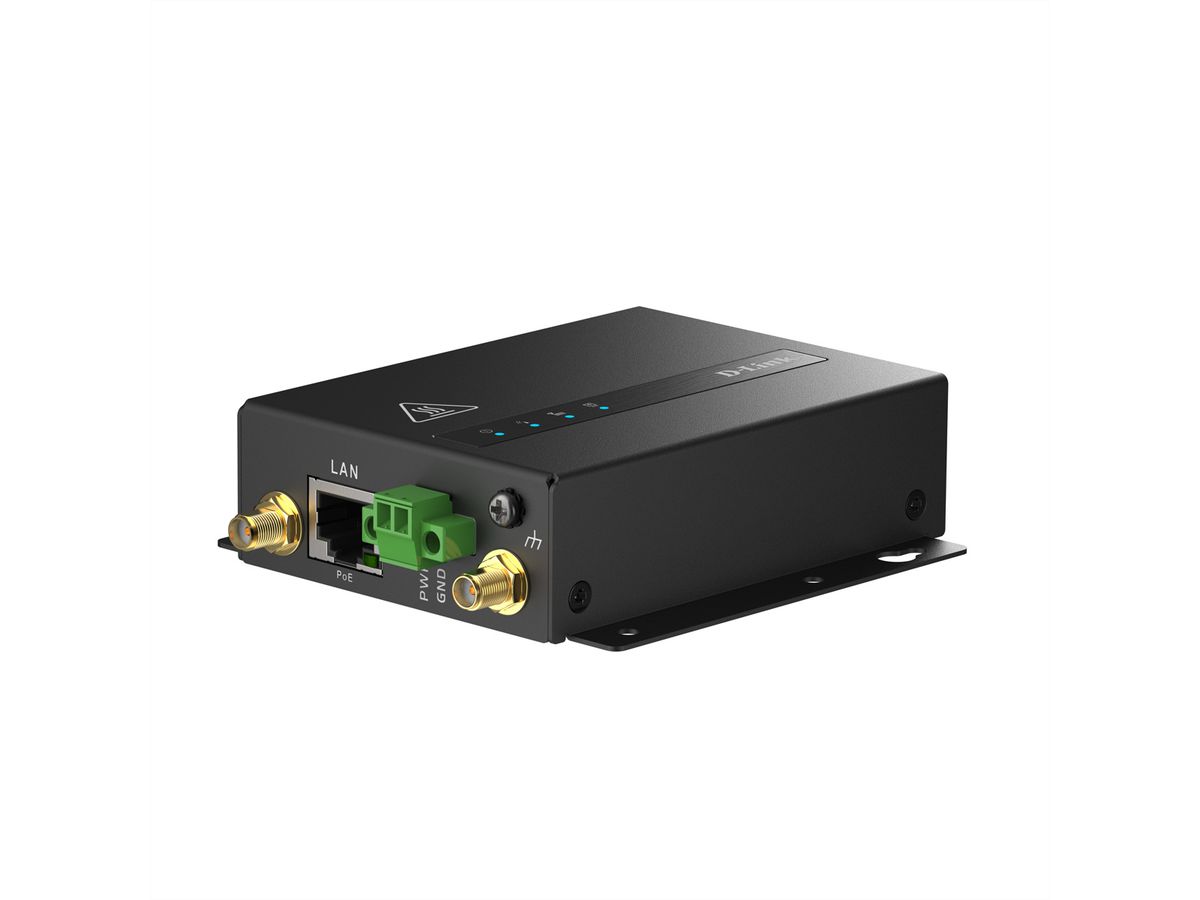

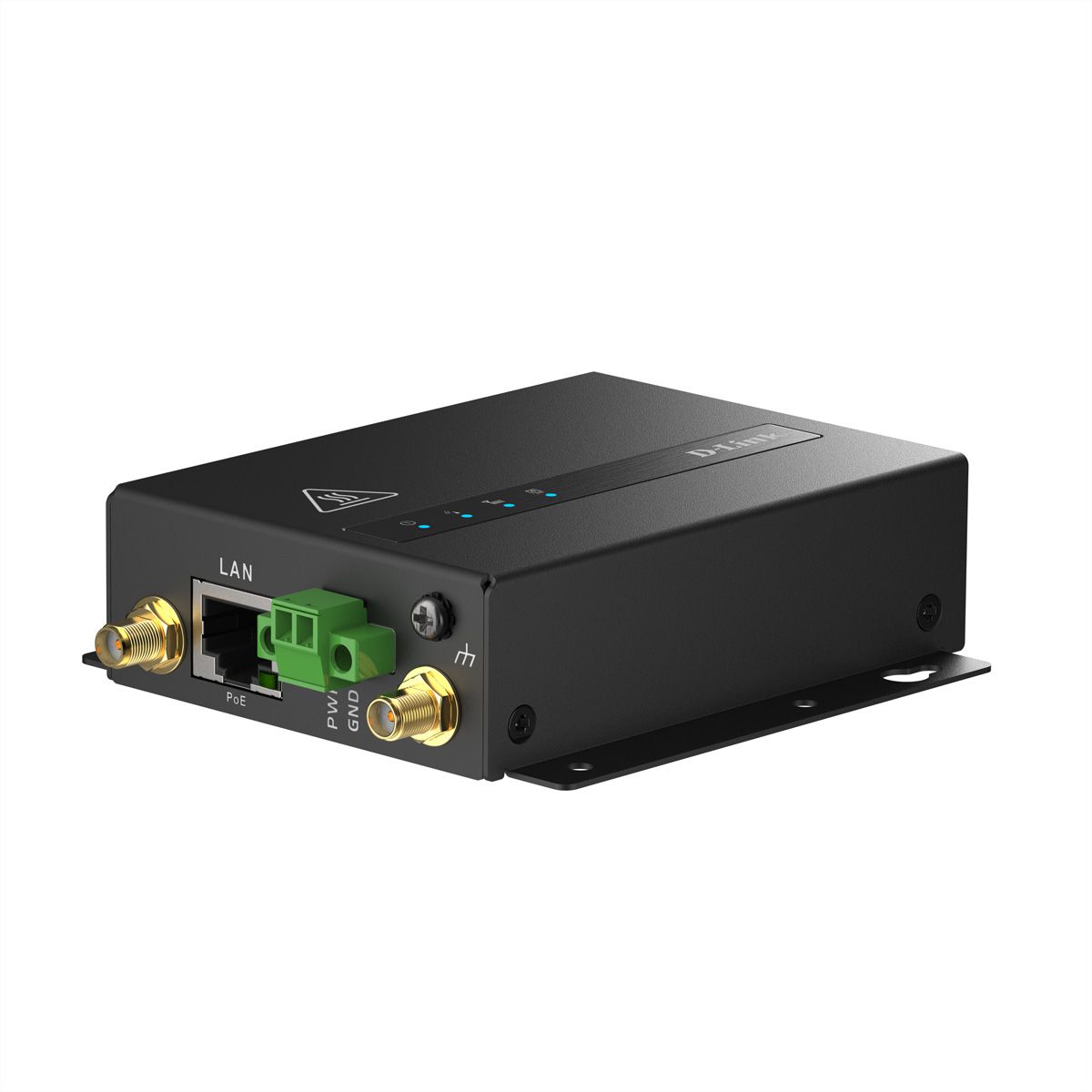

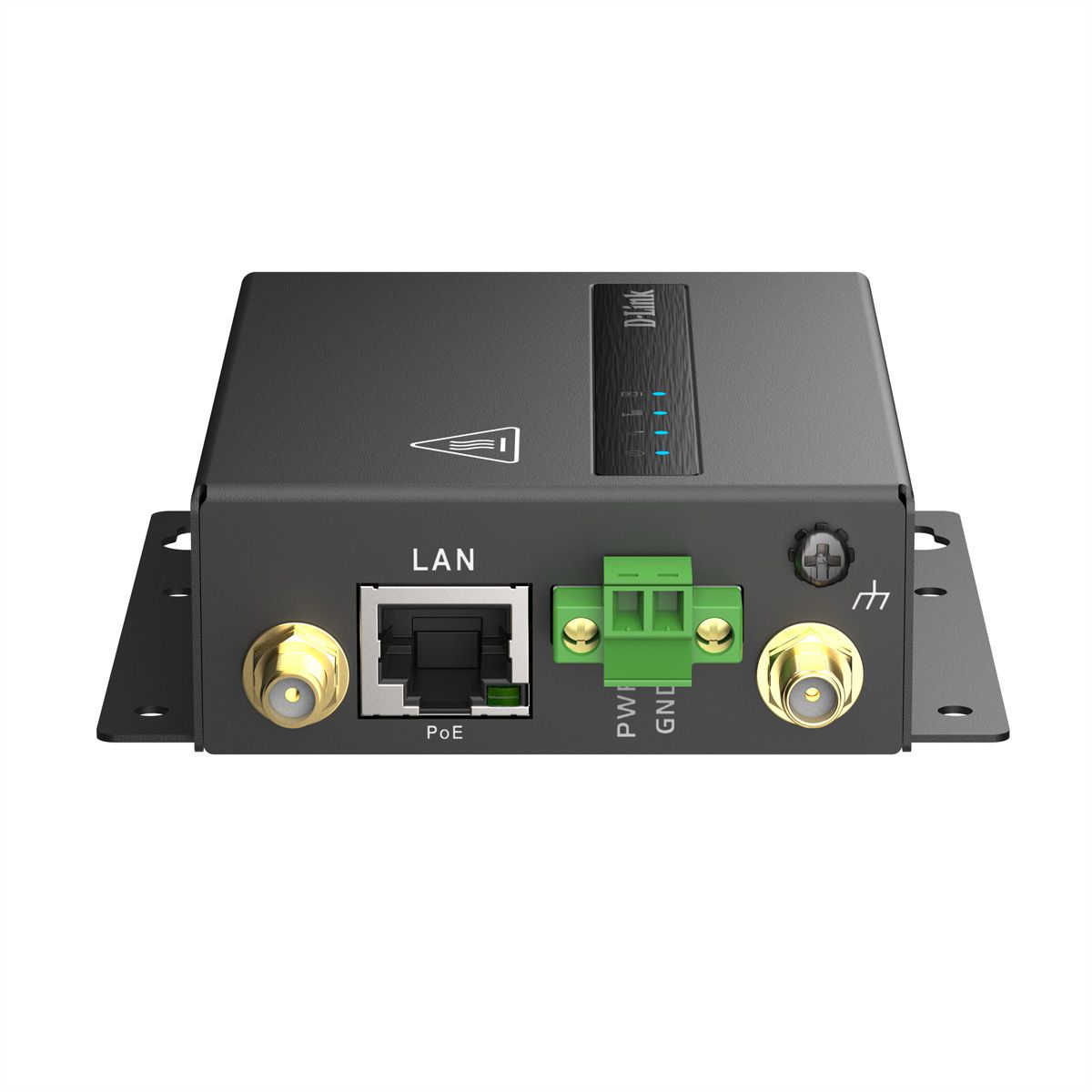

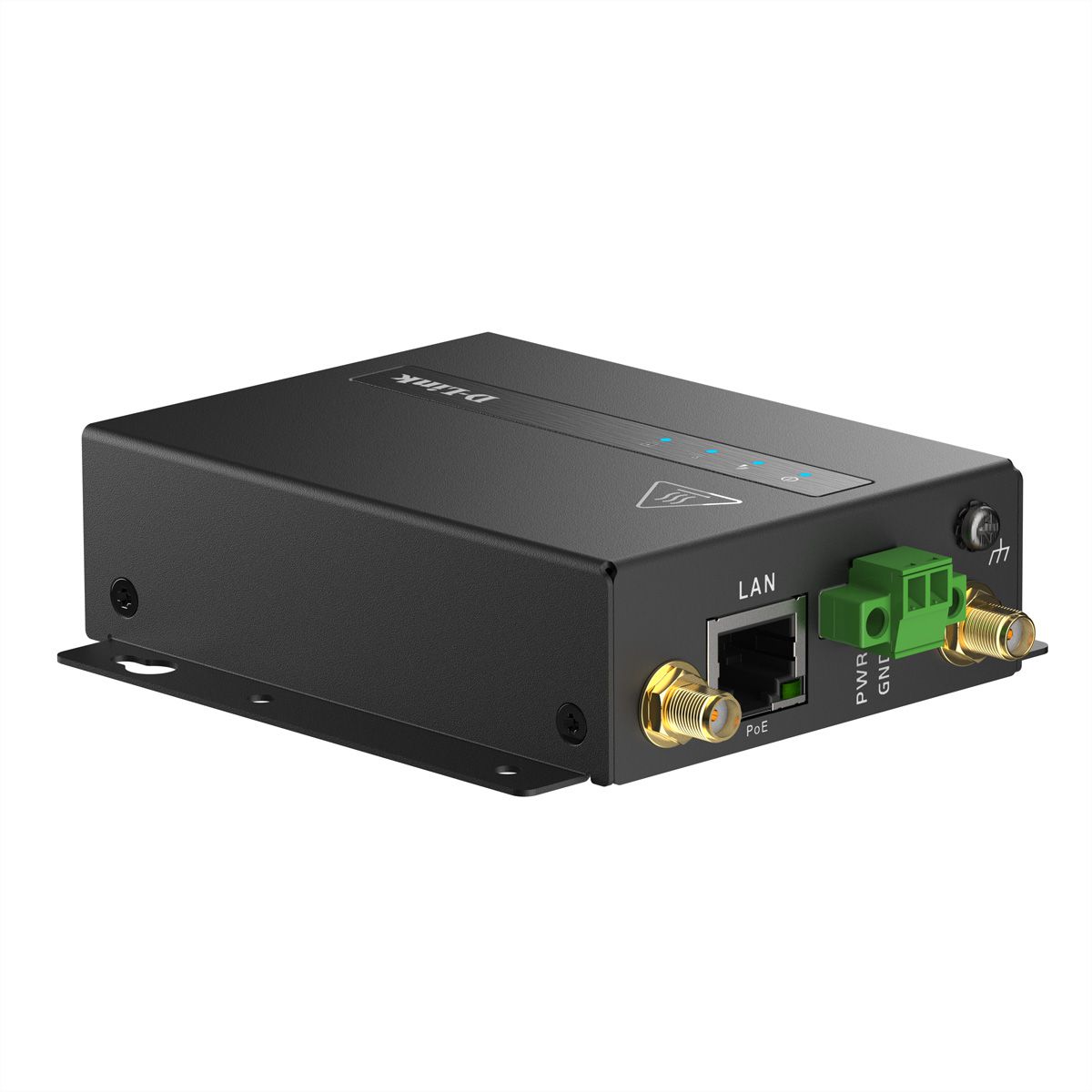

D-Link’s DWM-311-GP 5G M2M PoE Modem offers cutting-edge 5G-NR and LTE dual-mode cellular connectivity. Equipped with a 2.5-Gigabit Ethernet port and supporting 802.3af/at PoE (PSE), this modem ensures rapid and reliable connection to any local device, providing both power and data over a single cable for streamlined deployment.

• 1x 2.5G Ethernet PoE+ LAN port

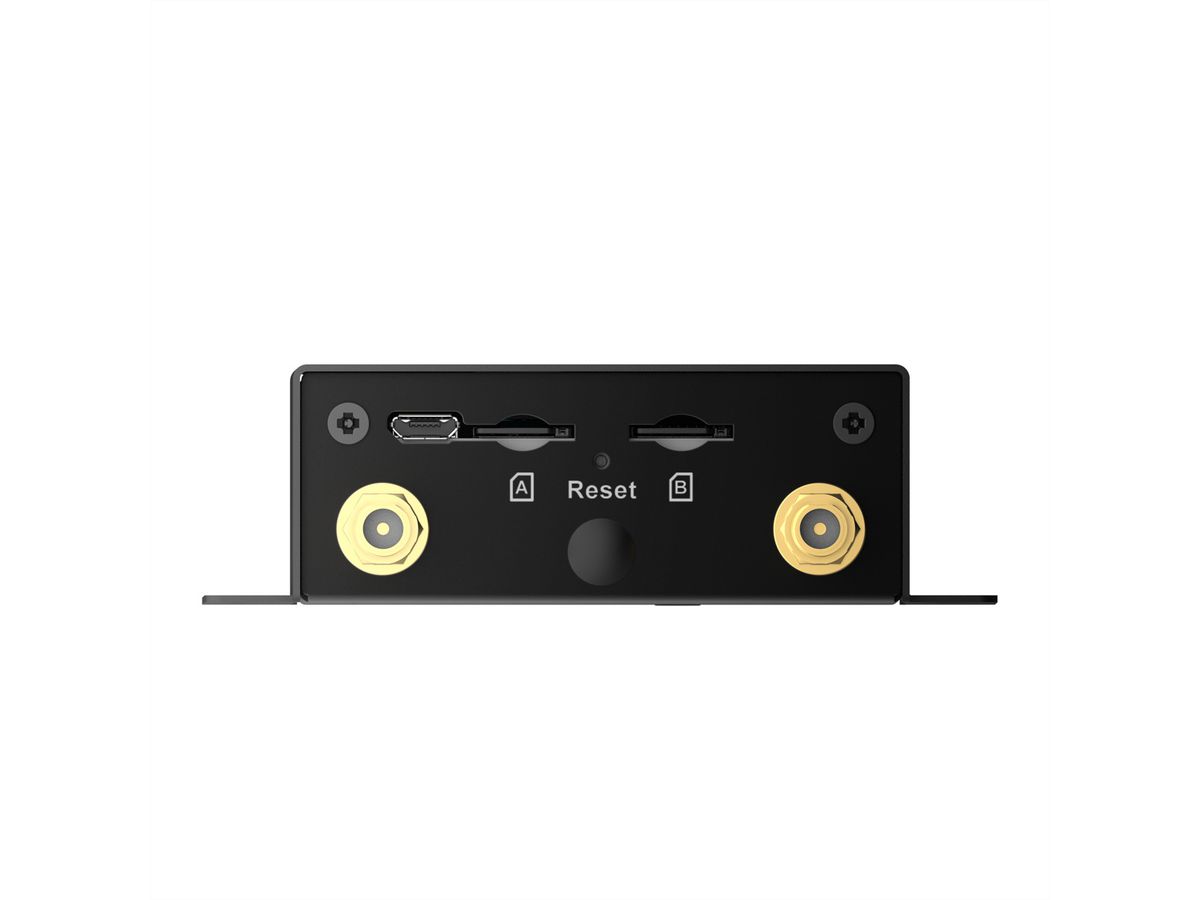

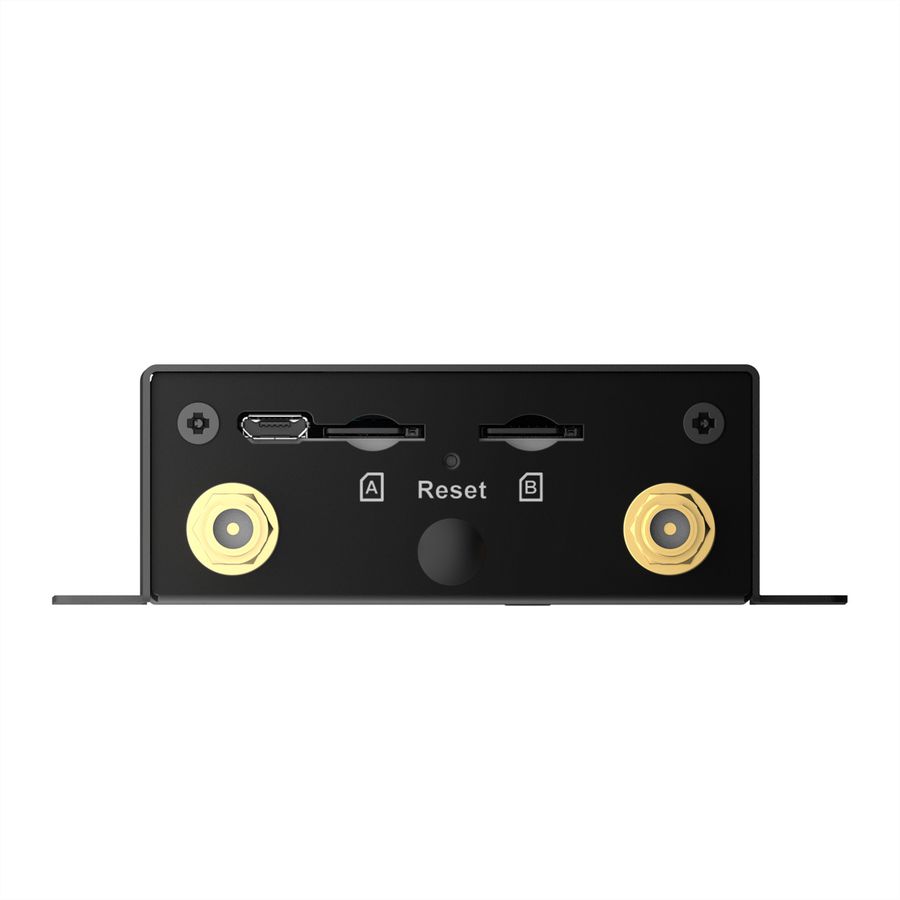

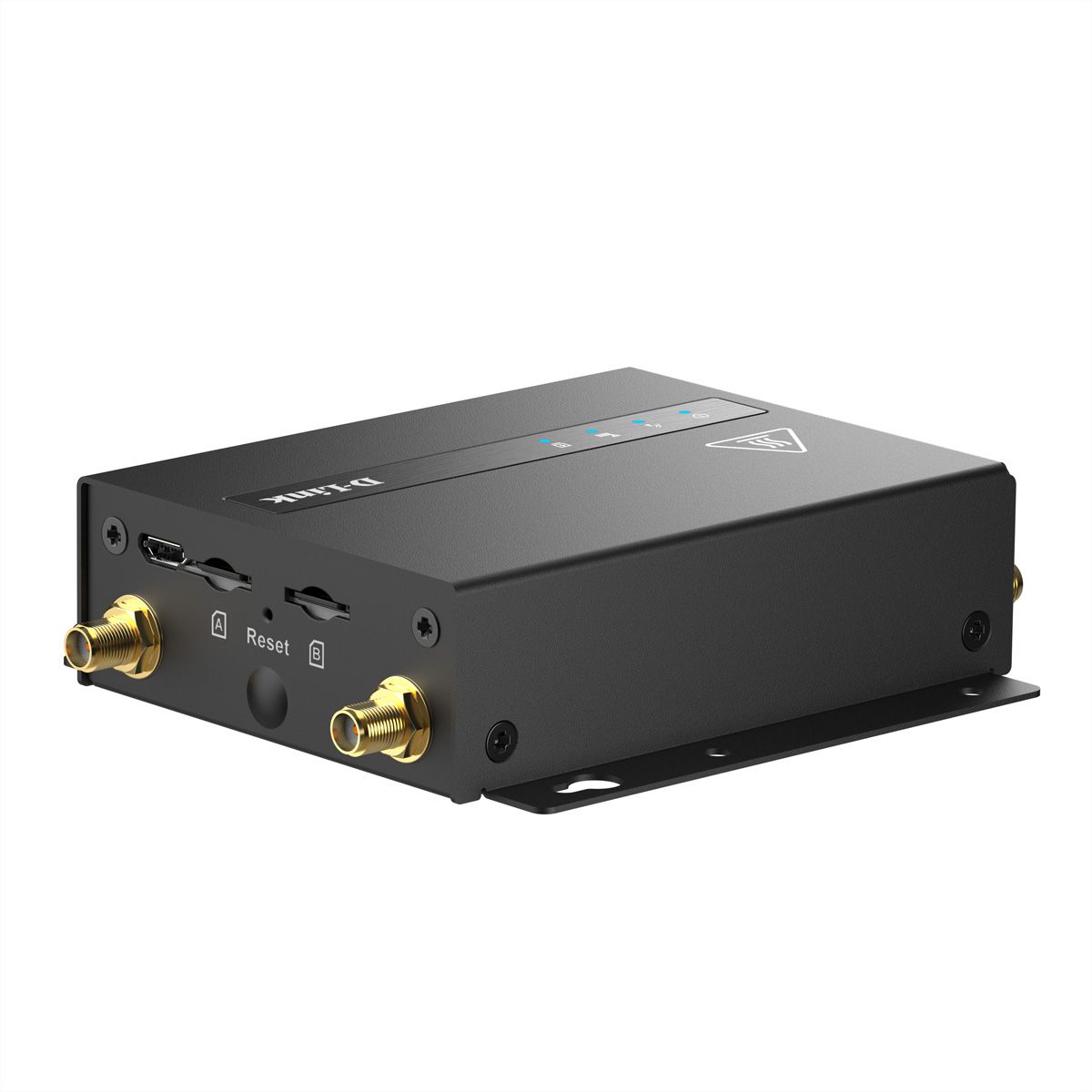

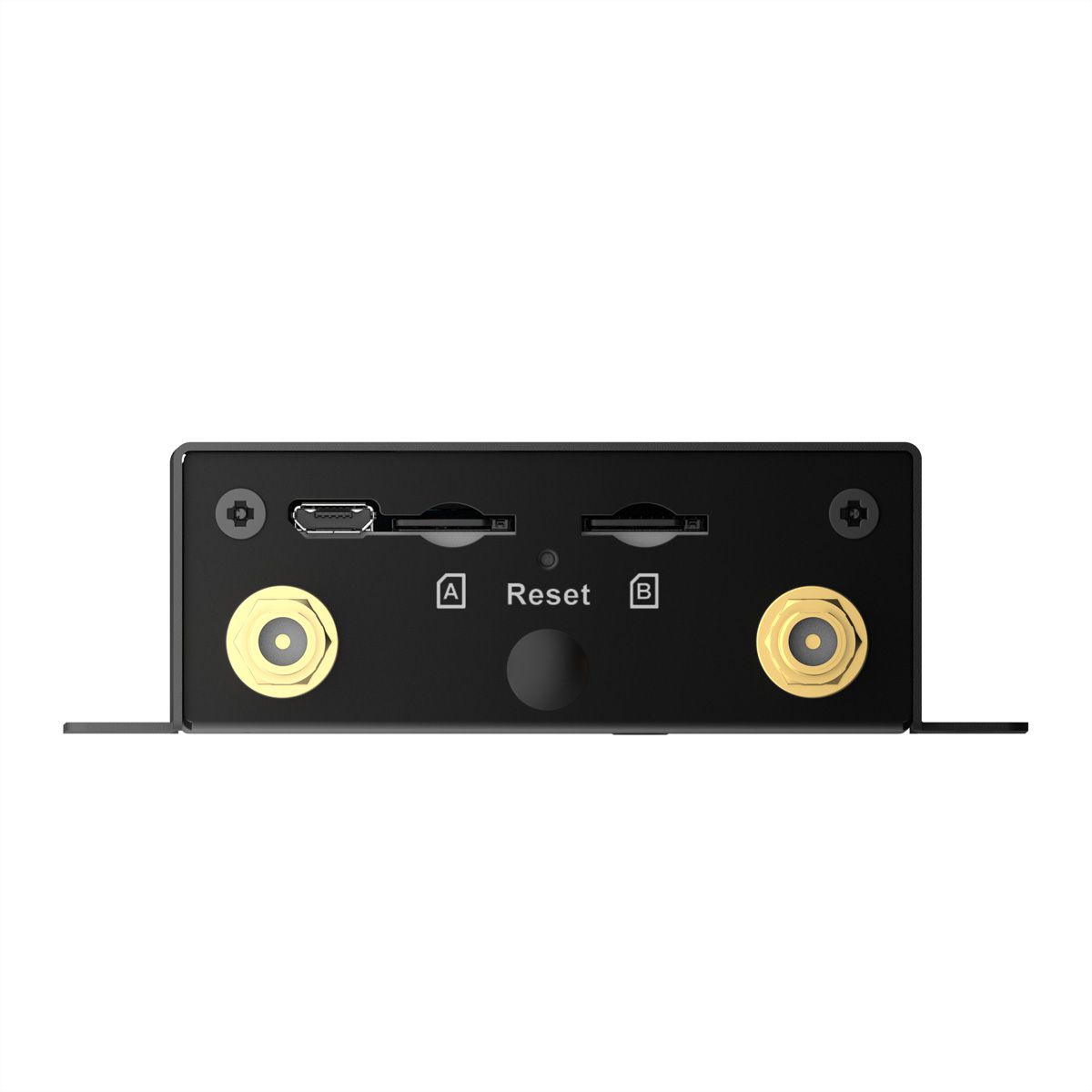

• Dual 4FF Nano-SIM slots
• 5G NSA: 3.4 Gbps (DL) / 550 Mbps (UL)
• 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
• LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
• IPv4/v6, Static Route
• IPS, access control
• OpenVPN, Wireguard
• SMS service
• Management via Web UI, SSH and D-ECS
• Wide Operating Temperature Range (-30 to +70°C)

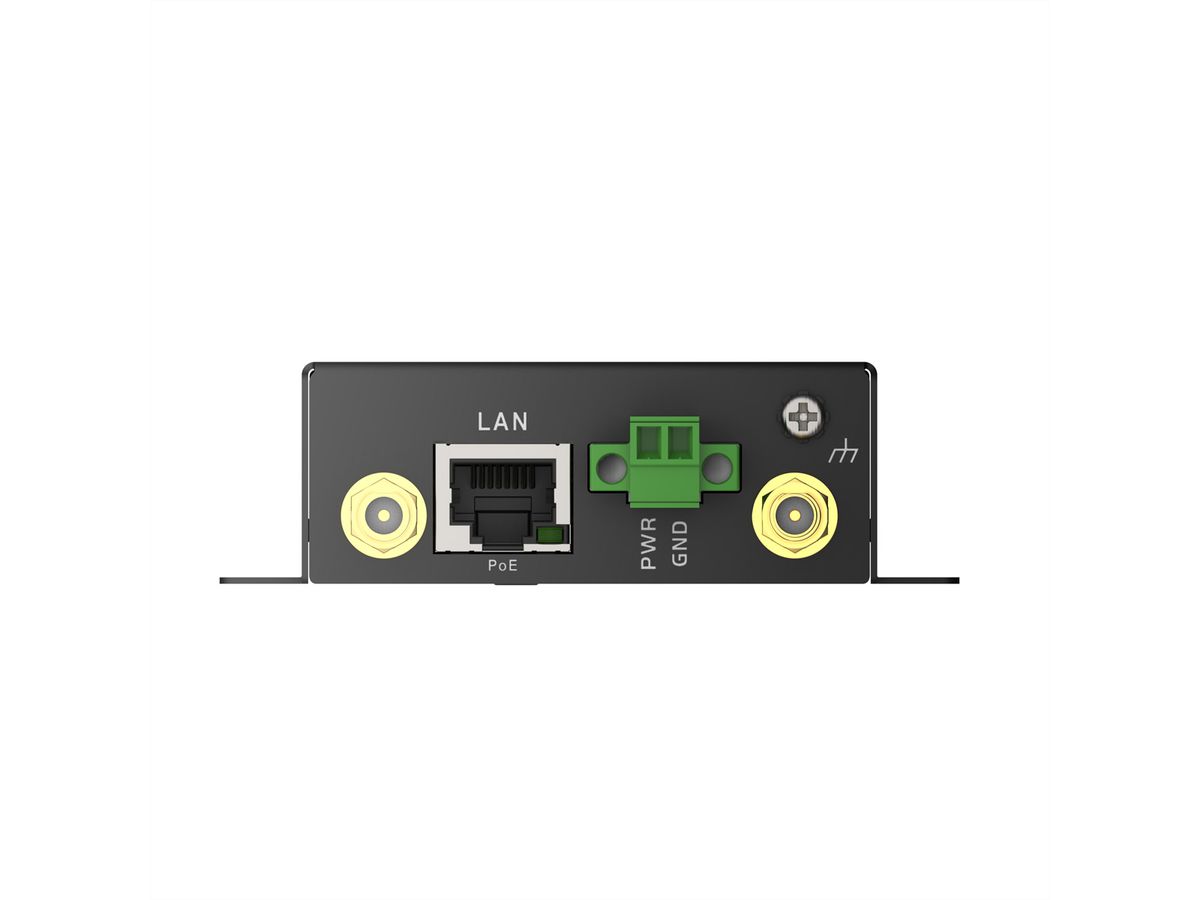

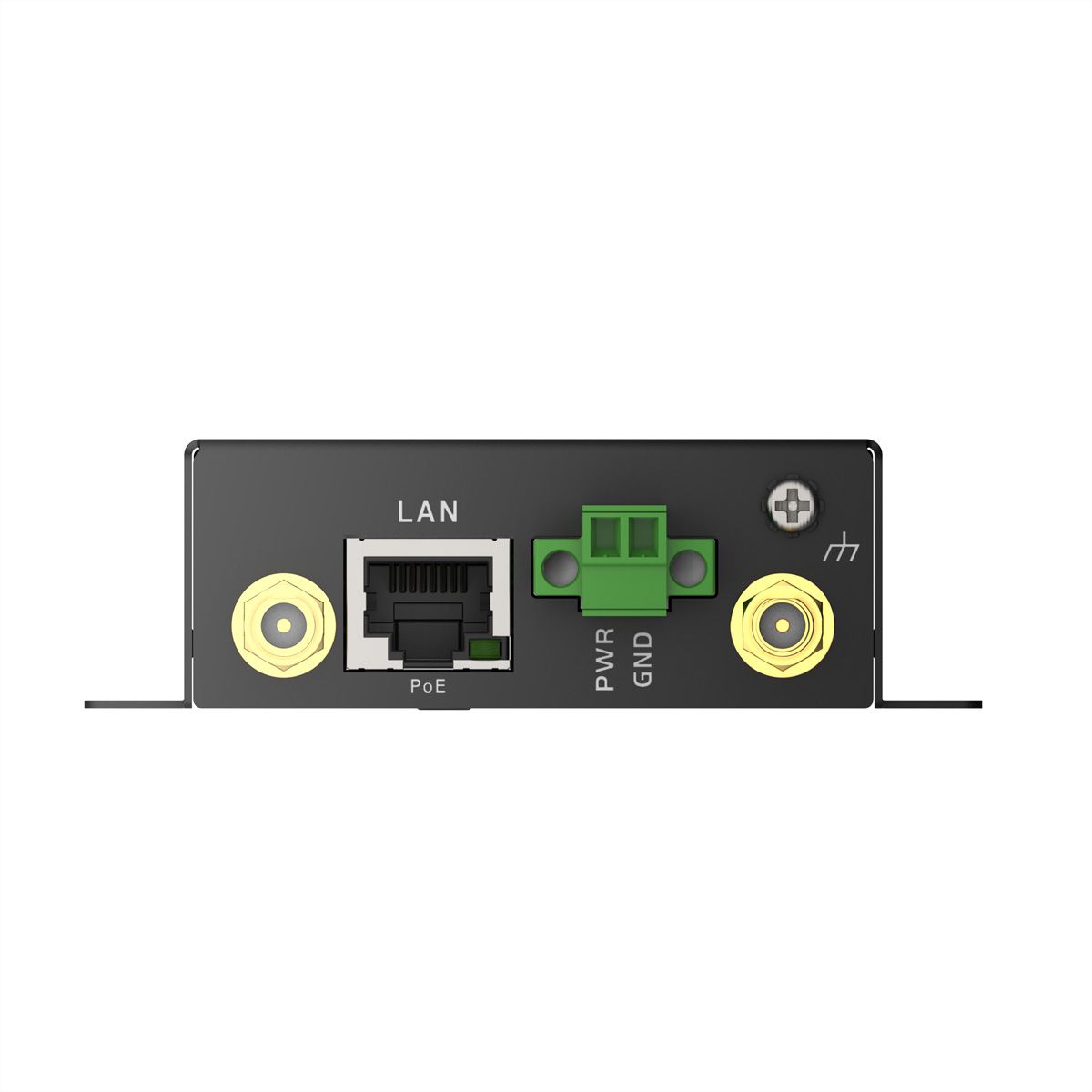

• Power input: 2-pin TB for DC 48V-57V

Specifications

Manufacturer	D-LINK
Product group	Network Components
Product type	Router
Colour	black
Scope of delivery	DWM-311-GP, 4x Cellular SMA Antennas, 1x RJ-45 Cable, 1x Power Adapter, 1x Terminal Block (2-pin), 1x DIN-Rail Kit
Radio standard 4G	yes
Radio standard 5G	yes
LAN connectors	1x 2.5G Ethernet PoE+
Operating temperature min.	-30 °C
Operating temperature max.	70 °C
Storage temperature min.	-40 °C
Storage temperature max.	85 °C
Height	27 mm
Width	93 mm
Depth	90 mm
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg
