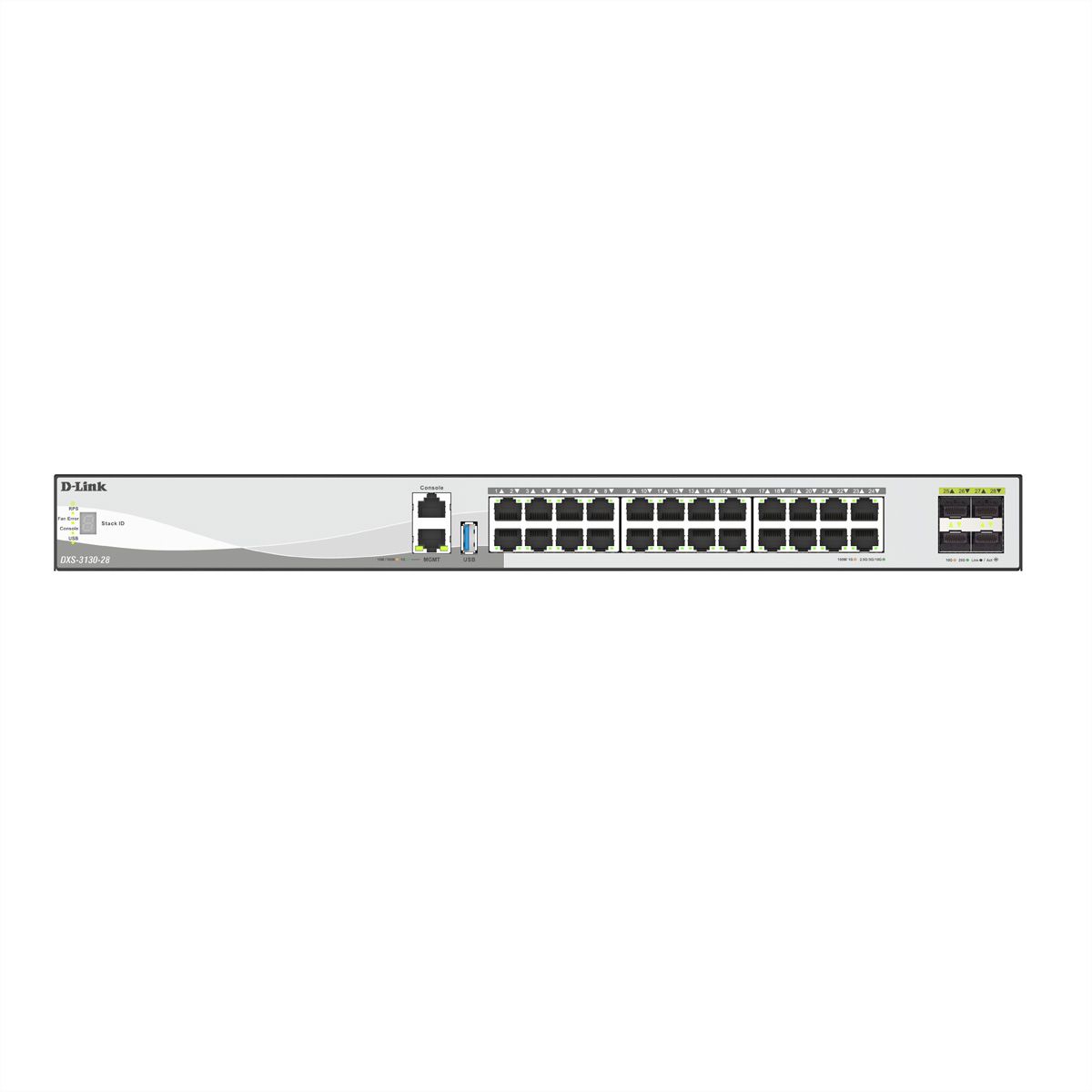

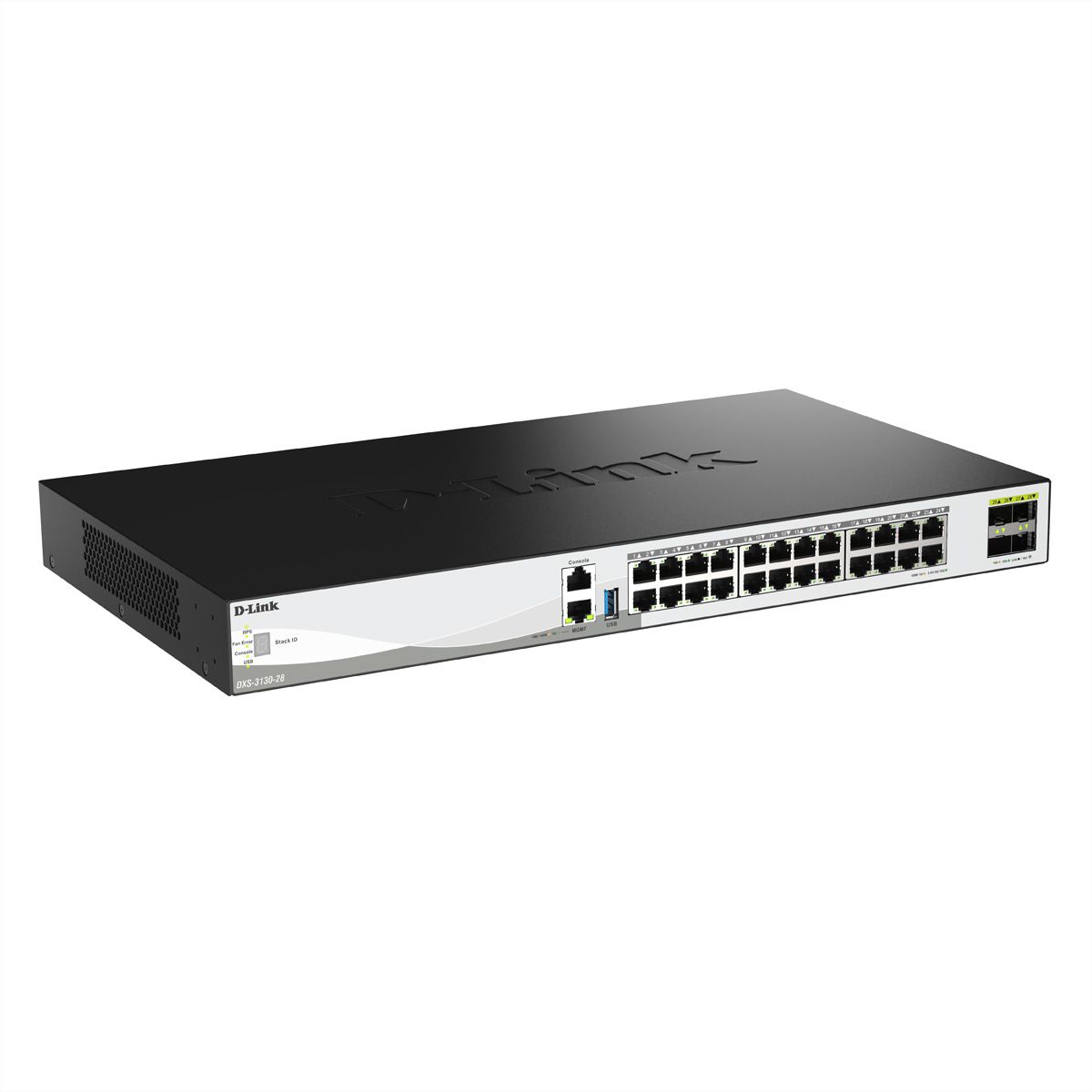

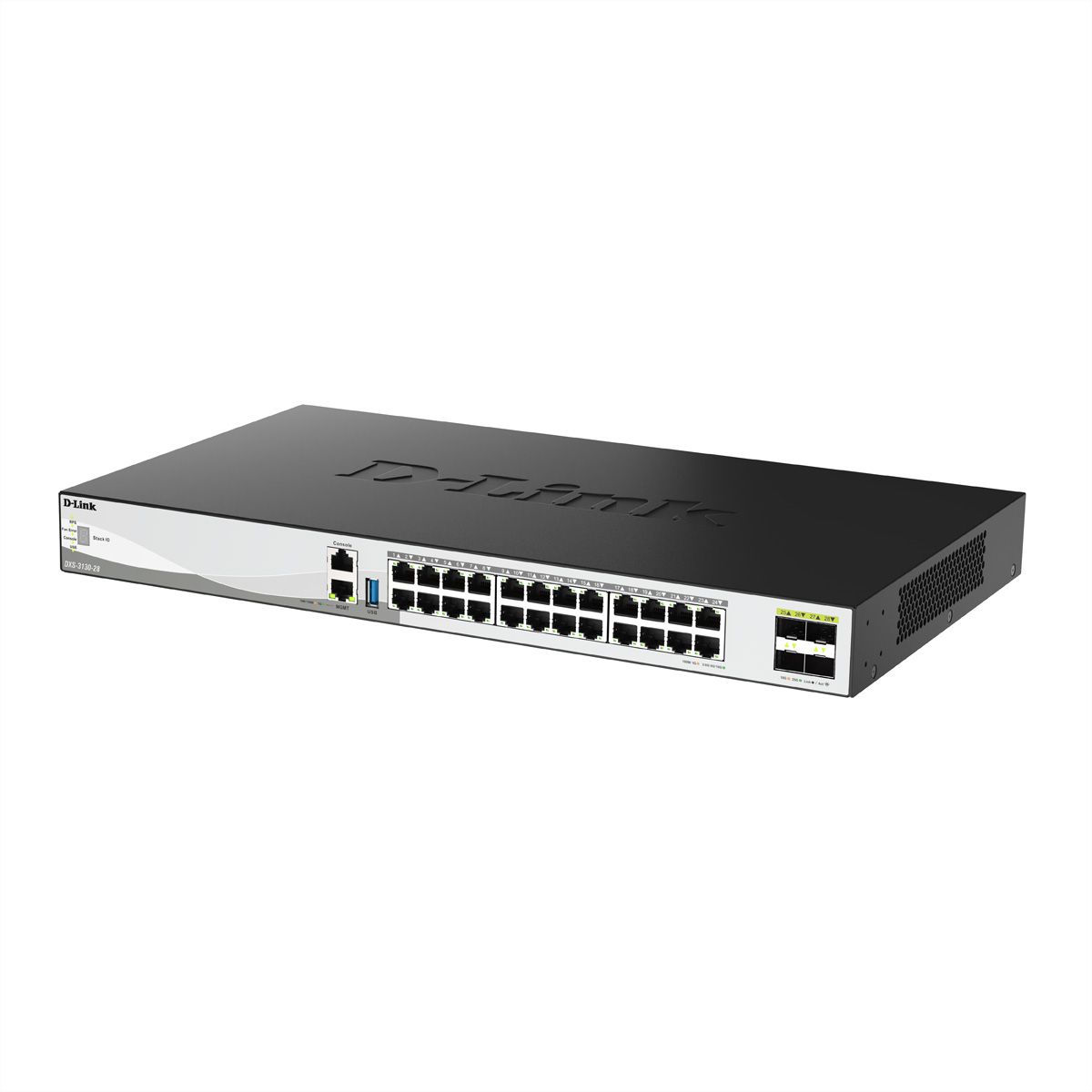

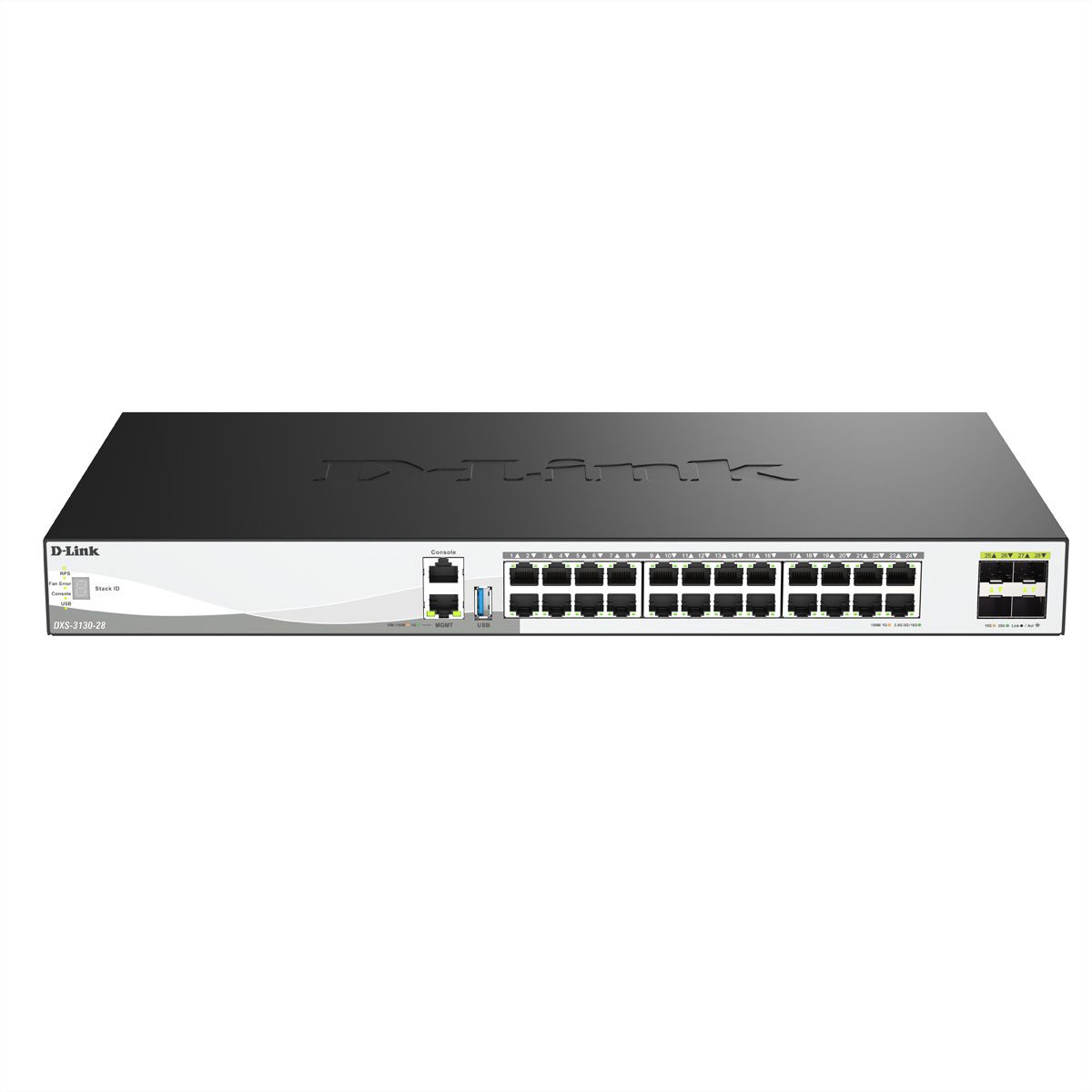

D-Link DXS-3130-28/E 28-Port Switch

Item no. 21182393 Brand / Manufacturer D-LINK Manuf. item no. DXS-3130-28/E EAN 790069476945 Item weight 4.857 kg

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 08/10/2026

Download PDF

Description

28-Port 10G Multi-Gigabit Layer 3 Stackable Managed Switch with 25G Uplinks

24x 100M/1G/2.5G/5G/10GBASE-T ports
4x 10/25G SFP28 ports
Physical Stacking of up to 9 units with 200Gbps stacking bandwidth Ring or Chain topology
Virtual Stacking with SIM up to 32 units per stack
Switching Capacity 680 Gbps

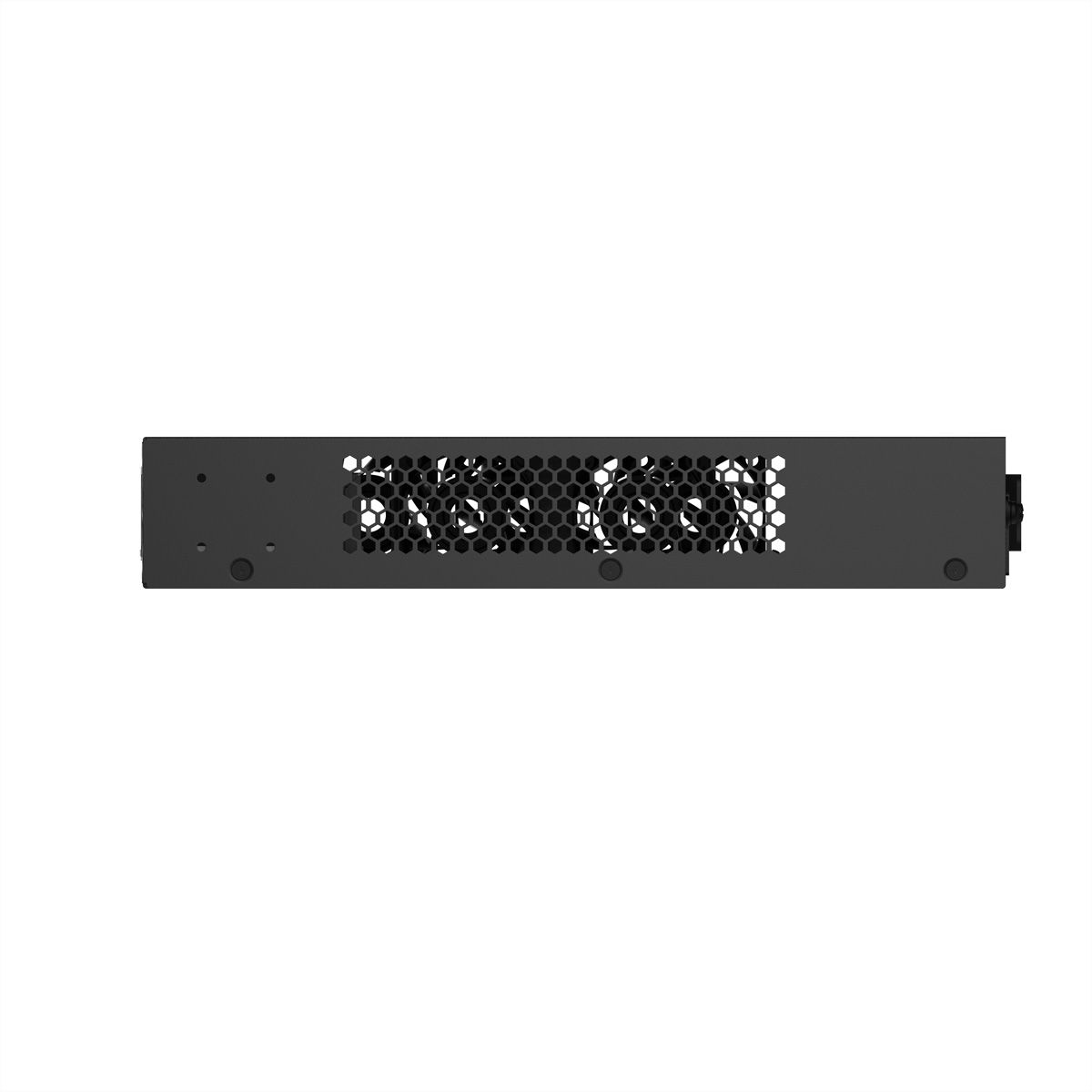

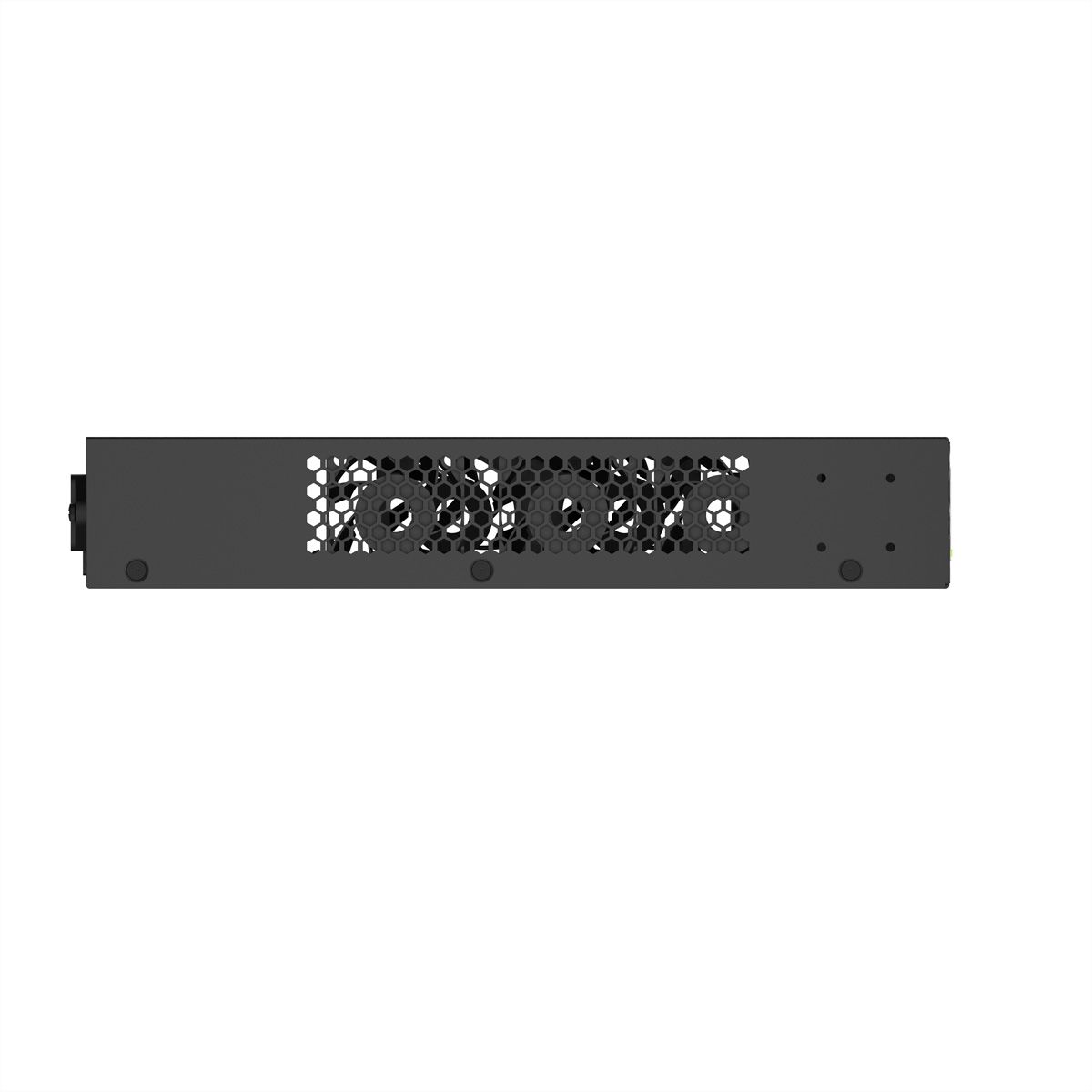

5-speed smart fan design automatically adjusts according to device operating temperature
Redundant power supply (RPS) support
Ethernet Ring Protection Switching (ERPS)
Embedded 6 kV surge protection on all Ethernet ports
IEEE 802.1D/802.1w/802.1s Spanning Tree
Loopback Detection (LBD)
L3 Features including Static Route, RIP/RIPng, OSPFv2/v3
IEEE 802.3ah Ethernet Link OAM
IEEE 802.1ag/ITU-T Y.1731 Service OAM

Specifications

Manufacturer: D-LINK
Product group: Network Switches
Product type: Network Switch
Colour: black
Network standard: 10 Gigabit Ethernet
LAN (Mbps): 10/100/1000/2500/10000
Quantity of ports: 28
10 Gigabit Ethernet Ports RJ-45: 24
Free slots for SFPs: 4
Power over Ethernet (PoE): PoE++ (IEEE 802.3bt)
Quantity of PoE ports: 24
Max. PoE output power per port: 60 W
Max. PoE output power (total): 790 W
Mounting form: 19" Rackmount
Management: Layer3
Stackable: yes
Power supply: Mains operation
Mains connection: Cold appliance connection
Operating temperature min.: 0 °C
Operating temperature max.: 50 °C
Storage temperature min.: -40 °C
Storage temperature max.: 70 °C
Height: 44 mm
Width: 440 mm
Depth: 250 mm
Weight: 3.5 kg
Height of packaging (single piece): 100 mm
Width of packaging (single piece): 370 mm
Depth of packaging (single piece): 530 mm
Package weight (single piece): 4.857 kg

Downloads

Manufacturer data sheet - English (269.0 KB)
