DAHUA DH-IPC-P5ASP-PV-0400B-S2-EUR, PTZ 5MP IR LED WLAN Camera

DAHUA DH-IPC-P5ASP-PV-0400B-S2-EUR, PTZ 5MP IR LED WLAN Camera

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 10/20/2025
Item no. 21210403
Brand / Manufacturer DAHUA
Manuf. item no. DH-IPC-P5ASP-PV-0400
EAN 6939554961144

Description

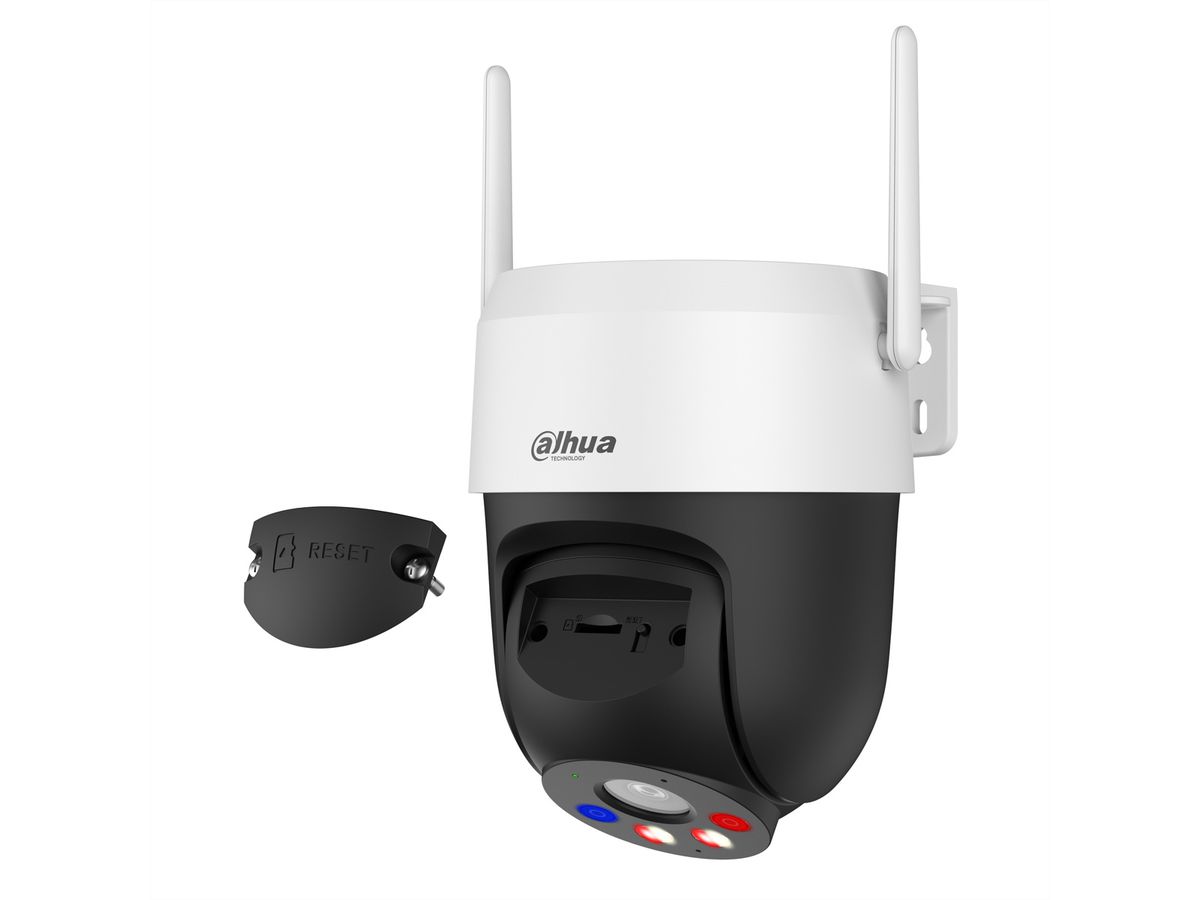

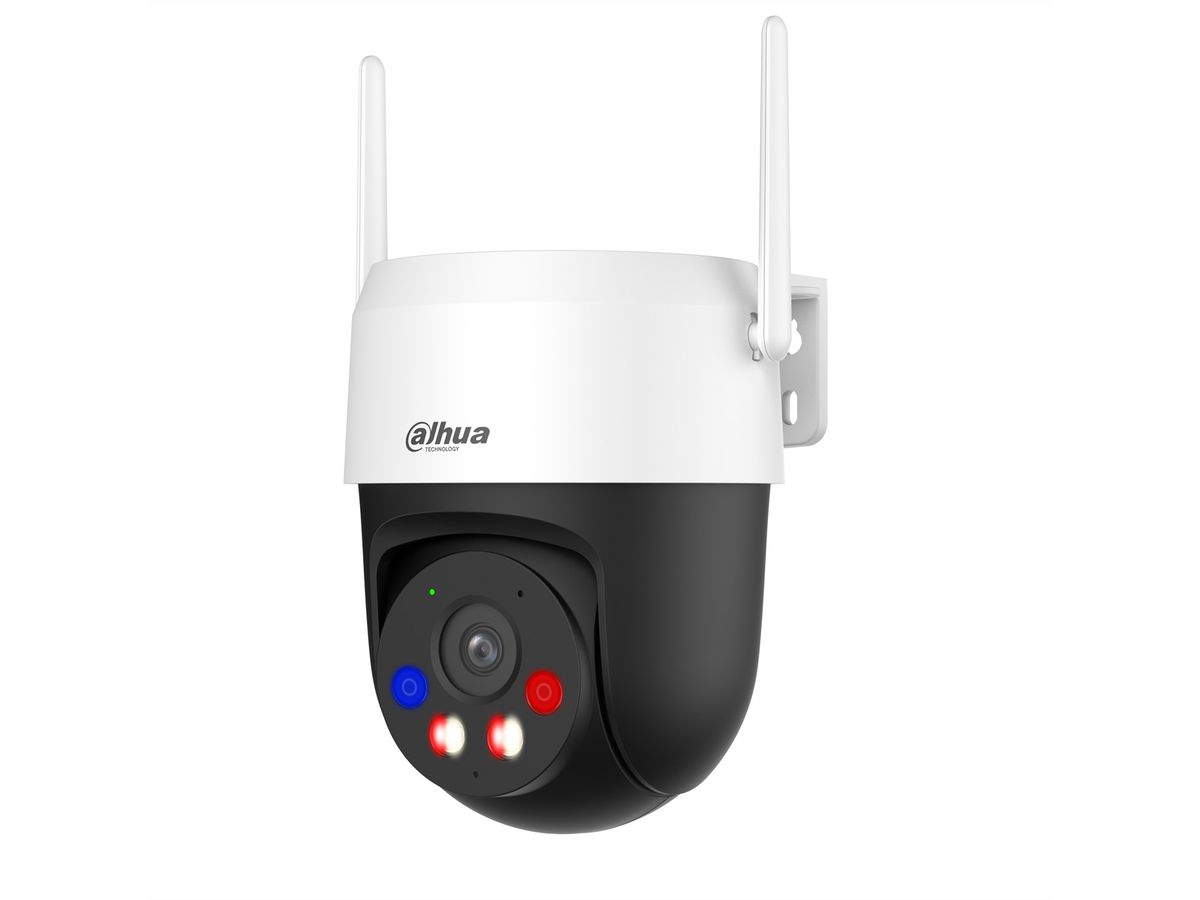

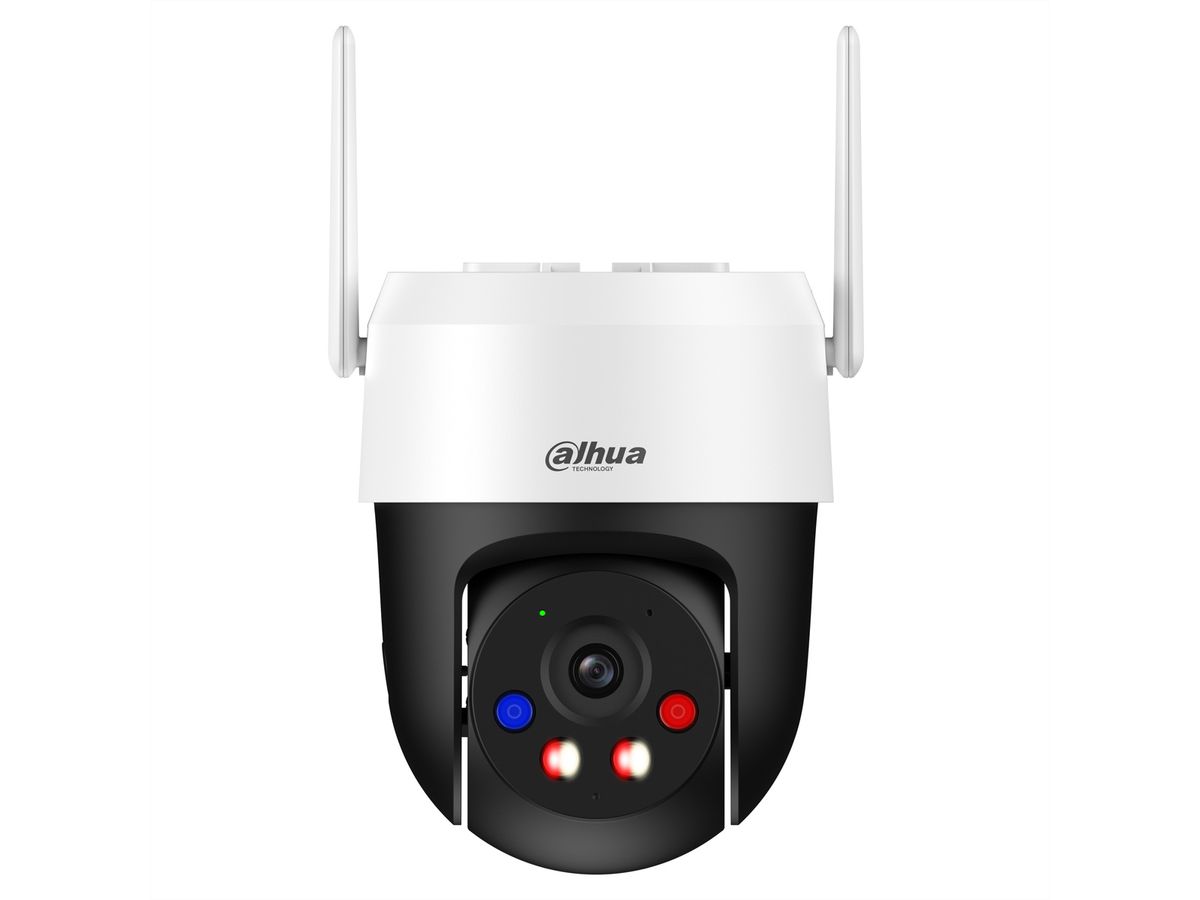

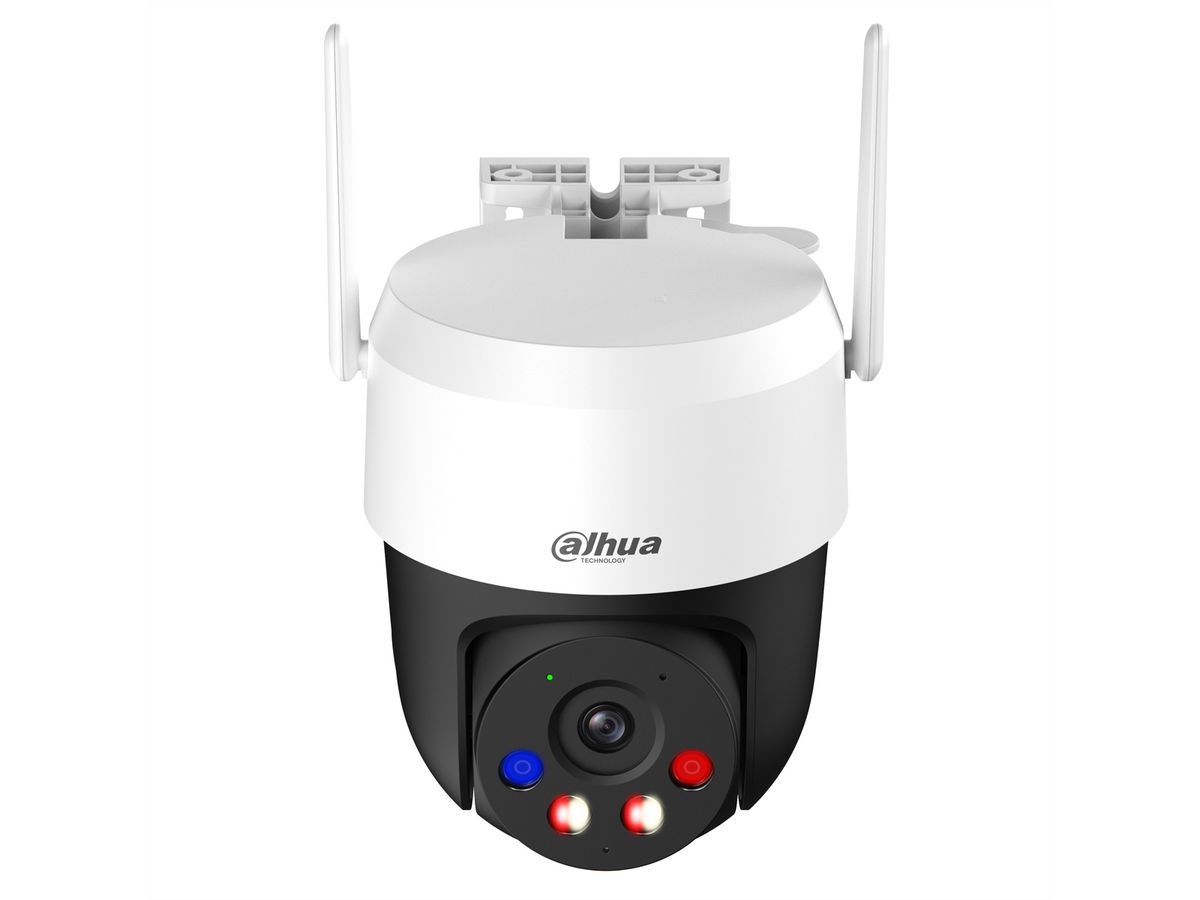

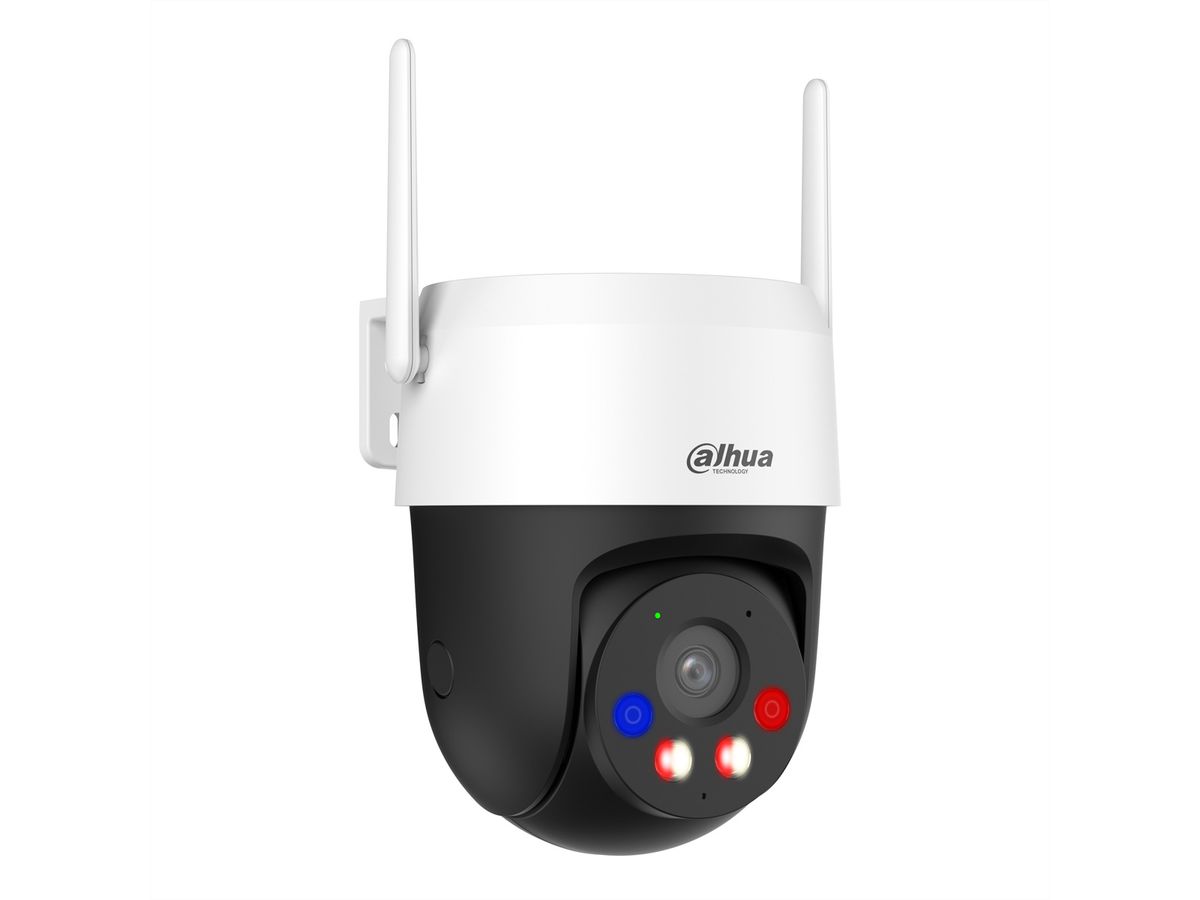

5MP Outdoor Fixed-focal Wi-Fi Pan & Tilt Network Camera

5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. Outputs max. 5 MP (2880 × 1620) @25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in multi-core light, the max. warm light distance is 30 m and the max. IR distance is 30 m. SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. Abnormality detection: No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, audio detection, intensity change, SMD (human), SMD (vehicle), security exception, intrusion and tripwire. Supports max. 256 G Micro SD card, built-in Mic, built-in speaker. 12 VDC power supply, easy for installation. IP66 protection. Supports pairing through Wi-Fi 6 and bluetooth. Supports human detection and vehicle detection.

The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. Additionally, it includes smart dual illuminators that not only reduce light pollution, but also intelligently turn on when they are triggered by an event to assist the camera with capturing clear, full-color videos.

Specifications

Manufacturer DAHUA
Product group IP surveillance
Product type PTZ (Pan/Tilt/Zoom) Network Camera
Mounting form PTZ (Pan/Tilt/Zoom)
Interface LAN / WLAN
ONVIF yes
Image Sensor Type 1/2.7" CMOS image sensor
Resolution 5 MPx
Focal Length 4 mm
Horizontal viewing angle 78 °
Viewing angle vertical 42 °
Diagonal viewing angle 92 °
IR LED yes
IR range (max.) 30 m
WDR DWDR
Pan Area 0° - 345°
Tilt Area 0° - 90°
Motion Detection yes
Memory Card Slot yes
WLAN yes
WiFi standard WiFi 6 (IEEE 802.11ax)
Protection class (IP Code) IP66
Operating temperature min. -30 °C
Operating temperature max. 55 °C
Height 140.3 mm
Width 110 mm
Depth 125.4 mm
Weight 400 g
Height of packaging (single piece) 0 mm
Width of packaging (single piece) 0 mm
Depth of packaging (single piece) 0 mm
Package weight (single piece) 0 kg

Downloads

Manufacturer data sheet - English (4.2 MB)

Download
