EasyLan Floor Tank Support Basic UT4 9x Keystone, GB3

Item no. 25168468 Brand / Manufacturer EasyLan Manuf. item no. ABGECO33 EAN 4055516056870 Item weight 0.17 kg
EasyLan

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

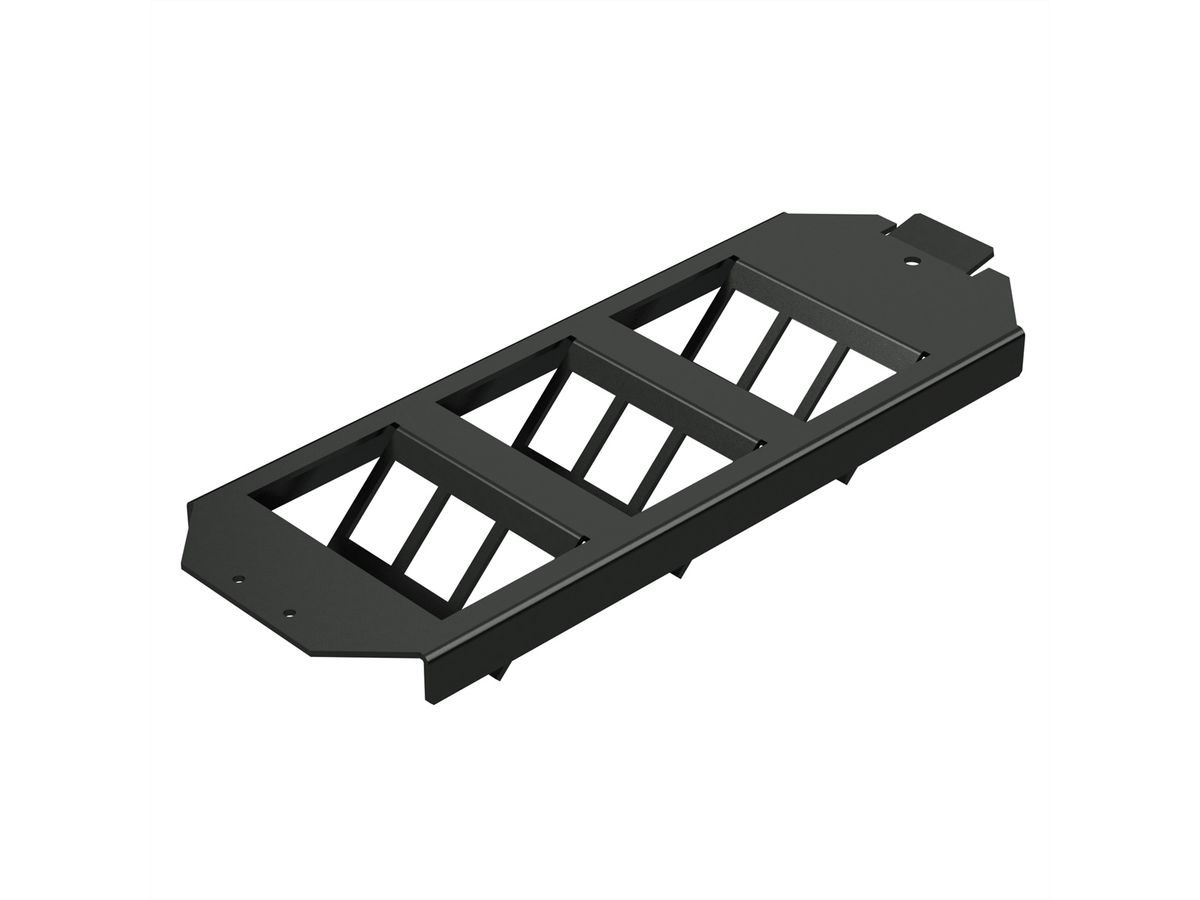

EasyLan® floor tank Basic, UT4, 3x3 Keystone RAL9005

The floor tank supports are compatible with the OBO Bettermann floor box system and replace the UT3 or UT4 universal supports. They offer the greatest possible amount of space in the cable feed. The flat cable entry and exit enables a low installation height even with very low false floors.
Earthing is provided by means of an M4 ring cable lug.
With the adapter for adapting to the Electraplan dimensions, the support plates can also be used in the Electraplan floor tank.

  • Dimension: GB3 / 213 x 76 x 28 mm
  • Material: Powder-coated sheet steel, black RAL 9005
  • Material thickness 1.5mm
  • Earthing is provided by means of an M4 ring cable lug

Specifications

Manufacturer
EasyLan
Product group
Network Passive Components
Product type
Network components housing
Colour
black
Scope of delivery
Draagplaat GB3, voor 9 Keystone modules
RAL colour
RAL 9005 Jet black
Operating temperature min.
-40 °C
Operating temperature max.
60 °C
Height
25 mm
Width
76 mm
Depth
213 mm
Weight
391.231 g
Height of packaging (single piece)
40 mm
Width of packaging (single piece)
80 mm
Depth of packaging (single piece)
230 mm
Package weight (single piece)
0.17 kg

With EASYLAN products, you can keep track of the network jungle. These include the DualBoot® LED S/FTP and fiber optic LED patch cables with light identification, the injectors for feeding energy into the patch cables and the marking clips. But also the DualBoot IP20 patch cables with PushPull locking instead of the usual jack release.
