EasyLan Floor Tank UT4, GB3

Item no. 25168469 Brand / Manufacturer EasyLan Manuf. item no. ABG00012 EAN 4055516000057 Item weight 0.118 kg
EasyLan

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

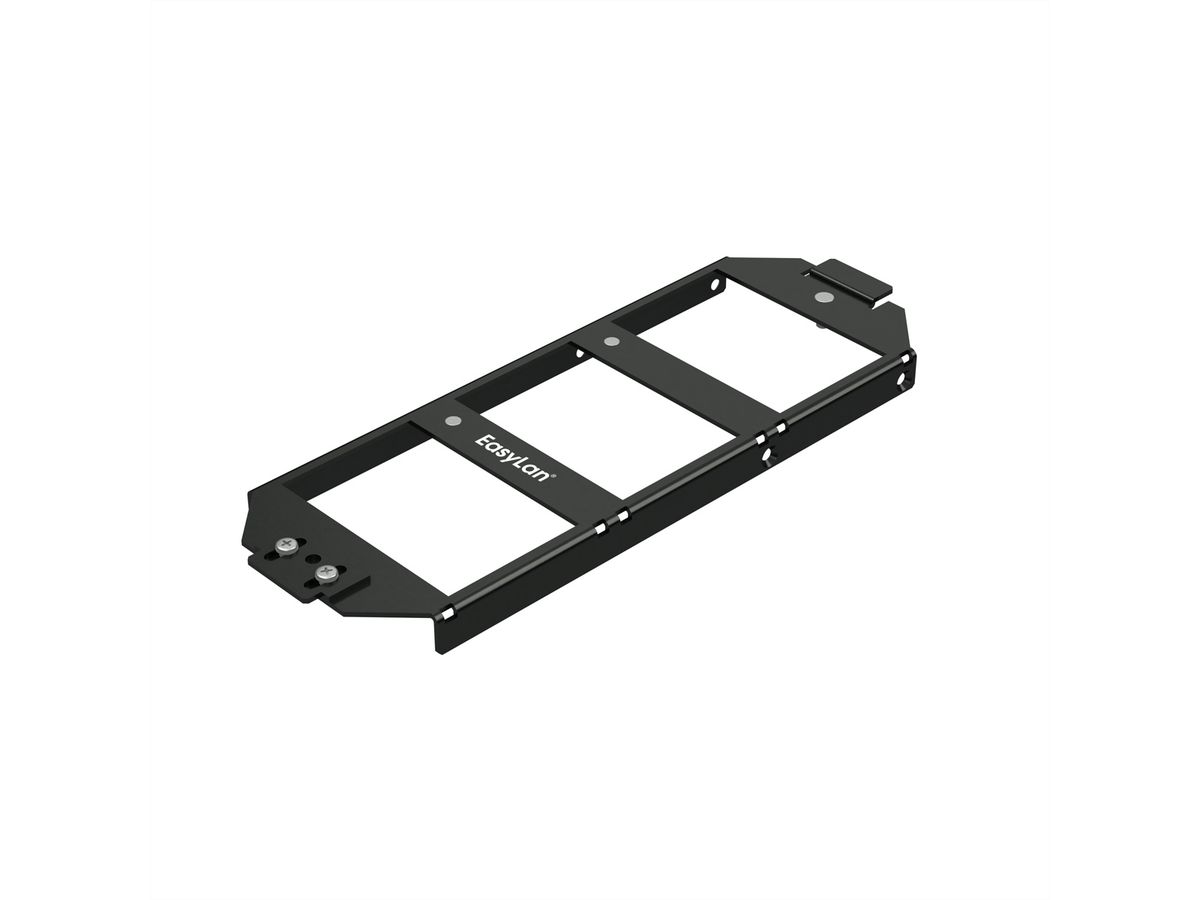

EasyLan® OBO / floor tank support plates UT4, RAL9005

The support plates replace the OBO Bettermann universal supports UT3, UT4 and allow the greatest possible amount of space in the cable feed. Together with the installation plates, a flat cable entry and exit is made possible and a low installation height is achieved even with very low false floors.
With the adapter for adapting to the Electraplan dimensions, the support plates can also be used in the Electraplan floor tank.
Fields of the support plate that are not required can be covered with dust-proof blind plates.

  • Dimensions: GB3 / 213 x 76 x 12 mm
  • Material: Powder-coated sheet steel
  • Color: black (RAL9005)
  • Installation: 3 installation panels
  • Grounding: via screw terminal
  • Mounting: With a lockable sliding tab

Specifications

Manufacturer
EasyLan
Product group
Network Passive Components
Product type
Network components housing
Colour
black
Scope of delivery
support plates GB3 for 3 installtion panels
RAL colour
RAL 9005 Jet black
Operating temperature min.
-40 °C
Operating temperature max.
60 °C
Height
12 mm
Width
70.8 mm
Depth
208 mm
Weight
231.99 g
Height of packaging (single piece)
40 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
230 mm
Package weight (single piece)
0.118 kg

With EASYLAN products, you can keep track of the network jungle. These include the DualBoot® LED S/FTP and fiber optic LED patch cables with light identification, the injectors for feeding energy into the patch cables and the marking clips. But also the DualBoot IP20 patch cables with PushPull locking instead of the usual jack release.
