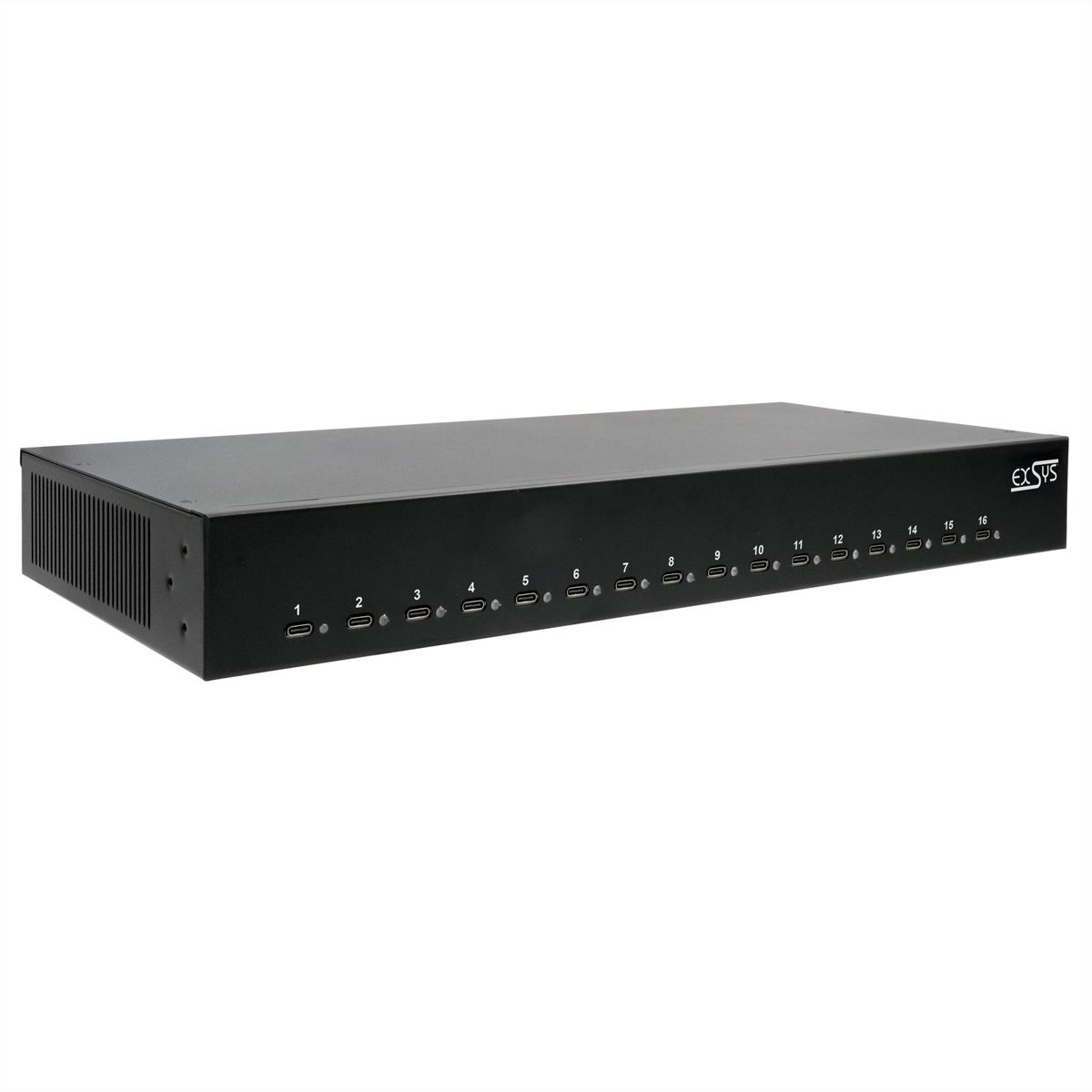

EXSYS EX-11017 16-Port USB-C High Power Charger 1008W

Item no. 15063521 Brand / Manufacturer EXSYS Manuf. item no. EX-11017 EAN 4718359110177 Item weight 3.958 kg
EXSYS

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

With an impressive total output power of 1008W, the 16-port USB-C charging station EX-11017 is ideal for use in schools, universities, hotels, restaurants, clubhouses and many other locations.

Each of the 16 USB C-Ports supports Power Delivery (PD) with a maximum charging power of up to 65W. This enables 16 notebooks/MacBooks, as well as smartphones, tablets and other devices, to be charged simultaneously. The all-round ventilation concept with temperature-controlled fans prevents excessive heat build-up inside the charging station, thus preventing overheating. The included mounting brackets allow the EX-11017 to be installed in charging cabinets or 19" racks, transforming them into highly efficient charging stations capable of charging the tablets of an entire classroom overnight, for example.

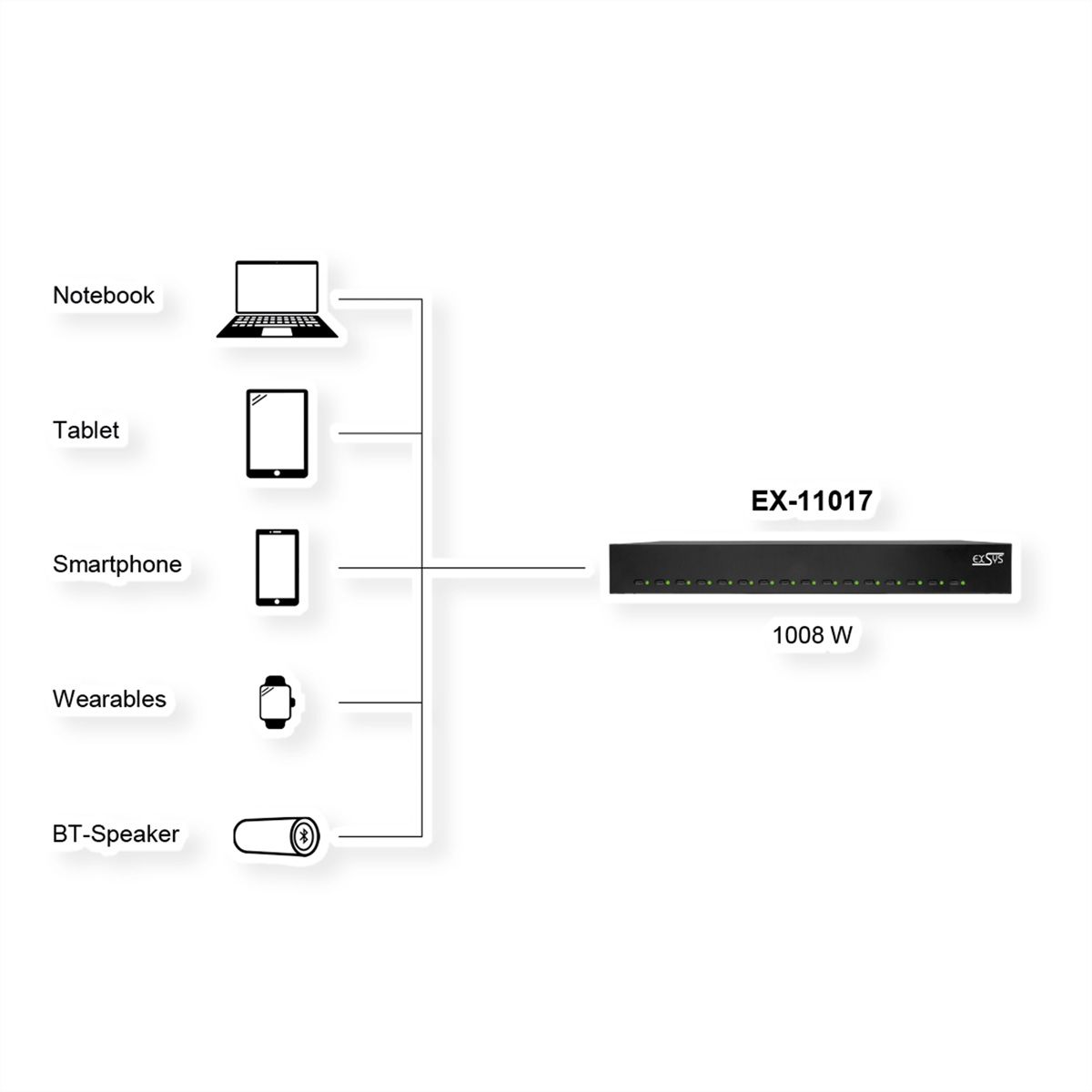

  • Simultaneous charging of up to 16 devices, including notebooks, tablets, smartphones, wearables, etc.
  • Powerful built-in power supply with 94% efficiency and a total output power of 1008W
  • USB-C Power Delivery (PD 3.0) provides up to 65W per port (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A)
  • Supports over 20 charging protocols, including as Qualcomm Quick Charge 5, Samsung AFC, Huawei FCP, TFCP, SCP and SFCP
  • Overcurrent protection, overvoltage protection, undervoltage protection, short-circuit protection, overcharge protection

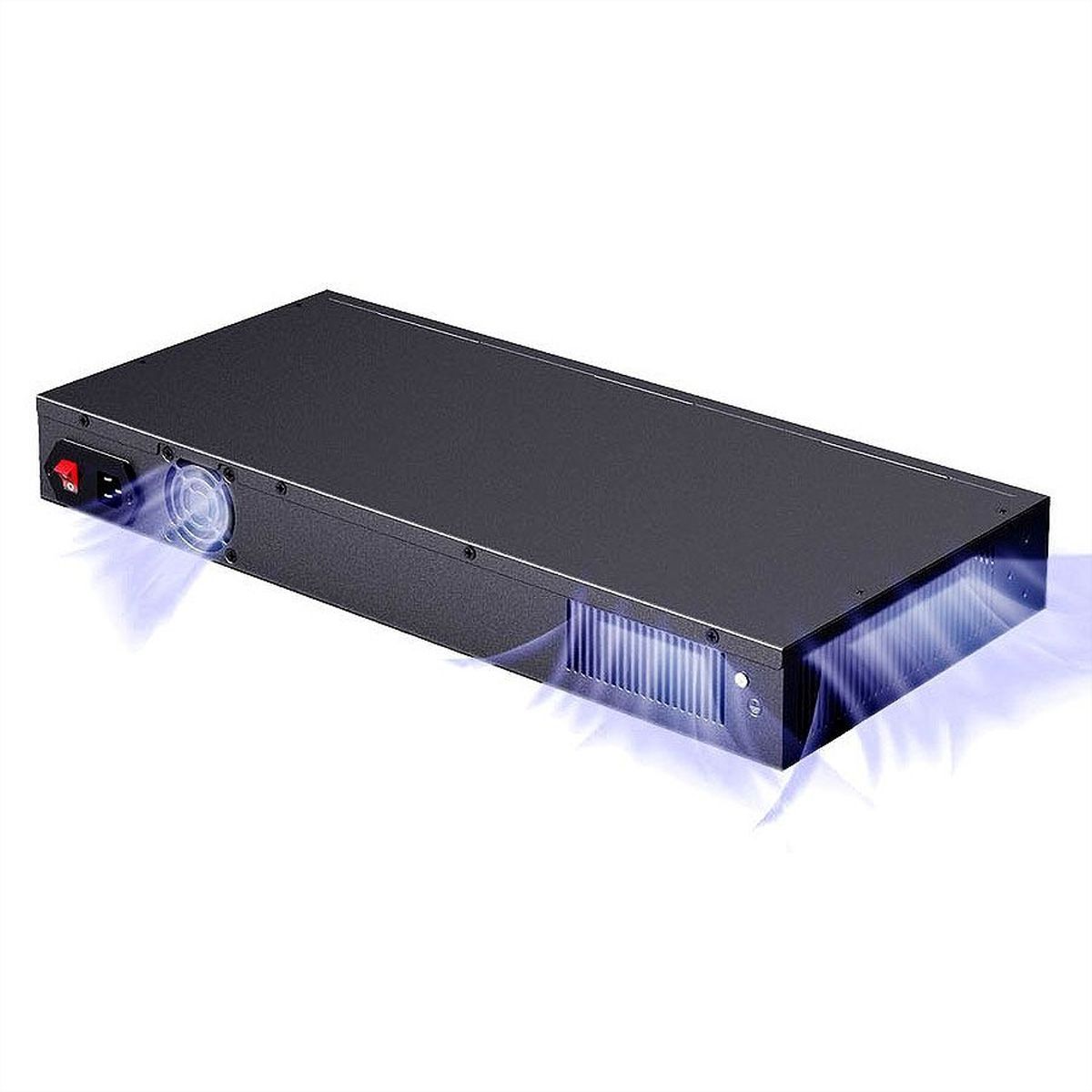

  • Multiple temperature-controlled fans for optimal air circulation to protect against overheating

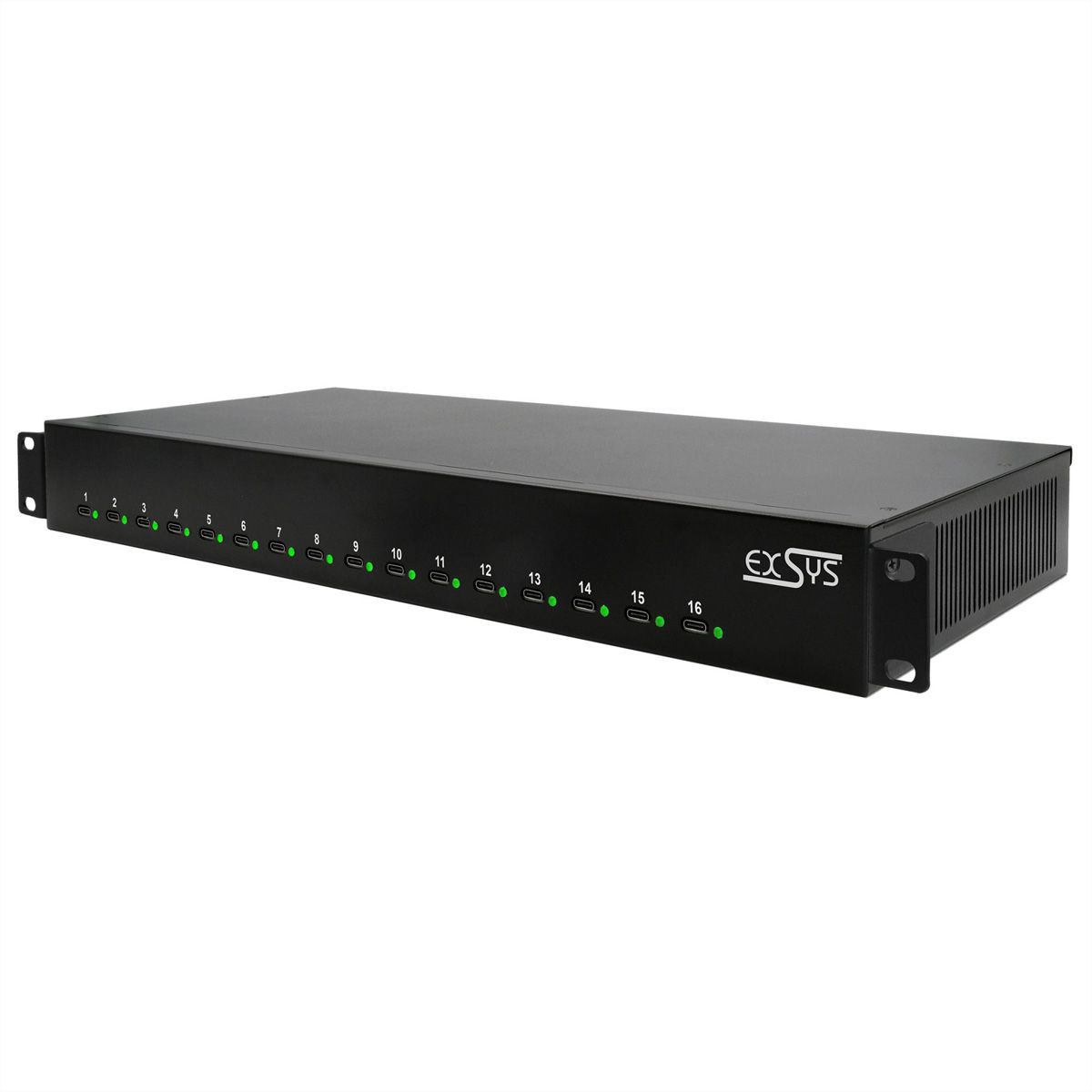

  • Mounting brackets included for installation in a charging cabinet or 19" rack (1U)
  • 16 LEDs for charging status indication

Specifications

Manufacturer
EXSYS
Product group
Voltage converter
Product type
USB charging station
Colour
black
Scope of delivery

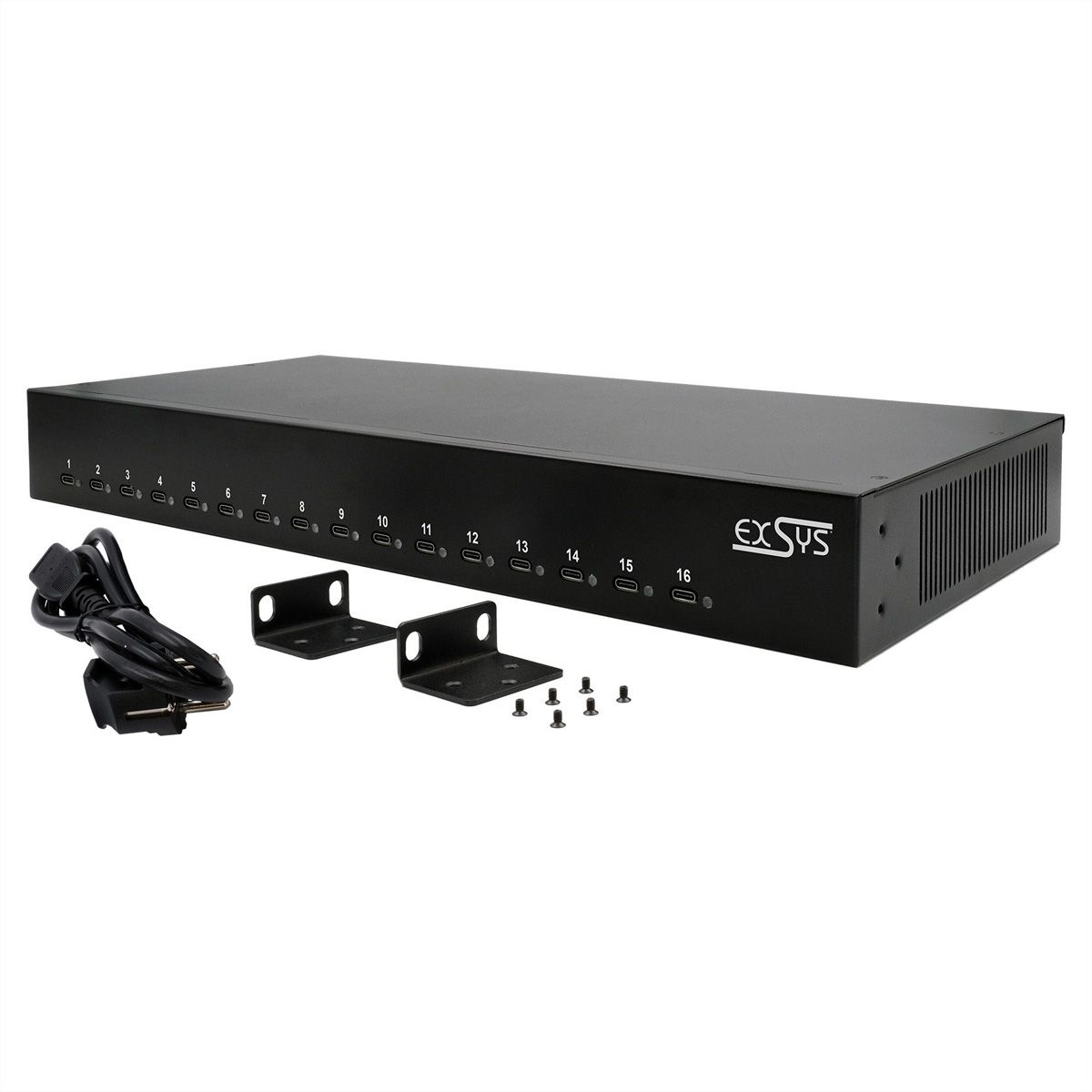

EX-11017, power cord, 19"-Rack Kit, Manual
Input
100-240 VAC
Output
12W (2400mA)
Output connector
7x USB Type A F
Supported charging technology
Quick Charge 4.0
Activity
Display met de huidige laadspanning en oplaadstroom per poort
Operating temperature min.
-25 °C
Operating temperature max.
70 °C
Height
55 mm
Width
440 mm
Depth
212 mm
Weight
3330 g
Height of packaging (single piece)
100 mm
Width of packaging (single piece)
250 mm
Depth of packaging (single piece)
570 mm
Package weight (single piece)
3.958 kg
