EXSYS EX-13101 USB zu 1S Seriell RS-232 Konverter-Board (FTDI Chipsatz)

Item no. 15063484 Brand / Manufacturer EXSYS Manuf. item no. EX-13101 EAN 4718359131011 Item weight 0.006 kg
EXSYS

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

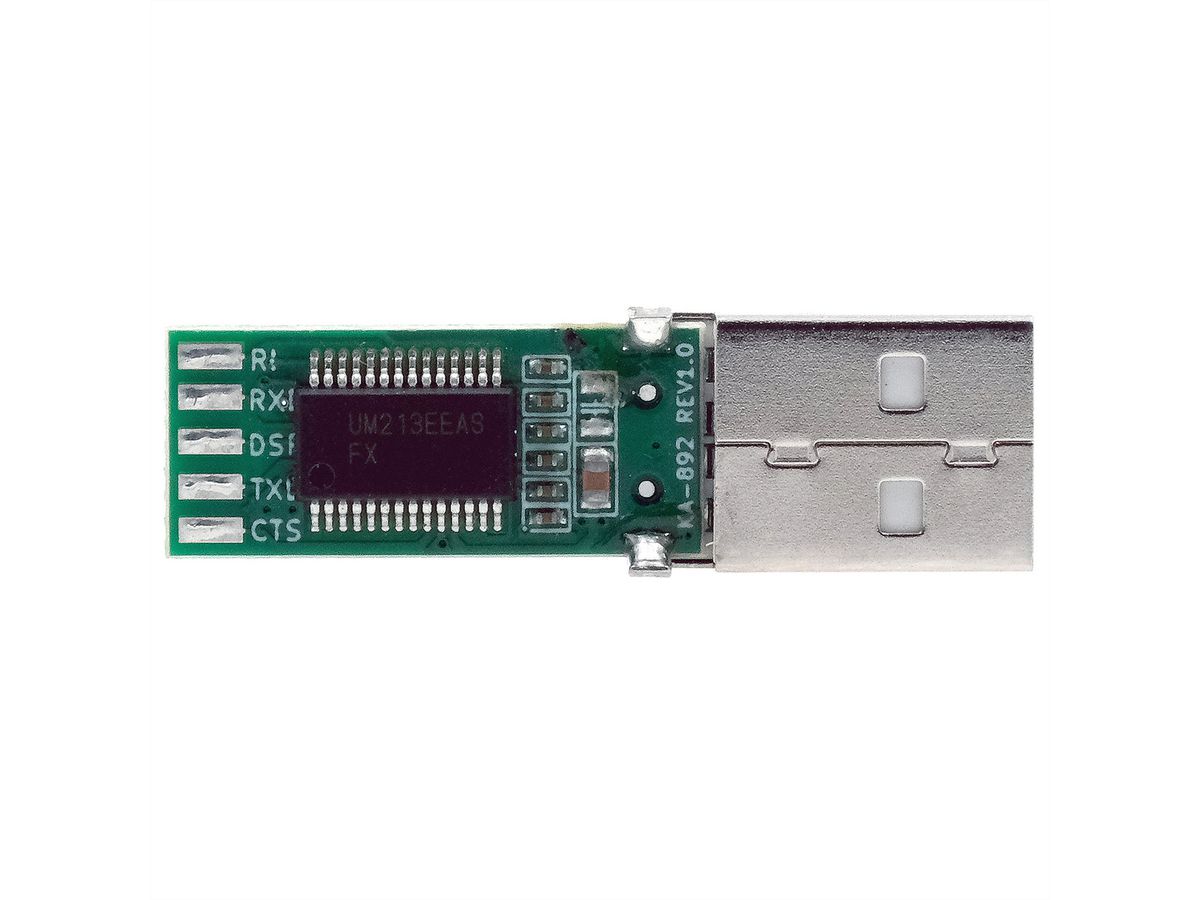

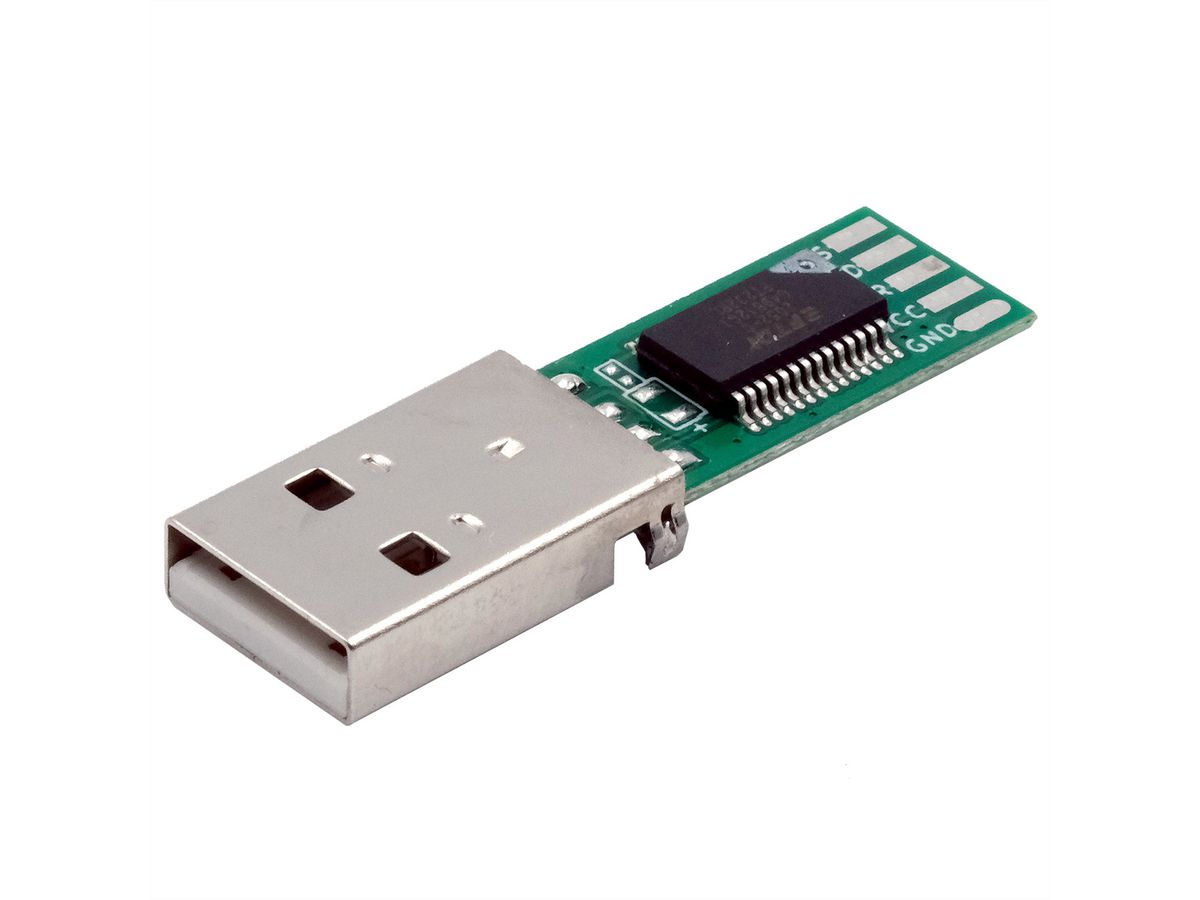

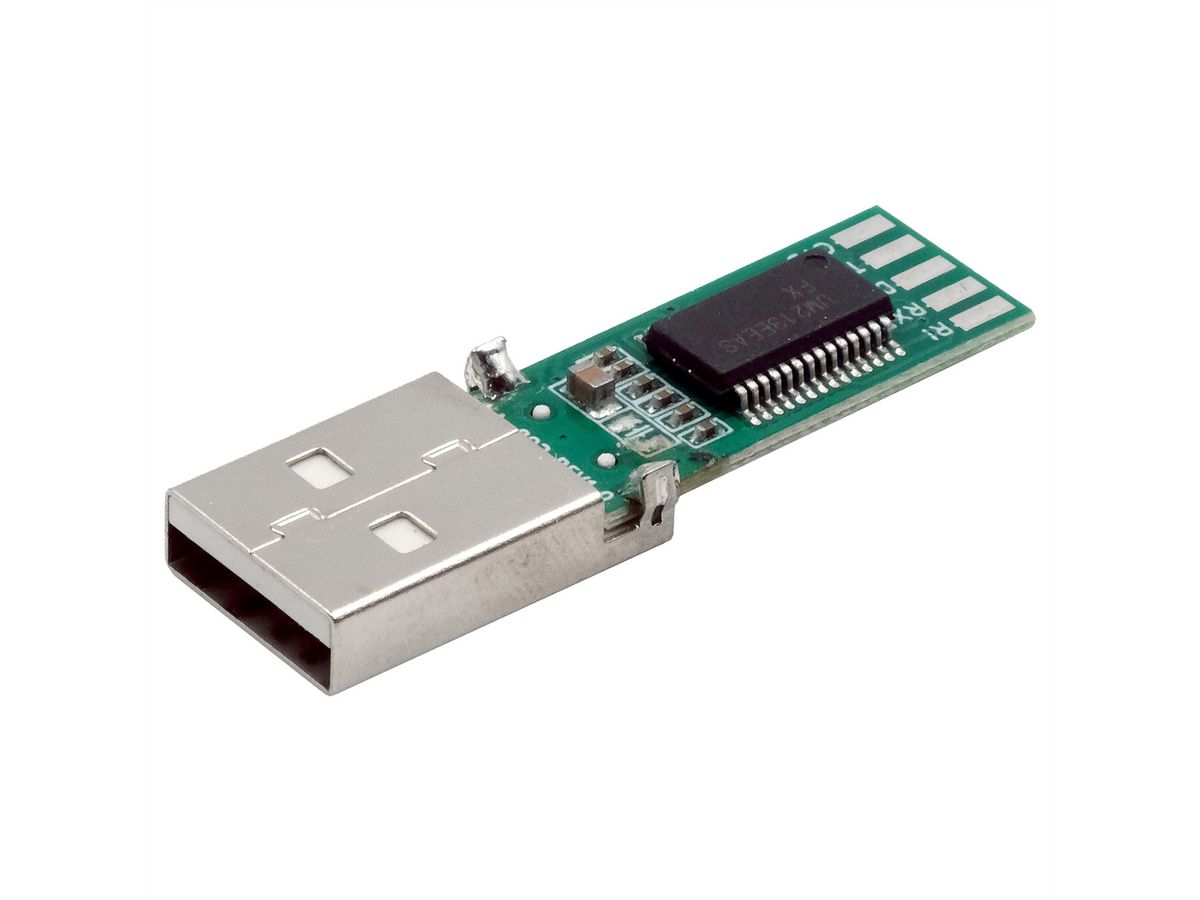

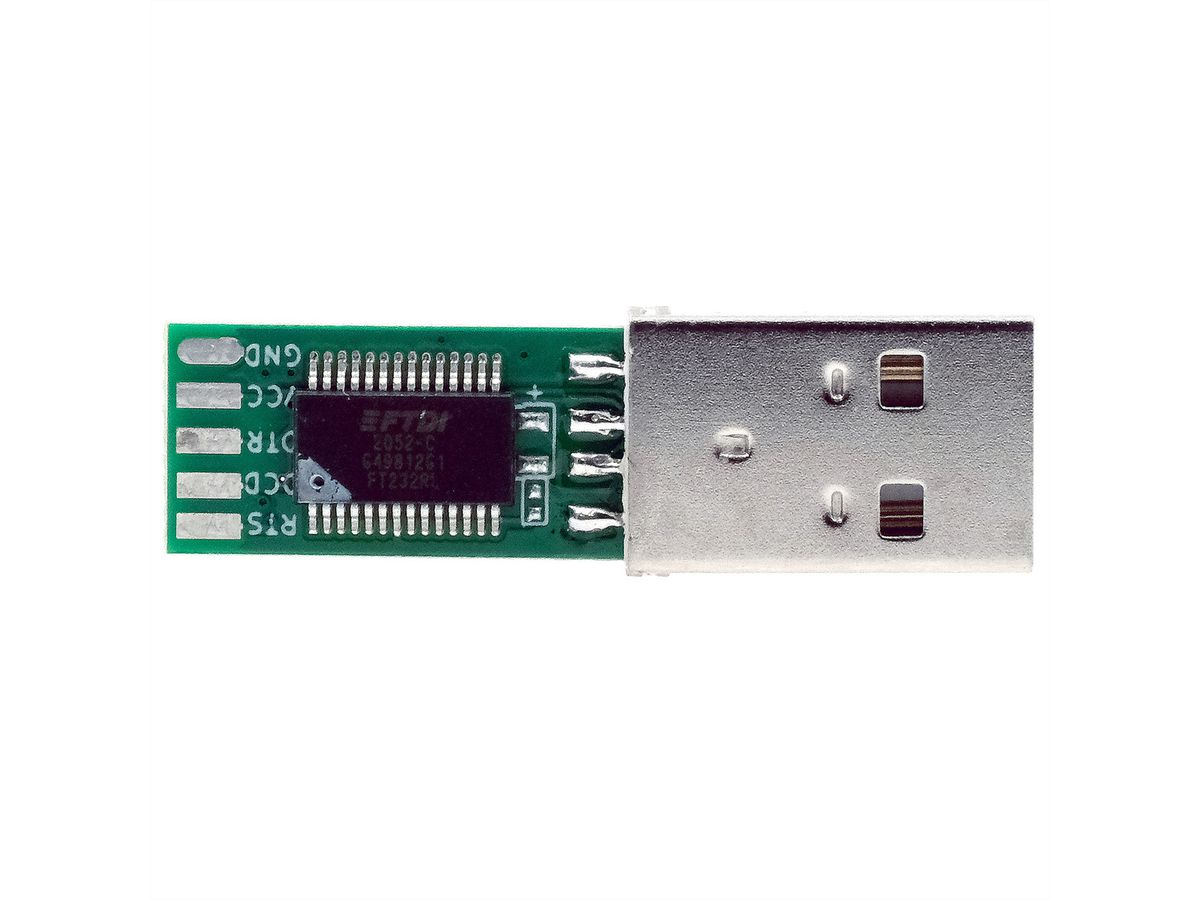

Das EX-13101 USB zu RS232 UART Konverter-Board besteht aus einer Platine mit fest montiertem USB-Stecker und einem FTDI-Chip FT232RL, der alle USB-Signale und -Protokolle verarbeitet.

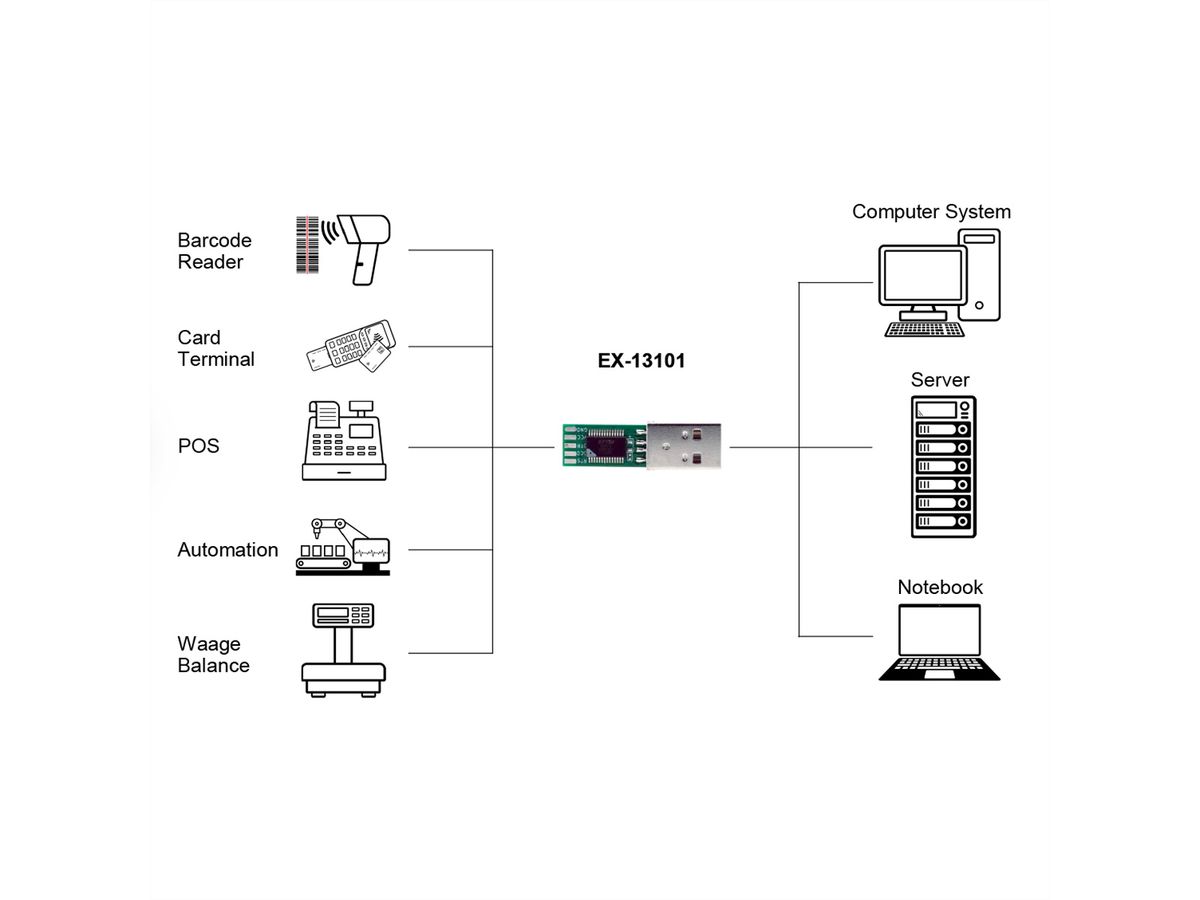

Es eignet sich ideal für Testzwecke oder zum erstellen von USB zu Seriell Kabeln nach eigenen Kriterien.

  • Schnittstelle RS-232 V.24
  • FIFO Buffer mit 265 Byte (empfangen) und 128 Byte (senden)
  • Daten Bits: 7 und 8
  • Stop Bits: 1 und 2
  • Parity: none, even, odd, space und mark
  • Signale RS-232: TxD, RxD, RTS, CTS, DCD, GND
  • Stromversorgung vom USB Bus (Bus Power)
  • Erweiterter Temperaturbereich: -40°C bis 85°C
  • Chipsatz: FTDI

Specifications

Manufacturer
EXSYS
Product group
Adapter, Terminatoren, Konverter
Product type
USB-Seriell Konverter
Colour
black
Length
1 m
Scope of delivery
EX-13101
Side 1 connection (PC)
USB-A
Side 2 connection (Peripherals)
Löten
Side 1 Connector Type
USB 2.0 Typ A
Side 1 Connector Gender
Männlich (Stecker)
Side 2 Connector Type
offenes Ende
Area of application
extern
Operating temperature min.
-40 °C
Operating temperature max.
85 °C
Height
4.6 mm
Width
12 mm
Depth
40 mm
Weight
30 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
150 mm
Package weight (single piece)
0.006 kg

Downloads

Manufacturer data sheet - Deutsch (1.3 MB) Manufacturer data sheet - English (1.3 MB) User manual - Deutsch (377.3 KB) User manual - English (377.3 KB)
