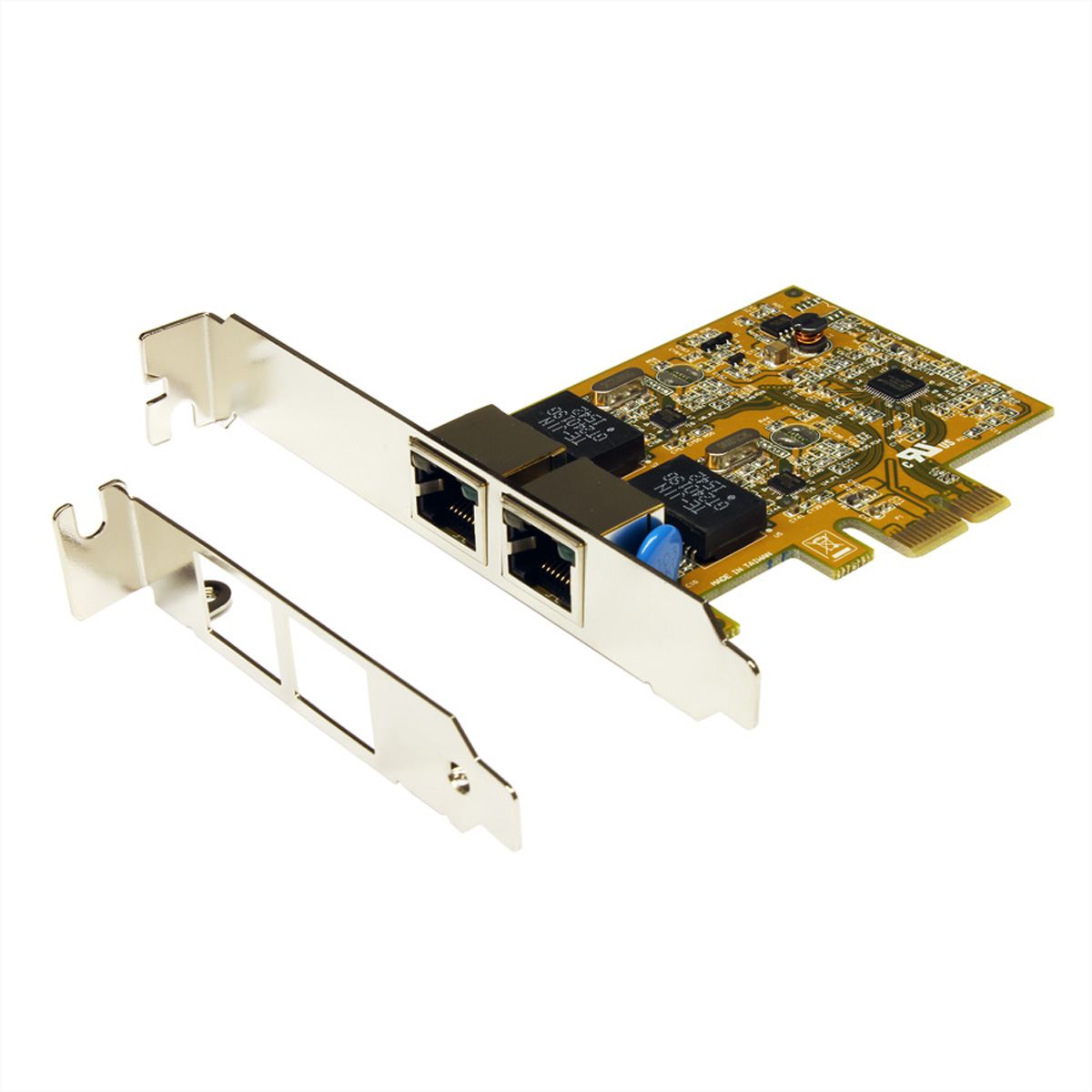

EXSYS EX-6072-3 PCIe 2x Gigabit Ethernet LAN card
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 15063306 |
|---|---|
| Brand / Manufacturer | EXSYS |
| Manuf. item no. | EX-6072-3 |
| EAN | 4718359607226 |
| Item weight | 0.136 kg |
:strip_icc():strip_exif()/logos/exsys.png "EXSYS")
Description
1 Gigabit LAN PCIe card with 2 port incl. LP bracket (Realtek chipset)

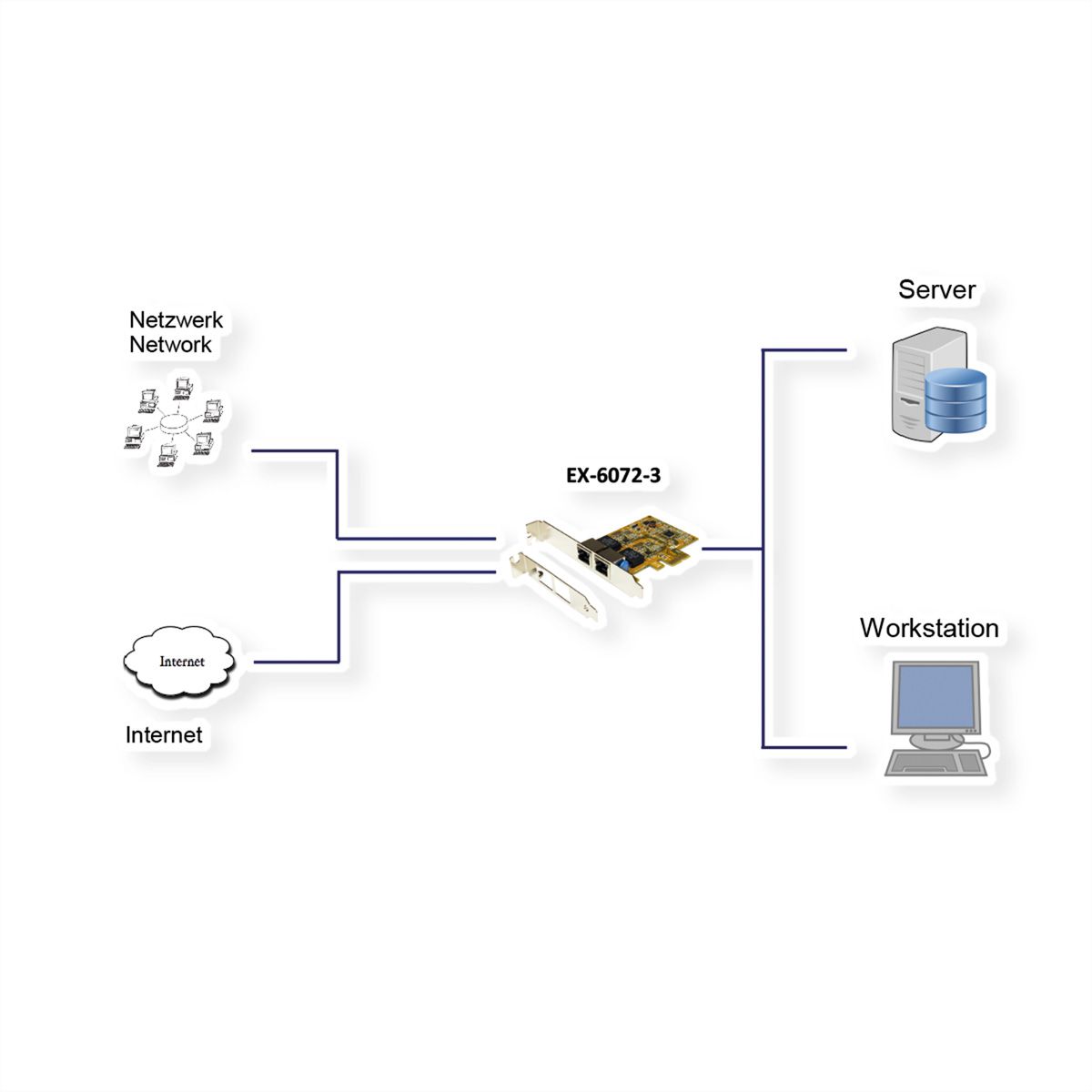

The EX-6072-3 is a Gigabit Ethernet card designed for the PCIe bus. The EX-6072-3 supports a data transfer rate of up to 1000Mbit per second and thus offers a high speed increase over standard PCI network cards. Larger amounts of data can thus be transferred faster and more efficiently in the network. The EX6072-3 supports half and full duplex as well as NWay auto-negotation to automatically adapt to the network speed (10/100/1000Mbps). Furthermore the card is equipped with Auto-MDI/MDI-X. It also offers very extensive support of various operating systems. A low profile bracket is supplied with the card for installation in a narrow PC housing.
Specifications
| Manufacturer | EXSYS |
|---|---|
| Product group | Network adapters |
| Product type | PCI Gigabit Ethernet Card |
| Scope of delivery | EX-6072-3, Low Profile bracket, Driver CD, Manual |
| BUS system | PCI Express |
| Network standard | Gigabit Ethernet |
| LAN (Mbps) | 10/100/1000 |
| Quantity of ports | 2 |
| Connection ports | 2x RJ-45 |
| Full duplex | yes |
| Wake on LAN | yes |
| Mounting height | Full profile |
| Chipset | Realtek |
| Weight | 150 g |
| Height of packaging (single piece) | 40 mm |
| Width of packaging (single piece) | 220 mm |
| Depth of packaging (single piece) | 150 mm |
| Package weight (single piece) | 0.136 kg |
