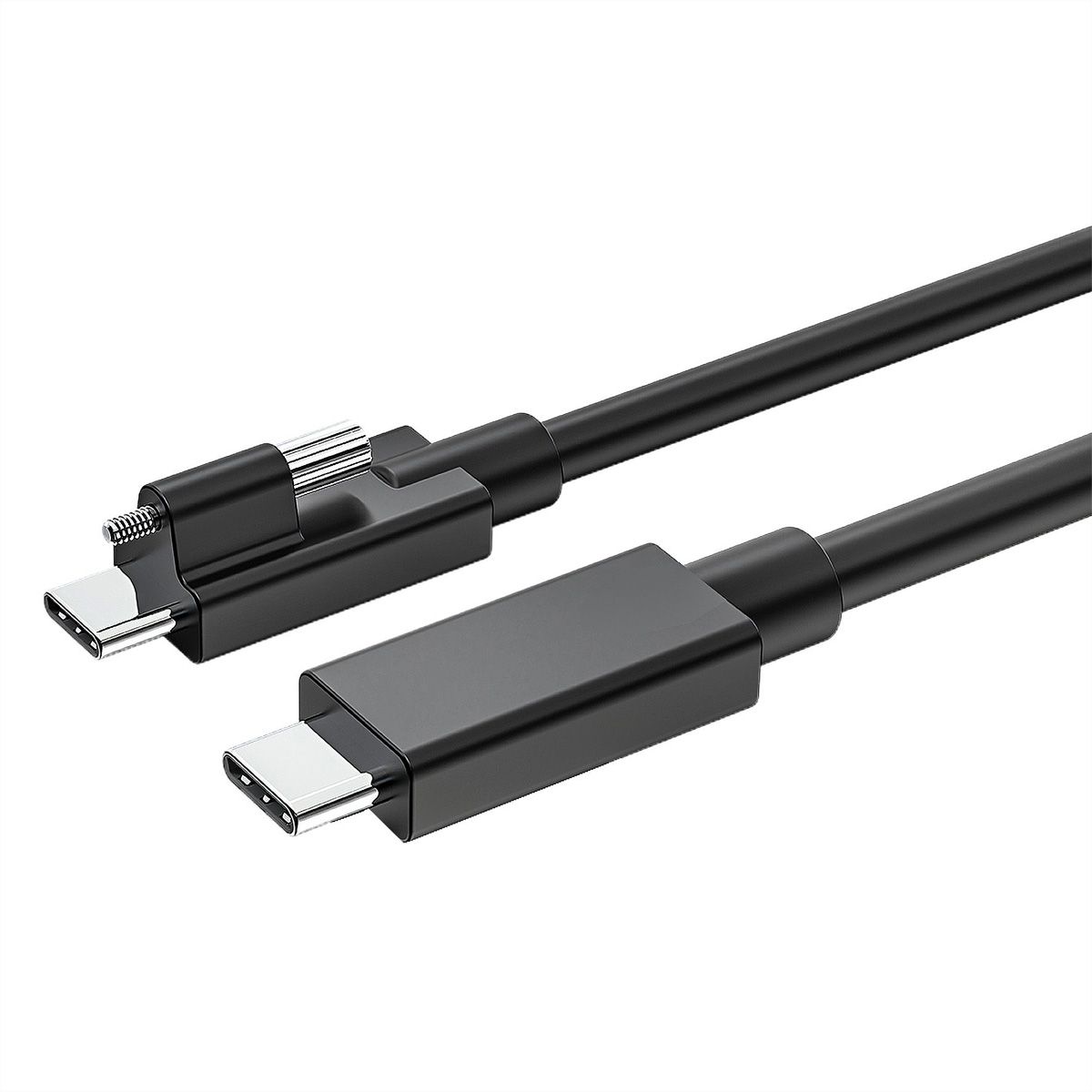

EXSYS EX-K1598-2.0 USB4 cable, USB-C - USB-C, 8K UHD-2, 40 Gbit/s, 5A, 240W, black, 1.5 m

Item no. 15063522 Brand / Manufacturer EXSYS Manuf. item no. EX-K1599V-1.5 EAN 4718359159923 Item weight 0.077 kg
EXSYS

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

This high-quality USB-C cable is compliant with the USB 4 Gen 3x2 standard. It connects your devices reliably and quickly and supports charging of connected devices with up to 240W.

  • USB 4.0 Gen 3x2 connection cable
  • Connections: USB-C plugs on both ends
  • Backward compatible with previous USB standards
  • Compatible with Thunderbolt 3
  • E-marker chip optimises data transfer rate and power between host and device
  • Data transfer rate: up to 40 Gbits/s (2700m/s)
  • 4 channels of data transfer, 8 channels of video transfer
  • Supports DisplayPort 1.2 - compatible with existing DisplayPort displays, devices and cables
  • Supports 4K@120Hz (one display), 8K@60Hz (one display), 4K@60Hz (two displays)
  • Supports USB-C Power Delivery (PD) 3.1 Extended Power Range (EPR) standard up to 240W
  • Charging power: up to 5A / 48V, 240W
  • Cable diameter: 5.8 mm
  • Shielding: braided and foil shielding
  • Cable with black fabric mesh

The major benefits of the USB4 includes faster transfer speeds (up to 40 Gbit/s), a better management of video bandwidth (using a process called "protocol tunneling" that sends DisplayPort, PCIe and USB packets at the same time while allocating bandwidth accordingly) and optional compatibility with Thunderbolt 3 products.

Specifications

Manufacturer
EXSYS
Product group
Cable
Product type
USB4 Cable
Colour
black
Length
1.5 m
Scope of delivery
EX-K1599V-1.5
Transfer quality
USB4 Gen3x2 40 Gbit/s
Connection ports
USB Type C (USB-C) Male / USB Type C (USB-C) Male
Side 1 Connector Type
USB Type C (USB-C)
Side 1 Connector Gender
Male
Side 2 Connector Type
USB Type C (USB-C)
Side 2 Connector Gender
Male
Max. resolution
7680 x 4320 @60Hz (8K, UHD-2)
Maximum data transfer rate
40 Gbit/s
Area of application
External
Supported charging technology
USB-PD - USB Power Delivery
Power (max.)
240 W
Cable shielding
Screened
Hand locking screws
yes
Weight
70 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
150 mm
Depth of packaging (single piece)
220 mm
Package weight (single piece)
0.077 kg

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


EXSYS Vertriebs GmbH
Industriestrasse 8, 61449 Steinbach, Germany
info@exsys.de
