FRAME 24U 1200H 800W 800D RAL7021

Item no. 26187110 Brand / Manufacturer SCHROFF Manuf. item no. 20630072 EAN 4036088451737 Item weight 41.04 kg

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 08/19/2026

This item is transported on a pallet; additional shipping costs will be charged!

Download PDF

Description

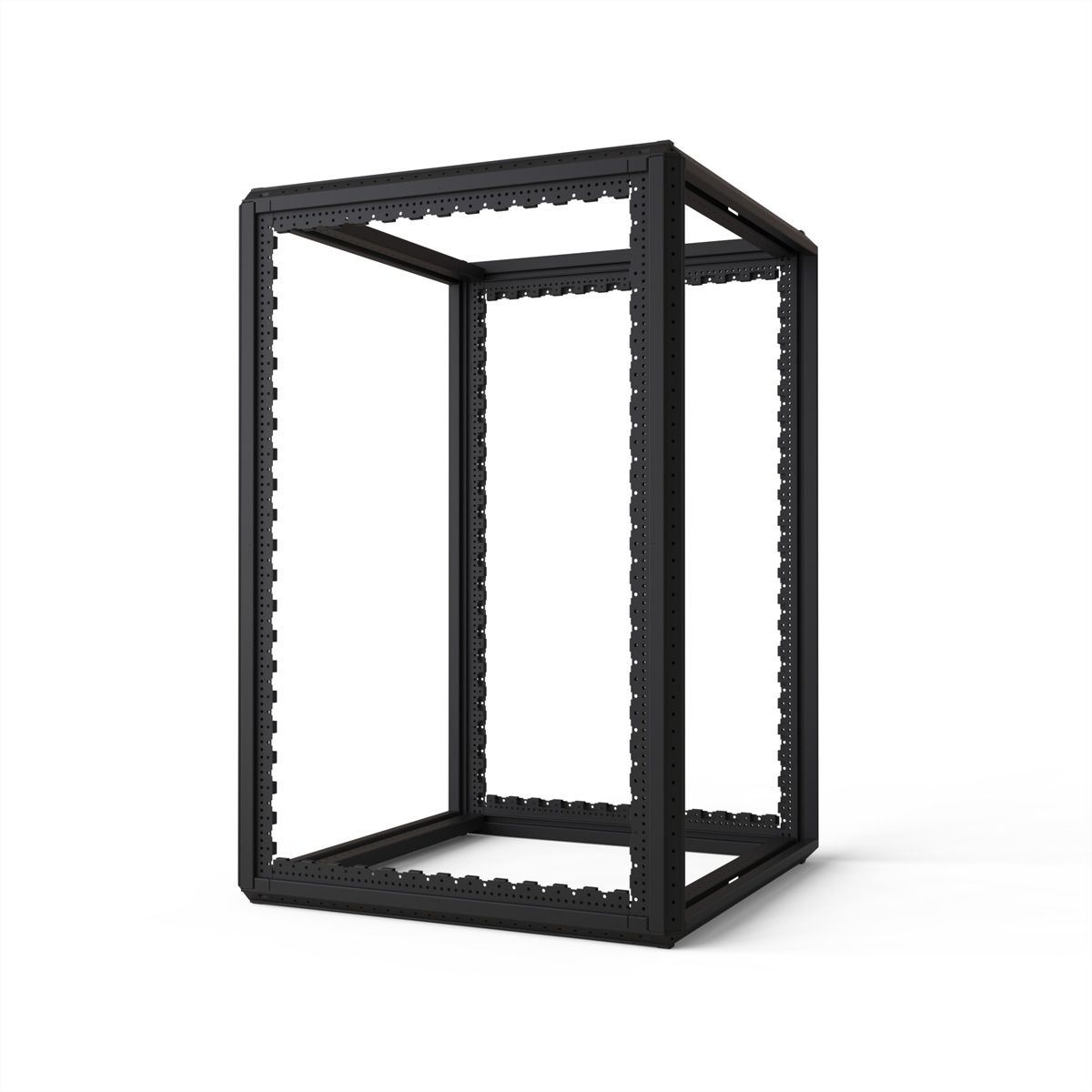

Varistar CP Cabinet Frame, 24 U, 1200H, 800W, 800D

Varistar welded steel frame for high static load requirements. For 19-inch, ETSI or mounting plate integration. Welded, powder-coated surface, black grey, RAL 7021. 1.5 mm thick, galvanised steel, with central earthing point. Static load max. 1600 kg. Please order the levelling feet separately.

Specifications

Manufacturer: SCHROFF
Product group: SCHROFF 19" cabinets & expansion parts
Product type: 19"-Floor cabinet
Colour: grey
Height units: 24 U
Maximum weight capacity: 1600 kg
RAL colour: RAL 7021 Black grey
Height: 1200 mm
Width: 800 mm
Depth: 800 mm
Weight: 41.04 kg
Height of packaging (single piece): 1800 mm
Width of packaging (single piece): 860 mm
Depth of packaging (single piece): 860 mm
Package weight (single piece): 41.04 kg

Downloads

Manufacturer data sheet - Deutsch (238.0 KB) Manufacturer data sheet - English (237.2 KB)

The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.

More about SCHROFF

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):

Schroff GmbH
Langenalber Strasse 96-100, 75334 Straubenhardt, Germany
schroff.channel@nvent.com
