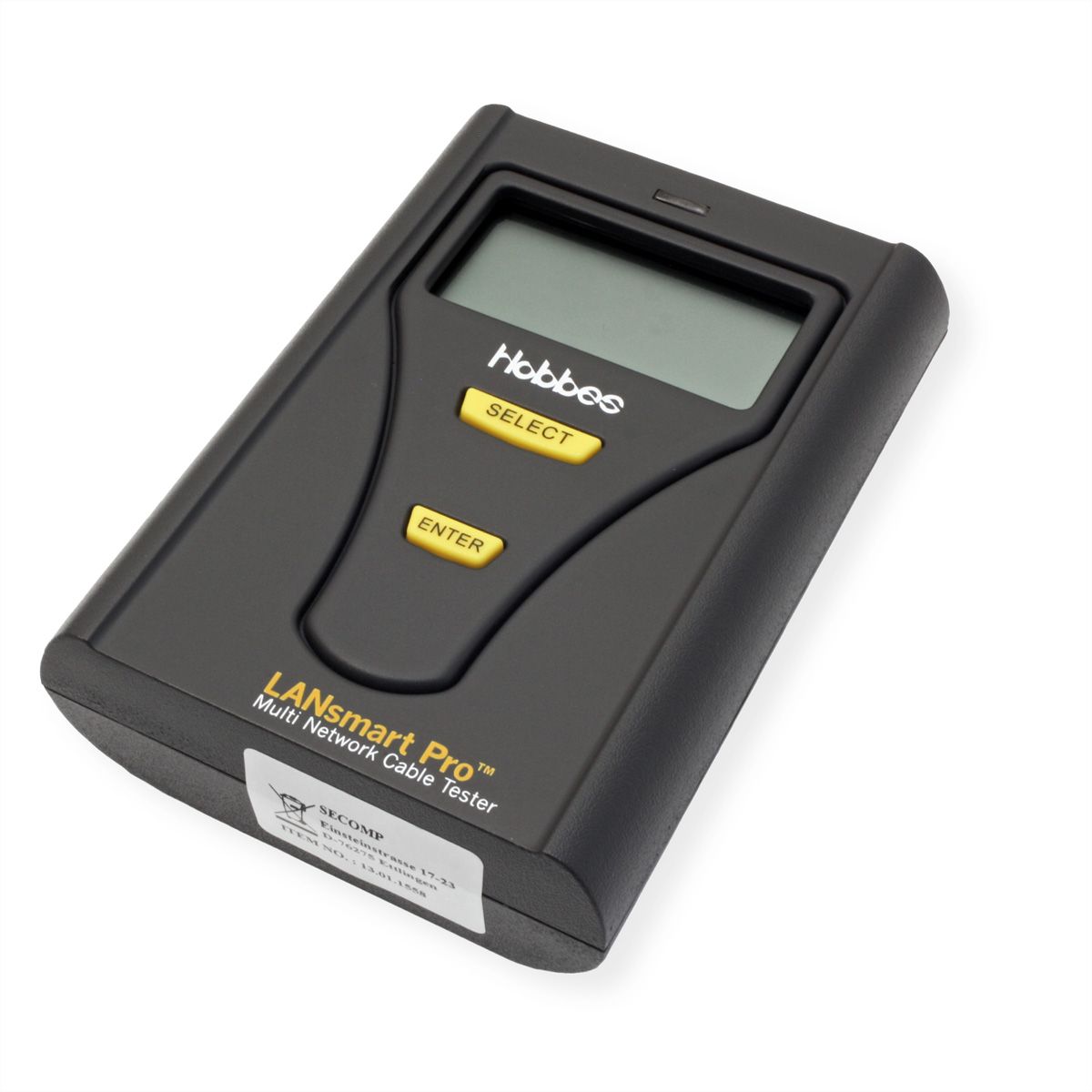

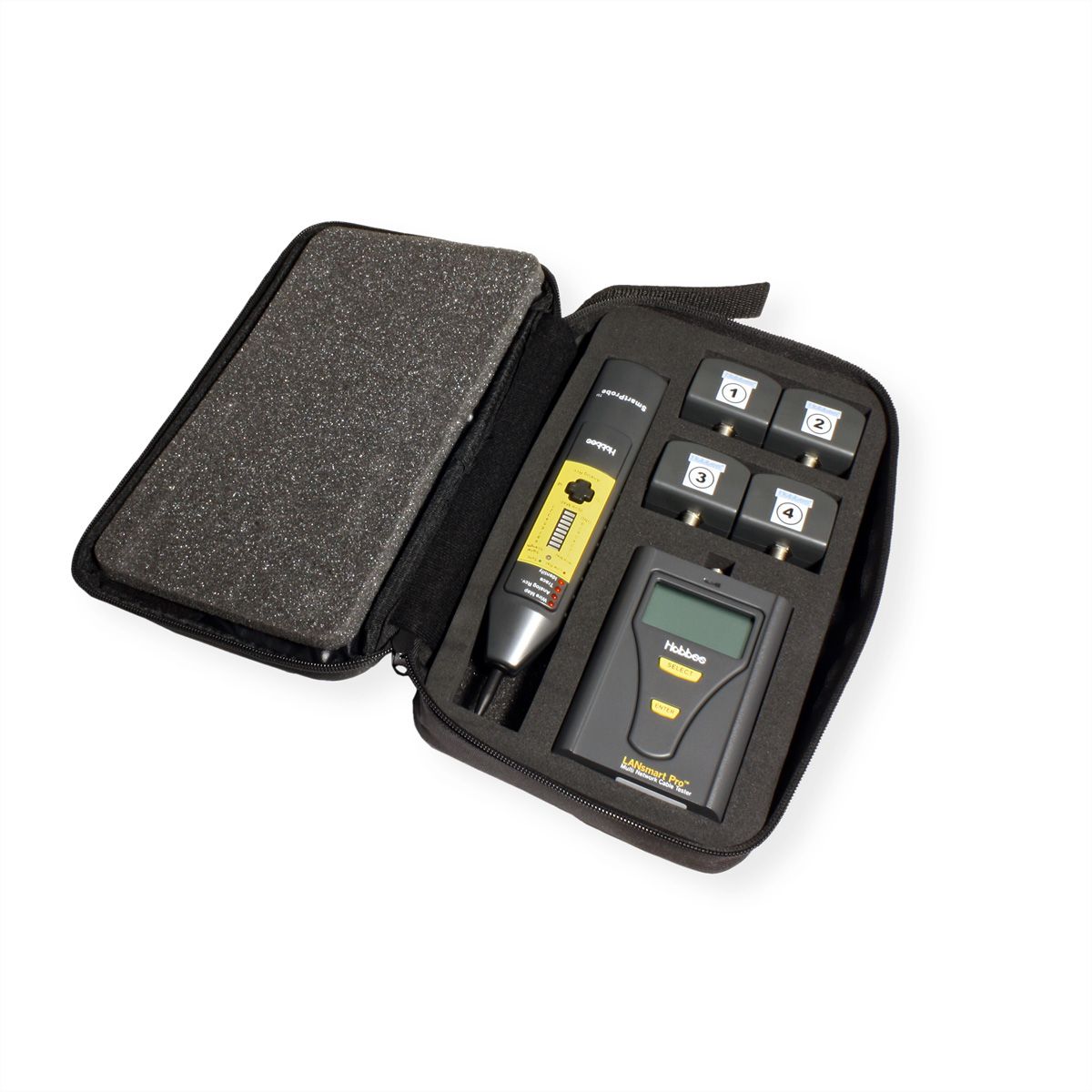

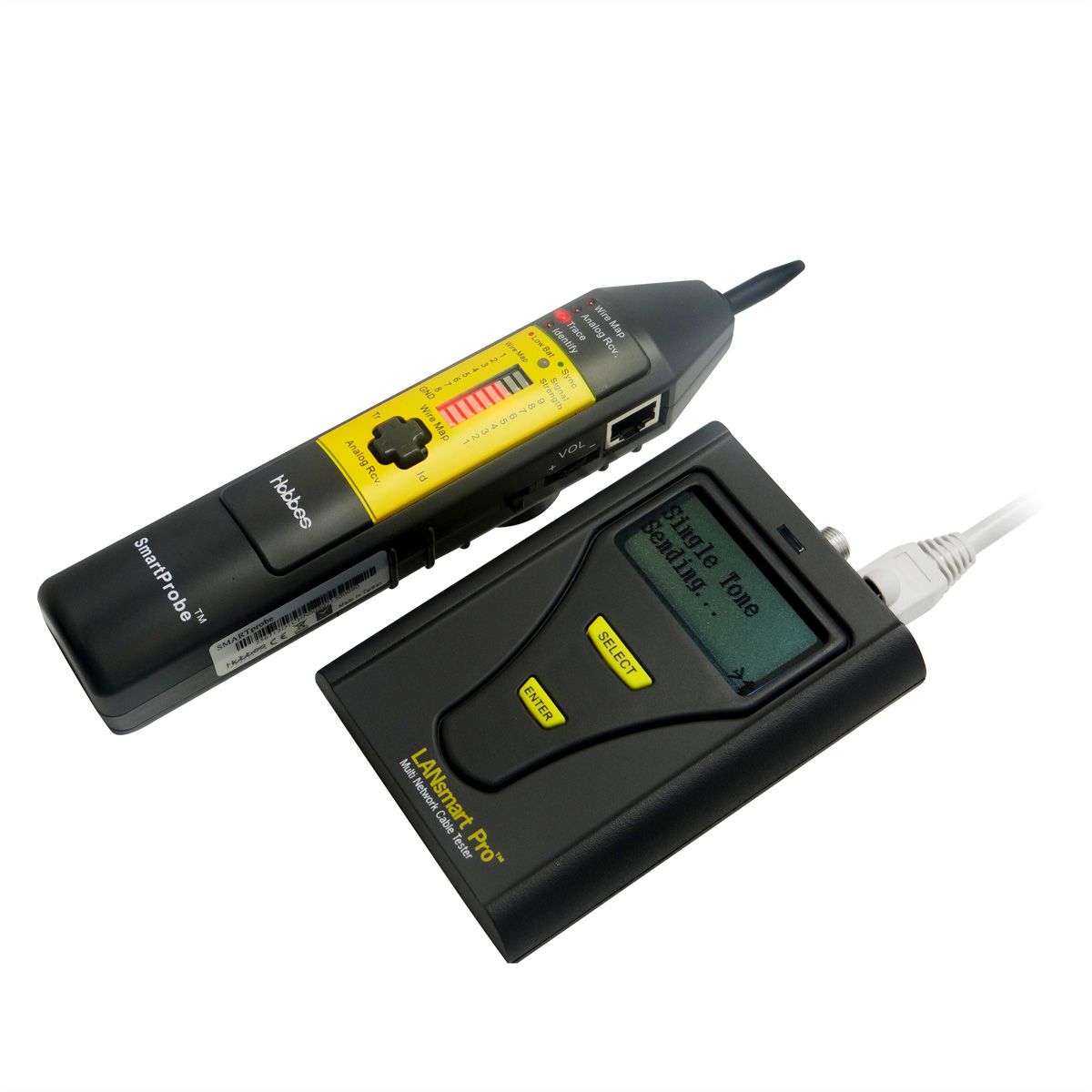

HOBBES LANsmart Pro & SmartProbe Kit

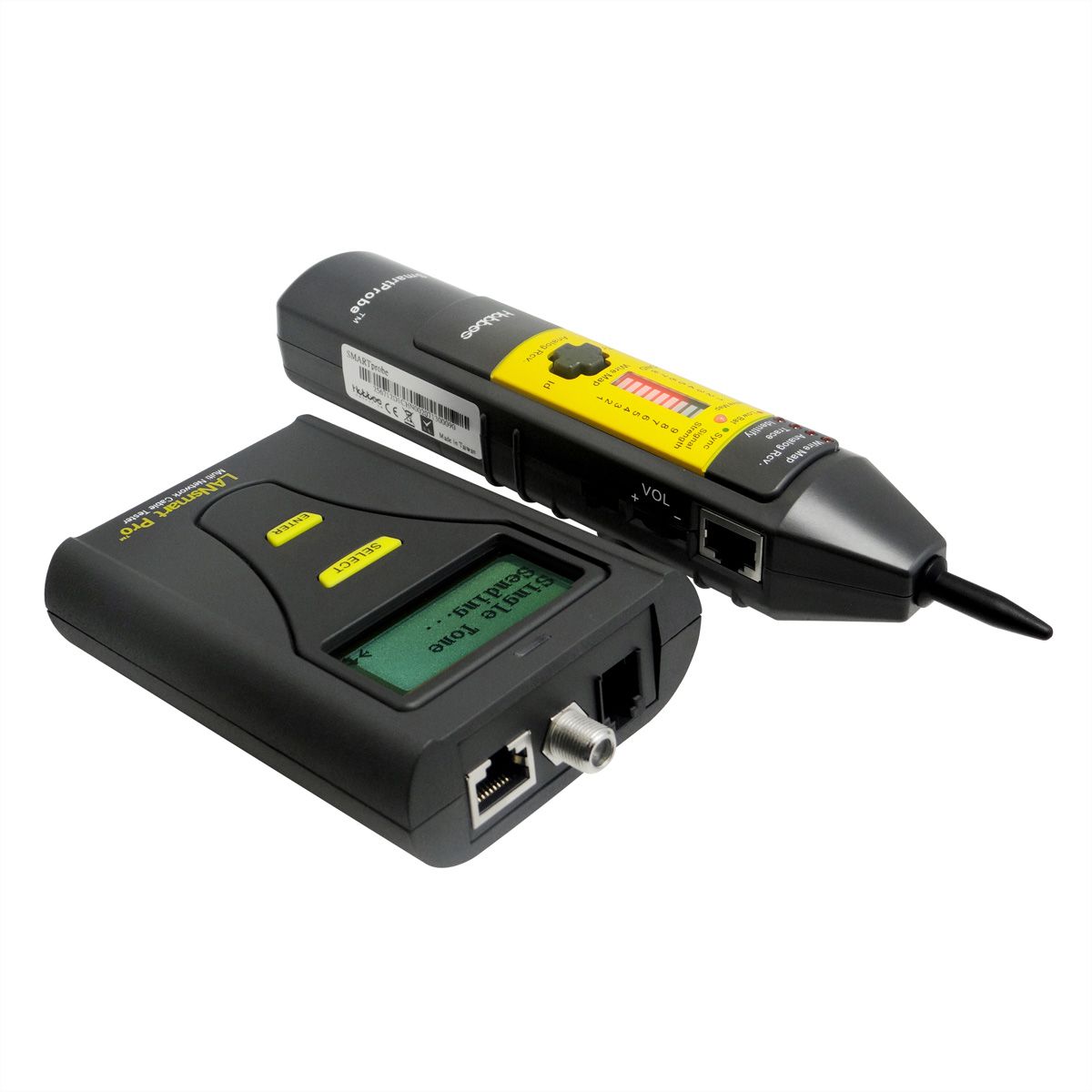

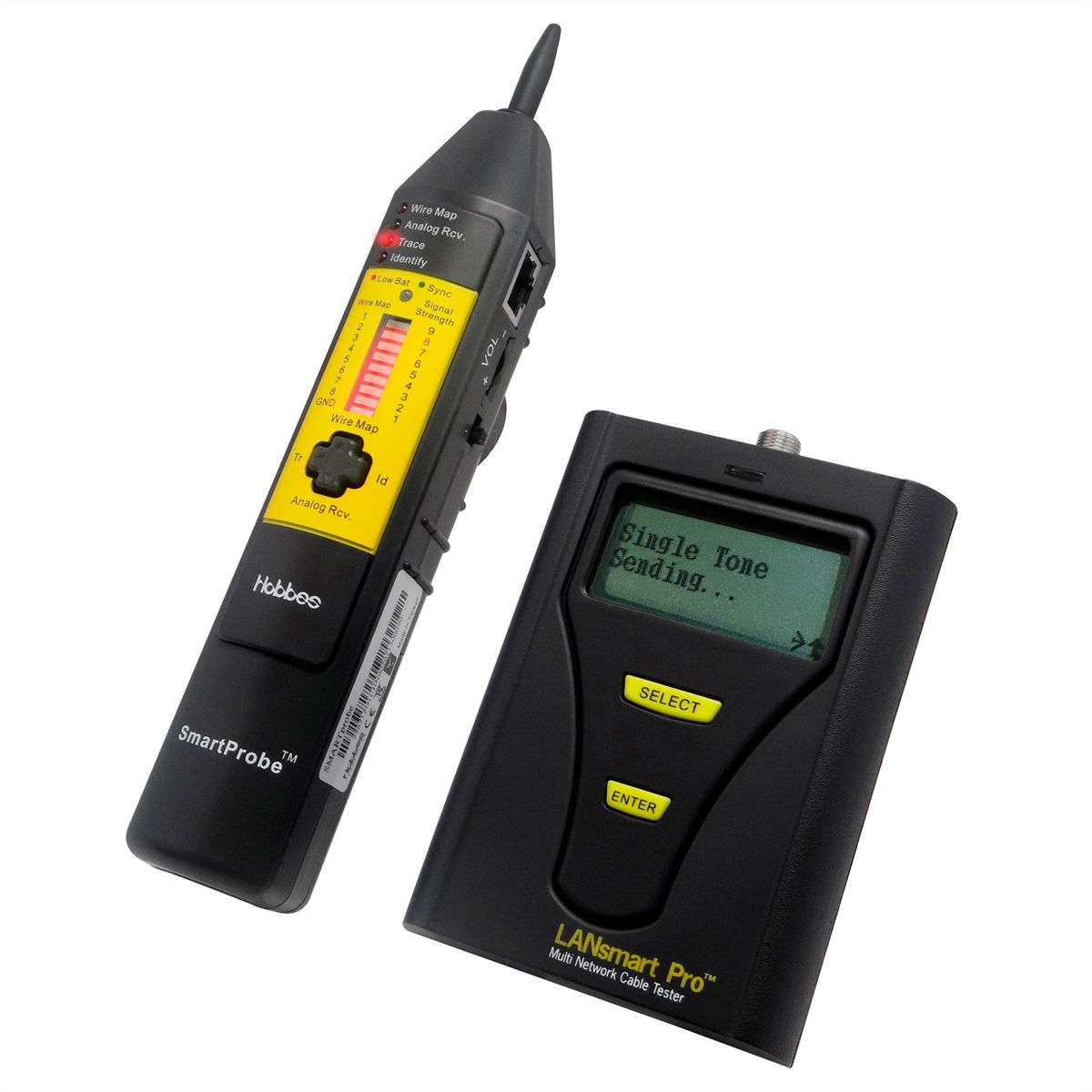

The set consisting of the LANsmart Pro + Digital Probe Kit offers the following test options in addition to the LANsmart Pro:

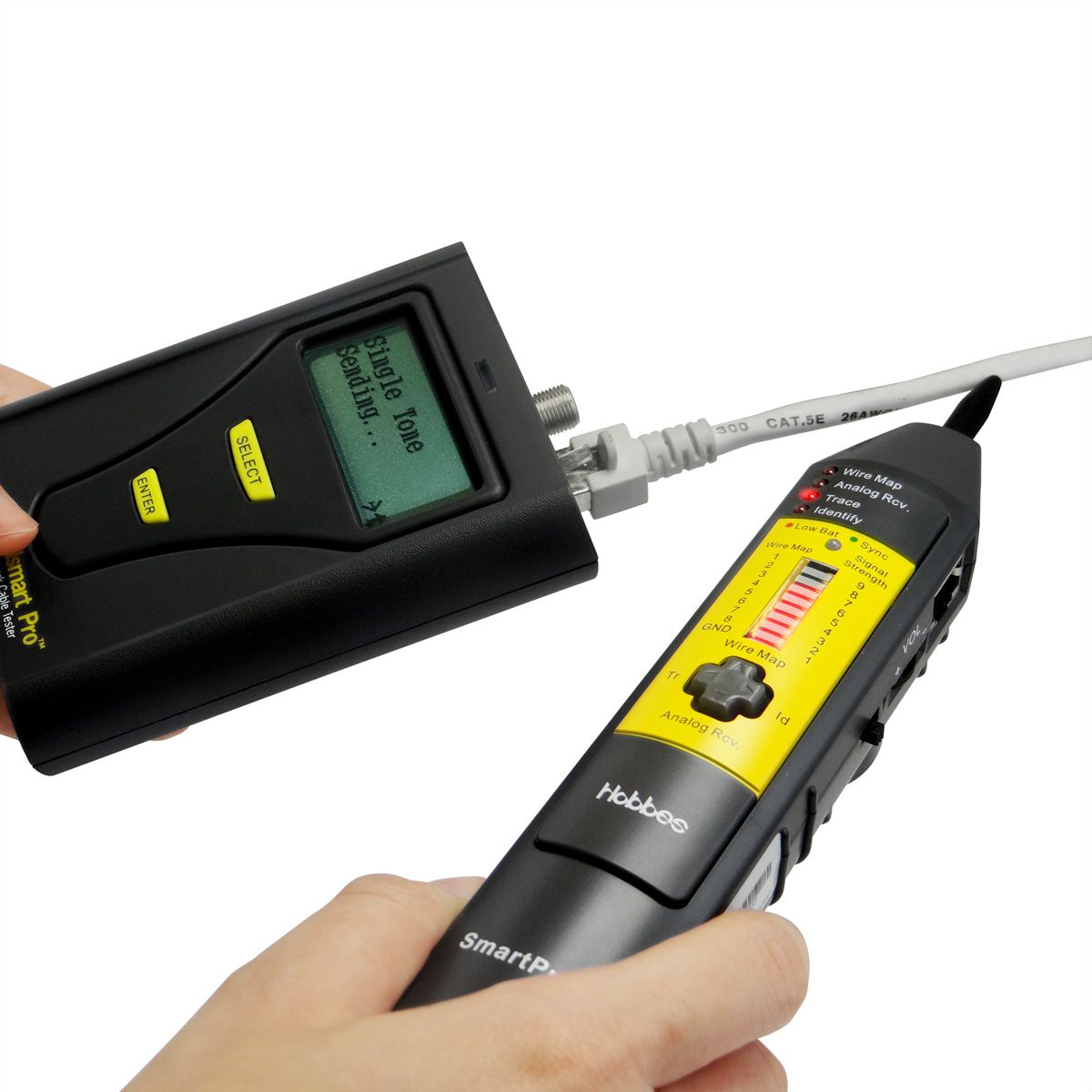

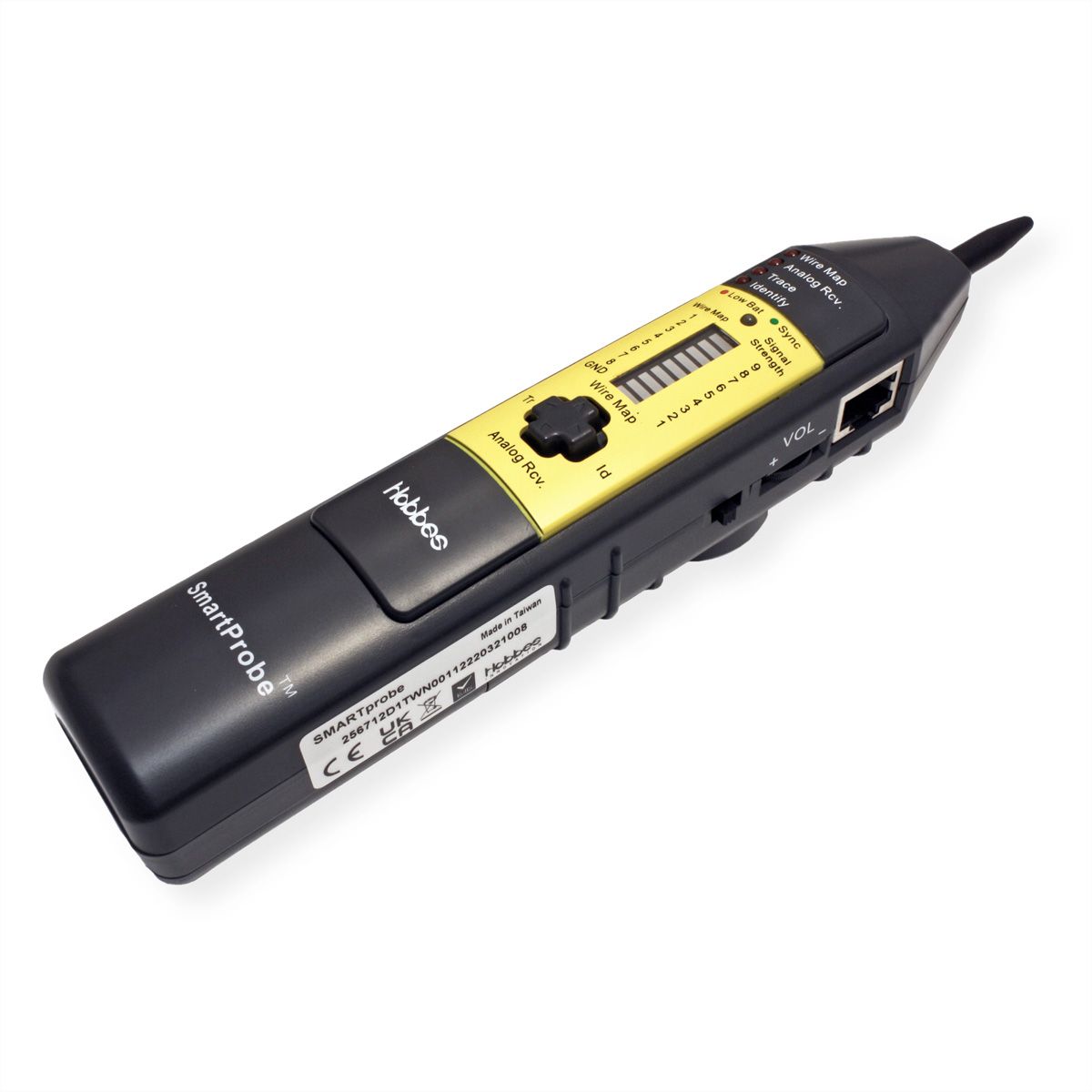

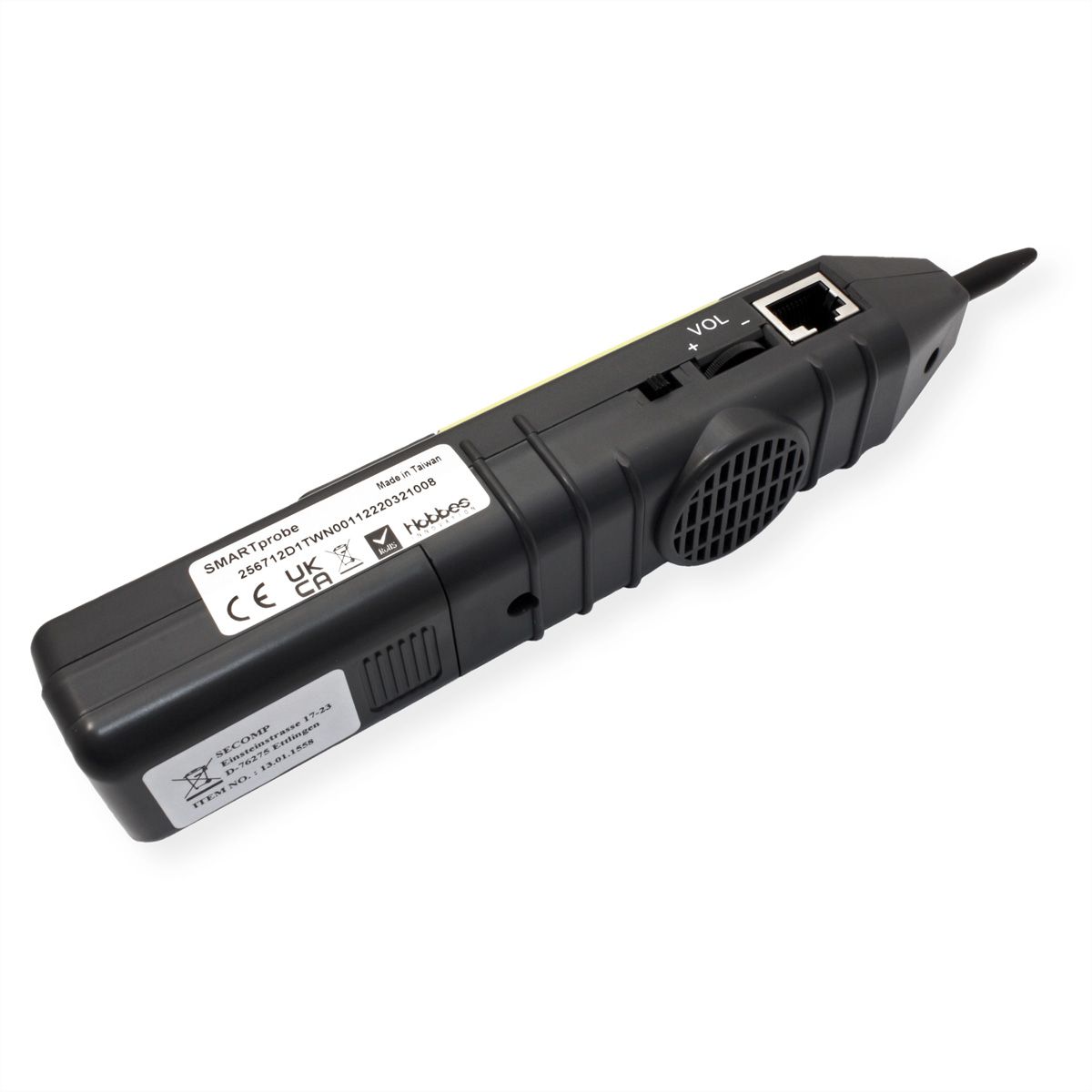

- Finds and identifies cables quickly and accurately with the test probe

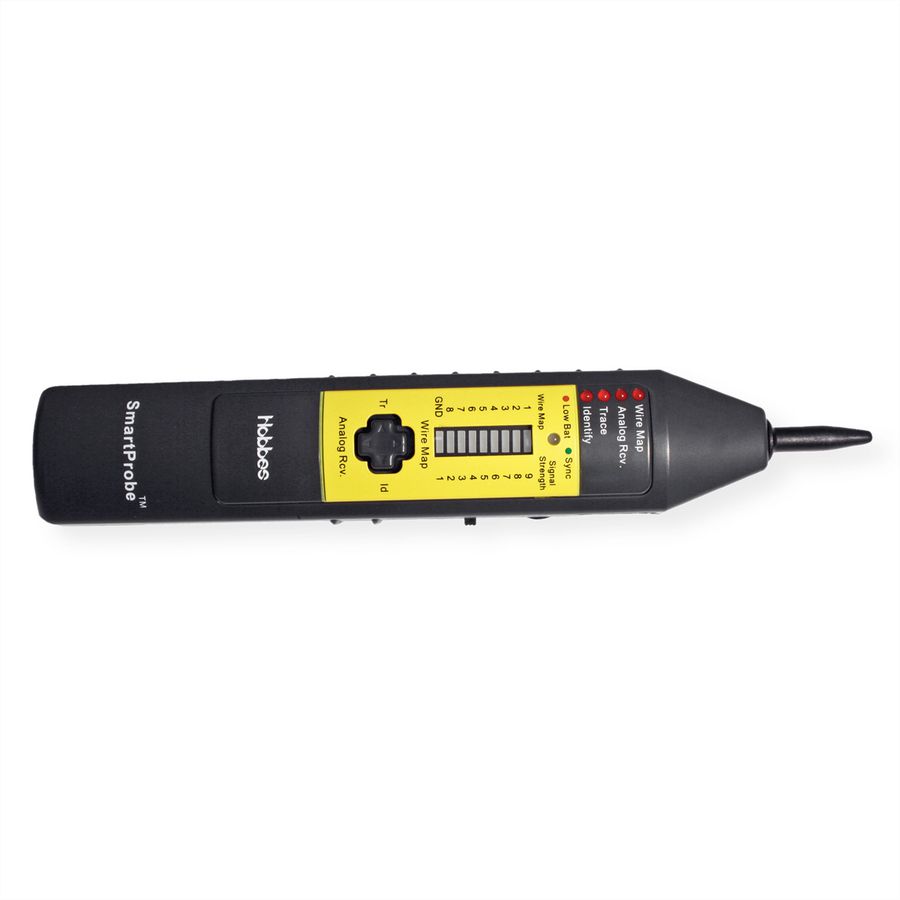

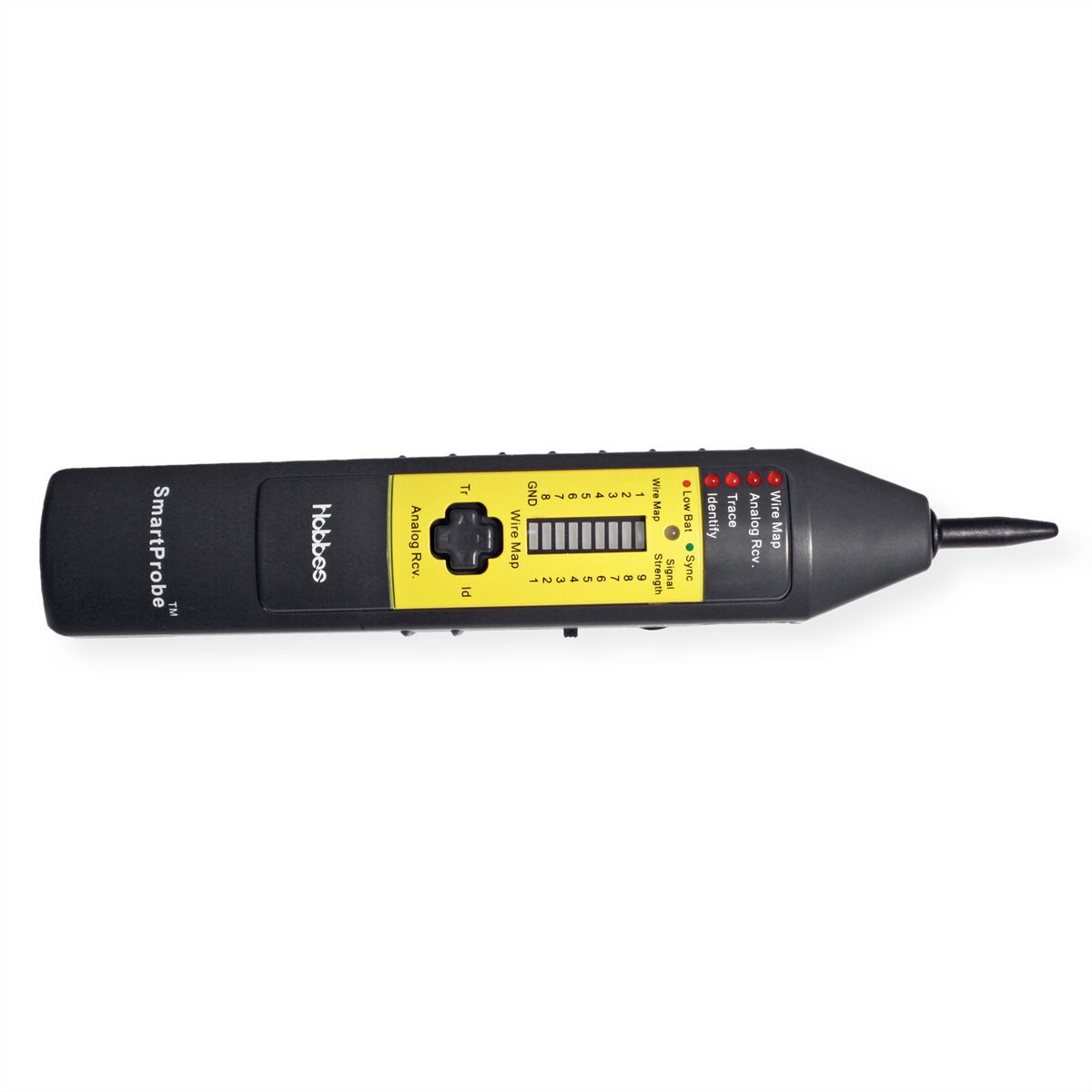

- Clearly indicates the reception strength of the audio signal in digital audio quality on a 9-digit LED scale. LED display and speaker can be used as indicators for cable identification.

Functions:
- All-in-one tester: wiring diagram, quick test, tone generator, cable length measurement, port finder and error localization
- Tests for faults: open, short-circuited, split, twisted and crossed cables
- Pin-to-pin wiring diagram Pin-to-pin method for easy finding of faulty wiring

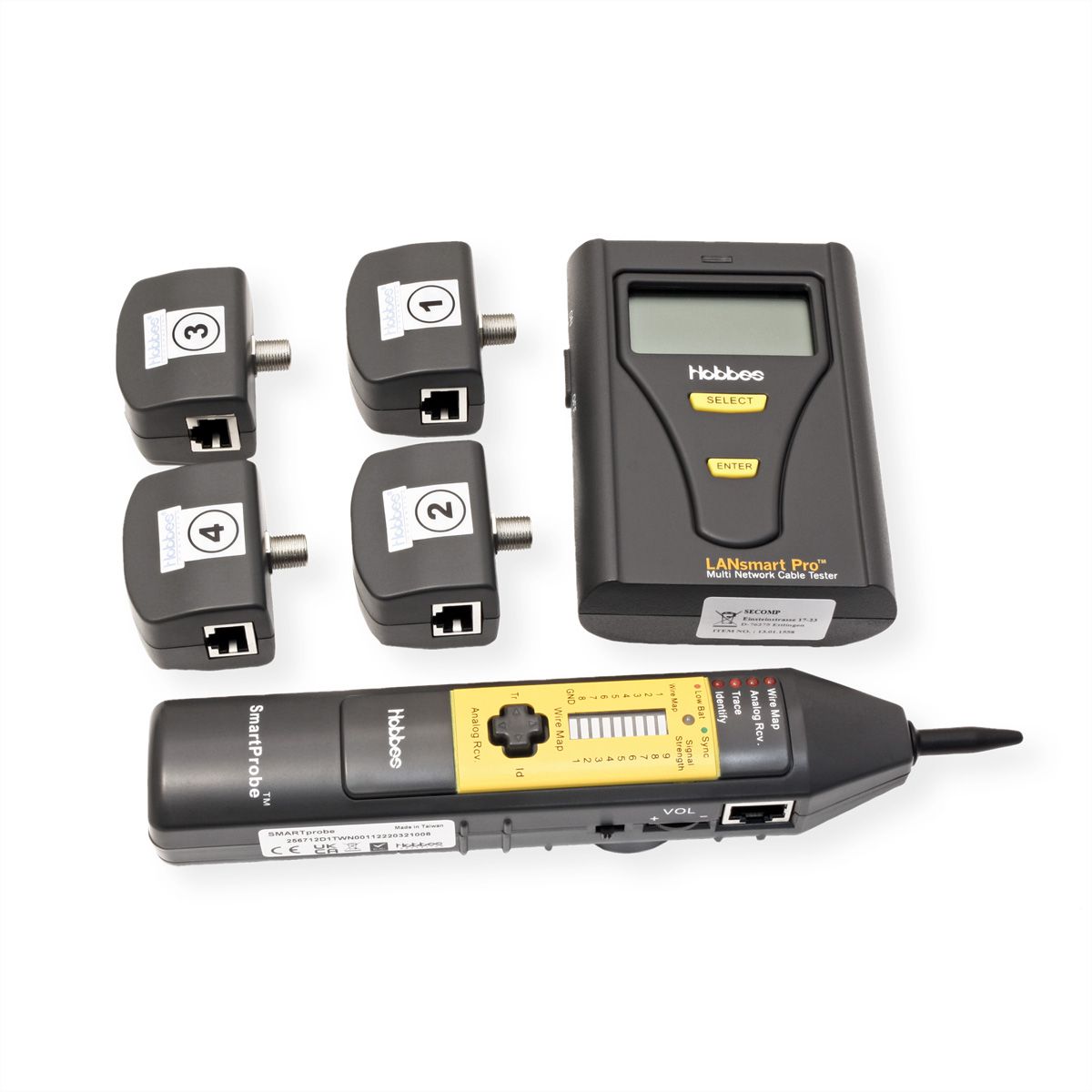

- Individually identifiable remote units
- Shows the distance to the cable fault and thus facilitates fault location
- Ideal for Cat5, Cat5E and Cat6 cables for measurement without remote unit
- Tests coax, telephone (2-/4-/6-pole), and data cables
- Self-calibration function for high measurement accuracy when testing non-standard cables
- Shows the cable length in meters and feet
- Quick test function, port finder function, battery indicator

Specifications:

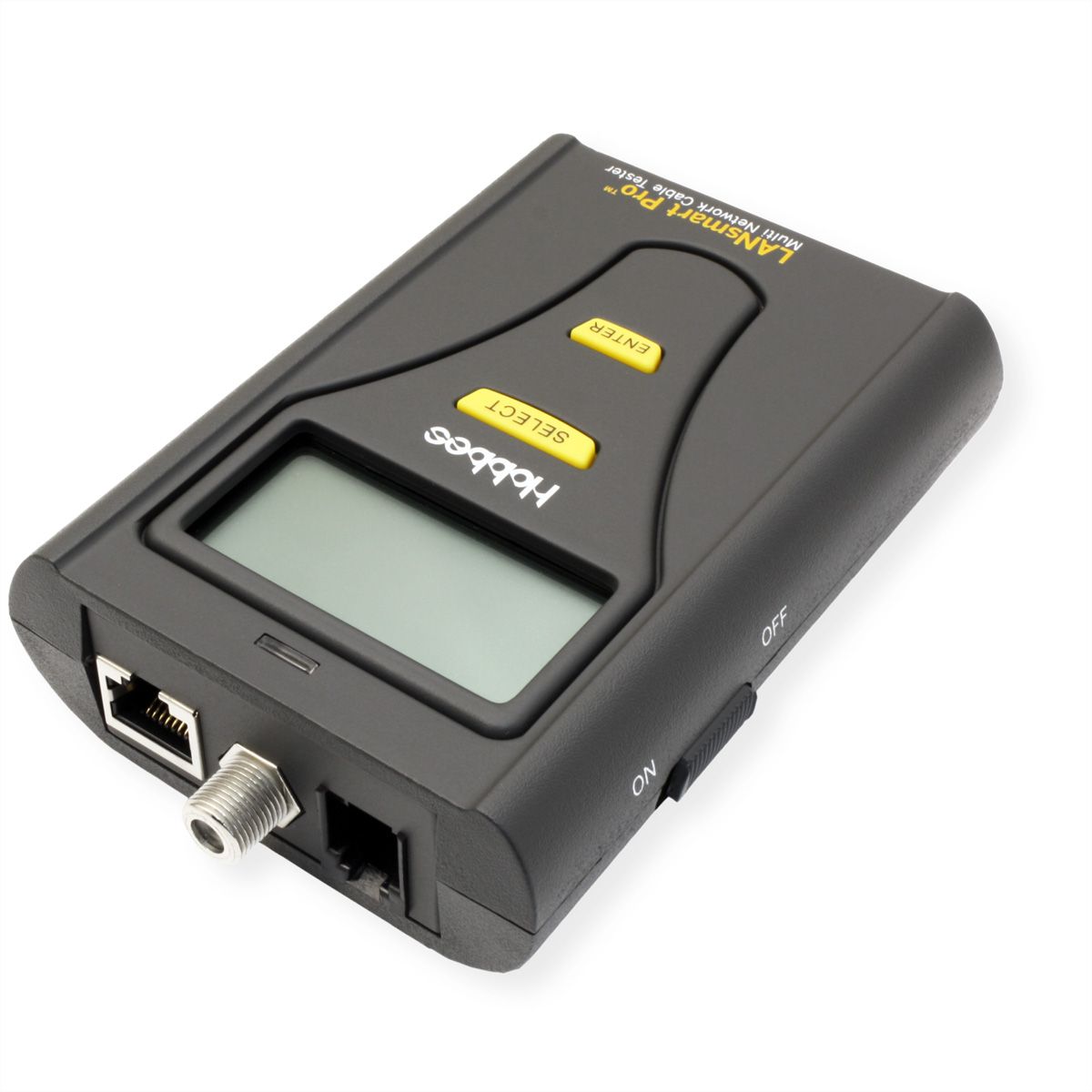

- Display: 128*64 Dot Matrix LCD / --

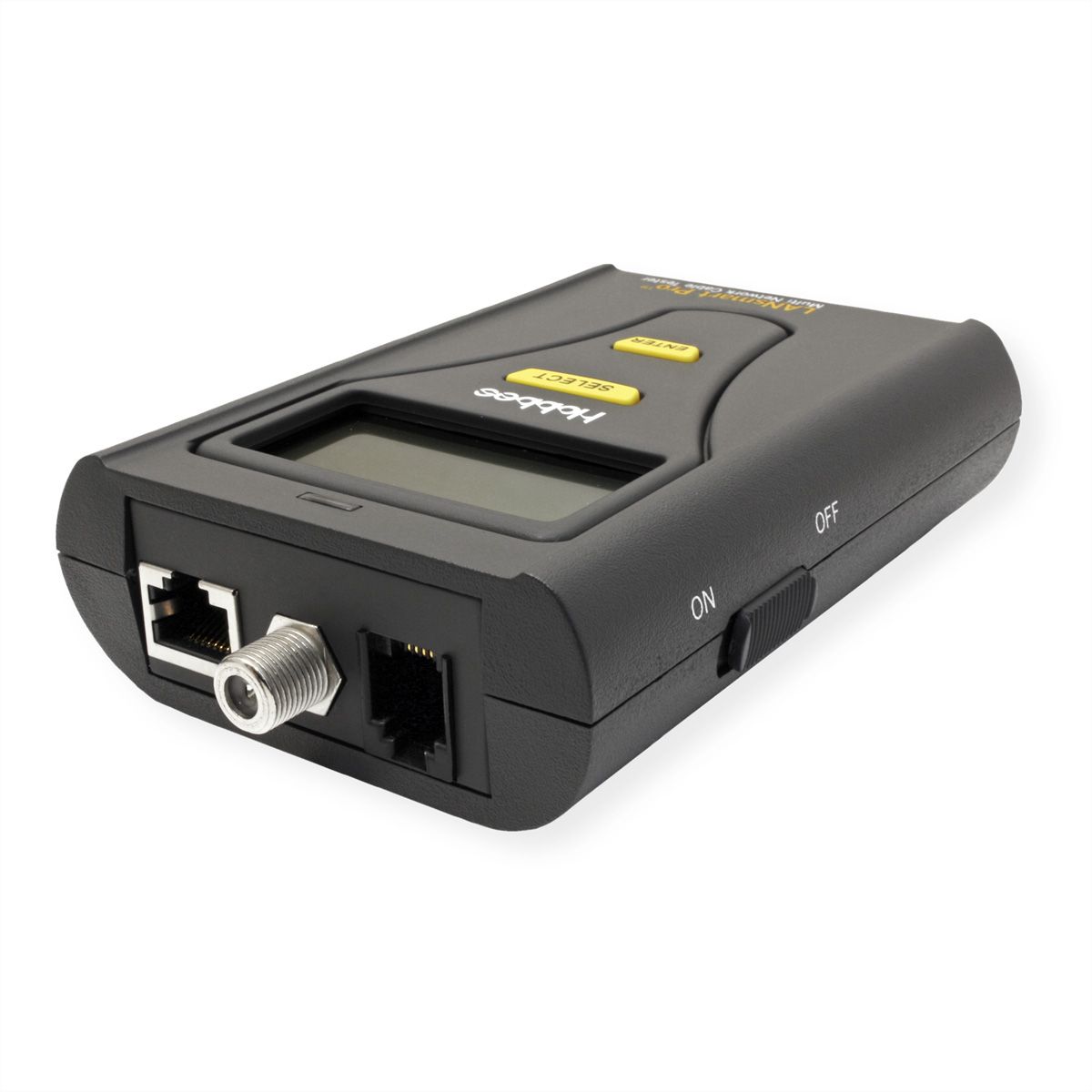

- connections: RJ45/RJ11/COAX (main and remote unit) / RJ45
- Accuracy: ±2m for less than 10m / ± 5% for over 10m
- Test range: 1.2-300m
- Split pairs Troubleshooting: minimum 1.2m
- Tone Generator: Analogue (1KHz), Digital (Single and Dual) Tone / receives digital signal from 256003PRO and 1KHz analogue signal from traditional tone generator
- Operating temperature: 0°C - 50°C
- Storage temperature: -30°C - 50°C
- Humidity: 10% to 90%
- Weight: Main unit: 120g / 98g; Remote unit: 20g / --
- Dimensions: Main unit 120 x 80 x 33mm / 205mm x 36mm x 36mm; Remote unit: 44 x 42 x 28.5mm / --

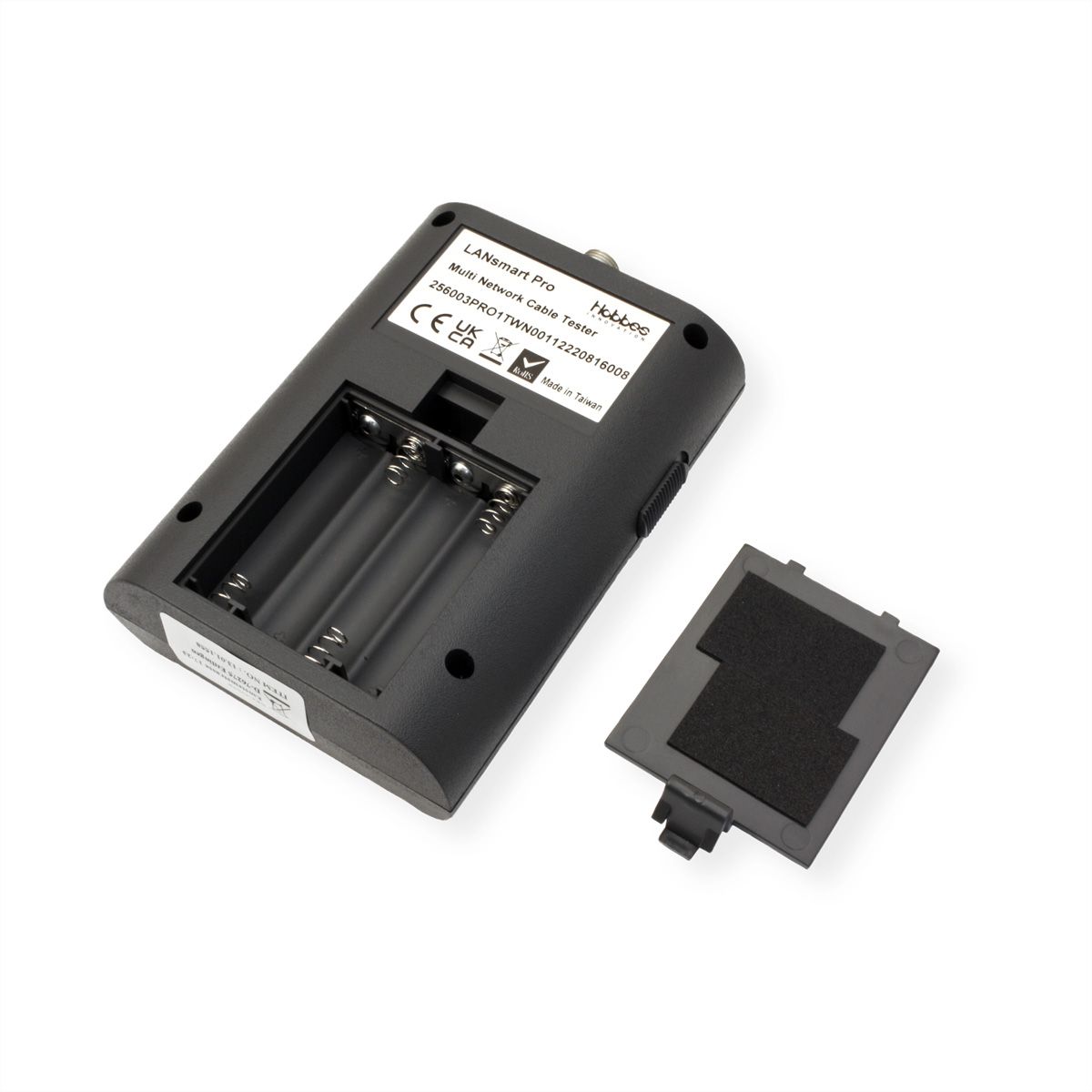

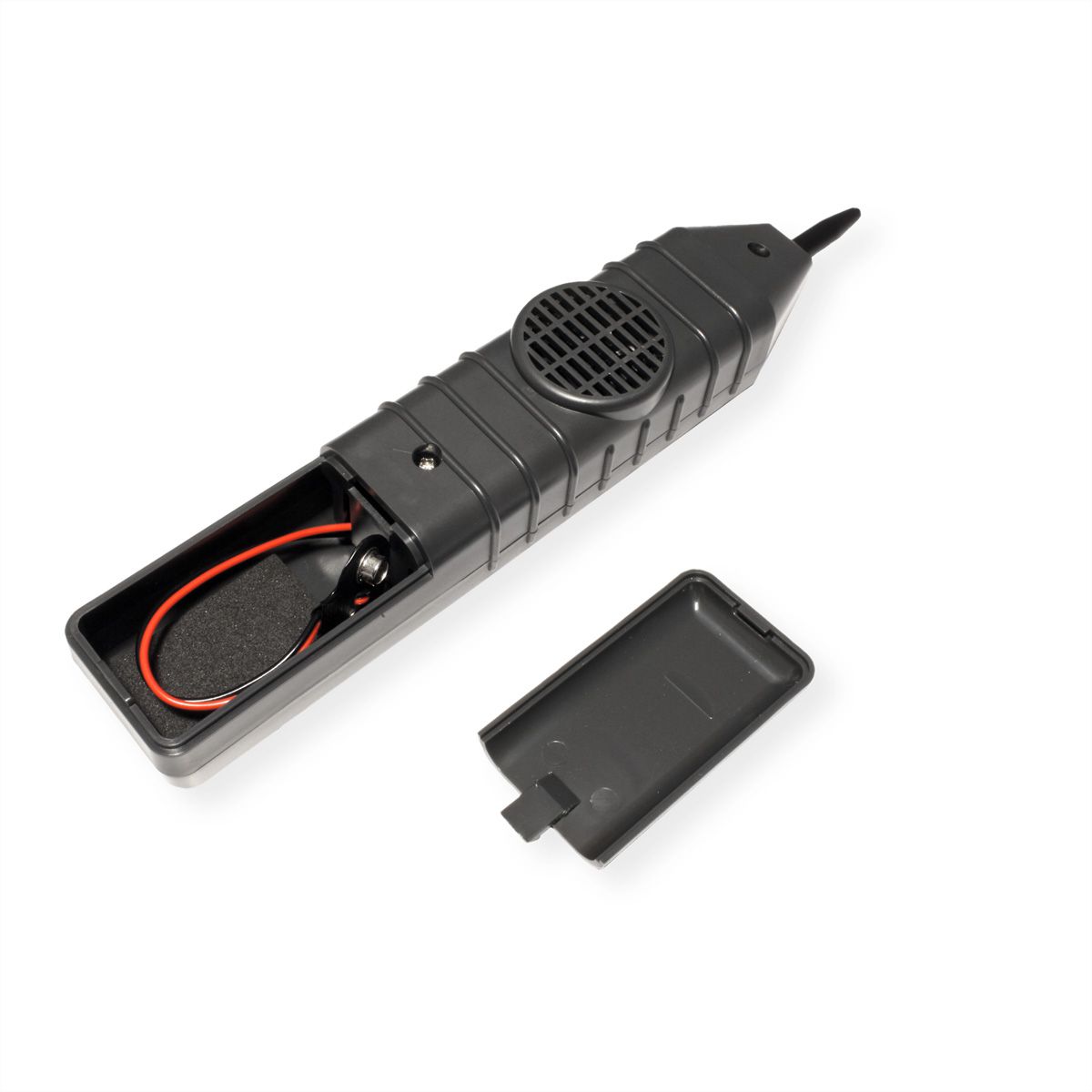

- Energy consumption: DC 6V; 4x AAA alkaline batteries / 9 V battery; Consumption: approx. 45mA~Max. 70mA V
