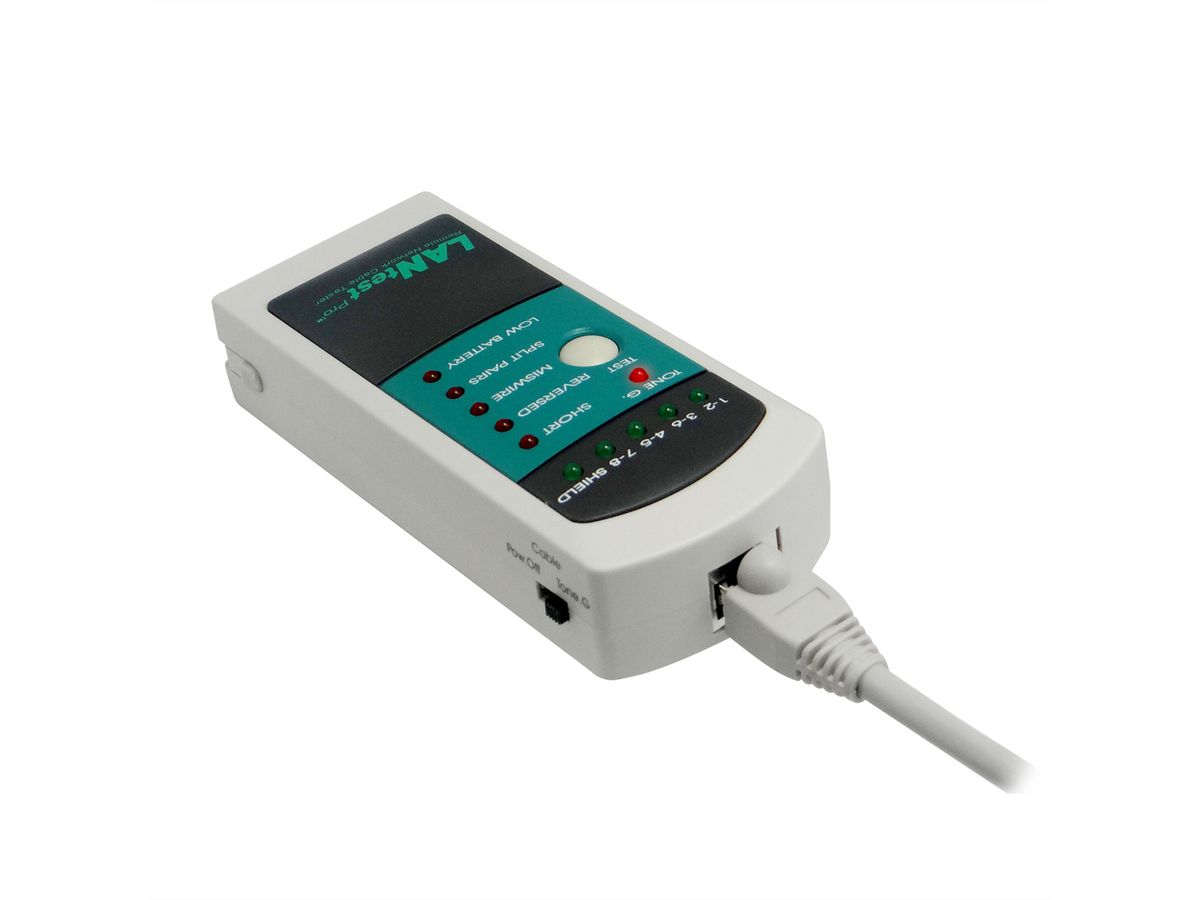

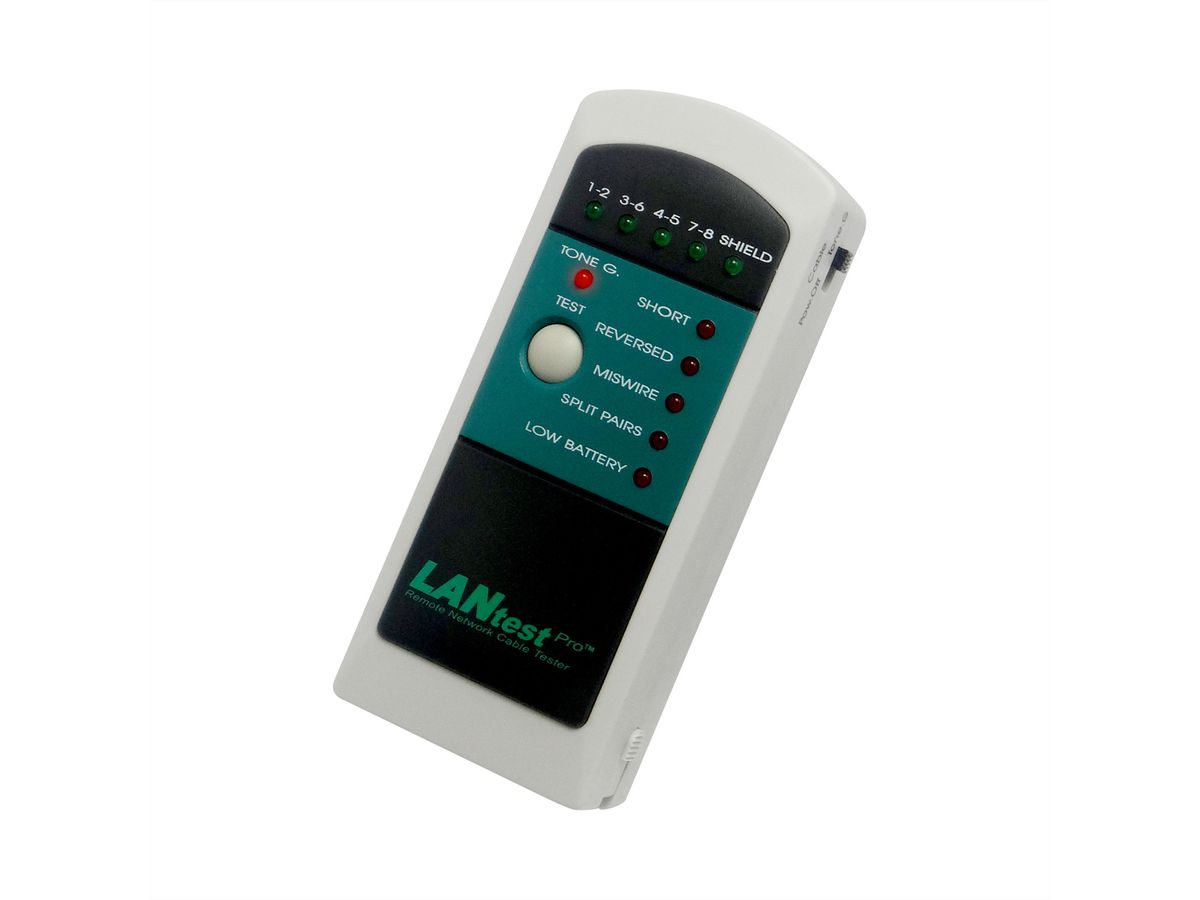

HOBBES LANtest Pro Cable Tester, incl. 4 Remotes

The LANtest Pro - Network Cable Tester With Tone Generator is a small hand held tester that enables the user to quickly read the status of Ethernet twisted pair cables. It tests for faults such as open, shorts, crossed pairs, reversed pairs and split pairs in seconds. The Tone Generator function can send a signal through your installed cables and the probe can then trace to locate the fault.

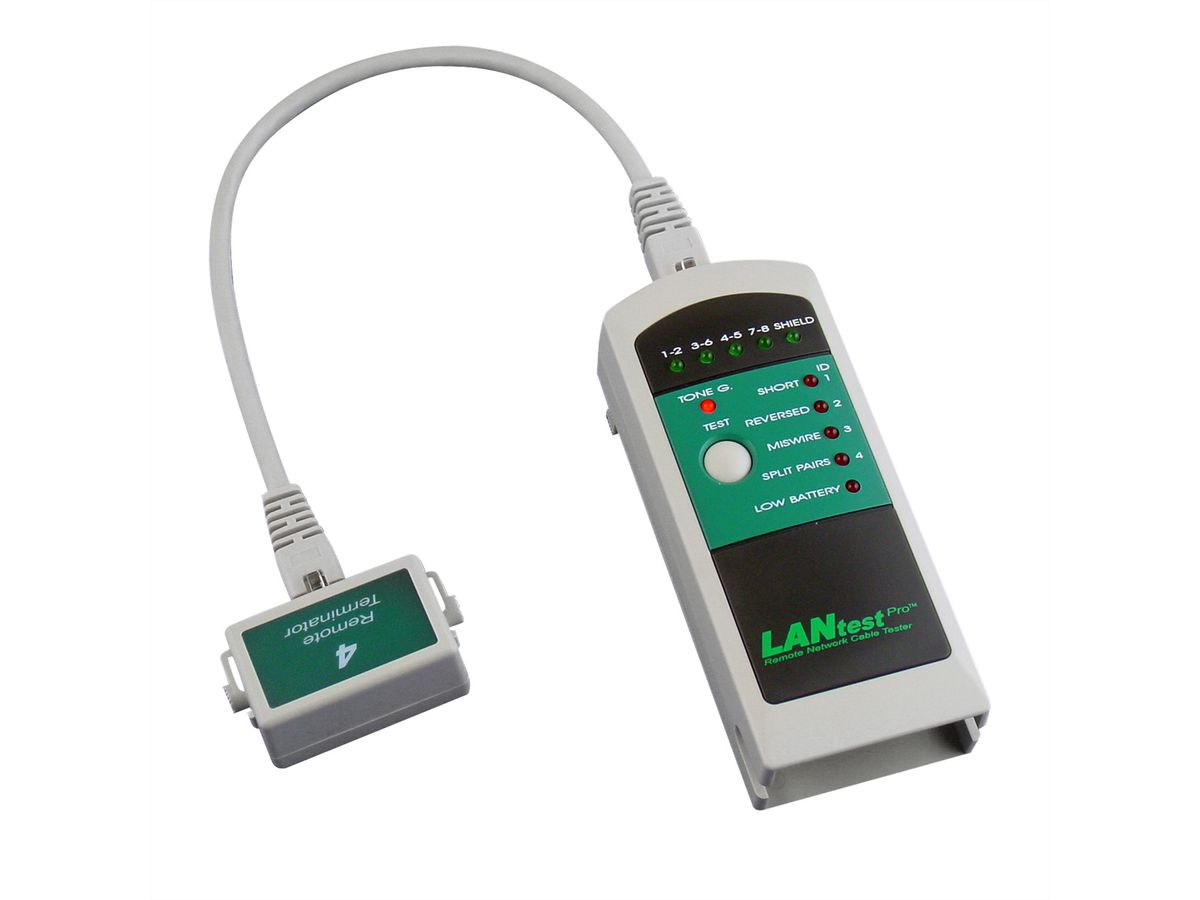

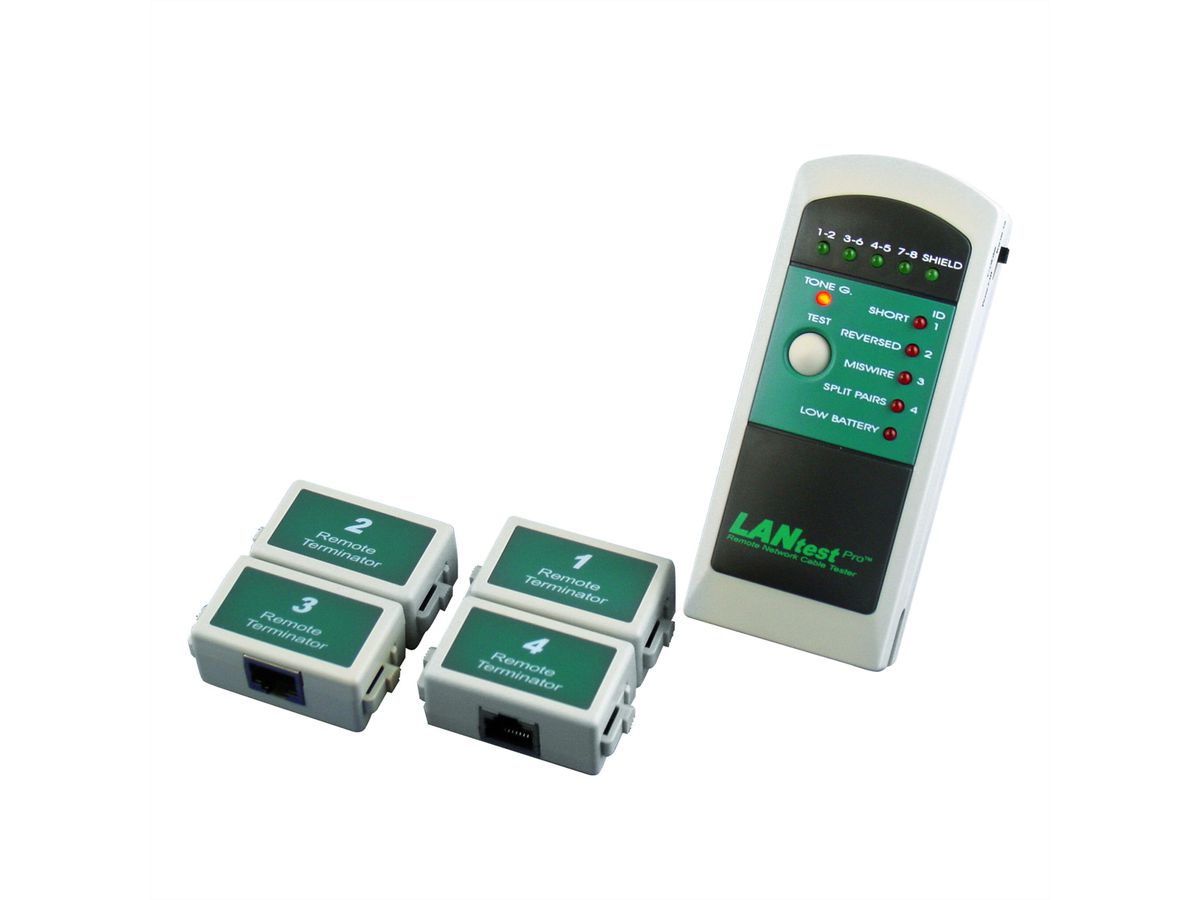

LANtest Pro includes a base unit and four remote units that allow a technician to easily test patch cords and routed installation cables.

SPECIFICATIONS

• Tests for wiring faults of open, short, reversal, crossed and split pairs
• Split pair fault detection at minimum 40cm cable length
• Verification of shield integrity
• Specially designed remote units that enables one person to test installed cables
• Easy to read fault display and high speed testing
• Debug mode for detailed fault identification results
• Auto sleep mode and power off switch to decrease power consumption
• Low battery indicator

Display: LED
Connector type: RJ-45
Operating temp.: 0 to 40ºC
Storage temp. : –20 to 60ºC
Humidity: 95% relative humidity (non-condensing)
Master dimensions: 124 x 55 x 30mm
Remote dimensions: 29 x 55 x 22mm
Master weight: 90g
Remote weight: 20g
Power source: 1.5VAAAx4
