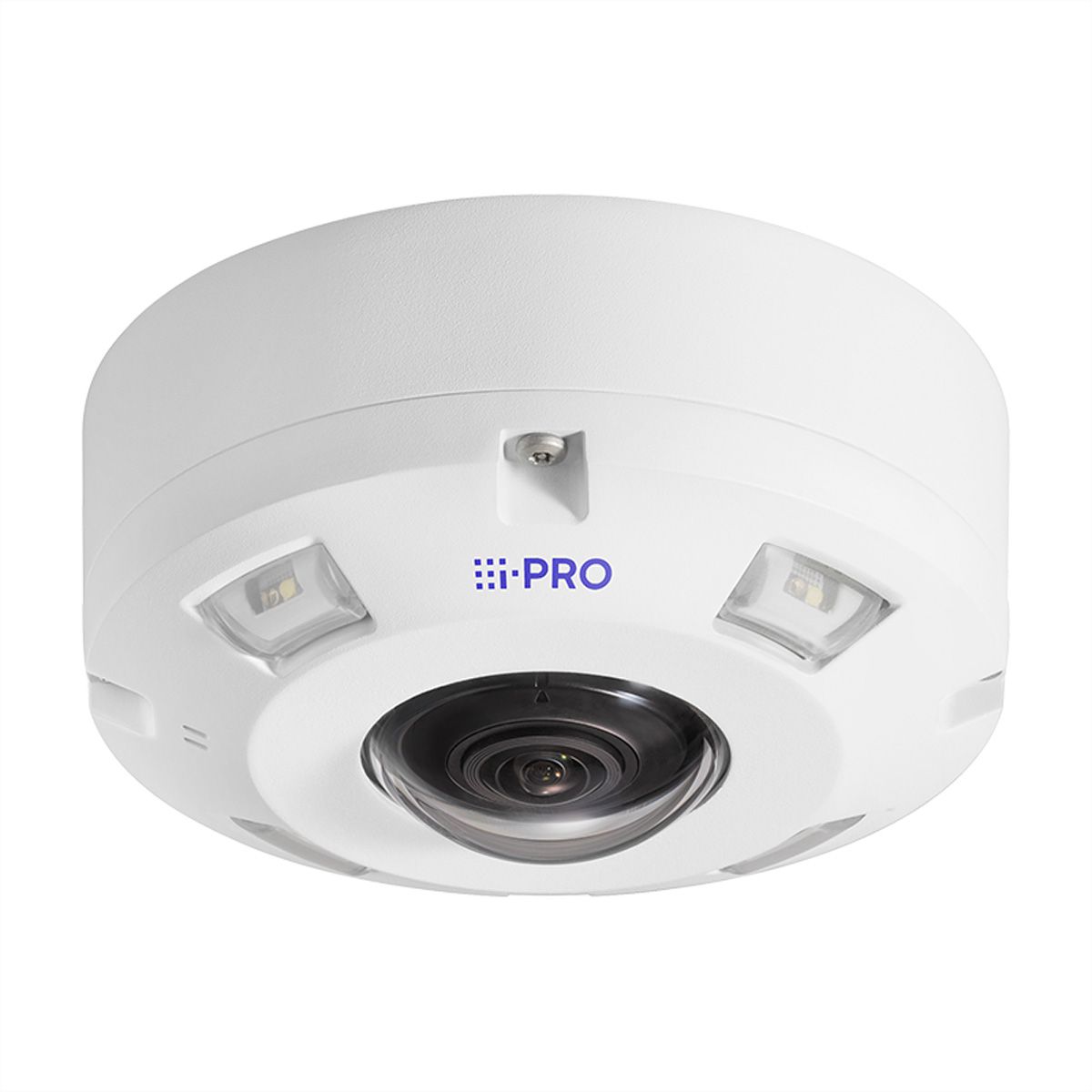

i-PRO WV-X45501-F1LMV 5MP Outdoor VANDAL IR Fisheye Camera, M12 Connector

Item no. 21200281 Brand / Manufacturer i-PRO Manuf. item no. WV-X45501-F1LMV EAN 4570162075384 Item weight 2.35 kg

i-PRO WV-X45501-F1LMV 5MP Outdoor VANDAL IR Fisheye Camera, M12 Connector

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 09/15/2026

Description

5MP AI Outdoor 360° IR Fisheye Camera with M12 Connector

The i-PRO WV-X45501-F1LMV delivers high-performance 5MP 360° fisheye surveillance with advanced Edge AI analytics and up to 132 dB WDR. This robust outdoor camera features integrated IR and white LEDs, combining intelligent detection, panoramic coverage and advanced security features for reliable surveillance, including demanding railway applications.

5MP sensor, outdoor 360° fisheye camera with up to 30 fps
186° horizontal and vertical viewing angle
Integrated IR LEDs (up to 21 m) and white LEDs (up to 14 m)
M12 network connector (industrial-grade and vibration-resistant)
Up to 9 Edge AI analytic applications
AI Free Text Detection, AI Privacy Guard and AI Noise Reduction
Super Dynamic WDR with up to 132 dB dynamic range
H.265 / H.264 / JPEG video compression
IP66 / IP67 / IP69 and IK11 certified
Built-in FIPS 140-3 Level 3 SecureElement
ONVIF Profile G / M / S / T compliant
PoE (IEEE 802.3af) / PoE+ (IEEE 802.3at), 12 VDC or 24 VDC power supply
Operating temperature from -40 °C to +60 °C
NDAA Compliant
Railway approvals EN 50155 and EN 45545-2

Specifications

Manufacturer: i-PRO
Product group: IP surveillance
Product type: Fish Eye Network Camera
Colour: white
Scope of delivery: i-PRO WV-X45501-F1LMV, mounting hardware for standard installation, installation manual
Mounting form: Fish-Eye
ONVIF: yes
Image Sensor Type: 1/2,8" CMOS
Resolution: 5 MPx
Maximum Resolution (Dots): 2192 × 2192 (fisheye mode)
Framerate at max Resolution (Frames/Second): 30 fps
Video Compression: H.265 / H.264 / JPEG
Number of Video Streams: 4
Lens Mount: Fixed focal length fisheye lens (built-in)
Focal Length: 0,95 mm
Horizontal viewing angle: 186 °
Viewing angle vertical: 186 °
Remote Controllable Optical Zoom: no
Removable IR Cut Filter: yes
Day/Night Mode: yes
IR LED: yes
IR range (max.): 21 m
Minimum Illumination: Maximum IR range: 7 m via PoE, 21 m via 12 VDC / 24 VDC / PoE+
Light sensitivity (without IR): 0.08 Lux
WDR: WDR
Pan Area: No mechanical movement – digital PTZ via fisheye dewarping (software-based, no moving parts)
Audio Input: yes
Audio Output: yes
Digital Input: yes
Digital Output: yes
Integrated PIR Sensor: no
Motion Detection: yes
Memory Card Slot: yes
Power over Ethernet (PoE): yes
WLAN: no
Protection class: IK11, IP66 / IP67 / IP69, EN 50155:2021, EN 45545-2:2020 (Railway Applications), IEC 60068-2-6 (vibration-resistant)
Protection class (IP Code): IK11

IP66

IP67

IP69
Suitable for Outdoor Use: yes
Power supply: External power supply unit

Power over Ethernet (PoE)
Technical particularity: M12 12,5MP 360° Fisheye, 132 dB Super Dynamic WDR, Edge AI (Ambarella CV72, up to 9 apps), FIPS 140-3 Level 3/CC EAL6+ SecureElement, “Easy Kitting” (simplified mounting system)
Mains connection: Power over Ethernet (PoE)
Operating temperature min.: -40 °C
Operating temperature max.: 60 °C
Height: 77 mm
Width: 154 mm
Depth: 154 mm
Weight: 1.7 kg
Height of packaging (single piece): 235 mm
Width of packaging (single piece): 132 mm
Depth of packaging (single piece): 260 mm
Package weight (single piece): 2.35 kg

Downloads

Manufacturer data sheet - English (818.0 KB) User manual - Deutsch (2.6 MB) User manual - English (2.6 MB) User manual - Français (2.6 MB)
