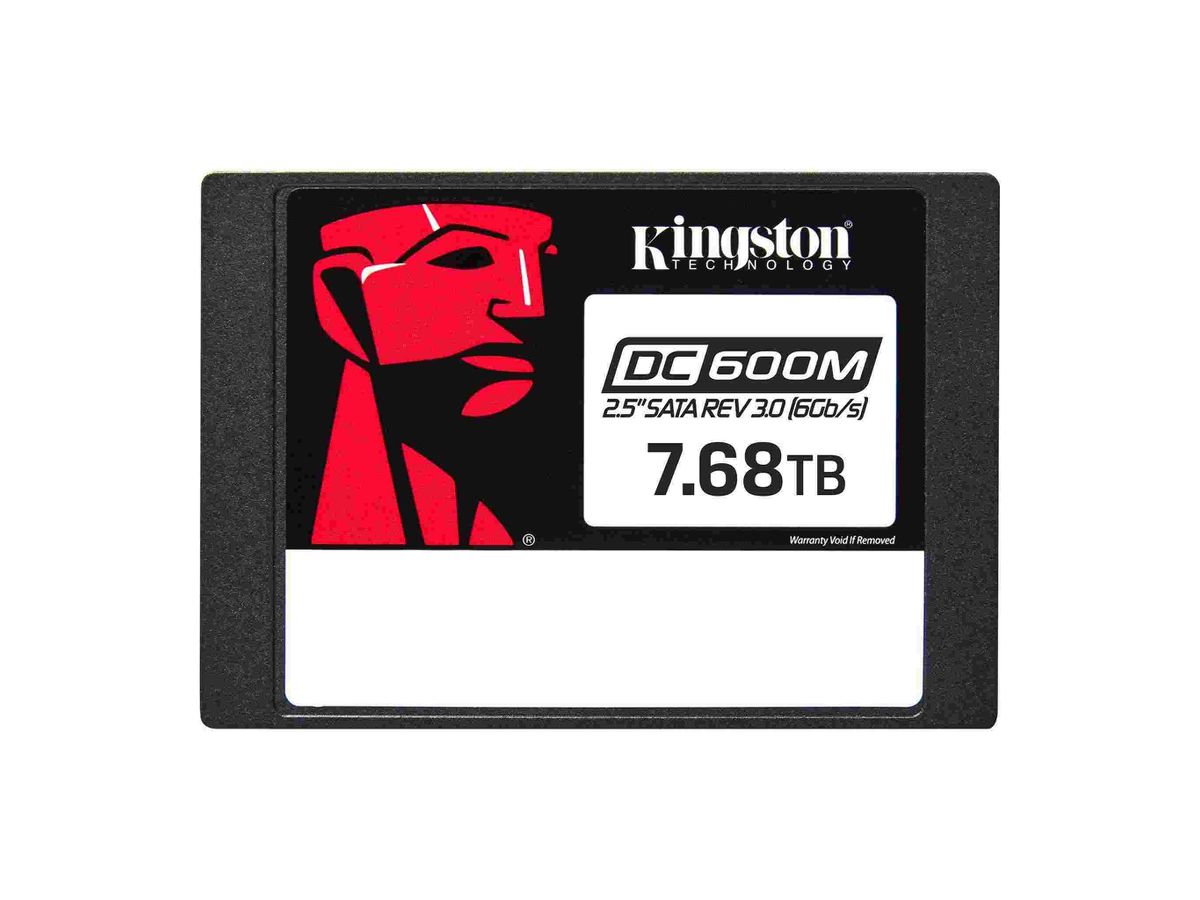

Kingston Technology DC600M 2.5" 7680 GB Serial ATA III 3D TLC NAND

Item no. 527933615 Brand / Manufacturer KINGSTON TECHNOLOGY Manuf. item no. SEDC600M/7680G EAN 0740617334951
KINGSTON TECHNOLOGY

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days

Description

Kingston Technology DC600M. SSD capacity: 7680 GB, SSD form factor: 2.5", Read speed: 560 MB/s, Write speed: 530 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation

DC600M 2.5” SATA Enterprise SSD 6Gbps SATA 3.0 storage for mixed-use workloadsKingston’s DC600M SSD is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for “mixed use” workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware-based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers.Hardware-based PLPPower loss capacitors to protect user data against unexpected power loss and enhance performance.Delivers excellent quality of service (QoS)Optimised performance predictability to meet service-level agreements (SLAs).AES 256-bit self-encrypting driveBuilt-in protection to safeguard important data.Capacities up to 7680GBUpgrade and manage storage with capacities up to 7680GB.

Specifications

Manufacturer
KINGSTON TECHNOLOGY
Product type
Internal Solid State Drives
Storage capacity
7680 GB
Hard disk size
2.5"
Weight & dimensions
Width
69.9 mm
Depth
7 mm
Height
100 mm
Weight
92.34 g
Power
Power consumption (read)
1.6 W
Power consumption (write)
3.6 W
Power consumption (max)
1.45 W
Power consumption (idle)
1.3 W
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating vibration
2.17 G
Non-operating vibration
20 G
Features
SSD form factor
2.5"
SSD capacity
7680 GB
Interface
Serial ATA III
Memory type
3D TLC NAND
Component for
Server/workstation
Hardware encryption
Y
Security algorithms
256-bit AES
Target workload
Mixed Use (MU)
Data transfer rate
6 Gbit/s
Read speed
560 MB/s
Write speed
530 MB/s
Random read (4KB)
94000 IOPS
Random write (4KB)
34000 IOPS
Read latency
200 µs
Write latency
30 µs
Hot-Plug support
Y
H/W PLP function
Y
Mean time between failures (MTBF)
2000000 h
TBW rating
14016
Use conditions
Server/Enterprise
