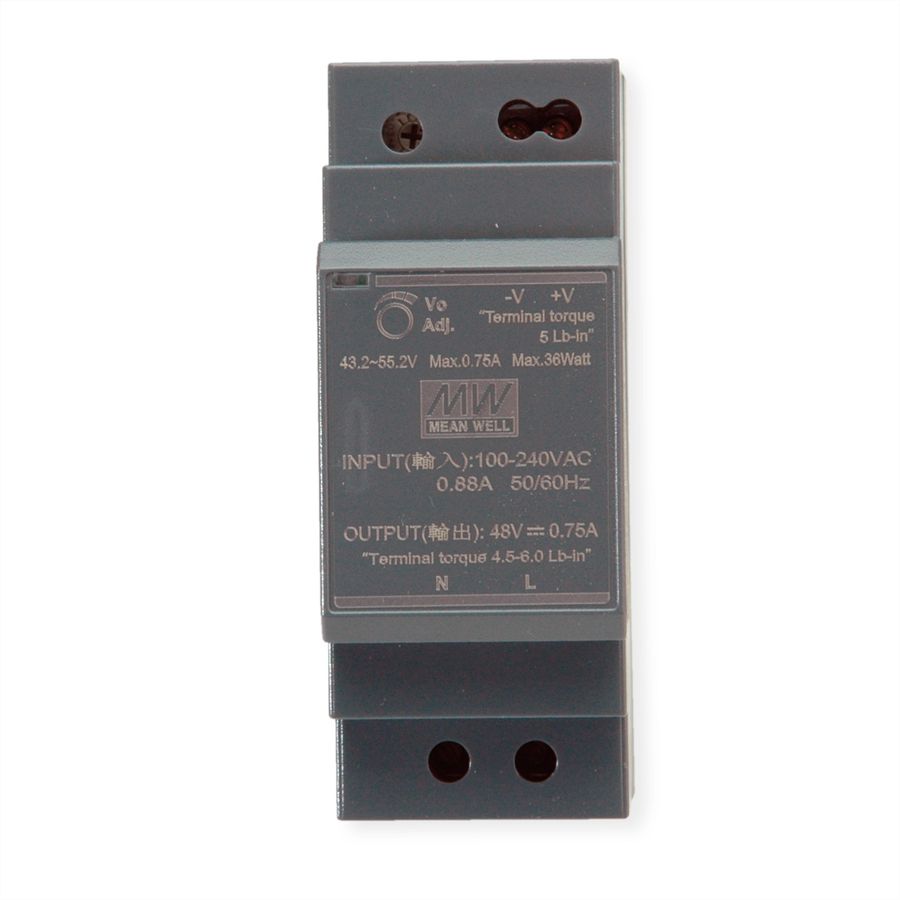

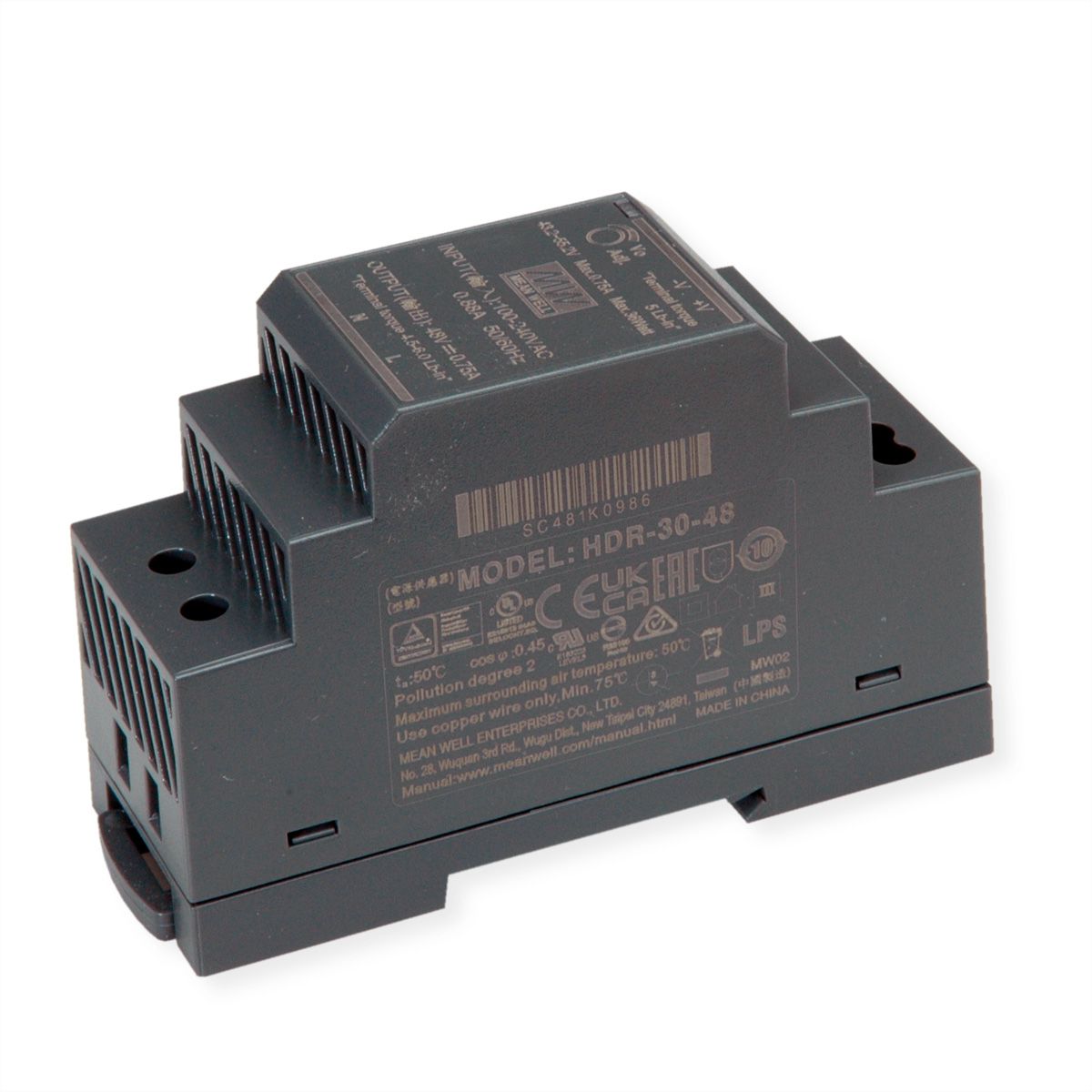

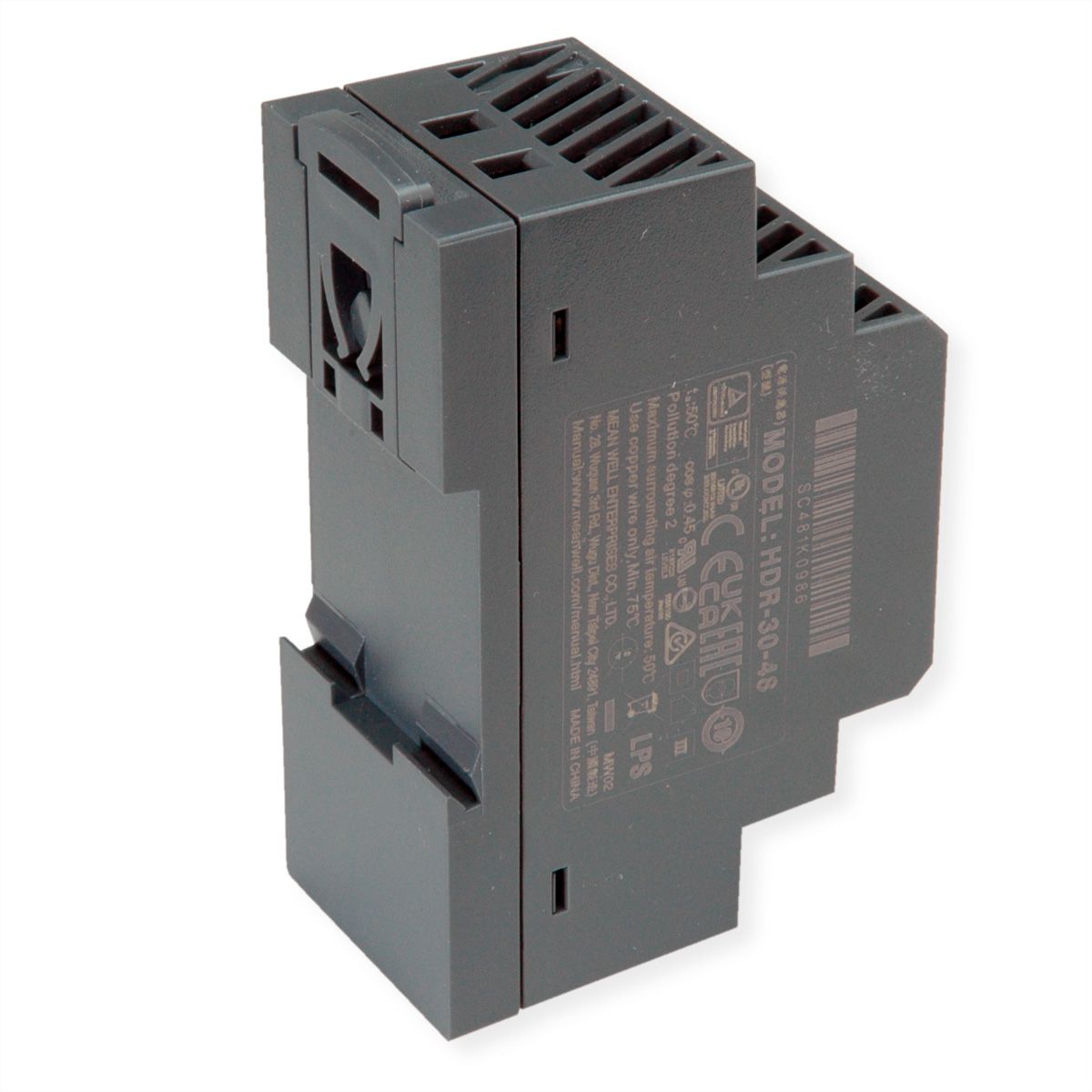

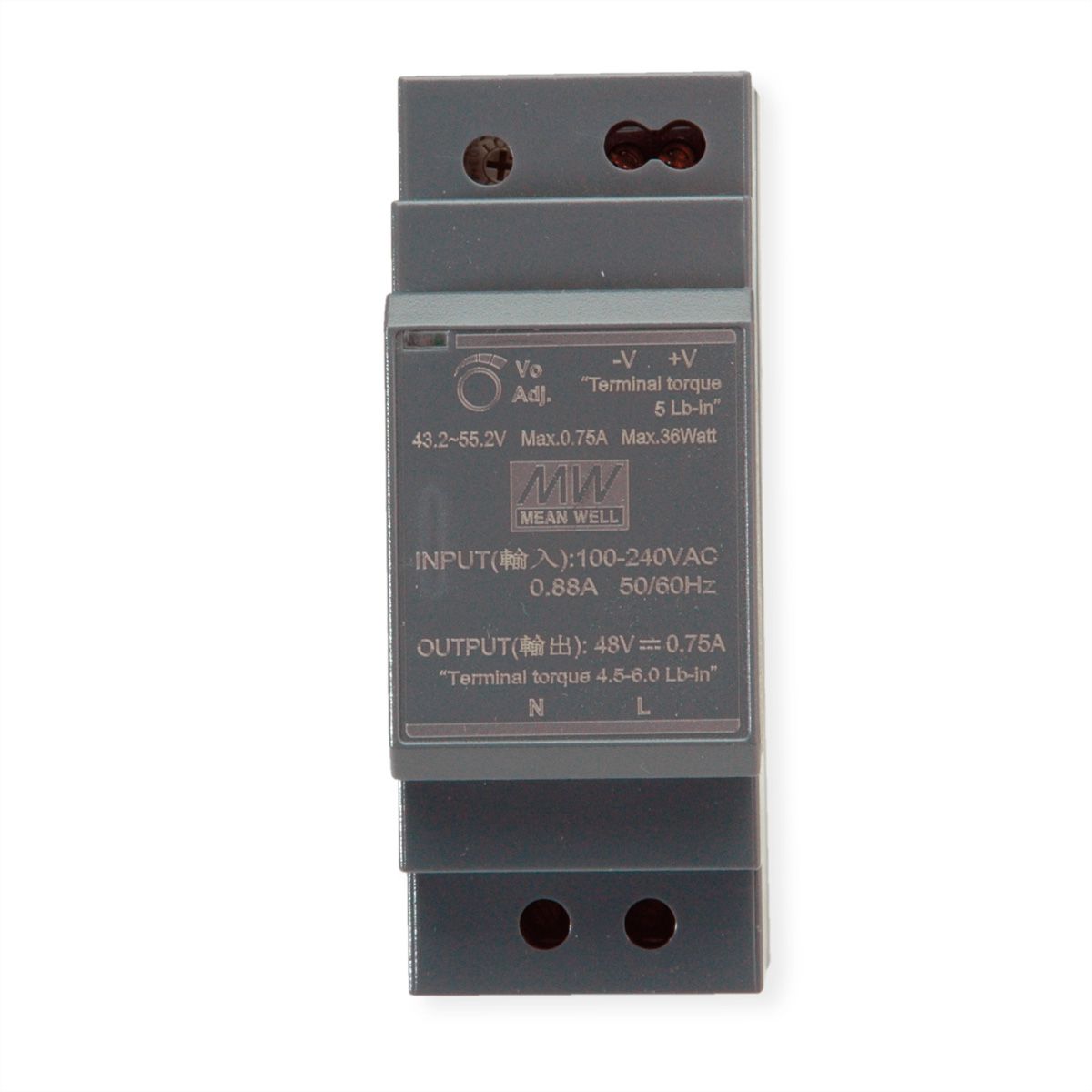

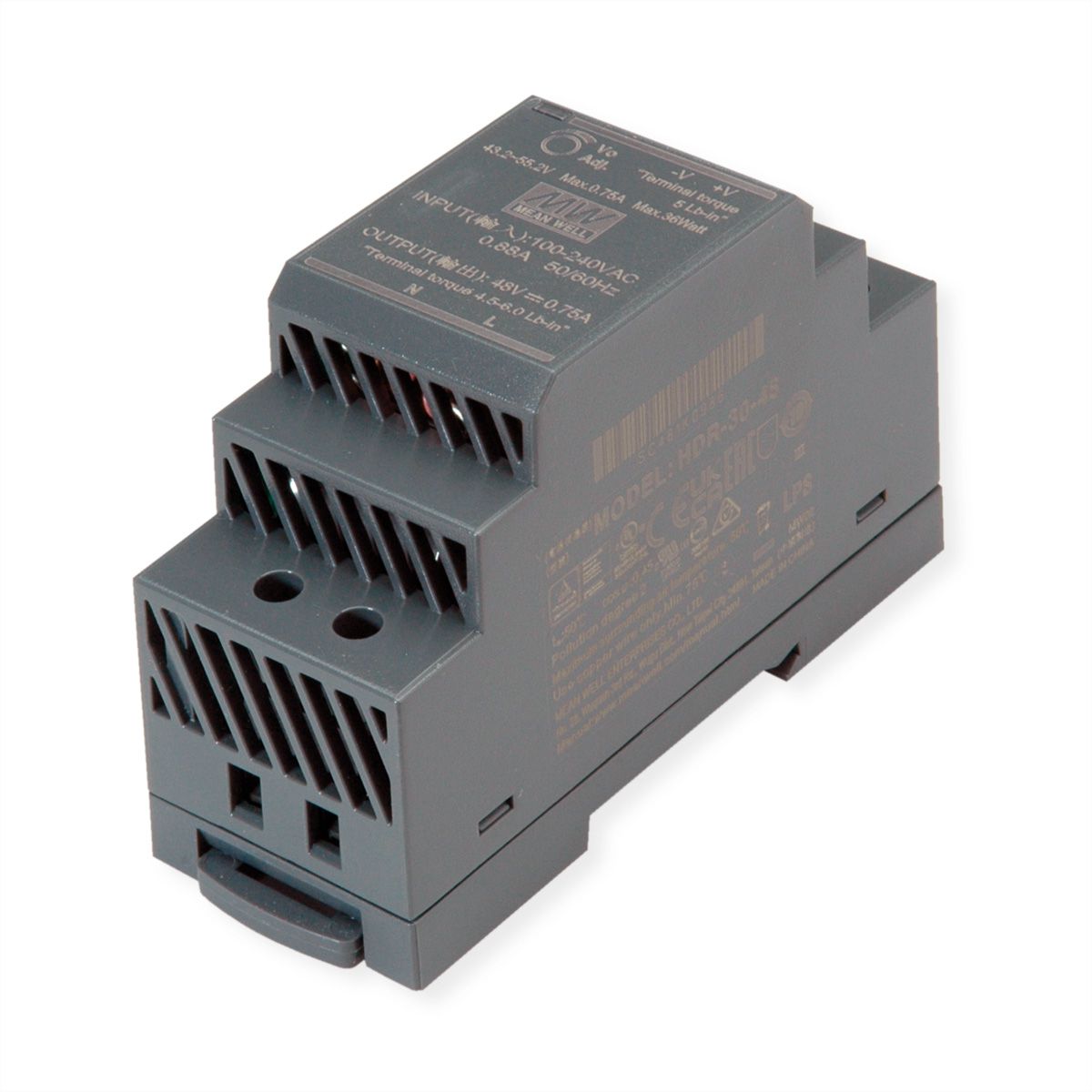

MEAN WELL HDR-30-48 Hutschienennetzteil 30W 48V DC
Item no.
21131309
Brand / Manufacturer
Mean Well
Manuf. item no.
HDR-30-48
Item weight
0.14 kg
:strip_icc():strip_exif()/logos/mean-well.png "Mean Well")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
Mean Well 30W 48V DC Schaltnetzteil DIN-Schiene HDR-30-48
- Auf DIN-Schiene montierbar
- geschlossene Bauform, berührgeschützte Schraubanschlüsse
- Universaleingang
- Überlastschutz durch Strombegrenzung, auto recovery
- geschützt gegen Kurzschluss, Überlast, Überspannung
- niedrige Leerlaufleistung
- LED-Anzeige für Power-On
- Isolationsklasse II
Technische Daten:
Ausgangsspannung: 48 V DC
Ausgangsstrom: 0.75 A
Ausgangsleistung: max. 36 W
Eingangsspannung: 100.....240 V AC
Abmessung: 90 x 35 x 54,5 mm
Specifications
- Manufacturer
- Mean Well
- Product group
- Industrial Networking
- Product type
- Spannungswandler
- Colour
- anthracite
- Operating temperature min.
- -30 °C
- Operating temperature max.
- 70 °C
- Height
- 90 mm
- Width
- 35 mm
- Depth
- 54.5 mm
- Weight
- 120 g
- Height of packaging (single piece)
- 30 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 60 mm
- Package weight (single piece)
- 0.14 kg
