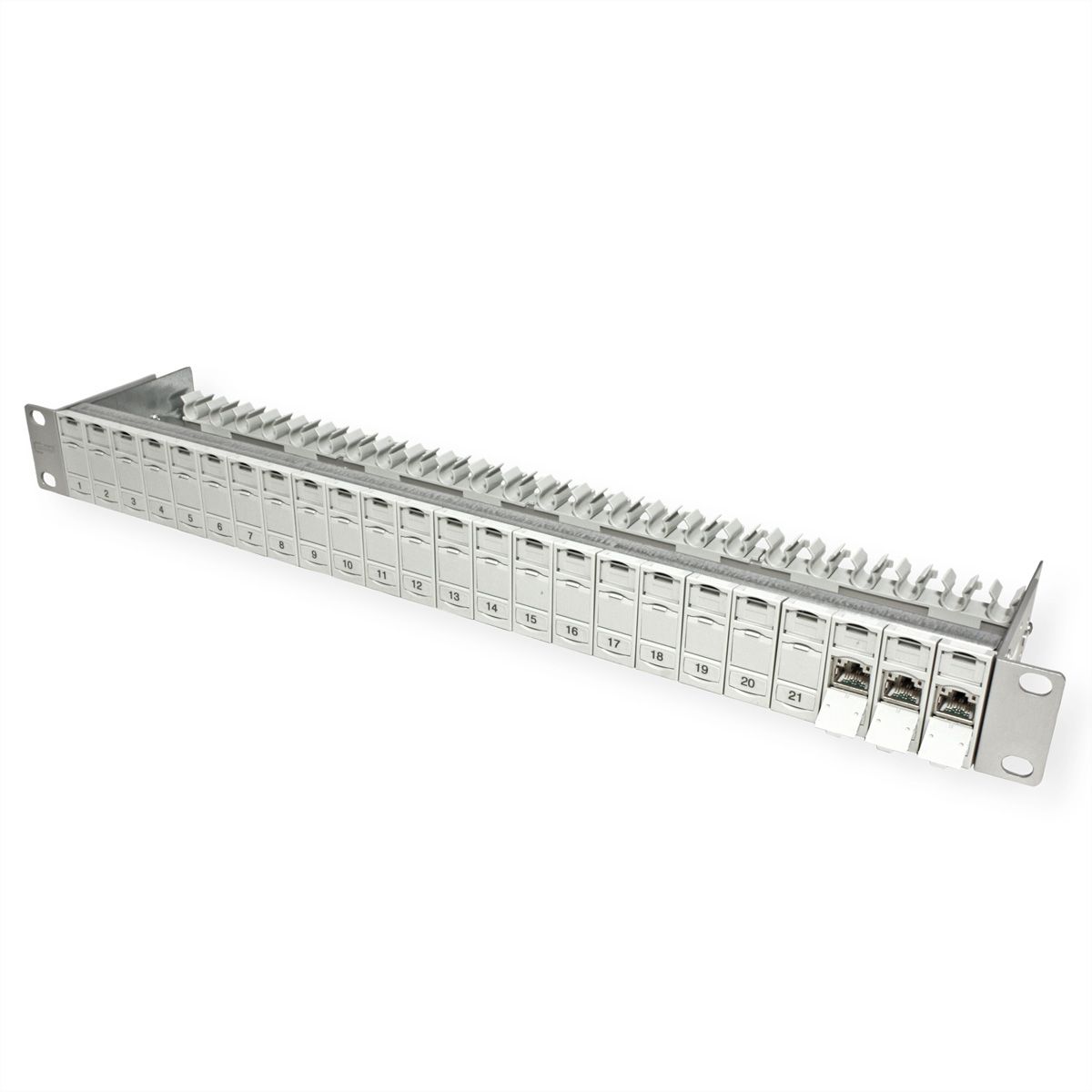

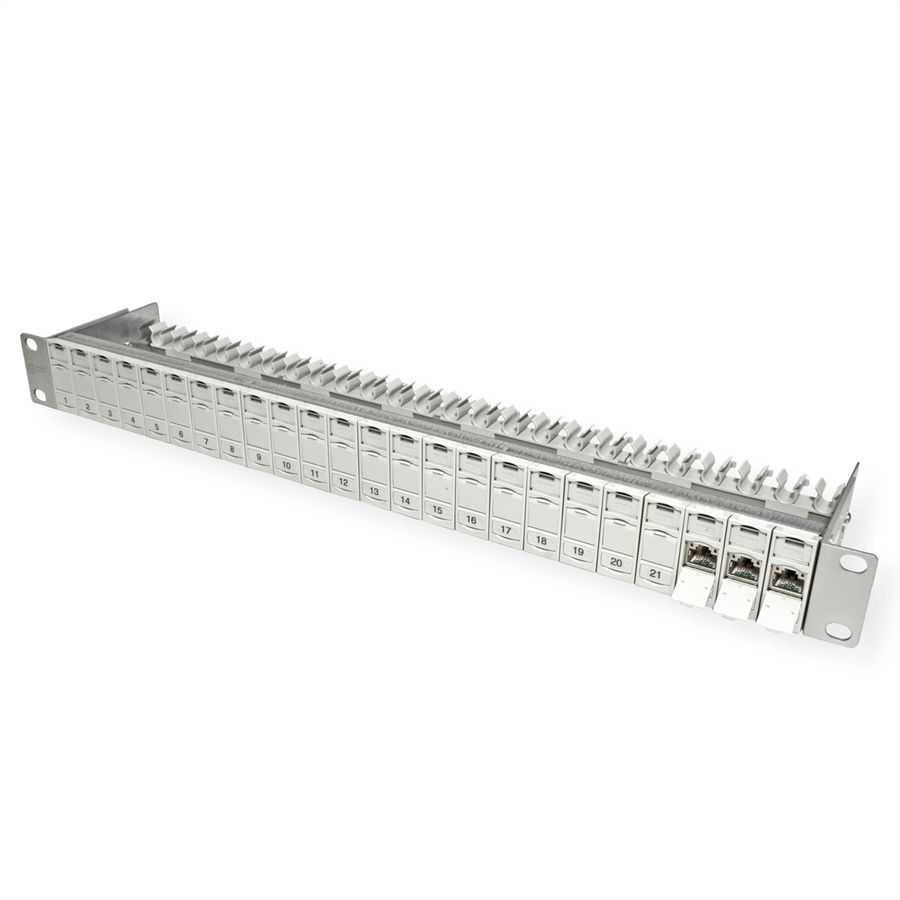

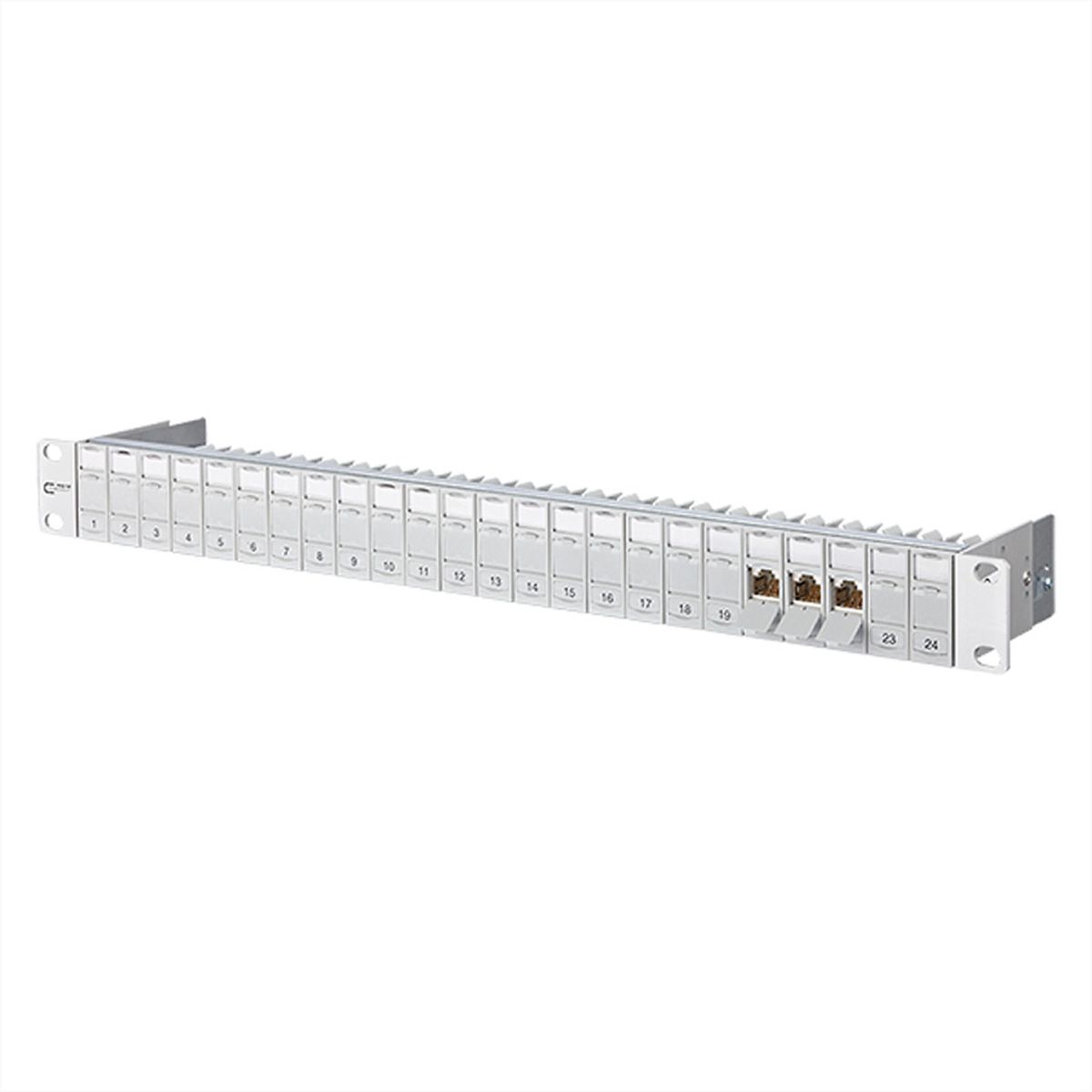

METZ CONNECT 19"-Panel 1HE bestückt mit 24 E-DAT Modulen Cat.6A (Class EA)

Item no. 26110650 Brand / Manufacturer METZ CONNECT Manuf. item no. 130920-E EAN 4250184106135 Item weight 1.313 kg

METZ CONNECT 19"-Panel 1HE bestückt mit 24 E-DAT Modulen Cat.6A (Class EA)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

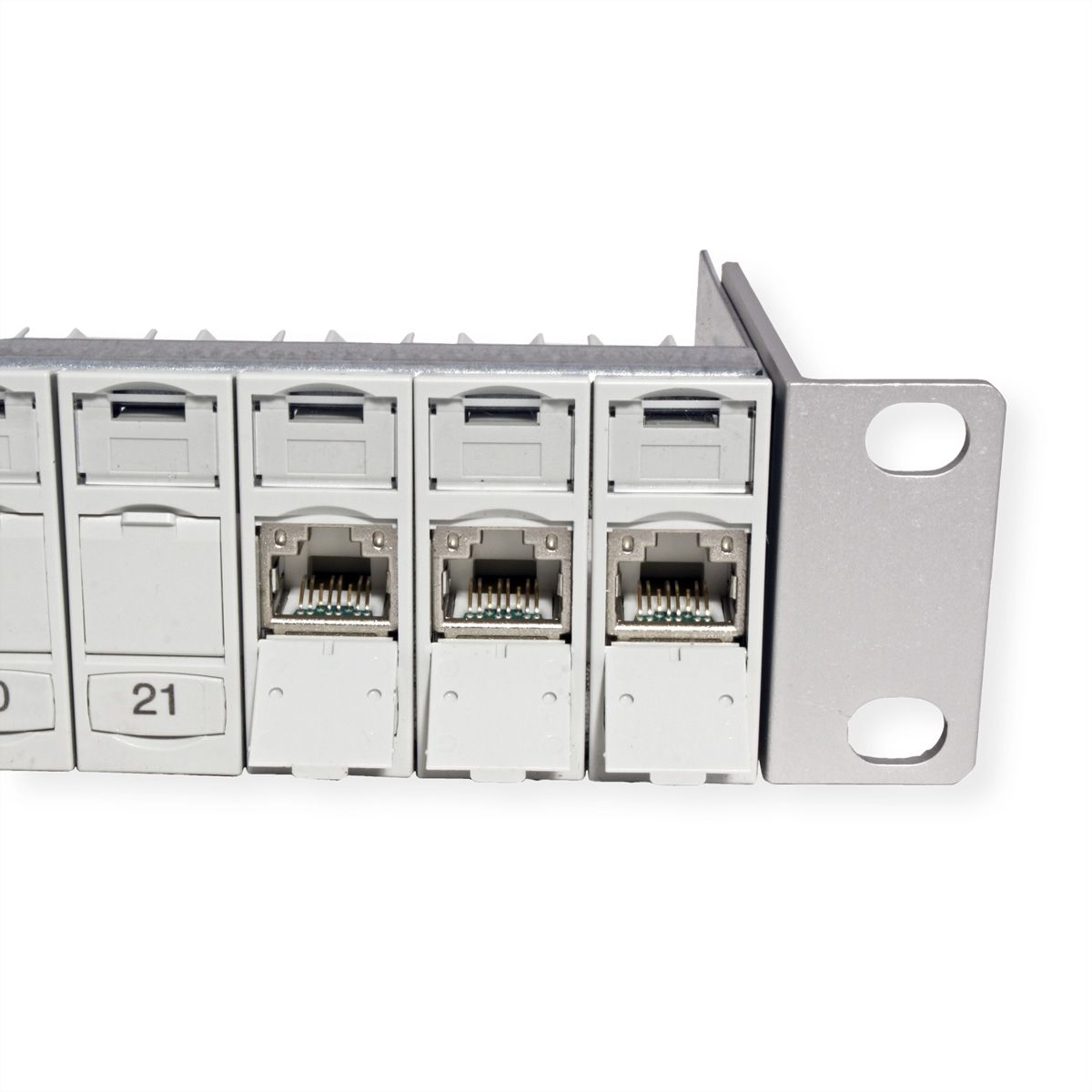

19''-Patchfeld 1 HE bestehend aus einem Modulträger und 24 einzelgeschirmten RJ45-Modulen - E-DAT modul

Cat.6A Komponentenprüfung nach ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) und IEC 60603-7-51 Ed.1 (12/2008); GHMT zertifiziert
Link getestet bis 500 MHz - für 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus und UPoE) und HDBaseT geeignet
Anschluss von Datenleitungen AWG 26/1 - 22/1 (massiv) und AWG 26/7 bis 22/7 (Litze) an IDC-Schneidklemmen

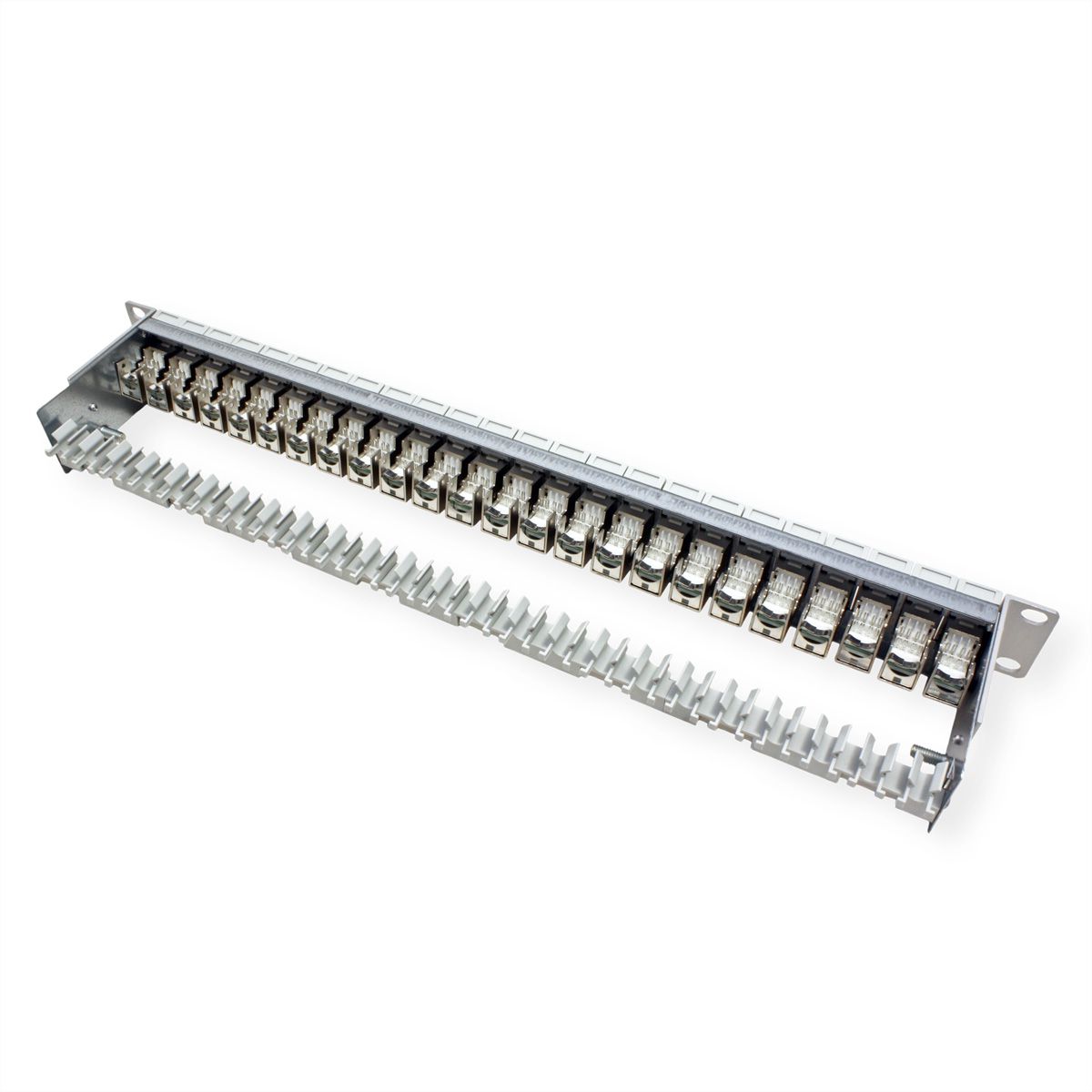

Integrierte Kabelabfangung, zusätzliche Zugentlastung möglich
Erdungsbolzen M6 x 10 mit Mutter und Zahnscheibe, inkl. 30 cm Erdungskabel
Alle vollgeschirmten Module sind mittels Erdungsschiene verbunden

Specifications

Manufacturer: METZ CONNECT
Product group: Anschlusstechnik TP
Product type: Patchpanel Cat.6A / Class EA
Colour: silver
Scope of delivery: Moduledrager incl. 24 E-DAT Module
Shield type: geschirmt
Transfer quality: Cat6A / Class EA
Cabinet system: 19"-Technik
Quantity of ports: 24
Modular assembly: ja
Material (casing): Staal
Shield contacts: ja
separate strain relief: ja
Connection direction: gerade
Dimensions (HxWxD): 44,45 x 482,6 x 95
Assembly depth: 95 mm
Technical particularity: Gereedschapvrije montage
RAL colour: RAL 7035 Lichtgrau
Height: 44.45 mm
Width: 482.6 mm
Depth: 95 mm
Weight: 1370 g
Height of packaging (single piece): 60 mm
Width of packaging (single piece): 200 mm
Depth of packaging (single piece): 530 mm
Package weight (single piece): 1.313 kg

Downloads

Manufacturer data sheet - Français (4.7 MB) Manufacturer data sheet - Deutsch (3.6 MB) Manufacturer data sheet - English (3.6 MB)
