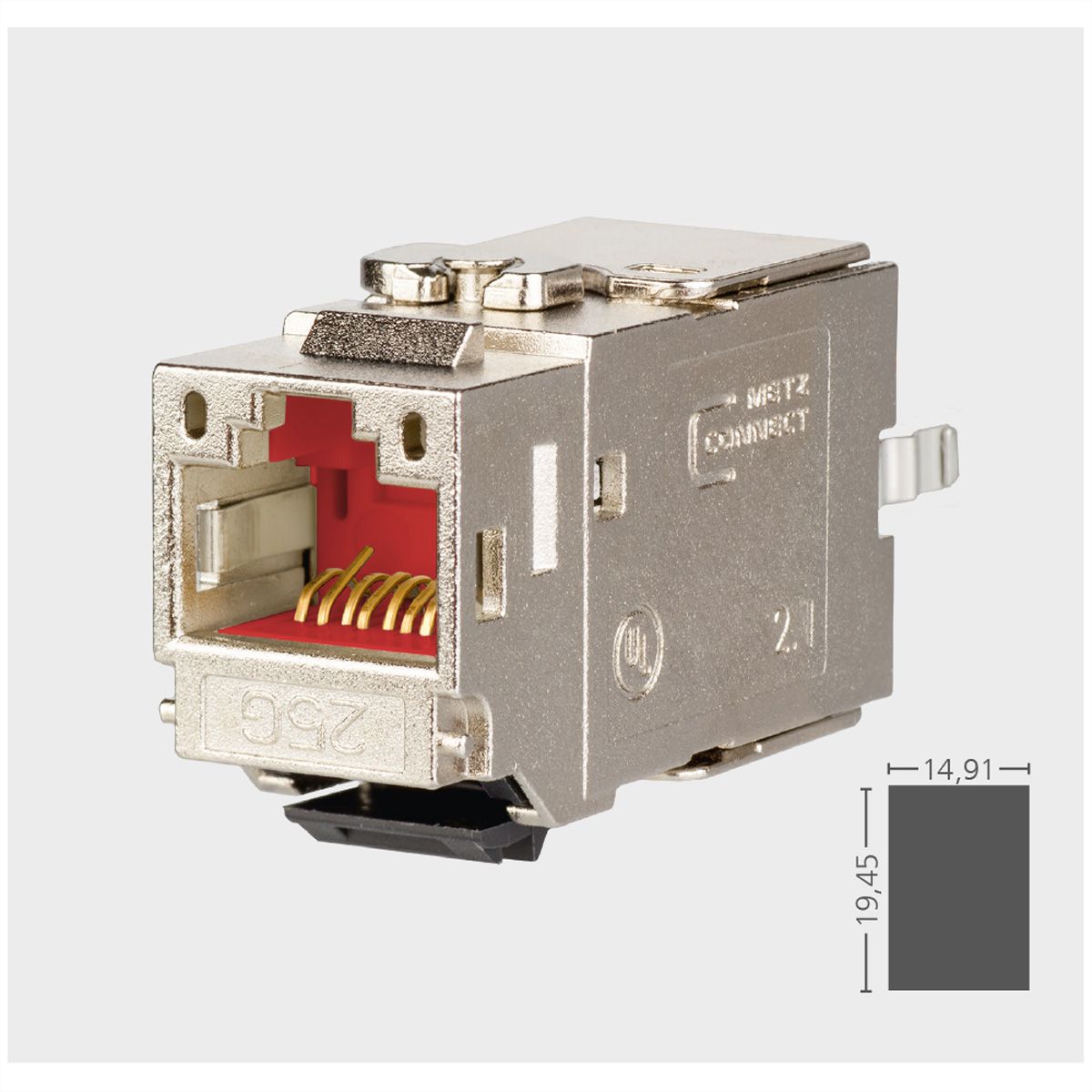

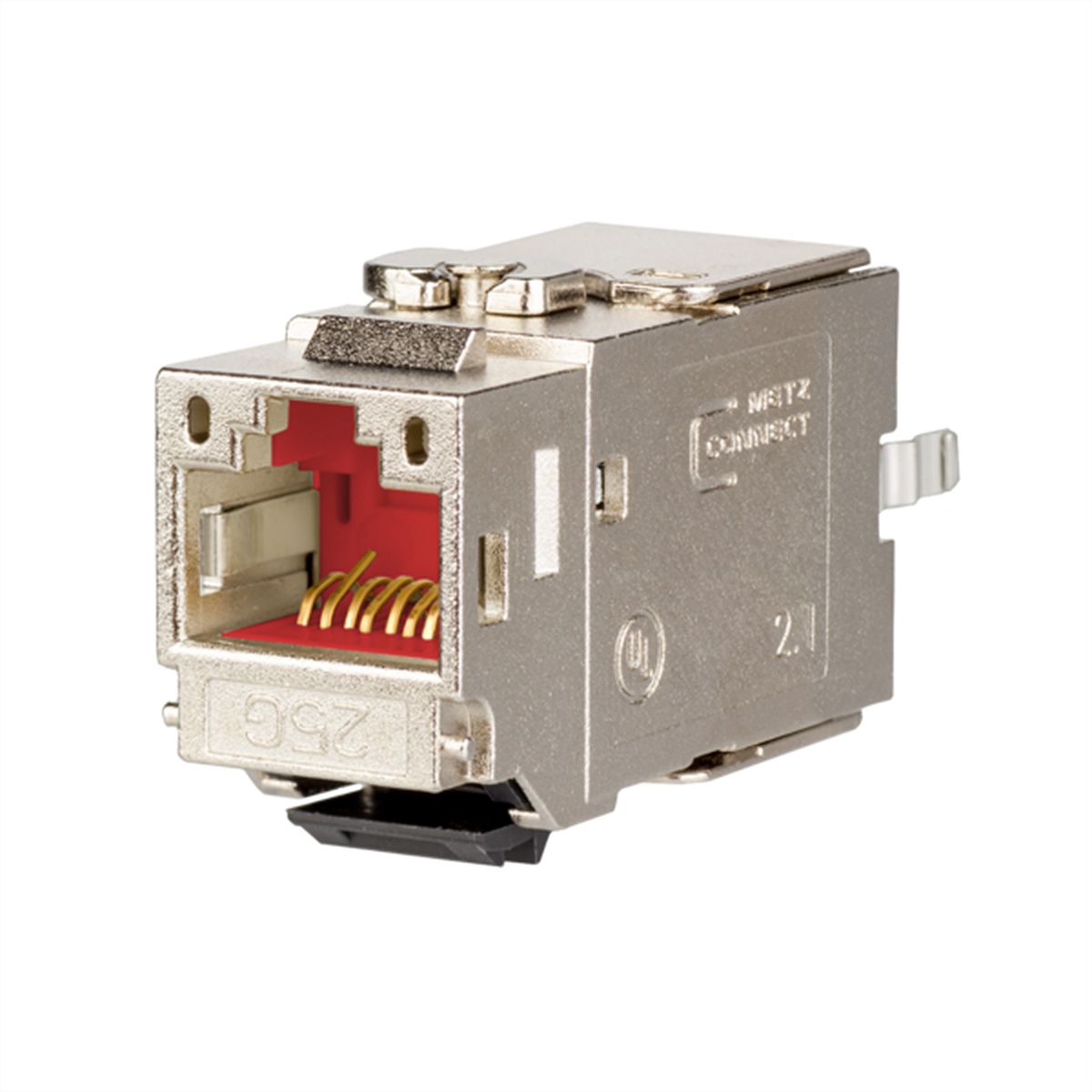

METZ CONNECT 25Gmodul, RJ45 Keystone Module

Shielded, field-terminable RJ45 Keystone module for high-performance copper network cabling with data rates up to 25 Gbit/s, tool-free installation and support for PoE up to 4PPoE.

• certified by GHMT according to ISO/IEC TR-11801-9905 for 25GBASE-T in the Channel-Link with 30 m
• in preparation: ISO/IEC TR-11801-9909 for 25GBASE-T in channel link over 30 m
• completely downward compatible by complying with class EA according to ISO/IEC 11801-1 and DIN EN 50173-1 (within the permanent link up to 90m, within the permanent link up to 100m)
• RJ45 according to IEC 60603-7-1, 2 mounting versions: module and keystone
• mounting without special tools, low mounting and connection time
• migrating 10G-systems without special tools
• connection of patch- and installations cords is possible for: AWG 26/7 - 22/7 and AWG 26/1 - 22/1
• suitable for 25GBit/s Ethernet (IEEE 802.3bq) and 10 GBit/s Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE), HDBaseT, SAT-IP and AVoverIP
• solid, reusable module housing refined with zinc die-casting
• intelligent cable management in stuffer caps - also suitable for heavily twisted cables - also easy installation in various applications
• strain relief by latching clip directly on the stuffer cap
• 360°-shield connection
