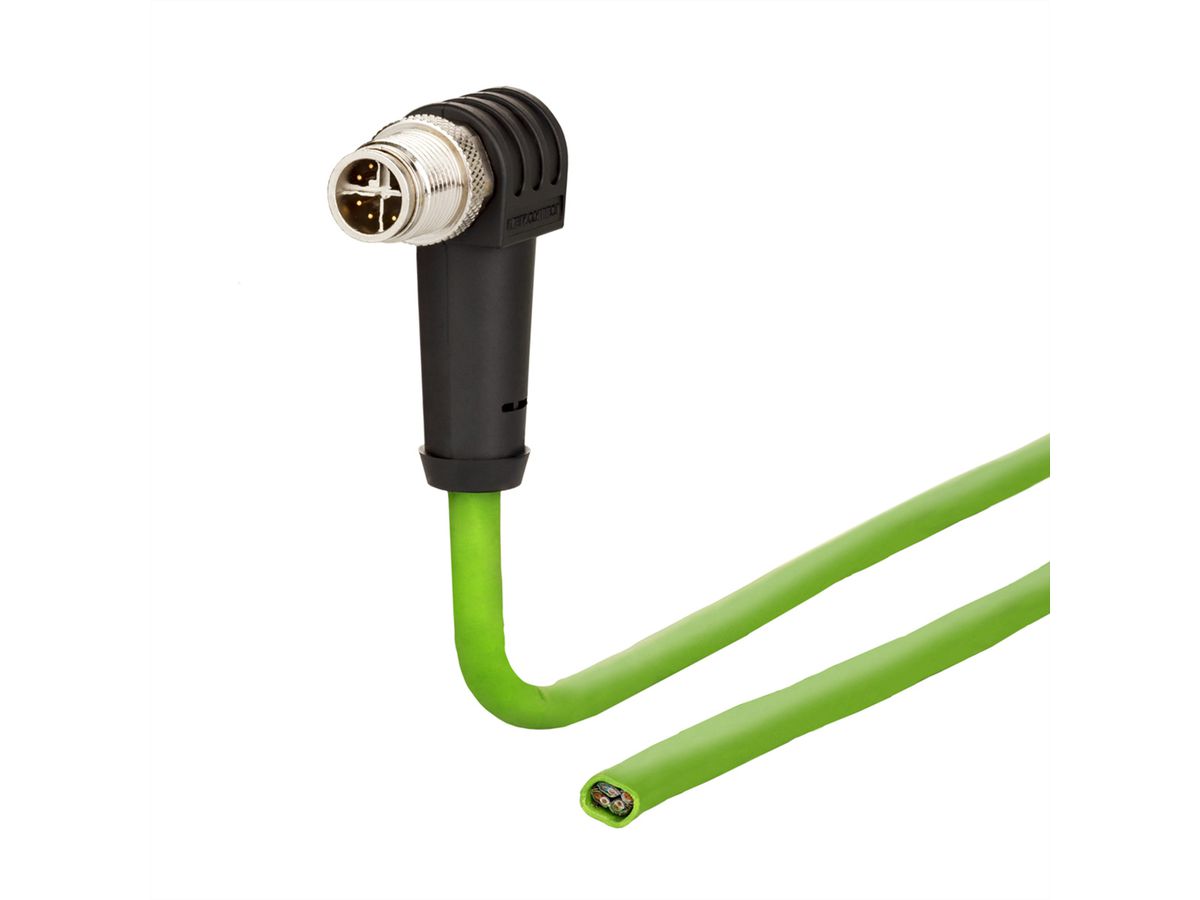

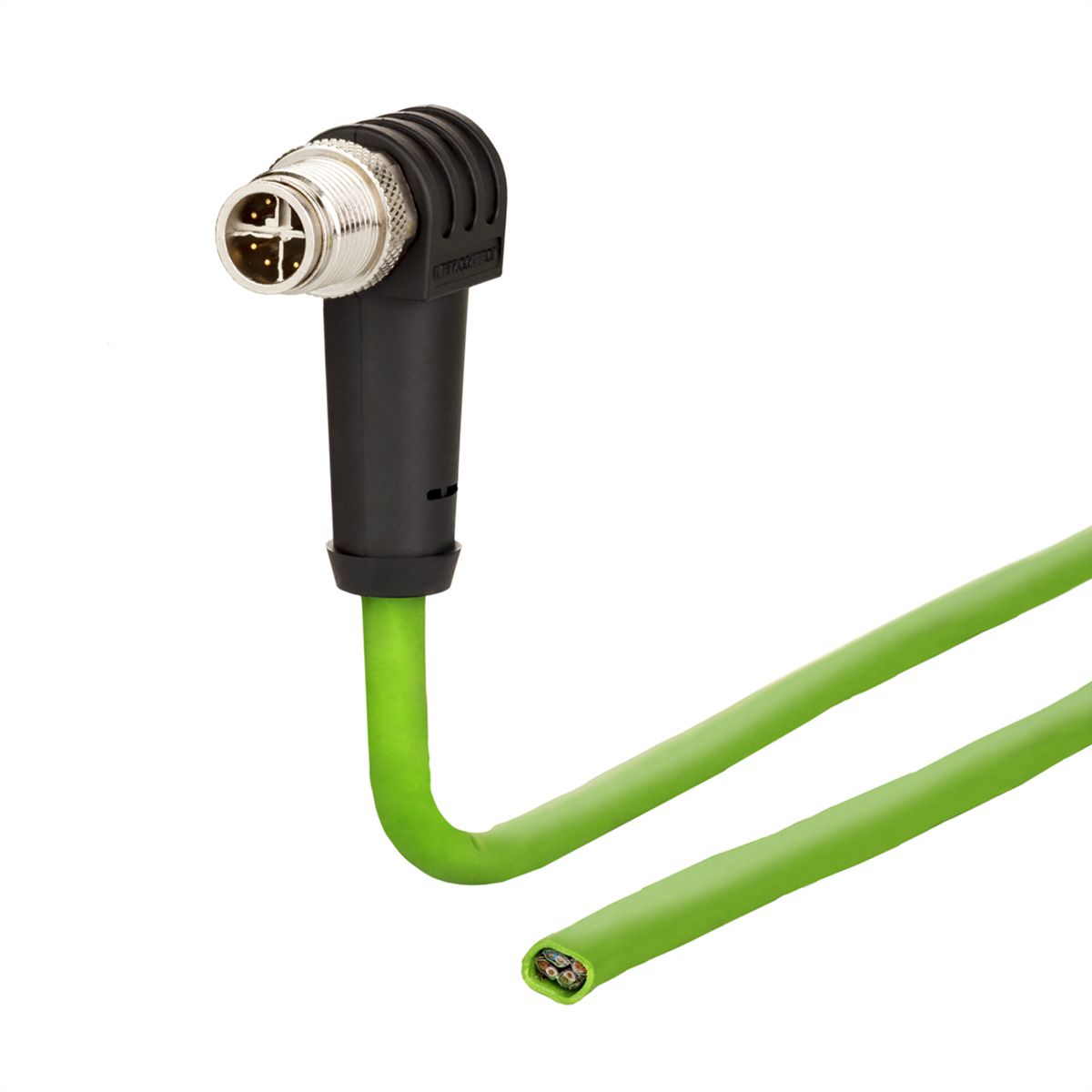

METZ CONNECT Anschlussleitung M12 Stecker 8-polig X-kodiert, gewinkelt, 10 m

Item no. 21168861 Brand / Manufacturer METZ CONNECT Manuf. item no. 142M2X90100 EAN 4250184174868 Item weight 0.464 kg
METZ CONNECT
Colour:
Length:

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

M12 Industrial Ethernet Leitung, X-kodiert, M12 Stecker gewinkelt - freies Leitungsende, Kodierung bei 315°, PUR

Geschirmte PUR-Leitung zur sicheren und industrietauglichen Datenübertragung in der Automatisierungs- und Feldbustechnik. Die Leitung erfüllt die Forderungen nach ULStyle 20963 und erfüllt die Vorgaben nach Cat7 (elektr. Eigenschaften in Anlehnung an EN50288-4-2). Materialien und konstruktiver Aufbau ermöglichen erhöhte mechanische Beanspruchung (Abrieb, Biegung, Erschütterung etc.) der Leitung. Besondere Eigenschaften: UL-Style 20963, seewasserbeständig, recyclefähig, LABS-frei, säure- u. laugenbeständig, UV-beständig, hydrolysefest, halogenfrei, ölbeständig, hohe Flexibilität, keine korrosiven Gase, mikrobenfest, keine Brandfortleitung.

Specifications

Manufacturer
METZ CONNECT
Product group
Netzwerkkomponenten
Product type
Industrial Networking
Colour
green
Length
10 m
Shield type
S/FTP (PiMF)
Transfer quality
Cat6A / Class EA
Side 1 Connector Type
M12-X
Side 1 Connector Gender
Männlich (Stecker)
Side 2 Connector Type
offenes Ende
Oil resistant
ja
Halogen free
ja
Connection direction
gewinkelt
Operating temperature min.
-30 °C
Operating temperature max.
90 °C
Weight
500 g
Height of packaging (single piece)
40 mm
Width of packaging (single piece)
290 mm
Depth of packaging (single piece)
410 mm
Package weight (single piece)
0.464 kg

Downloads

Manufacturer data sheet - Français (3.2 MB) Manufacturer data sheet - English (3.2 MB) Manufacturer data sheet - Deutsch (3.2 MB)
