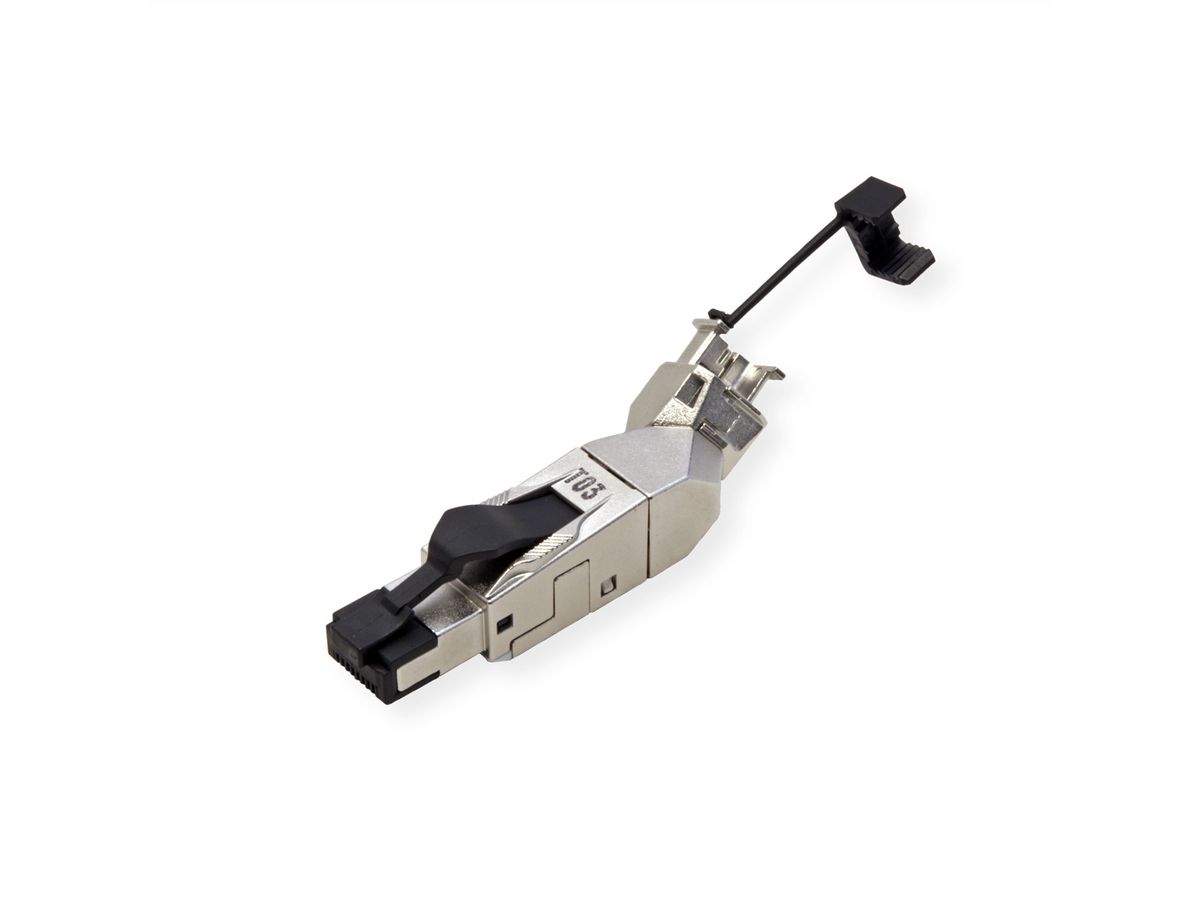

METZ CONNECT C6A RJ45 field plug pro 360

Item no. 26110762 Brand / Manufacturer METZ CONNECT Manuf. item no. 130E405042-E EAN 4250184175964 Item weight 0.033 kg
METZ CONNECT

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

C6A RJ45 field plug pro 360, feldkonfektionierbarer RJ45-Stecker Cat.6A/Klasse EA, vollgeschirmt und multiportfähig, Kabelzuführung variabel, frei wählbar (360°)

  • einfachste Konfektion - ohne Spezialwerkzeug anschließbar
  • Adernanschluss Litzenleiter AWG 27/7 - 22/7, Aderdurchmesser 0,46 - 0,76 mm
  • Adernanschluss Vollader AWG 26/1 - 22/1, Aderdurchmesser 0,409 - 0,64 mm
  • Übertragungstechnische Eigenschaften Cat.6A nach ISO/IEC 11801
  • Einhaltung der Klasse EA nach ISO/IEC 11801, DIN EN 50173-1
  • für 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE und 4PPoE) und HDBaseT geeignet
  • Schutzart IP20
  • geeignet für Kabelmanteldurchmesser von 5,5 bis 10,5 mm
  • industrietaugliches Gehäuse aus Zinkdruckguss
  • Zugentlastung per Rastclip direkt am Ladestück
  • geschützter Verriegelungshaken
  • wiederanschließbar

Specifications

Manufacturer
METZ CONNECT
Product group
Netzwerkkomponenten
Product type
Stecker und Buchsen für Netzwerkverkabelung
Colour
silver
Shield type
geschirmt
Transfer quality
Cat6A / Class EA
Quantity of ports
1
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Männlich (Stecker)
Protection class (IP Code)
IP20
Operating temperature min.
-40 °C
Operating temperature max.
70 °C
Height
27.5 mm
Width
13.8 mm
Depth
61.7 mm
Weight
33 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
50 mm
Depth of packaging (single piece)
70 mm
Package weight (single piece)
0.033 kg

Downloads

Manufacturer data sheet - Français (620.4 KB) Manufacturer data sheet - English (625.1 KB) Manufacturer data sheet - Deutsch (626.4 KB)
