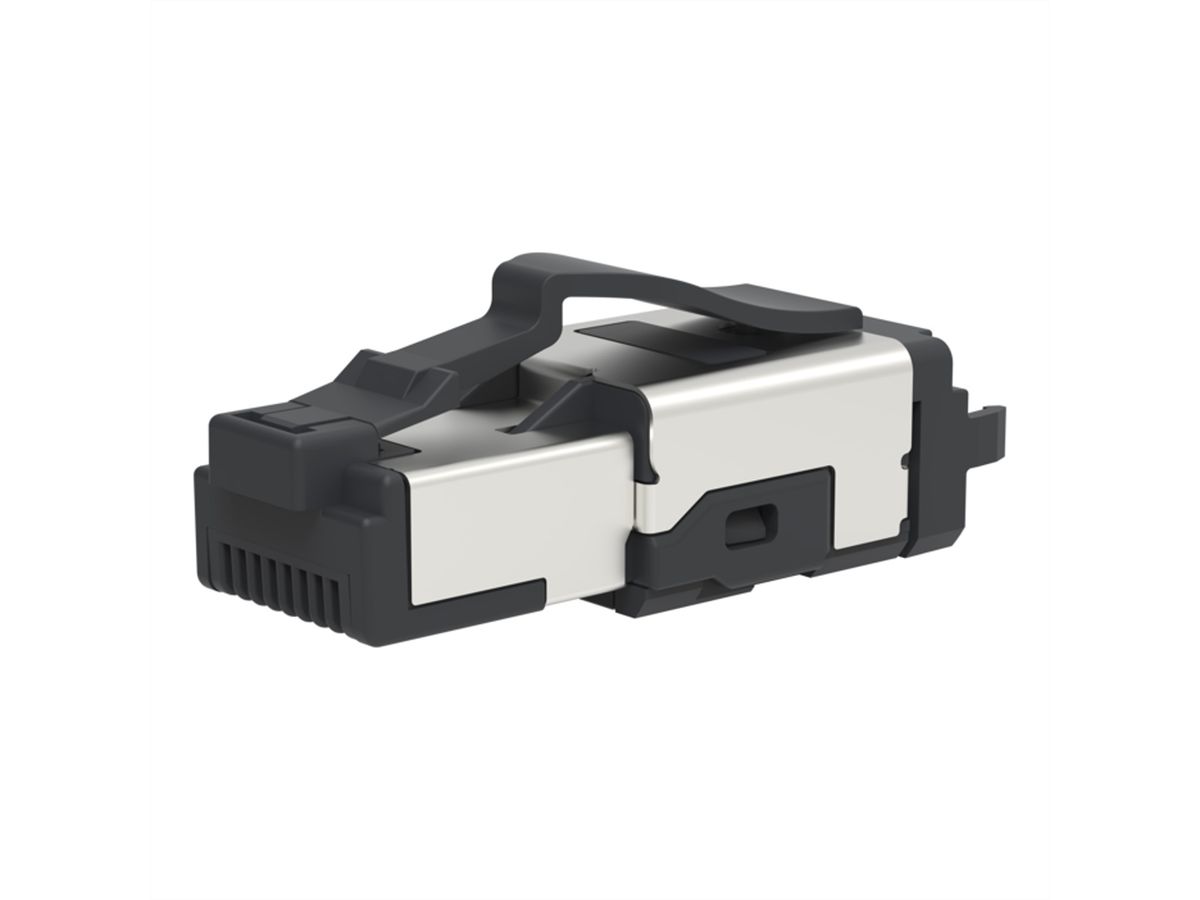

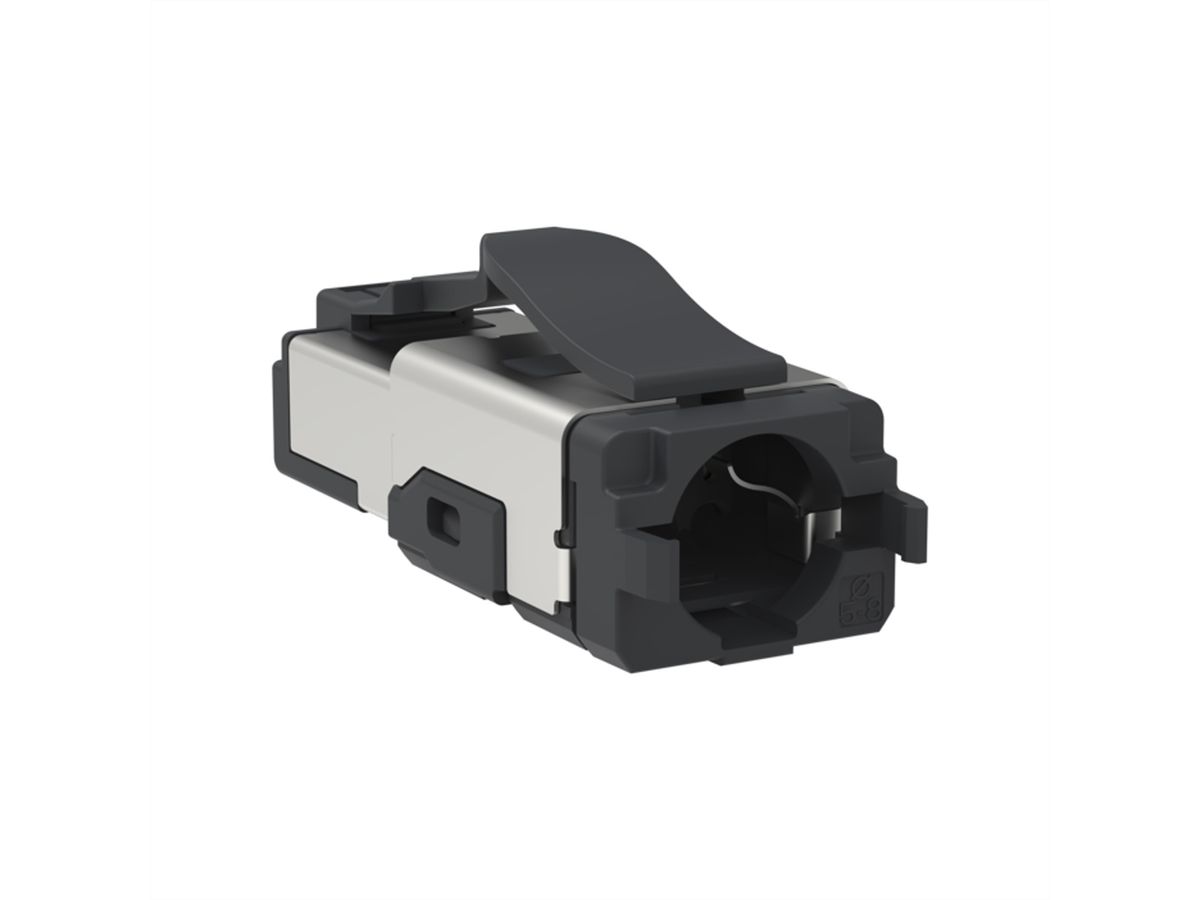

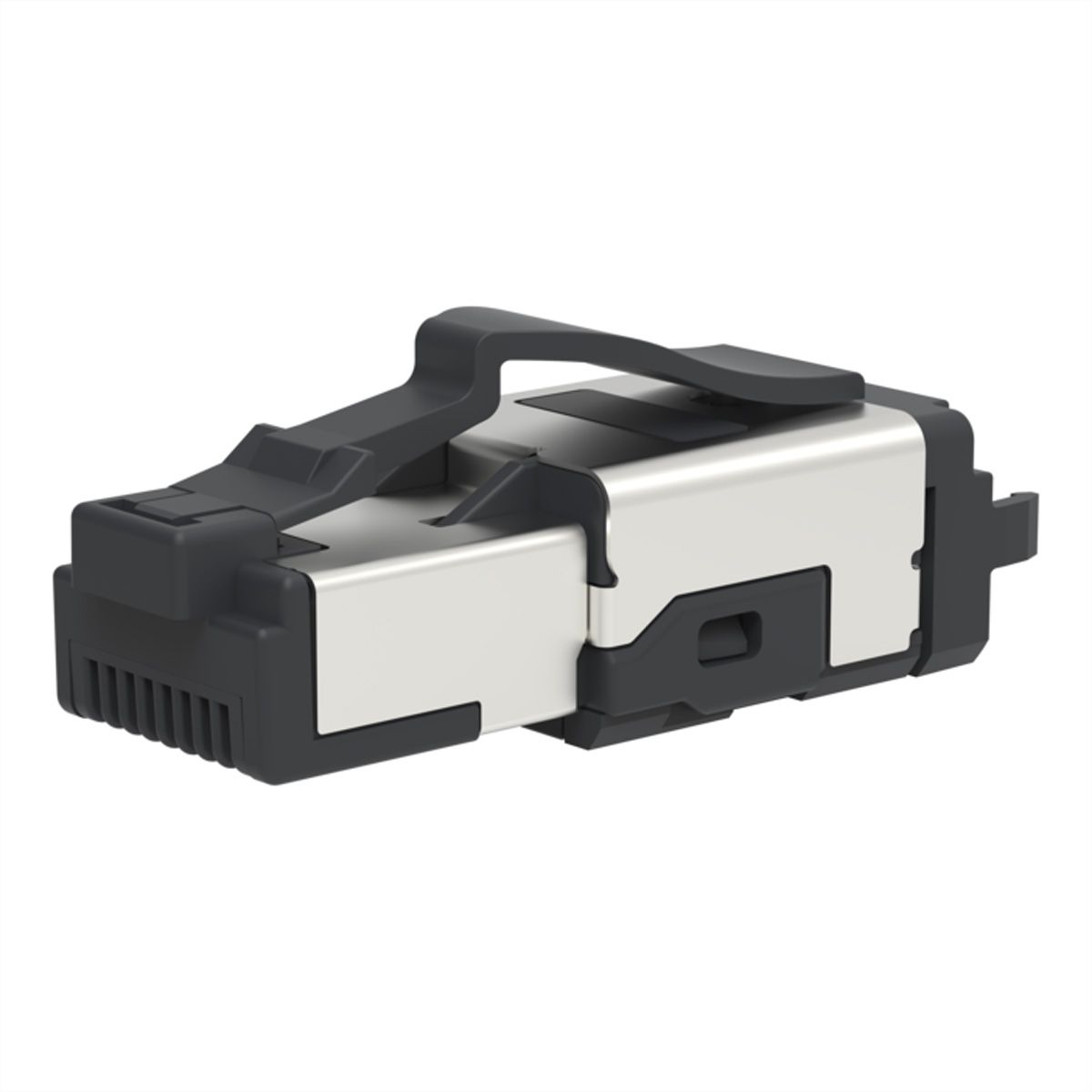

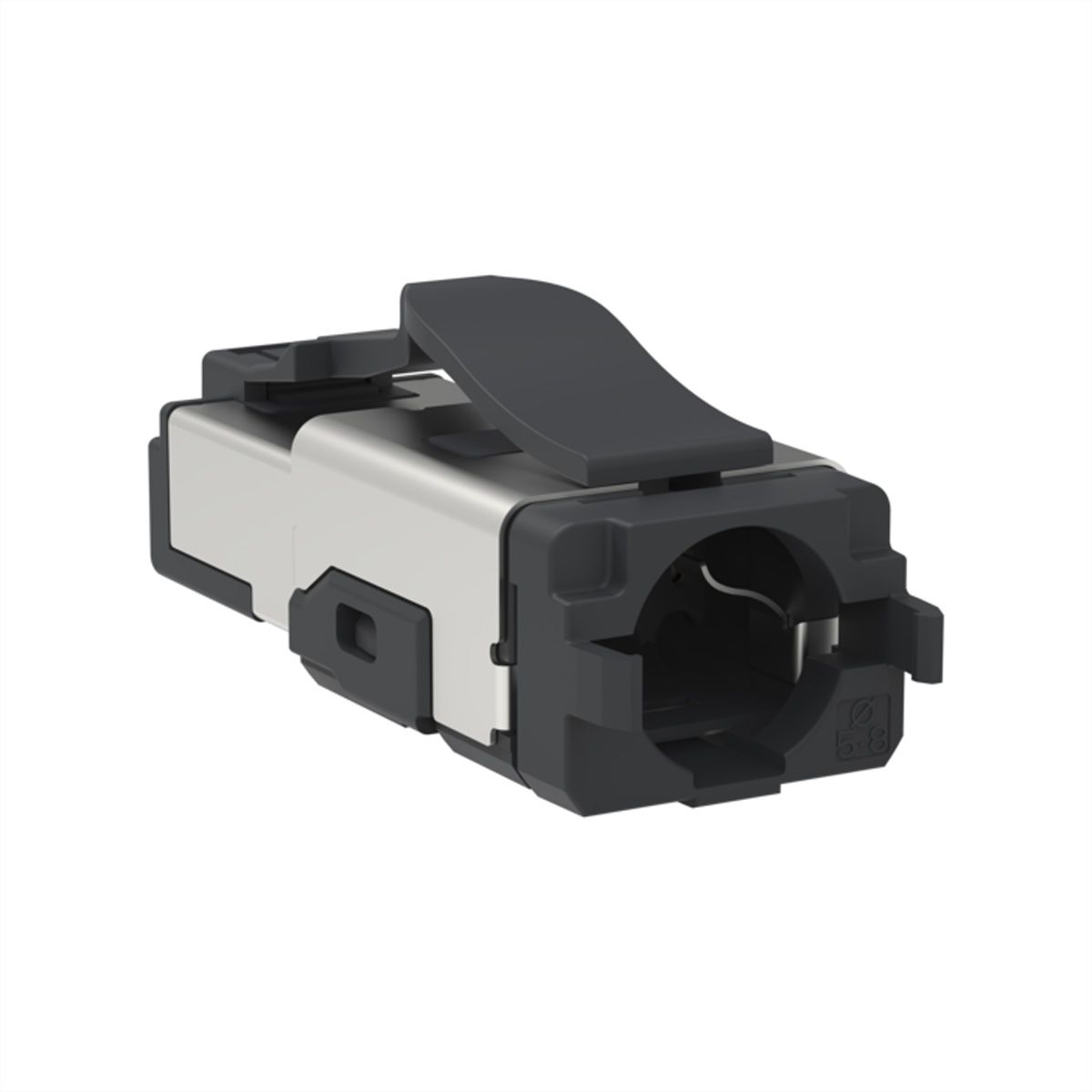

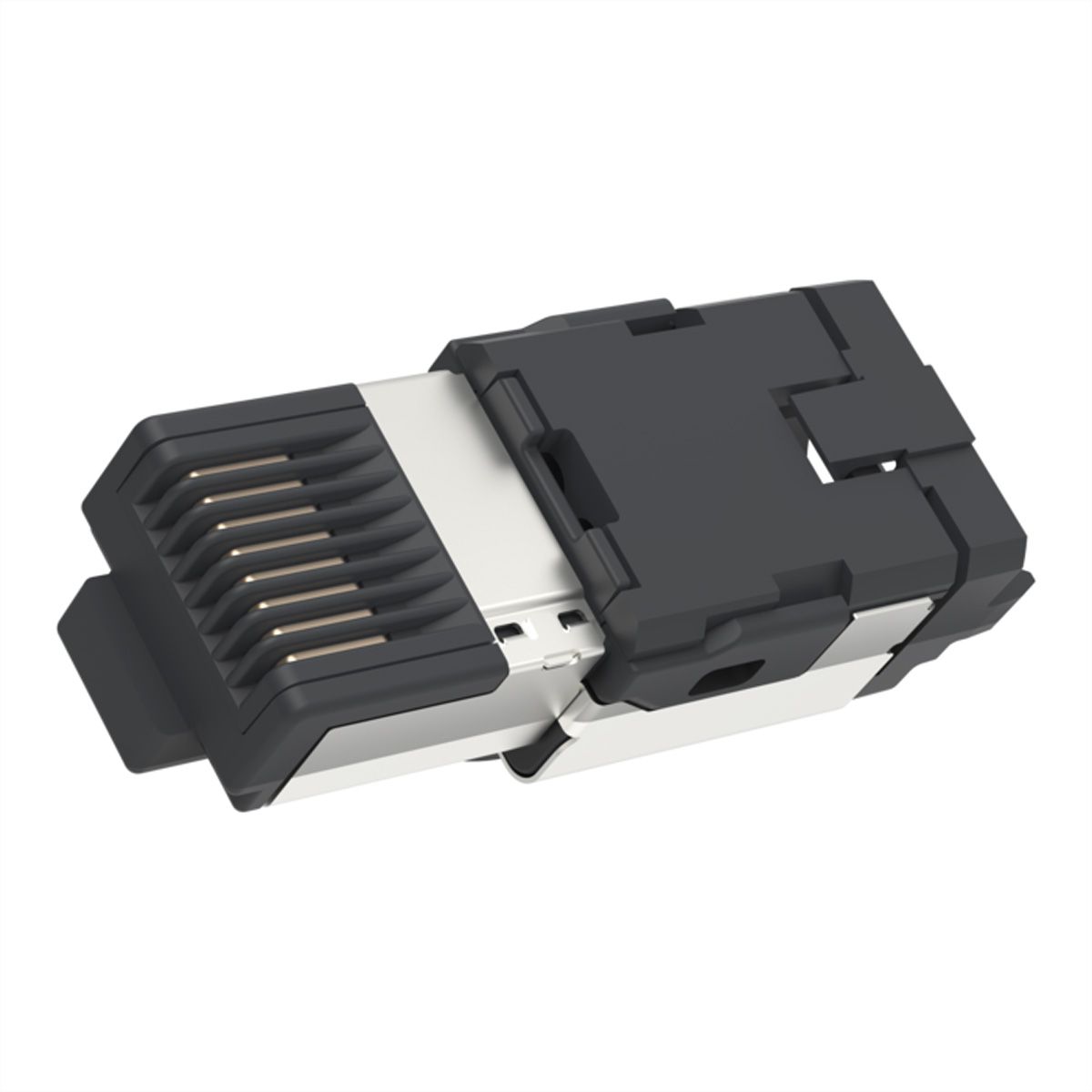

METZ CONNECT C6A RJ45 field plug ultra short

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 04/13/2026

Item no.	26110727
Marke / Hersteller	METZ CONNECT
Manuf. item no.	130E507032-E

Description

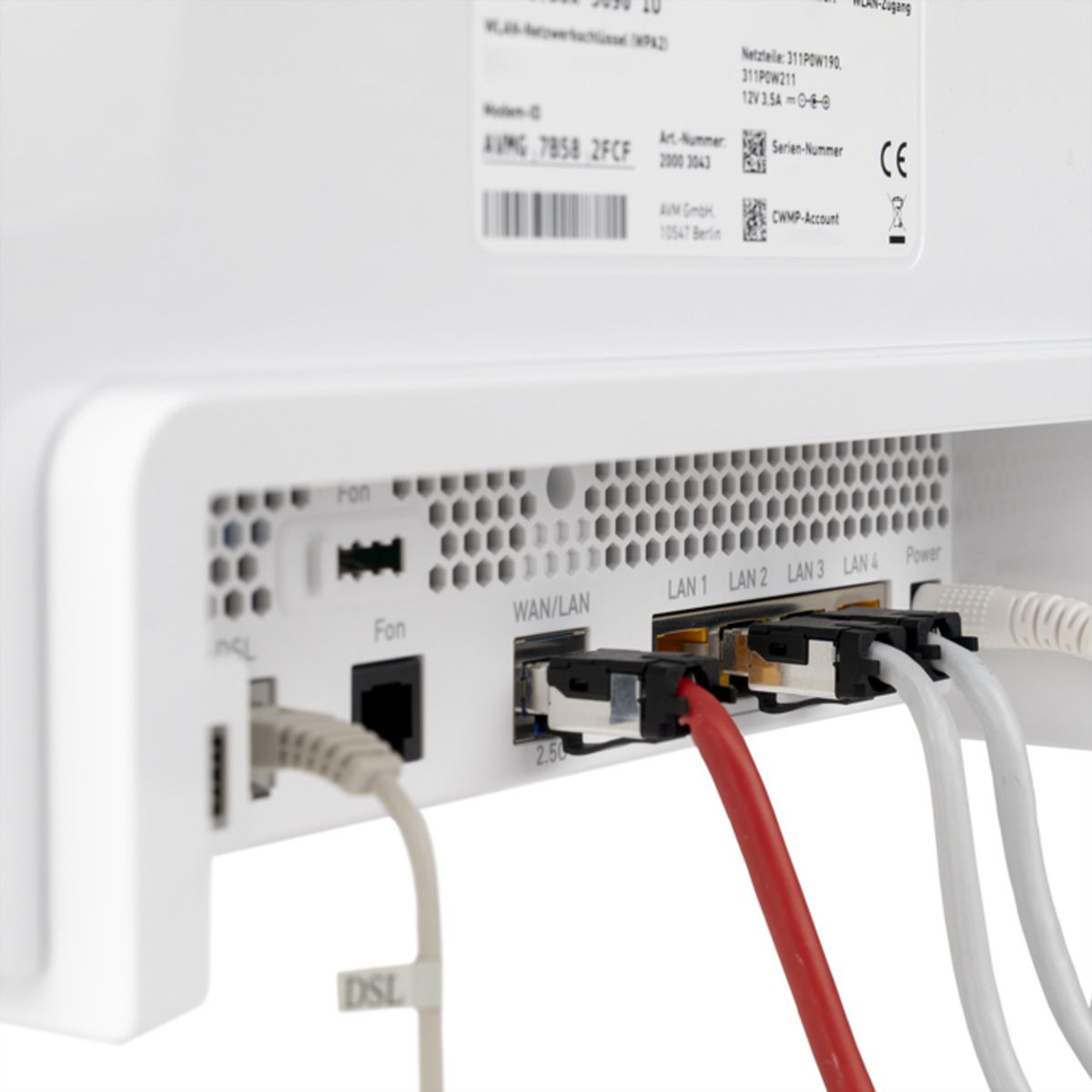

The field plug ultra short is one of the shortest RJ45 connectors with IDC connection technology on the market. Its ultra-short design enables reliable connections even in tight installation situations. Despite its minimal dimensions, it complies with all relevant standards and delivers full performance.

Cat.6A class EA RJ45 plug to be assembled in the field

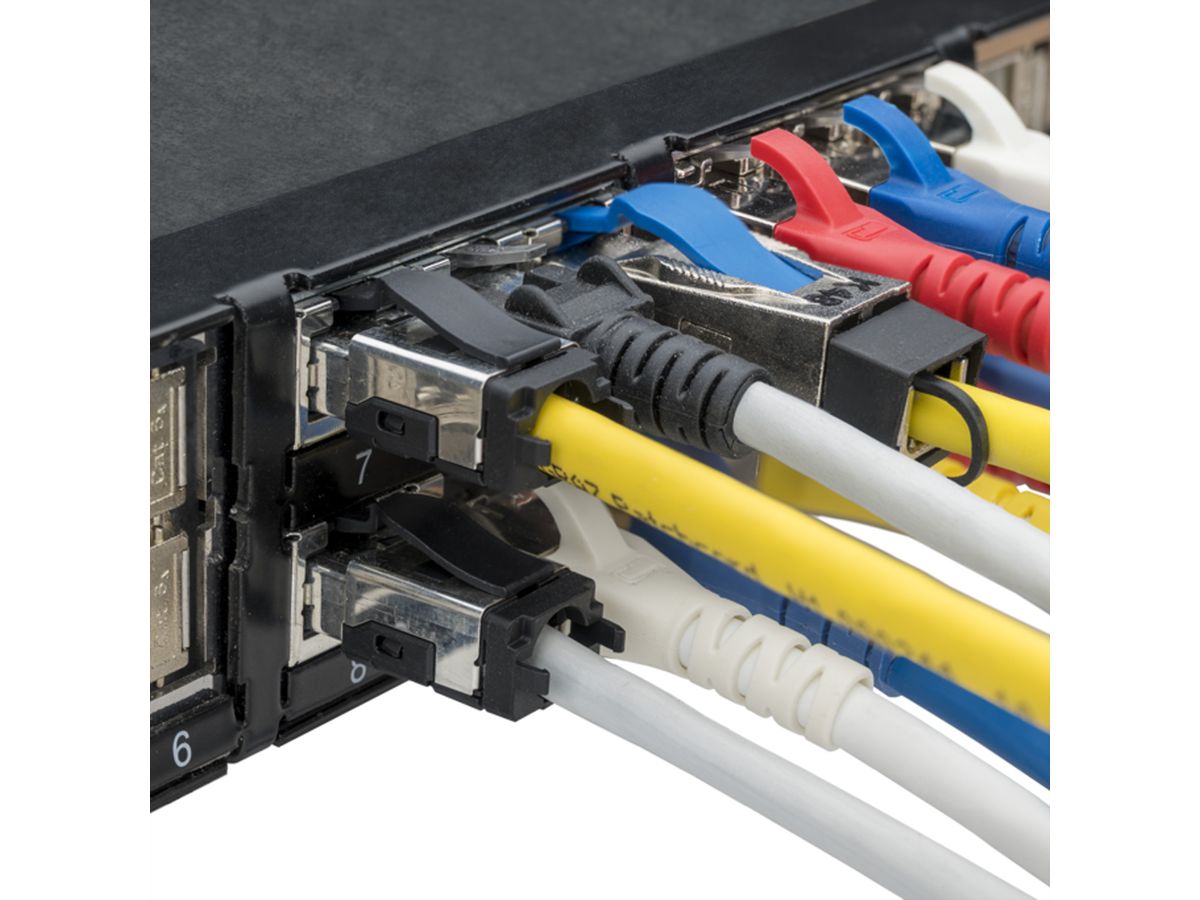

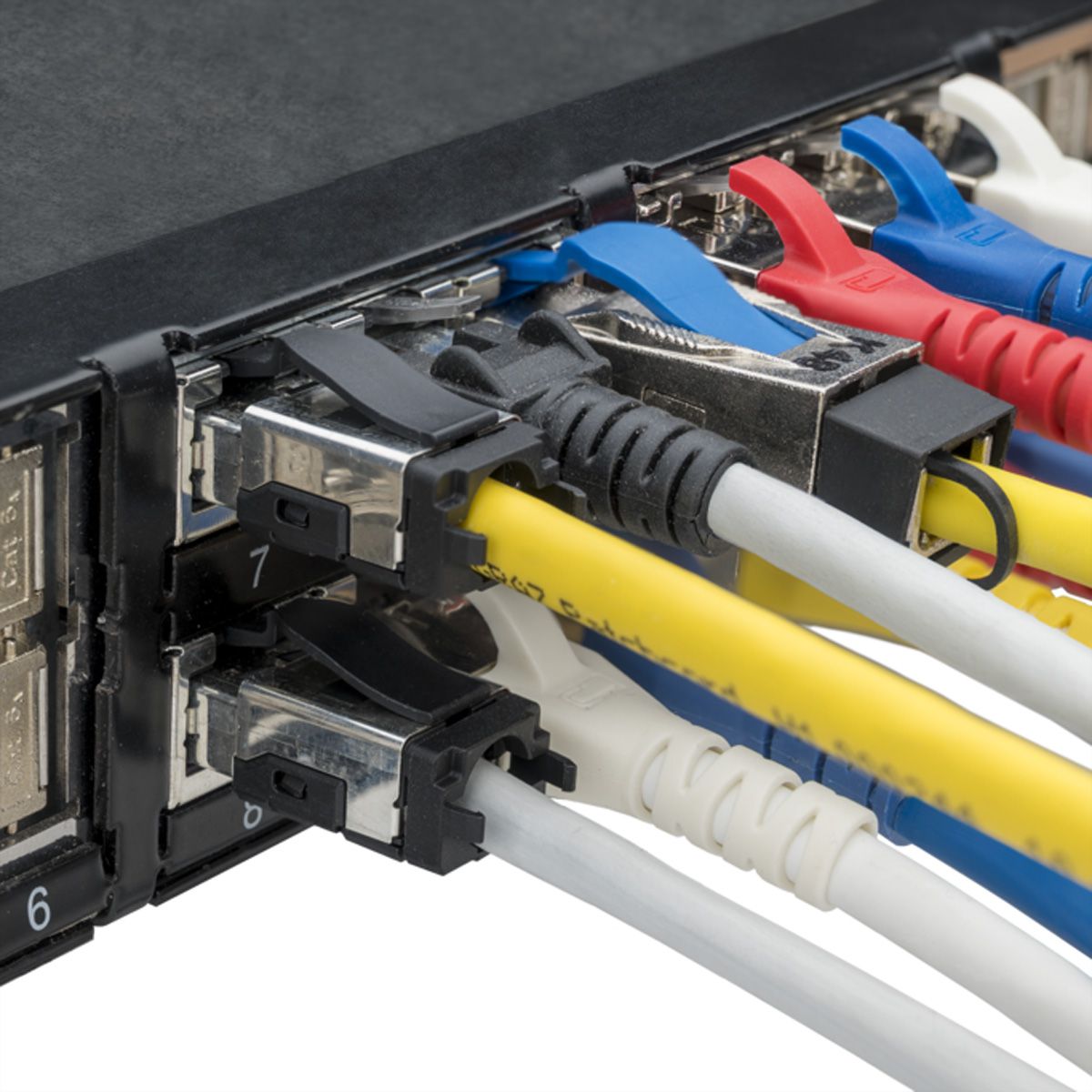

centrally aligned and multiport-capable
straight cable feed (180°)
easy assembly - connection without special tools
wire connection stranded wire: AWG 26/7 - 22/7
wire connection solid wire: AWG 26/1 - 22/1
transmission characteristics Cat.6A according to ISO/IEC 11801
compliance with class EA to ISO/IEC 11801, DIN EN 50173-1
degree of protection IP20
with optional cable bend suitable for cable jacket diameters from 5.0 to 8.0 mm
2-part, well-known MC connection concept
protected locking hook
reconnectable

Specifications

Manufacturer	METZ CONNECT
Product group	Connection technology TP
Product type	Connectors RJ-45
Colour	black
Shield type	Screened
Transfer quality	Cat6A / Class EA
Quantity of ports	1
Assignment	EIA/TIA 568A & 568B
Side 1 Connector Type	RJ-45
Side 1 Connector Gender	Male
Protection class (IP Code)	IP20
Shield contacts	ja
separate strain relief	yes
Operating temperature min.	-40 °C
Operating temperature max.	70 °C

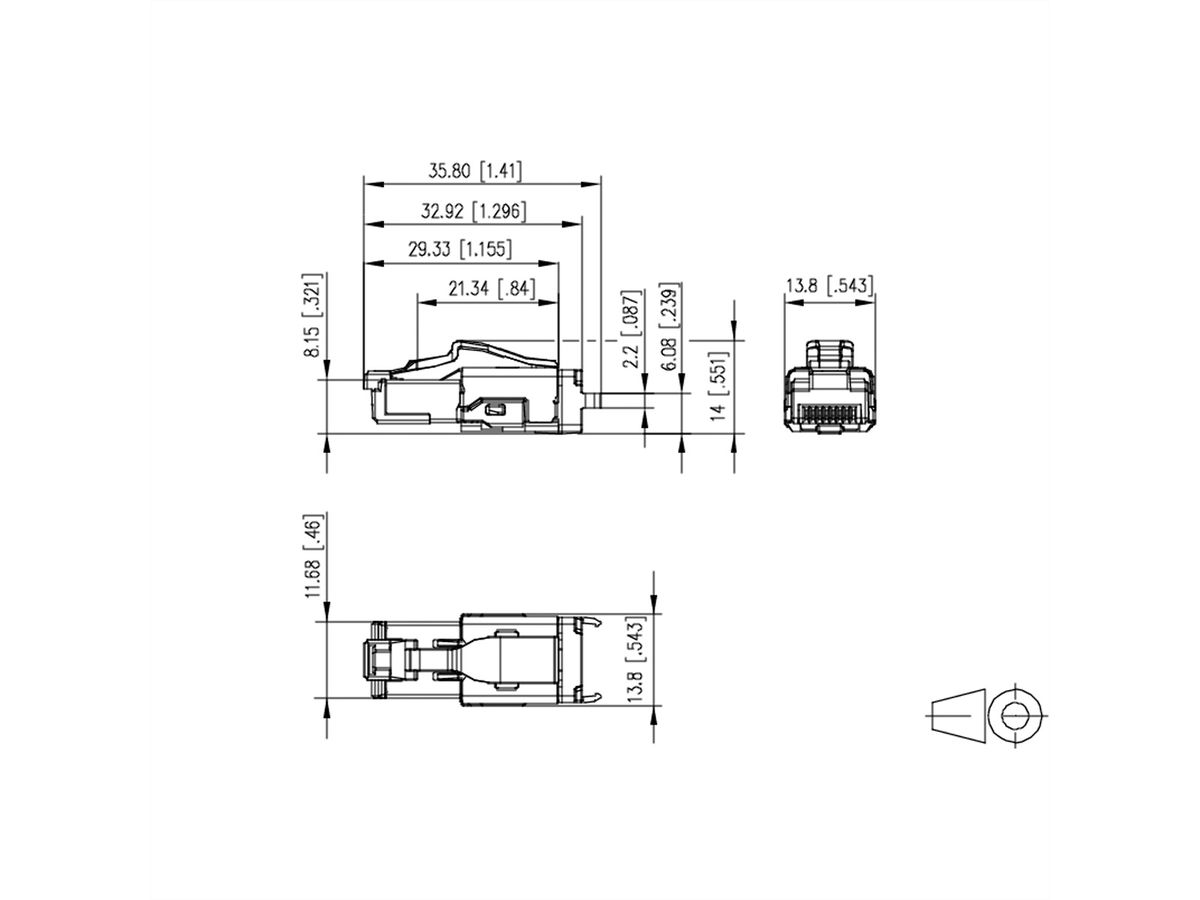

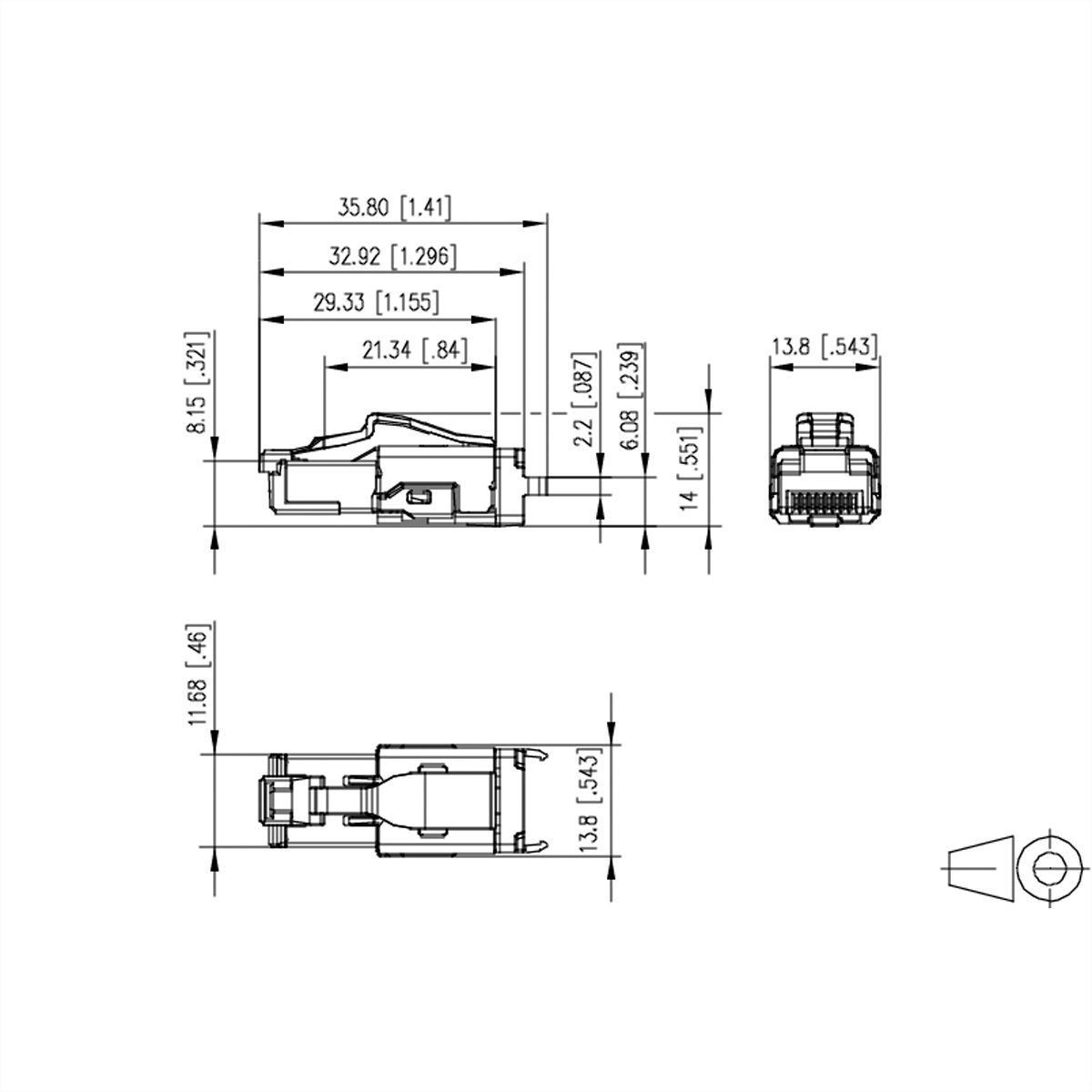

Height	13.7 mm
Width	13.8 mm
Depth	29.5 mm
Weight	4.54 g
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg
