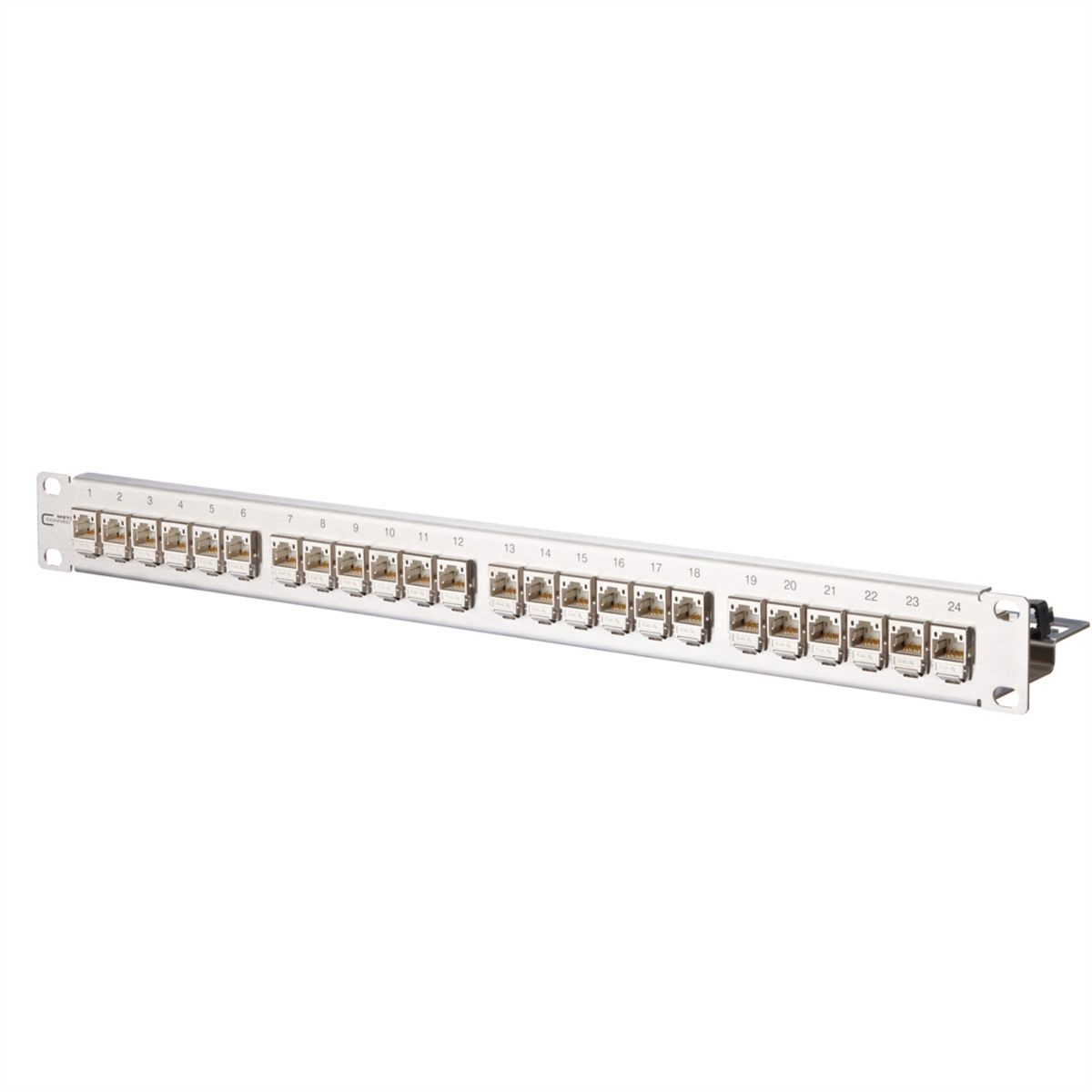

METZ CONNECT C6Amodul 24 port 180°M 1RU, silver

Item no. 26110635 Brand / Manufacturer METZ CONNECT Manuf. item no. 130B11P1-E EAN 4250184131755 Item weight 1.589 kg
METZ CONNECT

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

19 inch 1RU stainless steel module frame with 24 individual modules C6Amodul 180°

  • certified to GHMT Cat.6A re-embedded PVP
  • Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
  • compliance with class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1
  • tested: component up to 600 MHz, link up to 800 MHz
  • suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
  • connection of data lines AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
  • migration to 25G-systems without special tools
  • strain relief directly snapped on to stuffer cap of C6Amodul
  • optional strain relief on patch panel using cable ties
  • grounding bolt M6 x 10 with nut and lock washer
  • incl. 30 cm grounding cable
  • all fully shielded modules are connected by means of the stainless steel module frame

Specifications

Manufacturer
METZ CONNECT
Product group
Connection technology TP
Product type
Patchpanel Cat.6A / Class EA
Colour
silver
Scope of delivery
Modulträger inkl. 24 C6A Module
Shield type
Screened
Transfer quality
Cat6A / Class EA
Cabinet system
19"-Technique
Quantity of ports
24
Modular assembly
yes
Shield contacts
ja
separate strain relief
yes
Connection direction
Straight
Height units
1 U
Technical particularity
Werkzeugfreie Montage
Operating temperature min.
-40 °C
Operating temperature max.
70 °C

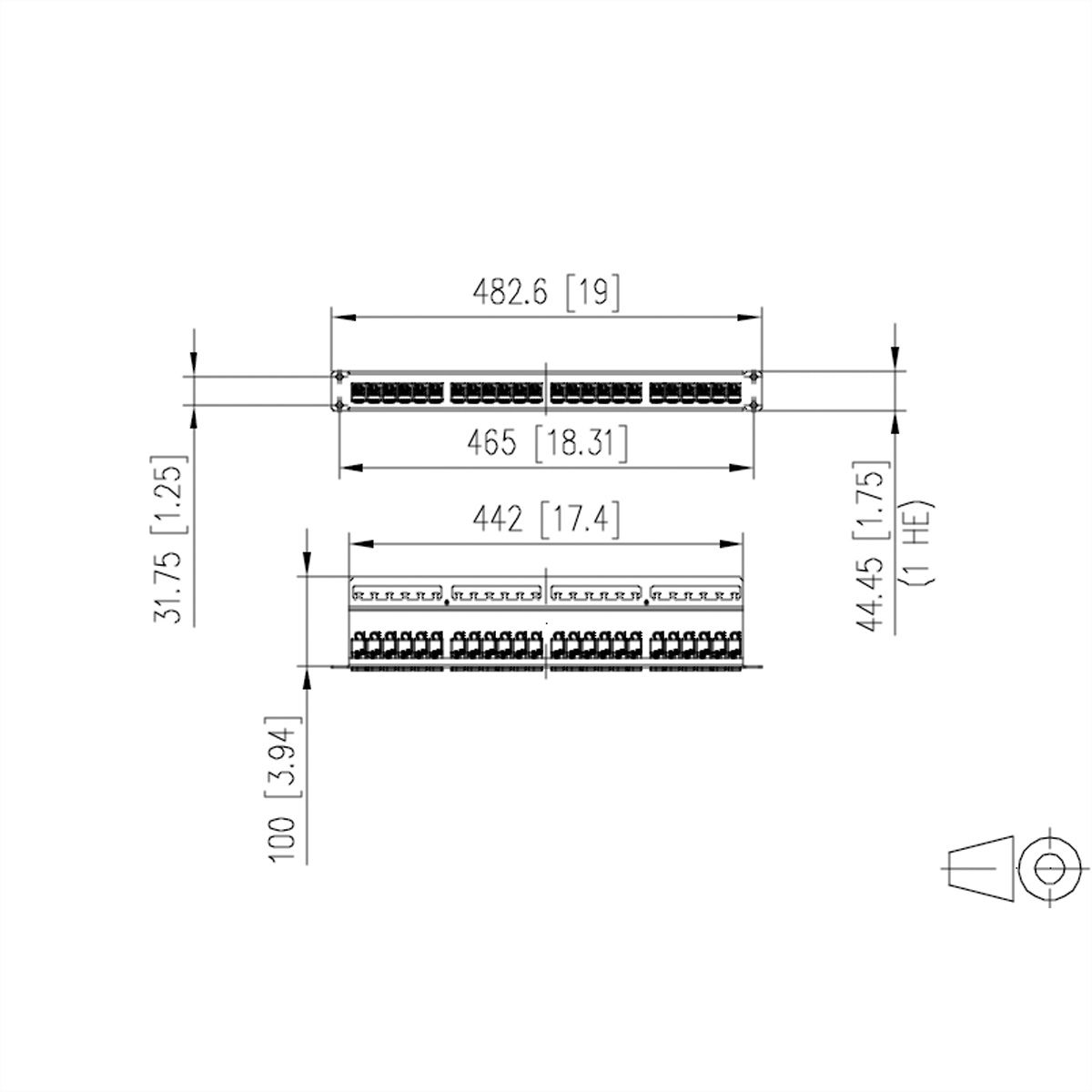

Height
44.45 mm
Width
482.6 mm
Depth
100 mm
Weight
1650 g
Height of packaging (single piece)
60 mm
Width of packaging (single piece)
200 mm
Depth of packaging (single piece)
540 mm
Package weight (single piece)
1.589 kg
