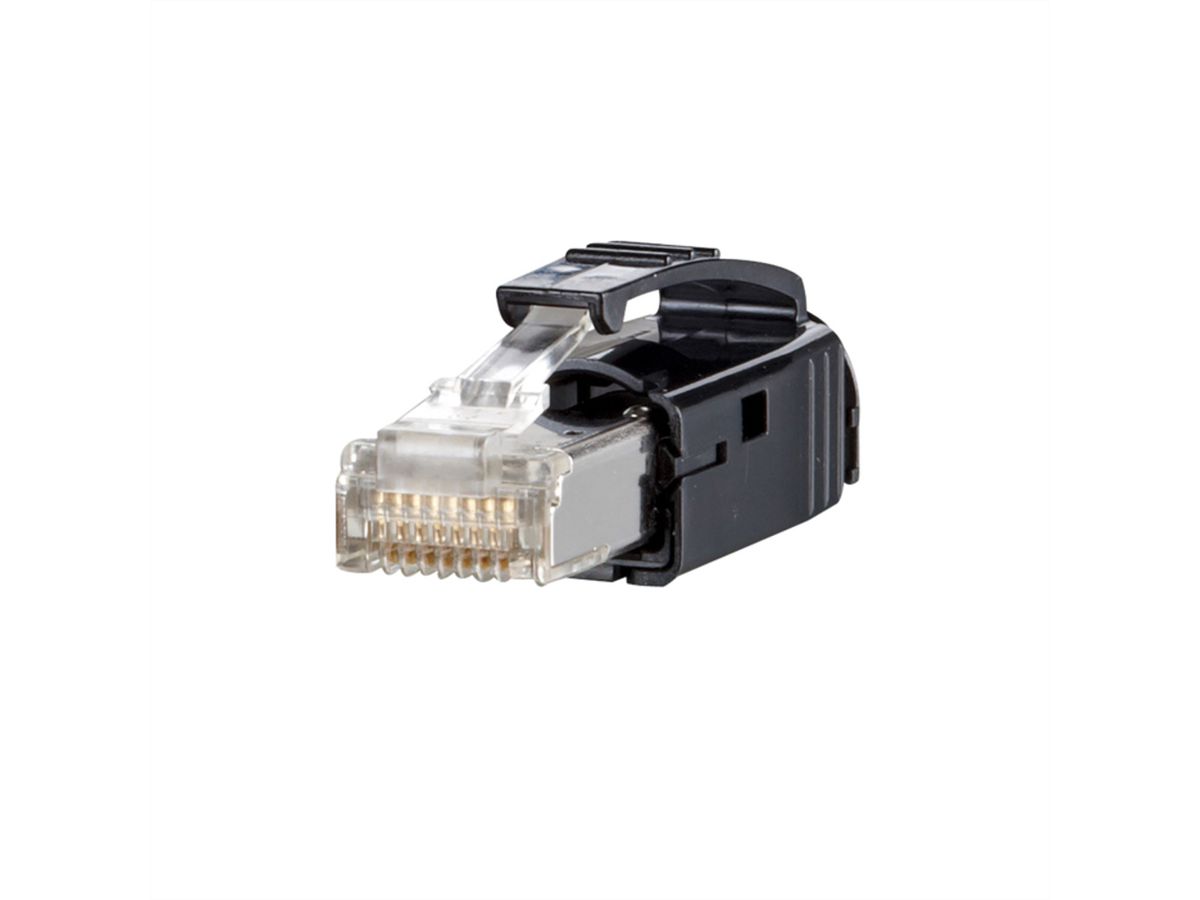

METZ CONNECT E-DAT Industry IP20 RJ45 plug black, mit Tülle schwarz

Item no. 21173007 Brand / Manufacturer METZ CONNECT Manuf. item no. 1401505012-E EAN 4250184113799 Item weight 0.006 kg
METZ CONNECT

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

E-DAT Industry RJ45 Stecker schwarz Cat.6 Class EA

  • multiportfähiger Cat.6 Klasse EA Stecker
  • Einhaltung der Klasse EA nach ISO/IEC 11801, DIN EN 50173-1
  • für 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus und UPoE) und HDBaseT geeignet
  • Anschluss AWG 27/7 - 24/7 und AWG 26/1 - 24/1 möglich
  • Volldraht Cu-Leiterdurchmesser 0,36 - 0,51 mm
  • Litze Cu-Leiterdurchmesser 0,46 - 0,61 mm
  • Aderdurchmesser von 0,85 - 1,05 mm
  • Kabelmantel bis 7,3 mm anschließbar
  • Anschluss von Crimp-Kontakten und Schirm mit Crimpwerkzeug in einem Arbeitsgang möglich
  • Variante mit und ohne Knickschutztülle
  • farbige Knickschutztüllen optional erhältlich
  • Trompete als Biegeschutz des Anschlusskabels
  • kann als Prüfstecker an IP67 geschütze Buchsen der Variante 1, 4, 5, 6, und 14 eingesetzt werden

Specifications

Manufacturer
METZ CONNECT
Product group
Anschlusstechnik TP
Product type
Steckverbinder RJ-45
Colour
black
Shield type
geschirmt
Transfer quality
Cat6A / Class EA
Power over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Halogen free
ja
Operating temperature min.
-40 °C
Operating temperature max.
70 °C
Height
8.9 cm
Width
10.5 cm
Depth
25 cm
Weight
6 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
80 mm
Depth of packaging (single piece)
100 mm
Package weight (single piece)
0.006 kg

Downloads

Manufacturer data sheet - Français (217.5 KB) Manufacturer data sheet - Deutsch (223.8 KB)
