METZ CONNECT E-DAT Industry IP67 V1 AP + RJ45 field jack insert Cat.6 Class EA, T568A

Item no. 21171860 Brand / Manufacturer METZ CONNECT Manuf. item no. 1401110012KE EAN 4250184119722 Item weight 0.096 kg
METZ CONNECT

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

E-DAT Industry IP67 V1 AP + RJ45 Feldbuchseneinsatz Cat.6 Class EA, T568A

  • RJ45 Anschlusseinheit in Flanschgehäuse mit Bajonettverschluss nach Norm ISO/IEC 24702 und IEC 61076-3-106 Var. 1
  • Einhaltung der Klasse EA nach ISO/IEC 11801, DIN EN 50173-1
  • für 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE) und HDBaseT geeignet
  • IP67 geschütztes Gehäuse
  • AWG 26/7 - 22/7, AWG 26/1 - 22/1 möglich
  • erhöhte Vibrations- und Schockfestigkeit durch 4 Federn an den Schirmblechen
  • kein Spezialwerkzeug nötig
  • anreihbare Aufputzmontage möglich
  • Anschluss handelsüblicher RJ45-Stecker möglich (kein IP-Schutz)
  • einfache, zeitsparende Montage

Specifications

Manufacturer
METZ CONNECT
Product group
Netzwerkkomponenten
Product type
Industrial Networking
Colour
black
Transfer quality
Cat6A / Class EA
Power over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Assignment
EIA/TIA 568A
Halogen free
ja
Protection class (IP Code)
IP67
Operating temperature min.
-40 °C
Operating temperature max.
70 °C

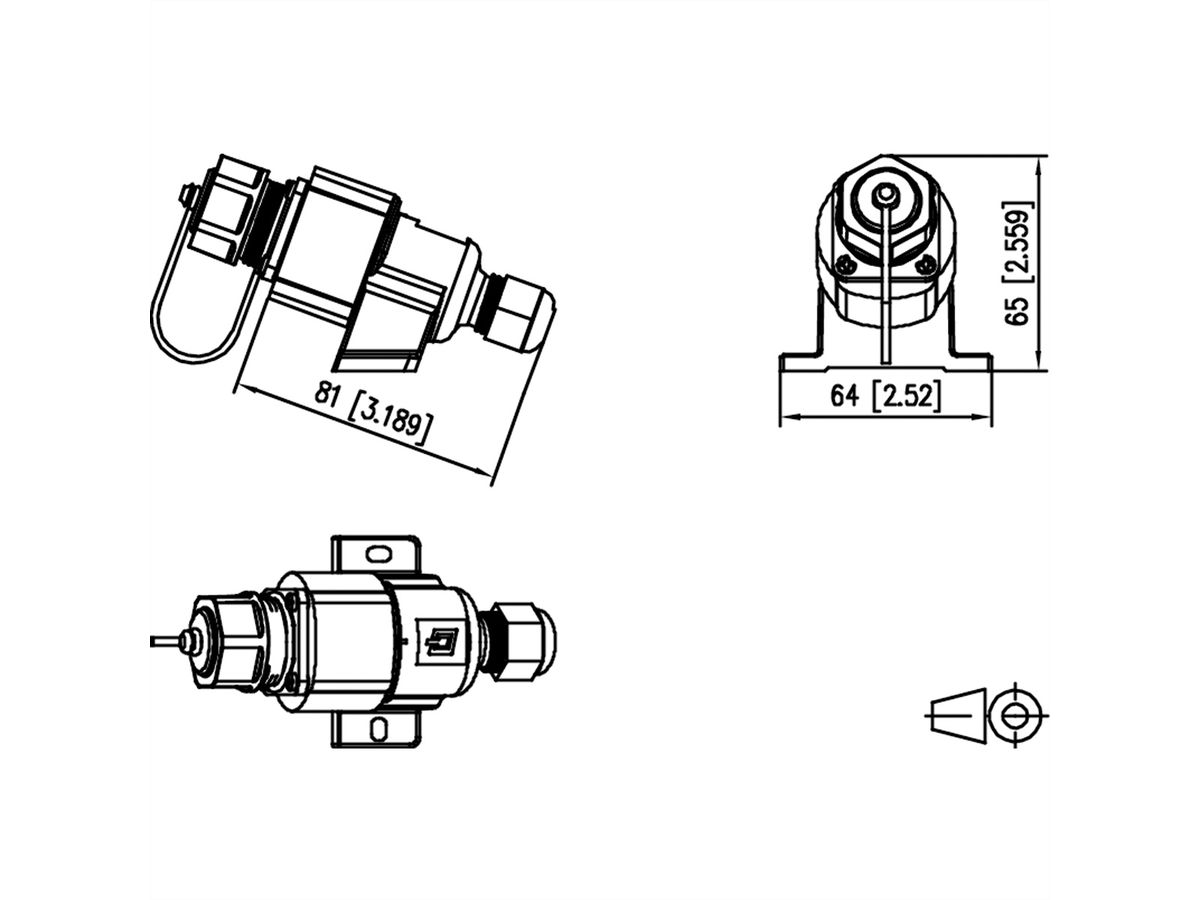

Height
65 mm
Width
81 mm
Depth
64 mm
Weight
100 g
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
150 mm
Depth of packaging (single piece)
250 mm
Package weight (single piece)
0.096 kg

Downloads

Manufacturer data sheet - Français (1.8 MB) Manufacturer data sheet - Deutsch (1.8 MB)
