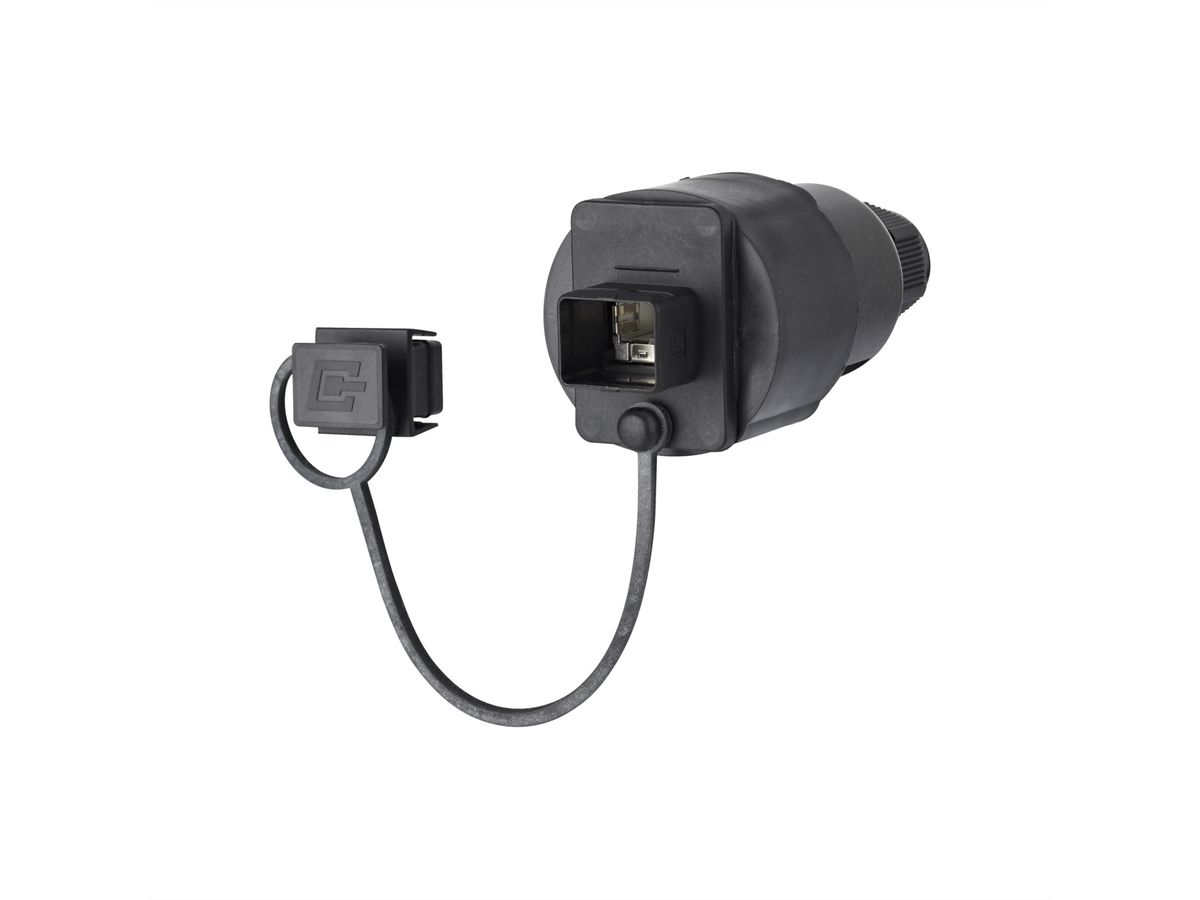

METZ CONNECT E-DAT Industry IP67 V4 KK, field jack insert, T568A

Item no. 26110748 Brand / Manufacturer METZ CONNECT Manuf. item no. 1401145512KE EAN 4250184118428 Item weight 0.057 kg
METZ CONNECT

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

E-DAT Industry IP67 V4 Kabelkupplung + RJ45 Feldbuchseneinsatz Cat.6 Class EA, T568A

  • RJ45 Anschlusseinheit in Flanschgehäuse mit Push-Pull-Verschluss nach Norm ISO/IEC 24702 und IEC 61076-3-106 Var. 4
  • Einhaltung der Klasse EA nach ISO/IEC 11801, DIN EN 50173-1
  • für 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE) und HDBaseT geeignet
  • IP67 geschütztes Gehäuse
  • AWG 26/7 - 22/7, AWG 26/1 - 22/1 möglich
  • erhöhte Vibrations- und Schockfestigkeit durch 4 Federn an den Schirmblechen
  • kein Spezialwerkzeug nötig
  • als Kabelkupplung verwendbar
  • Anschluss handelsüblicher RJ45-Stecker möglich (kein IP-Schutz)
  • einfache, zeitsparende Montage
  • Varianten: Kennzeichnung der Adernbelegung T568A oder T568B

Specifications

Manufacturer
METZ CONNECT
Product group
Netzwerkkomponenten
Product type
Industrial Networking
Colour
black
Transfer quality
Cat6A / Class EA
Power over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Protection class (IP Code)
IP67
Operating temperature min.
-40 °C
Operating temperature max.
70 °C

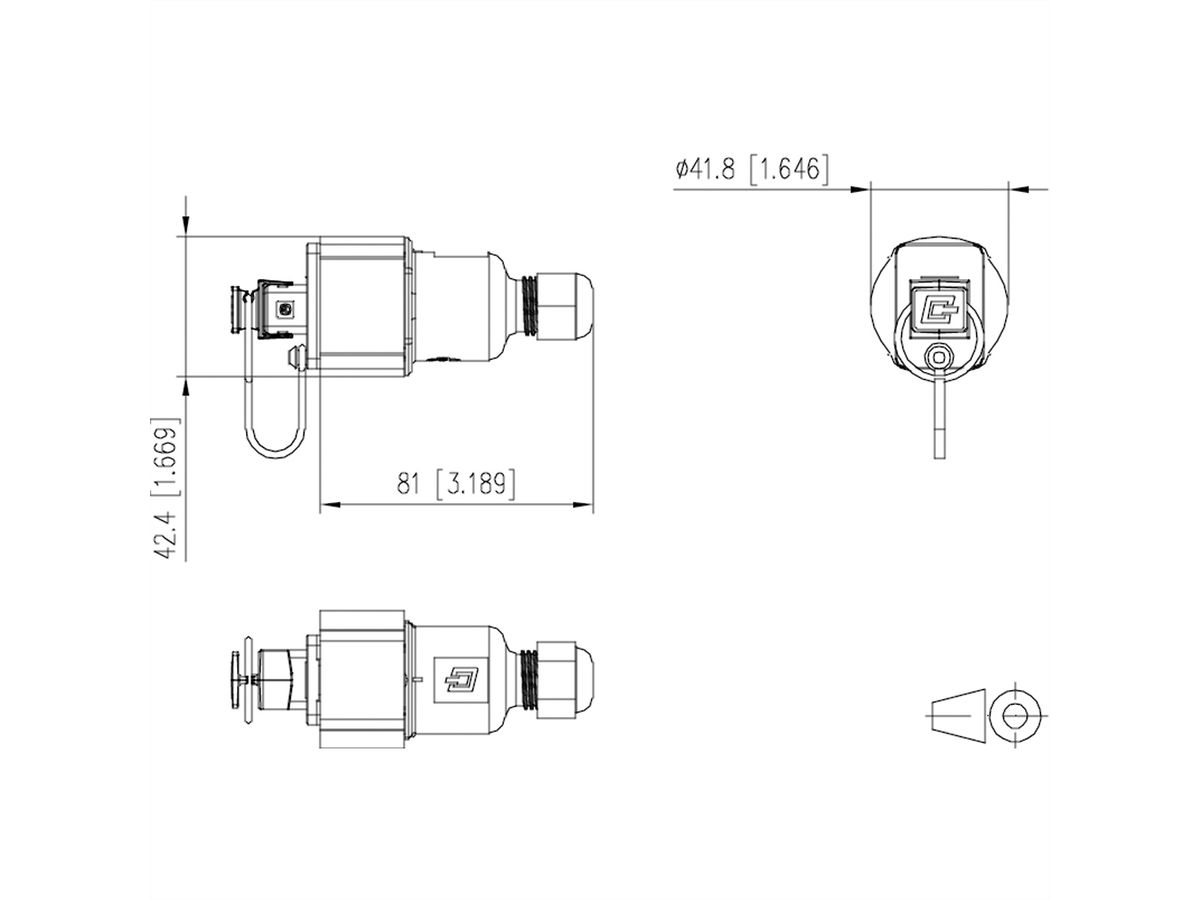

Height
42.4 mm
Width
41.8 mm
Depth
81 mm
Weight
80 g
Height of packaging (single piece)
40 mm
Width of packaging (single piece)
130 mm
Depth of packaging (single piece)
80 mm
Package weight (single piece)
0.057 kg

Downloads

Manufacturer data sheet - Français (391.0 KB) Manufacturer data sheet - English (395.8 KB) Manufacturer data sheet - Deutsch (397.1 KB)
