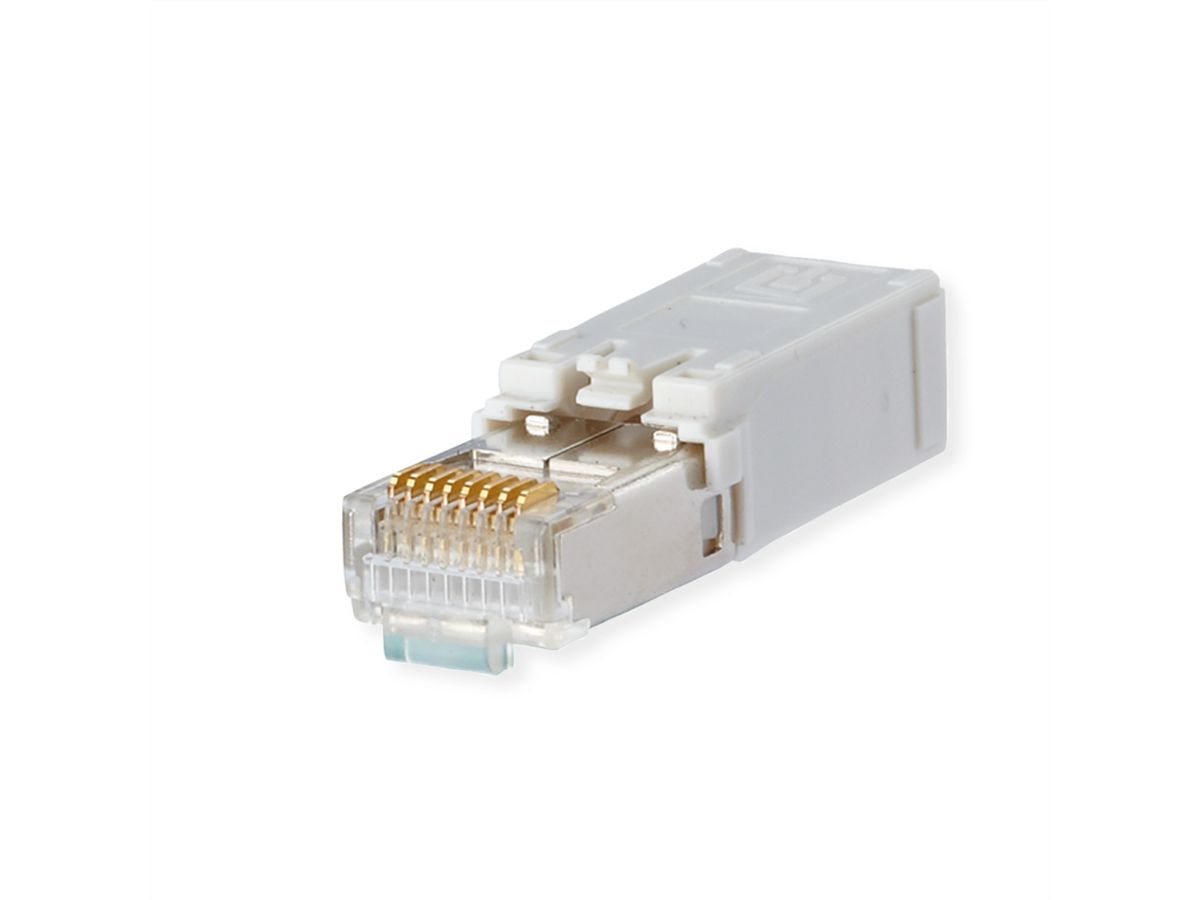

METZ CONNECT E-DAT Industry RJ45 plug INSERT, Cat.6 Class EA

Item no. 21173005 Brand / Manufacturer METZ CONNECT Manuf. item no. 1401500810-I EAN 4250184114109 Item weight 0.008 kg
METZ CONNECT

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

E-DAT Industry RJ45 Steckereinsatz Cat.6 Class EA für Datenübertragungsraten bis 10 Gigabit-Ethernet

  • Cat.6 Klasse EA Stecker zum Einbau in Steckergehäuse IP67 der Varianten 1, 4, 5, und 14
  • Einhaltung der Klasse EA nach ISO/IEC 11801, DIN EN 50173-1
  • für 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus und UPoE) und HDBaseT geeignet
  • Anschluss von AWG 27/7 - 24/7, auch AWG 24/1 möglich
  • Volldraht Cu-Leiterdurchmesser 0,36 mm bis 0,51 mm
  • Litze Cu-Leiterdurchmesser 0,46 mm bis 0,61 mm
  • Aderdurchmesser 0,85 mm bis 1,05 mm
  • Kabelmantel bis 7,3 mm
  • ohne Rasthebel
  • Anschluss von Crimp-Kontakten und Schirm mit Crimpwerkzeug in einem Arbeitsgang möglich

Specifications

Manufacturer
METZ CONNECT
Product group
Anschlusstechnik TP
Product type
Industrial Networking
Colour
grey
Shield type
ungeschirmt
Transfer quality
Cat6 / Class E
Power over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Operating temperature min.
-40 °C
Operating temperature max.
70 °C
Height
8.9 cm
Width
10.5 cm
Depth
25 cm
Weight
8 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
110 mm
Depth of packaging (single piece)
160 mm
Package weight (single piece)
0.008 kg

Downloads

Manufacturer data sheet - Français (216.2 KB) Manufacturer data sheet - Deutsch (222.2 KB) Manufacturer data sheet - English (222.0 KB)
