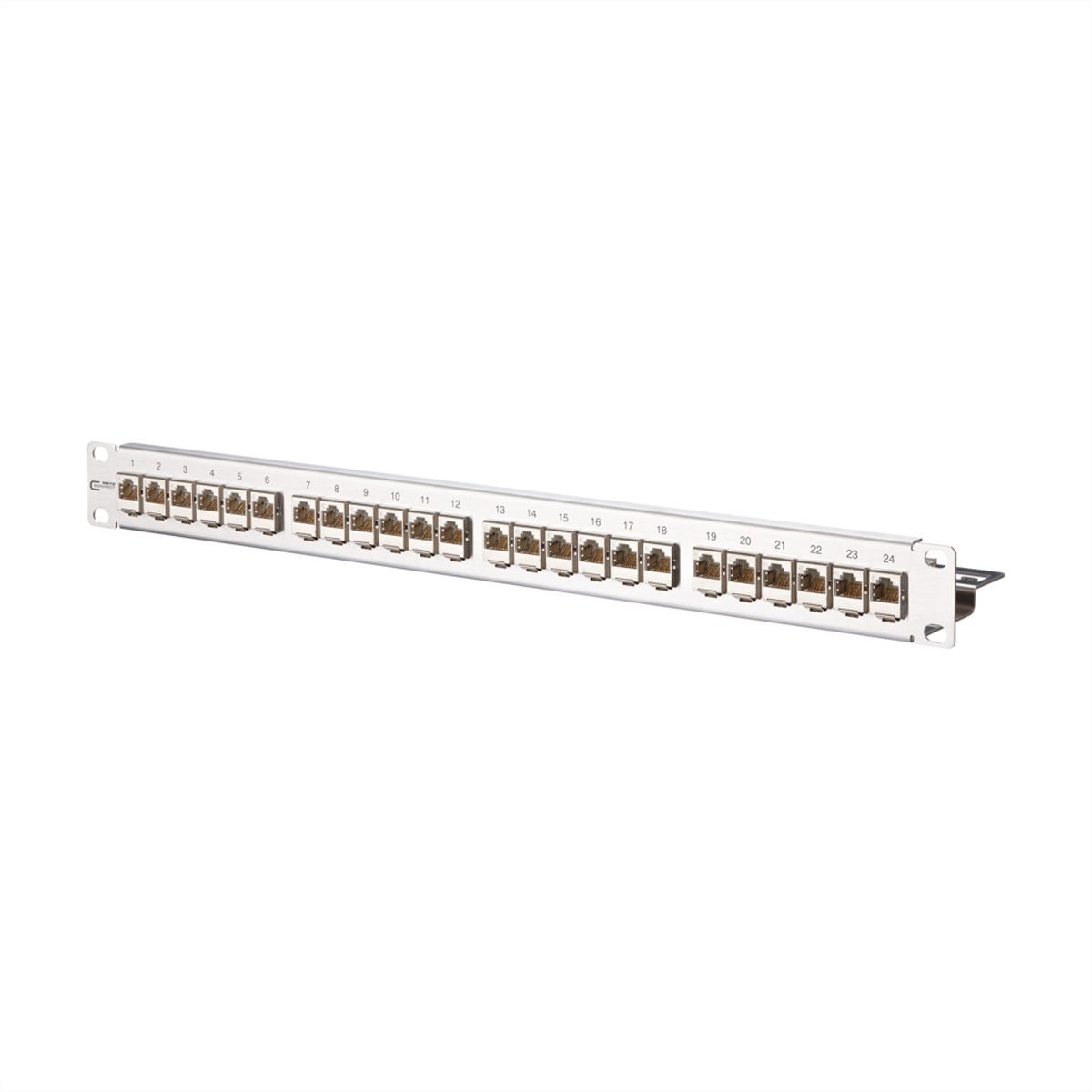

METZ CONNECT E-DAT modul 24x8(8) 1RU patch panel Cat.6A, silver

Item no. 26110639 Brand / Manufacturer METZ CONNECT Manuf. item no. 130921-E EAN 4250184106166 Item weight 1.598 kg
METZ CONNECT

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

19 inch 1RU stainless steel module frame with 24 individual E-DAT modul modules

  • Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51
  • compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
  • tested: Link to 500 MHz
  • suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
  • easy to install connection of 2 to 4-pair data lines AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC)
  • marking of conductor assignment to T568A and T568B
  • integrated cable support with optional strain relief
  • grounding bolt M6 x 10 with nut and lock washer
  • incl. 30 cm grounding cable
  • all fully shielded modules connected by means of grounding rail

Specifications

Manufacturer
METZ CONNECT
Product group
Connection technology TP
Product type
Patchpanel Cat.6A / Class EA
Colour
silver
Scope of delivery
Modulträger inkl. 24 E-DAT Module
Shield type
Screened
Transfer quality
Cat6A / Class EA
Cabinet system
19"-Technique
Quantity of ports
24
Modular assembly
yes
Shield contacts
ja
separate strain relief
yes
Connection direction
Straight
Height units
1 U
Operating temperature min.
-40 °C
Operating temperature max.
70 °C

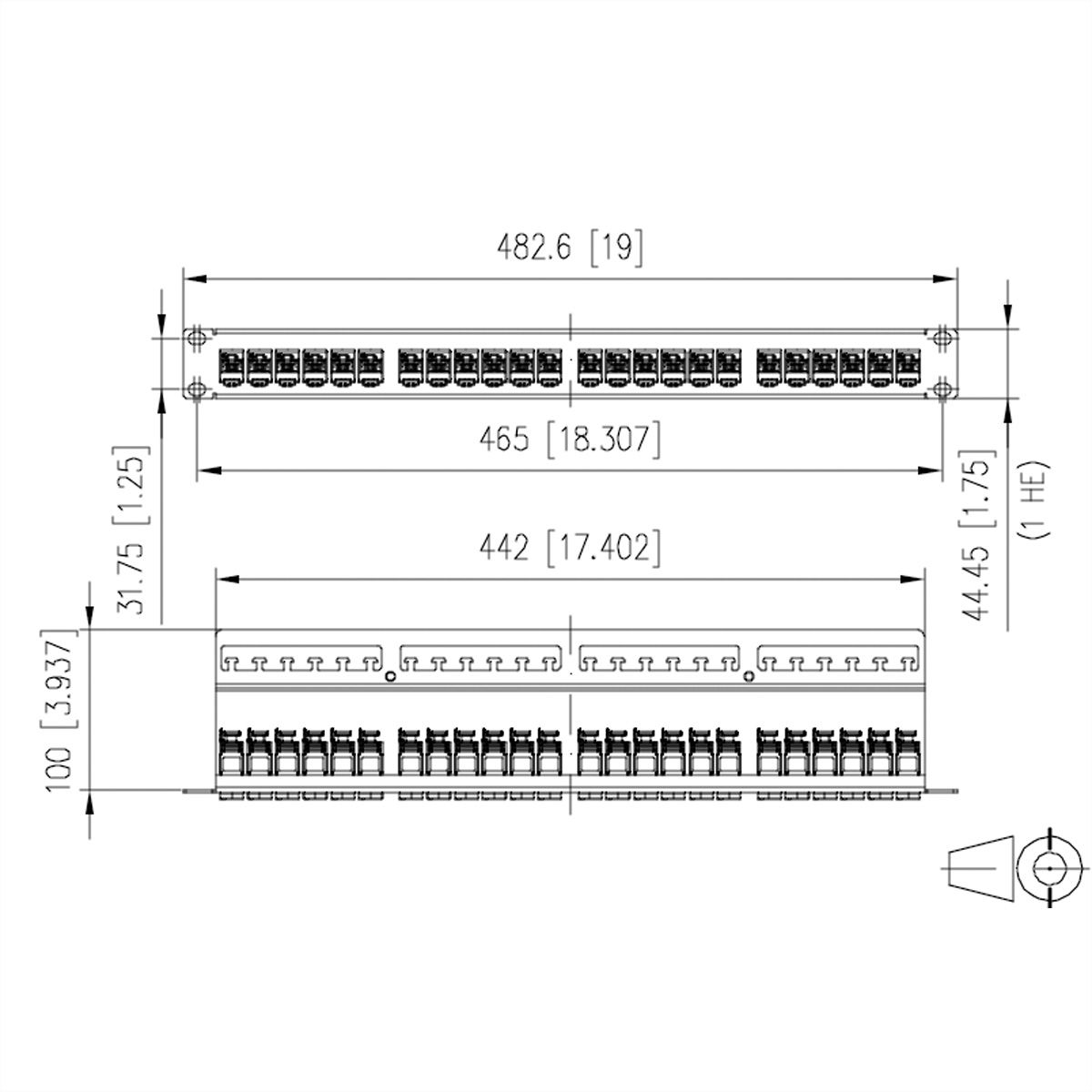

Height
44.45 mm
Width
442 mm
Depth
100 mm
Weight
1800 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
200 mm
Depth of packaging (single piece)
540 mm
Package weight (single piece)
1.598 kg

Downloads

Manufacturer data sheet - Français (2.4 MB) Manufacturer data sheet - Deutsch (1.4 MB) Manufacturer data sheet - English (1.4 MB)
