METZ CONNECT IP44 surface-mounted module housing, hinged cover & lock, 2 port unequipped for Keystone, grey

Item no. 26110608 Brand / Manufacturer METZ CONNECT Manuf. item no. 1309470003KI EAN 4251394665603 Item weight 0.316 kg
METZ CONNECT

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

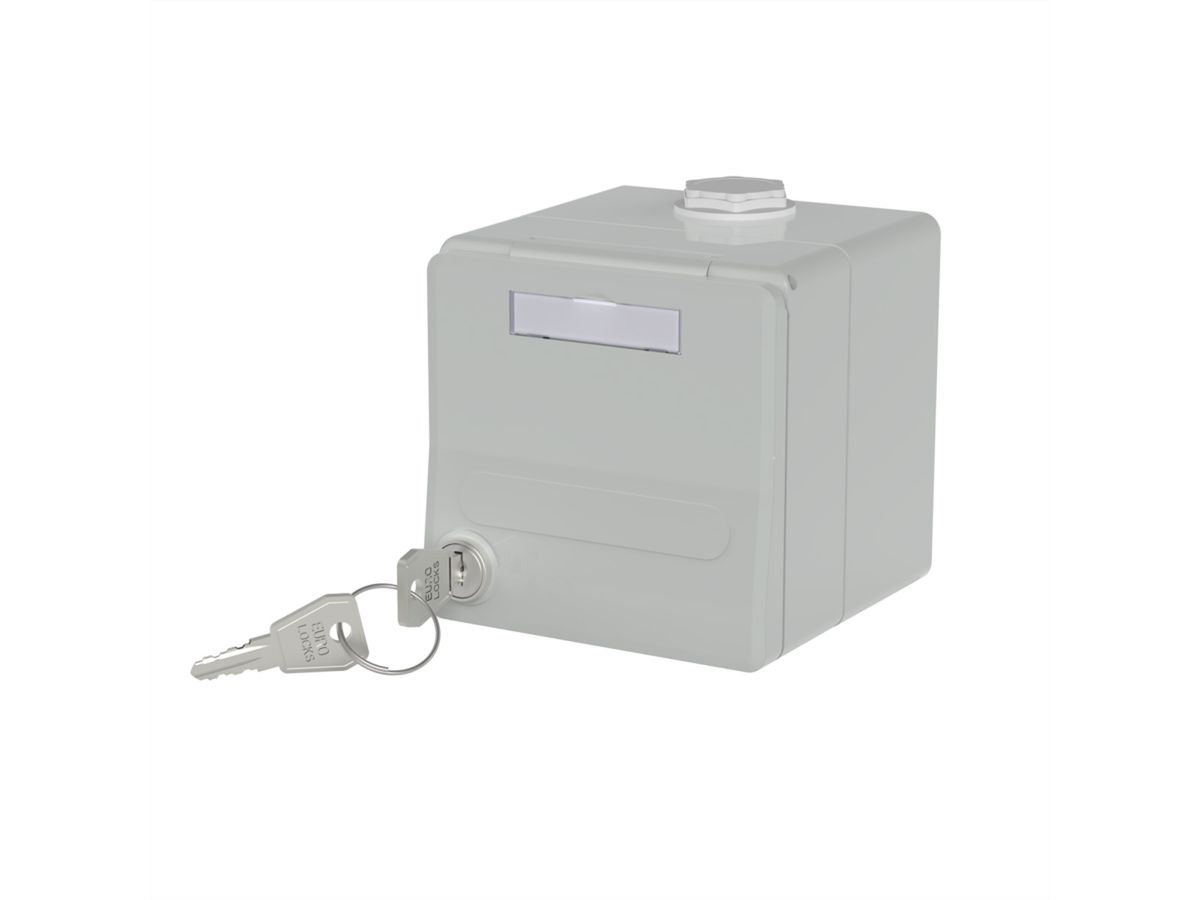

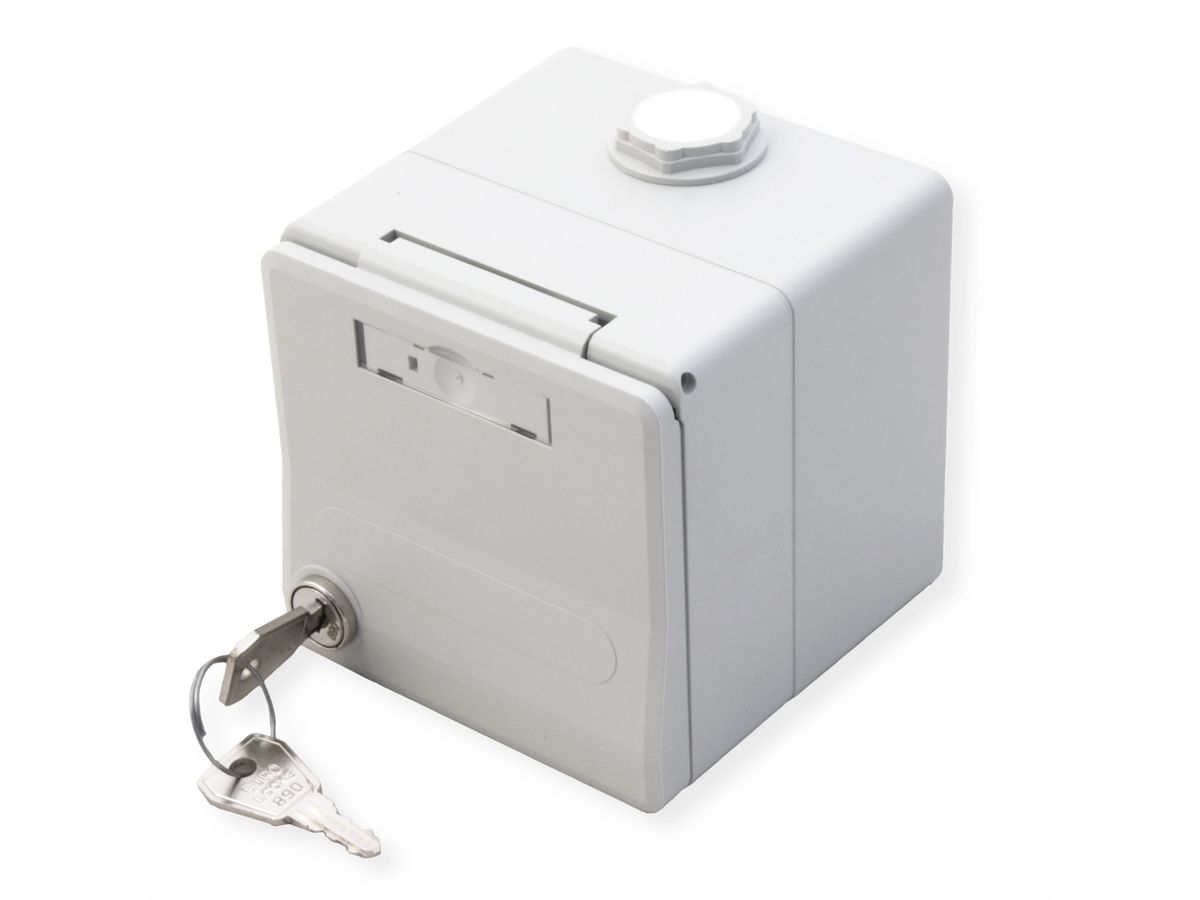

IP44 surface-mounted module housing with hinged cover and lock, gray, 2 port unequipped for Keystone

  • With two keys and keyed alike lock (same locks and keys), housing flap can be sealed
  • Protection class IP44, protected against splashing water on all sides and the ingress of solid objects larger than 1 mm.
  • IP protection classes tested without outgoing components. The protection class may differ due to the connection of components.

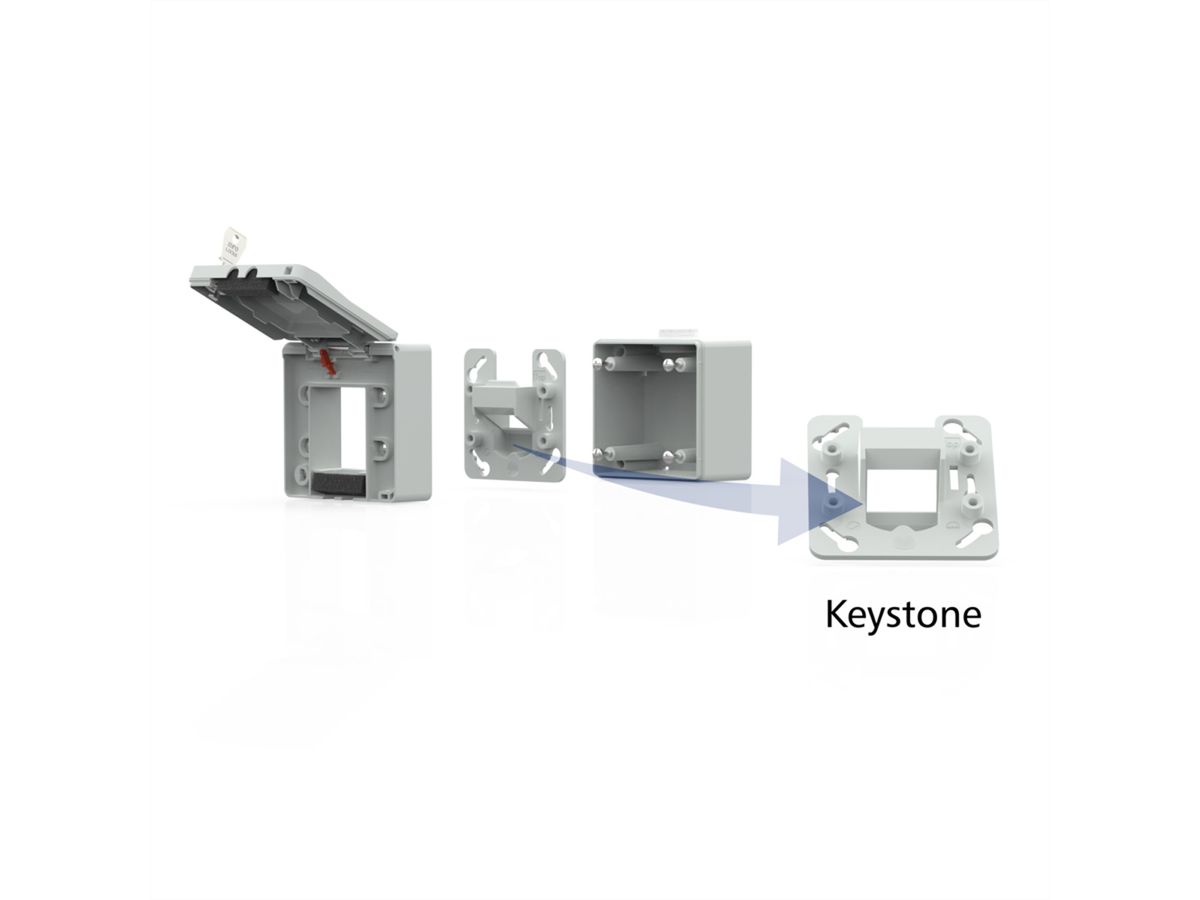

  • Module cut-out: Keystone
  • Two individual modules of your choice (RJ45, fibre optic LC, fibre optic ST, KOAX) available as accessories.
  • Hinged cover closes completely, even when patch cables are plugged in
  • Hinged lid can be locked in open position
  • Housing made of UV weather-resistant and break-proof thermoplastic PC/ASA
  • With clearly visible labelling area
  • Cable feed for one or two cables can be rotated 90 degrees.
  • Colour: gray (RAL 7035)
  • Cable glands available as accessories
  • Delivery without modules and screws for surface mounting

Specifications

Manufacturer
METZ CONNECT
Product group
Network Components
Product type
Surface-mounted housing
Colour
grey
Scope of delivery
Delivery without modules and screws for surface mounting
Material (casing)
ASA PC
Protection class (IP Code)
IP44
RAL colour
RAL 7035 Light grey
Operating temperature min.
-20 °C
Operating temperature max.
70 °C
Height
89.9 cm
Width
91.1 cm
Depth
91.1 cm
Weight
276.53 g
Height of packaging (single piece)
110 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
110 mm
Package weight (single piece)
0.316 kg

Downloads

Manufacturer data sheet - Français (4.8 MB) Manufacturer data sheet - Deutsch (4.8 MB) Manufacturer data sheet - English (4.8 MB)
