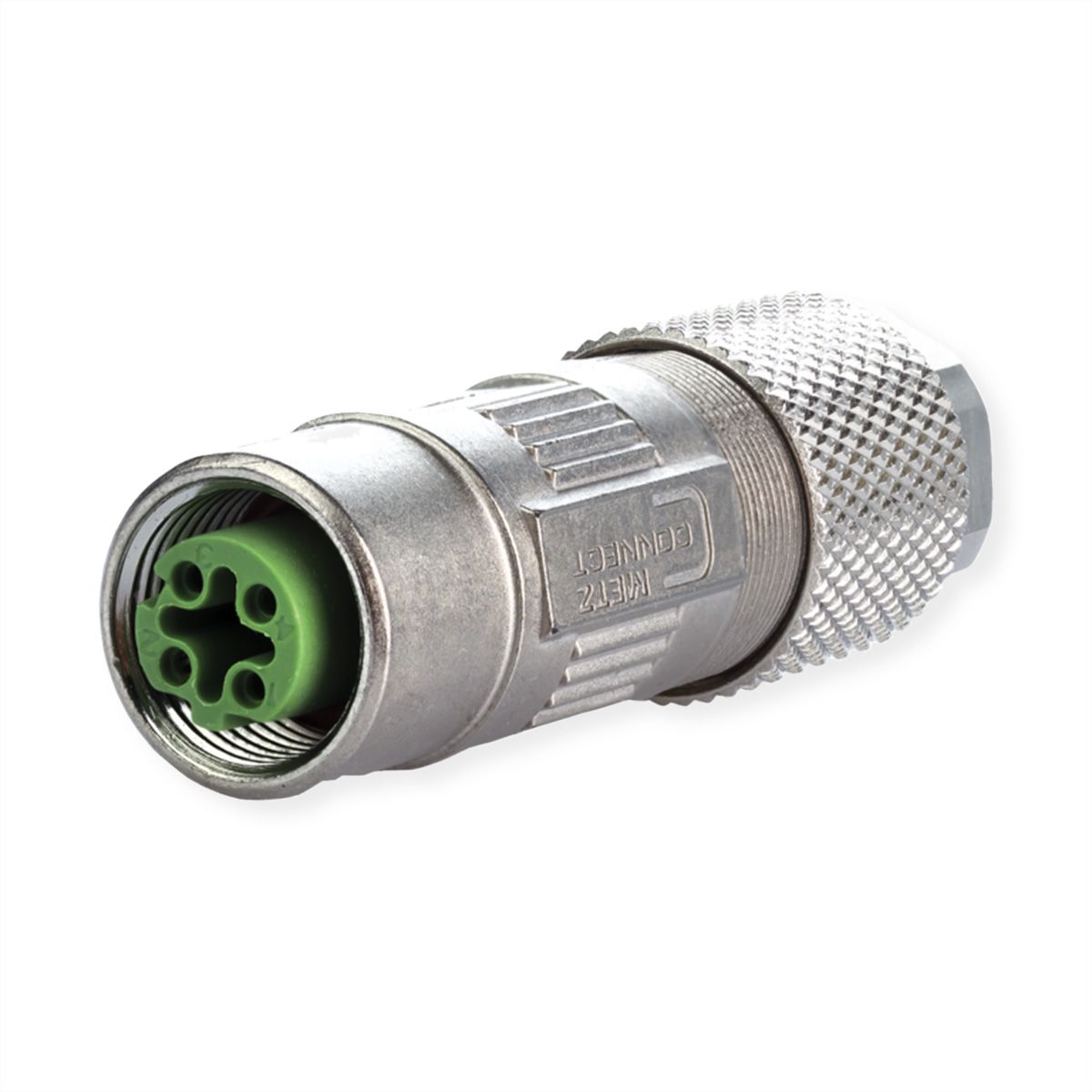

METZ CONNECT M12 Buchse D-kodiert IP67, feldkonfektionierbar

Item no. 21168798 Brand / Manufacturer METZ CONNECT Manuf. item no. MMF881A115 EAN 4251394625249 Item weight 0.026 kg
METZ CONNECT

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

M12 Buchse D-kodiert IP67, Cat. 5, Ø 6-9,7 mm, feldkonfektionierbar

  • 4-polige feldkonfektionierbare Cat.5e Buchse
  • M12-Steckverbinder in Anlehnung an DIN EN 61076-2-101:2012
  • 100 MBit Fast Ethernet geeignet nach IEEE 802.3an
  • Anschluss von AWG 26/1 - 22/1; AWG 26/7 - 22/7 möglich
  • Volldraht Cu-Leiterdurchmesser 0,41 - 0,64 mm
  • Litze Cu-Leiterdurchmesser 0,48 - 0,76 mm
  • Aderdurchmesser mit Isolierung bis 1,6 mm
  • Kabelmantel von 6,0 bis 9,7 mm
  • besteht aus nur 2 Teilen
  • einfachste Konfektion - ohne Spezialwerkzeug anzuschließen
  • industrietaugliches Zinkdruckgussgehäuse
  • geeignet für Anwendungen in der Bahnindustrie gemäß Datenblatt

Specifications

Manufacturer
METZ CONNECT
Product group
Netzwerkkomponenten
Product type
E-DAT Industry
Colour
multicolored
Shield type
geschirmt
Transfer quality
Cat5e / Class D
Protection class (IP Code)
IP67
Operating temperature min.
-40 °C
Operating temperature max.
85 °C
Height
4.9 cm
Width
14 cm
Depth
18 cm
Weight
20 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
130 mm
Depth of packaging (single piece)
120 mm
Package weight (single piece)
0.026 kg

Downloads

Manufacturer data sheet - Français (5.0 MB) Manufacturer data sheet - Deutsch (5.0 MB) Manufacturer data sheet - English (5.0 MB)
