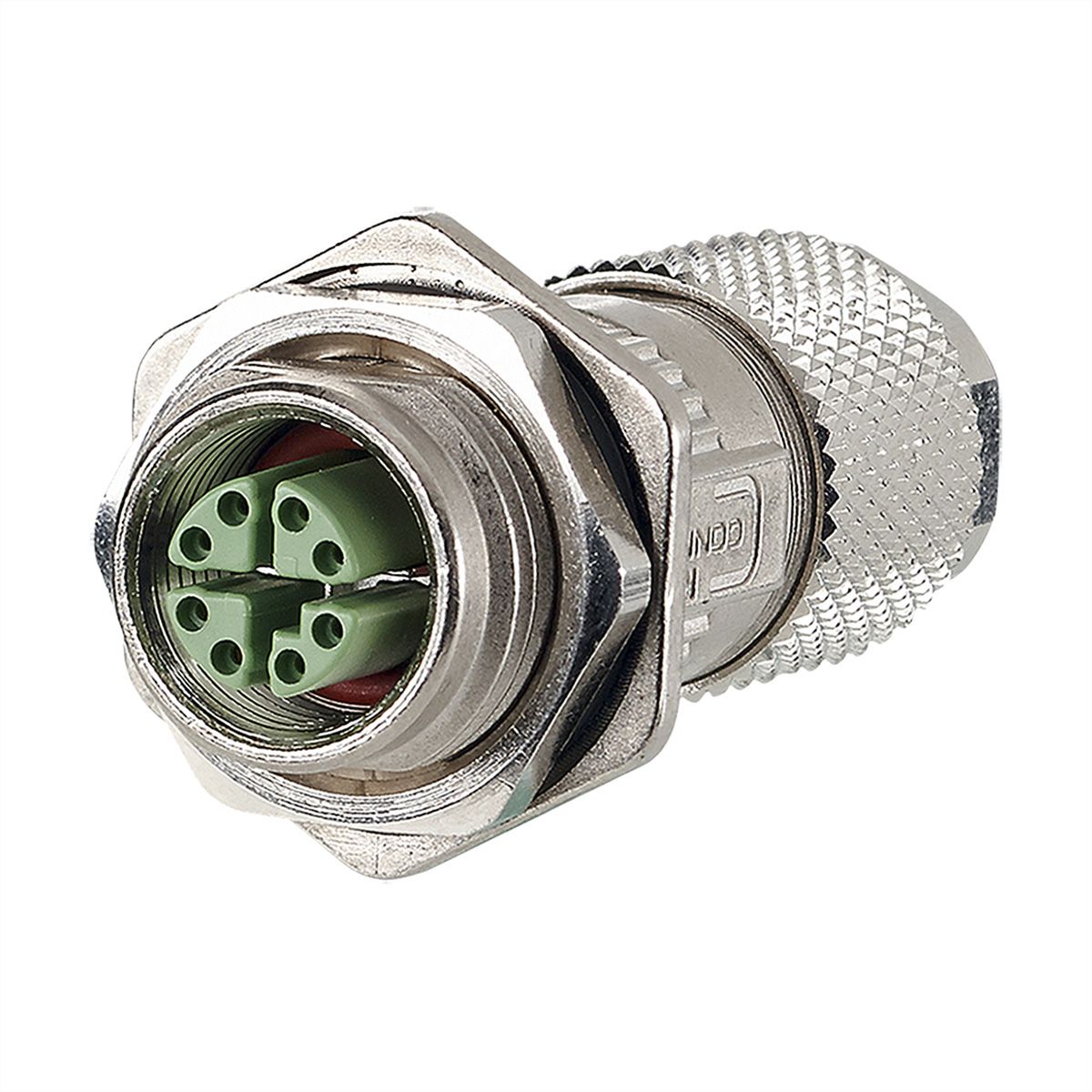

METZ CONNECT M12 Buchse IP67 gerade Flanschgeschirmt, X-kodiert, Cat.6A

Item no. 21168801 Brand / Manufacturer METZ CONNECT Manuf. item no. MMF881A315-0001 EAN 4250184171096 Item weight 0.04 kg
METZ CONNECT

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

M12 Buchse X-kodiert IP67, feldkonfektionierbar mit Flansch

  • 8-polige feldkonfektionierbare M12 Cat.6A Buchse
  • nach IEC/PAS 61076-2-109 mit Befestigungsflansch
  • 10 GBit geeignet nach IEEE 802.3an
  • Anschluss von AWG 26/1 - 22/1, AWG 26/7 - 22/7 möglich
  • Volldraht Cu-Leiterdurchmesser 0,4 - 0,64 mm
  • Litze Cu-Leiterdurchmesser 0,48 - 0,76 mm
  • Aderdurchmesser mit Isolierung bis 1,6 mm
  • Kabelmantel von 6,0 bis 9,7 mm
  • besteht aus nur 2 Teilen
  • einfachste Konfektion - ohne Spezialwerkzeug anzuschließen
  • industrietaugliches Zinkdruckgussgehäuse
  • geeignet für Anwendungen in der Bahnindustrie gemäß Datenblatt

Specifications

Manufacturer
METZ CONNECT
Product group
Netzwerkkomponenten
Product type
Industrial Networking
Colour
silver
Shield type
geschirmt
Transfer quality
Cat6A / Class EA
Side 1 Connector Type
M12-X
Side 1 Connector Gender
Weiblich (Buchse)
Side 2 Connector Type
offenes Ende
Halogen free
ja
Protection class (IP Code)
  • IPX5
  • IPX7
Operating temperature min.
-40 °C
Operating temperature max.
85 °C
Height
16.8 mm
Width
16.8 mm
Depth
49 mm
Weight
30 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
160 mm
Package weight (single piece)
0.04 kg

Downloads

Manufacturer data sheet - Français (1.2 MB) Manufacturer data sheet - English (1.2 MB) Manufacturer data sheet - Deutsch (1.2 MB)
