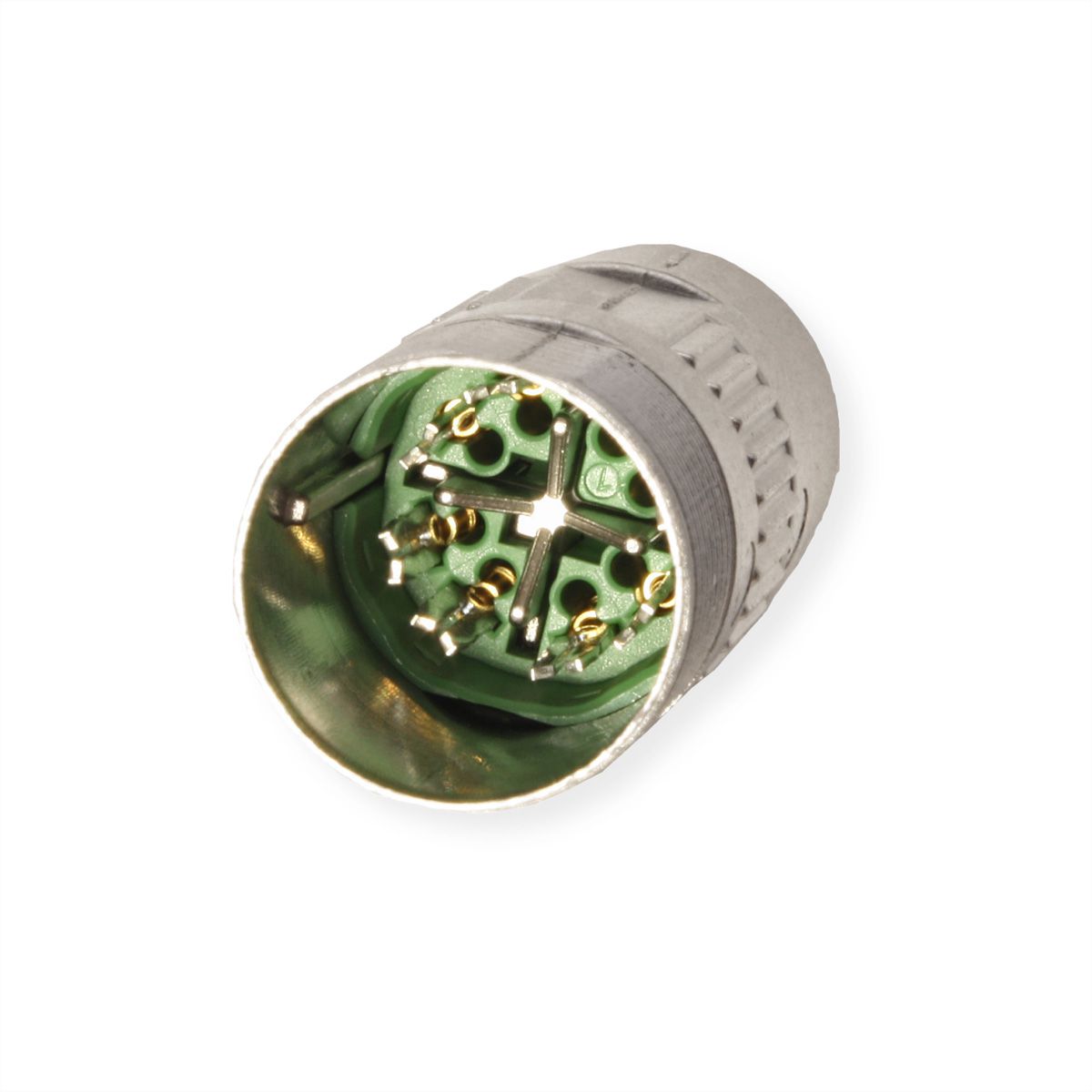

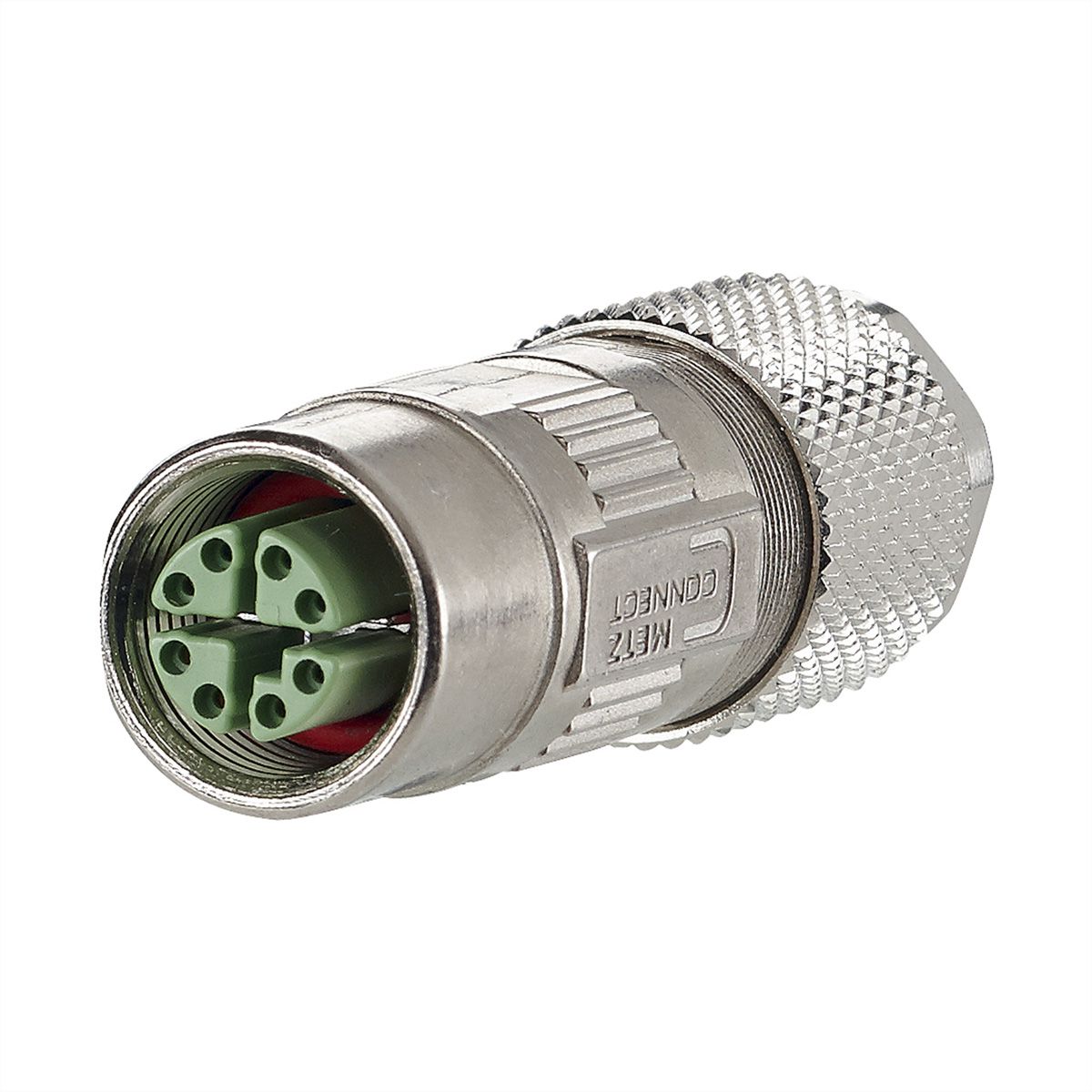

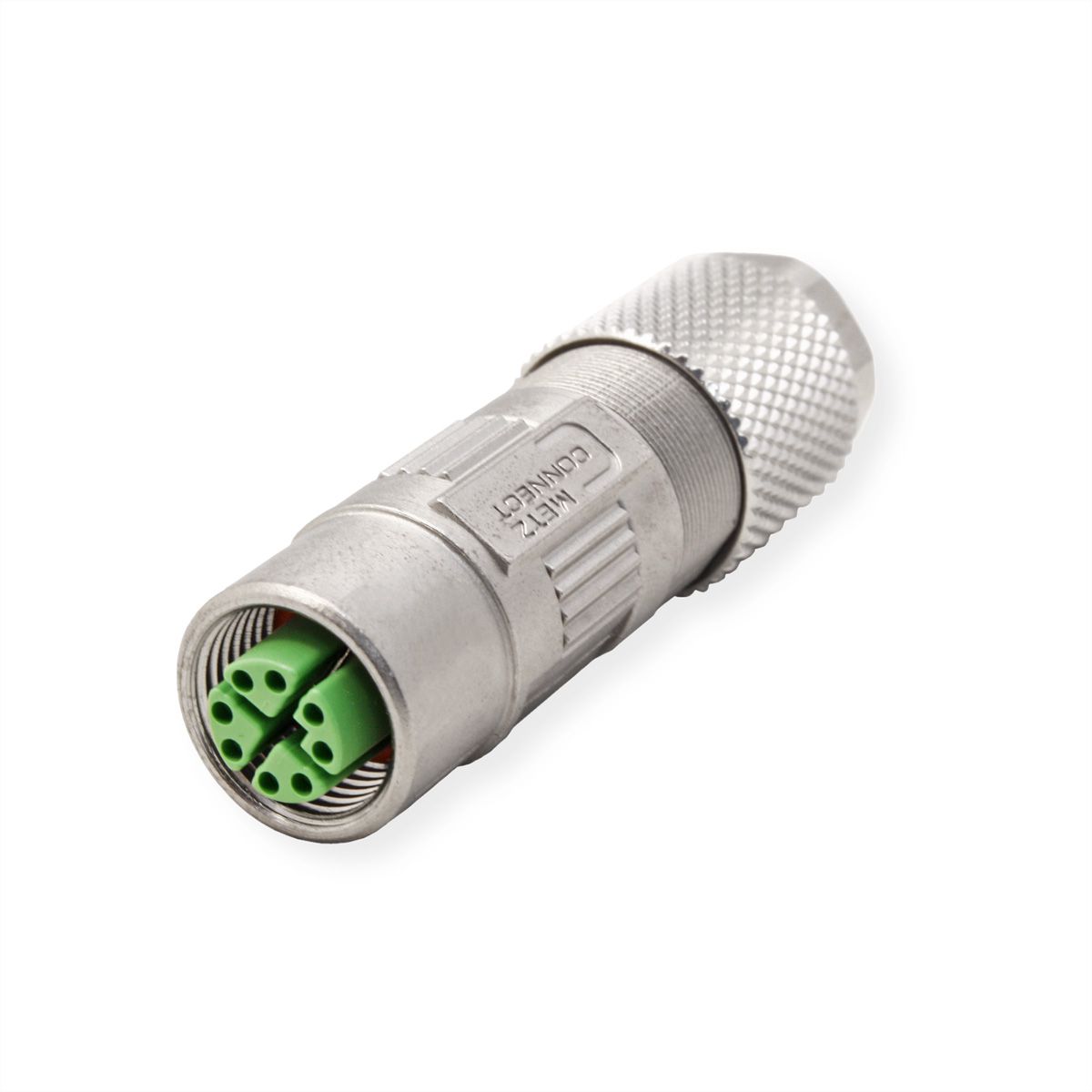

METZ CONNECT M12 Buchse IP67 gerade geschirmt, X-kodiert, Cat.6A

Item no. 21168800 Brand / Manufacturer METZ CONNECT Manuf. item no. MMF881A315 EAN 4250184171089 Item weight 0.034 kg
METZ CONNECT

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 09/07/2026

Description

M12 Buchse X-kodiert IP67, feldkonfektionierbar

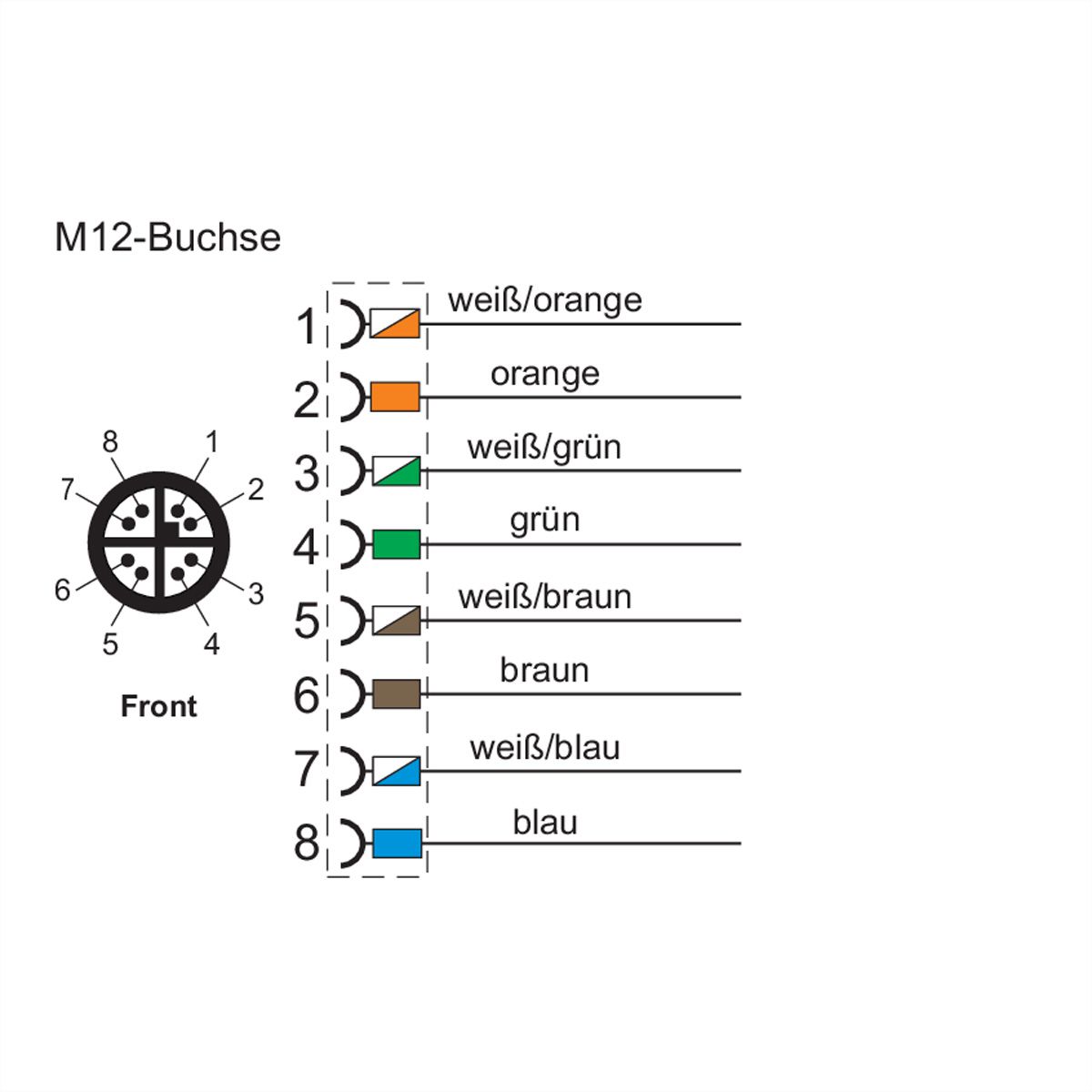

  • 8-polige feldkonfektionierbare M12 Cat.6A Buchse
  • nach IEC/PAS 61076-2-109
  • 10 GBit geeignet nach IEEE 802.3an
  • Anschluss von AWG 26/1 - 22/1, AWG 26/7 - 22/7 möglich
  • Volldraht Cu-Leiterdurchmesser 0,4 - 0,64 mm
  • Litze Cu-Leiterdurchmesser 0,48 - 0,76 mm
  • Aderdurchmesser mit Isolierung bis 1,6 mm
  • Kabelmantel von 6,0 bis 9,7 mm

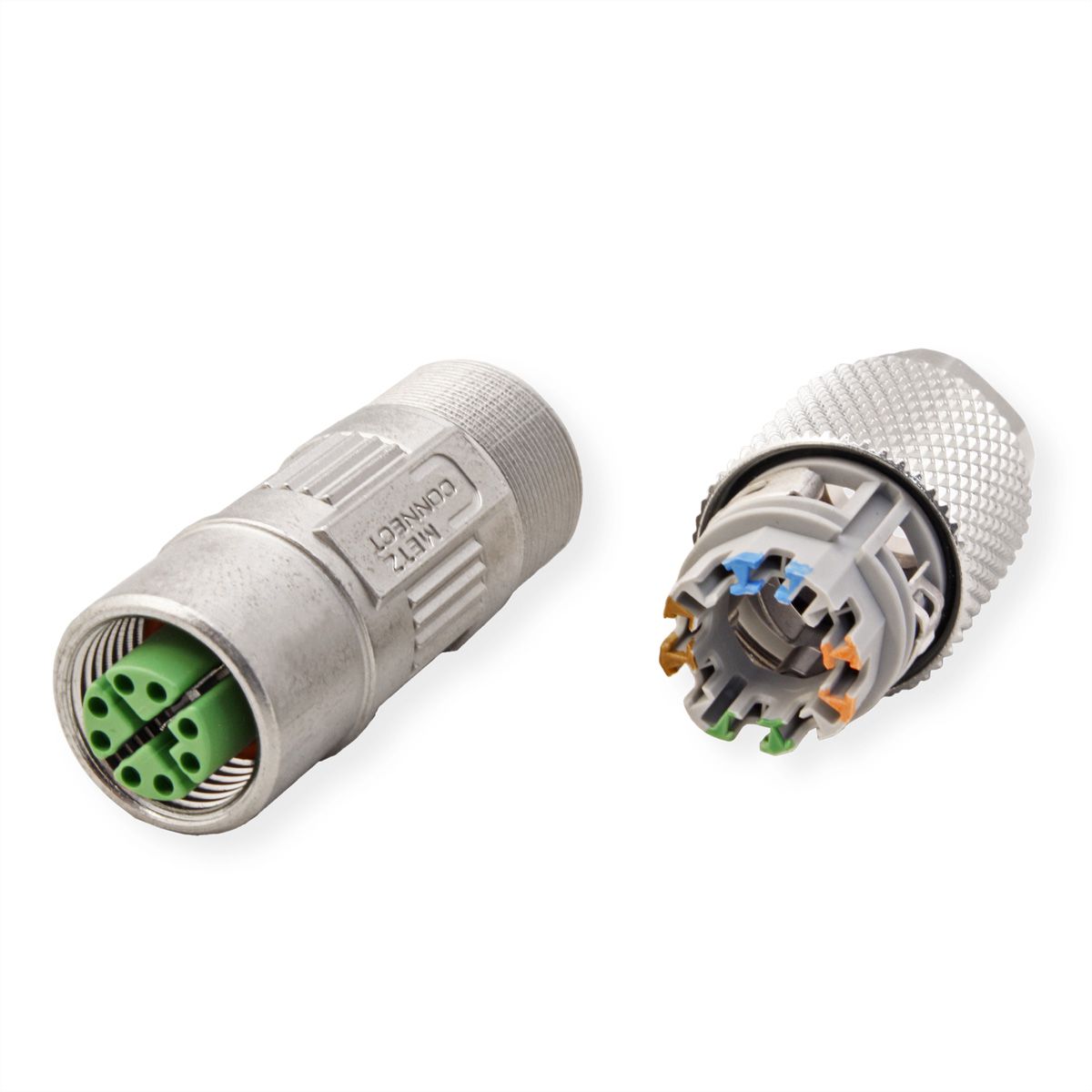

  • besteht aus nur 2 Teilen
  • einfachste Konfektion - ohne Spezialwerkzeug anzuschließen
  • industrietaugliches Zinkdruckgussgehäuse
  • geeignet für Anwendungen in der Bahnindustrie gemäß Datenblatt

Specifications

Manufacturer
METZ CONNECT
Product group
Netzwerkkomponenten
Product type
Industrial Networking
Colour
silver
Shield type
geschirmt
Transfer quality
Cat6A / Class EA
Side 1 Connector Type
M12-X
Side 1 Connector Gender
Weiblich (Buchse)
Side 2 Connector Type
offenes Ende
Halogen free
ja
Protection class (IP Code)
  • IPX5
  • IPX7
Operating temperature min.
-40 °C
Operating temperature max.
85 °C

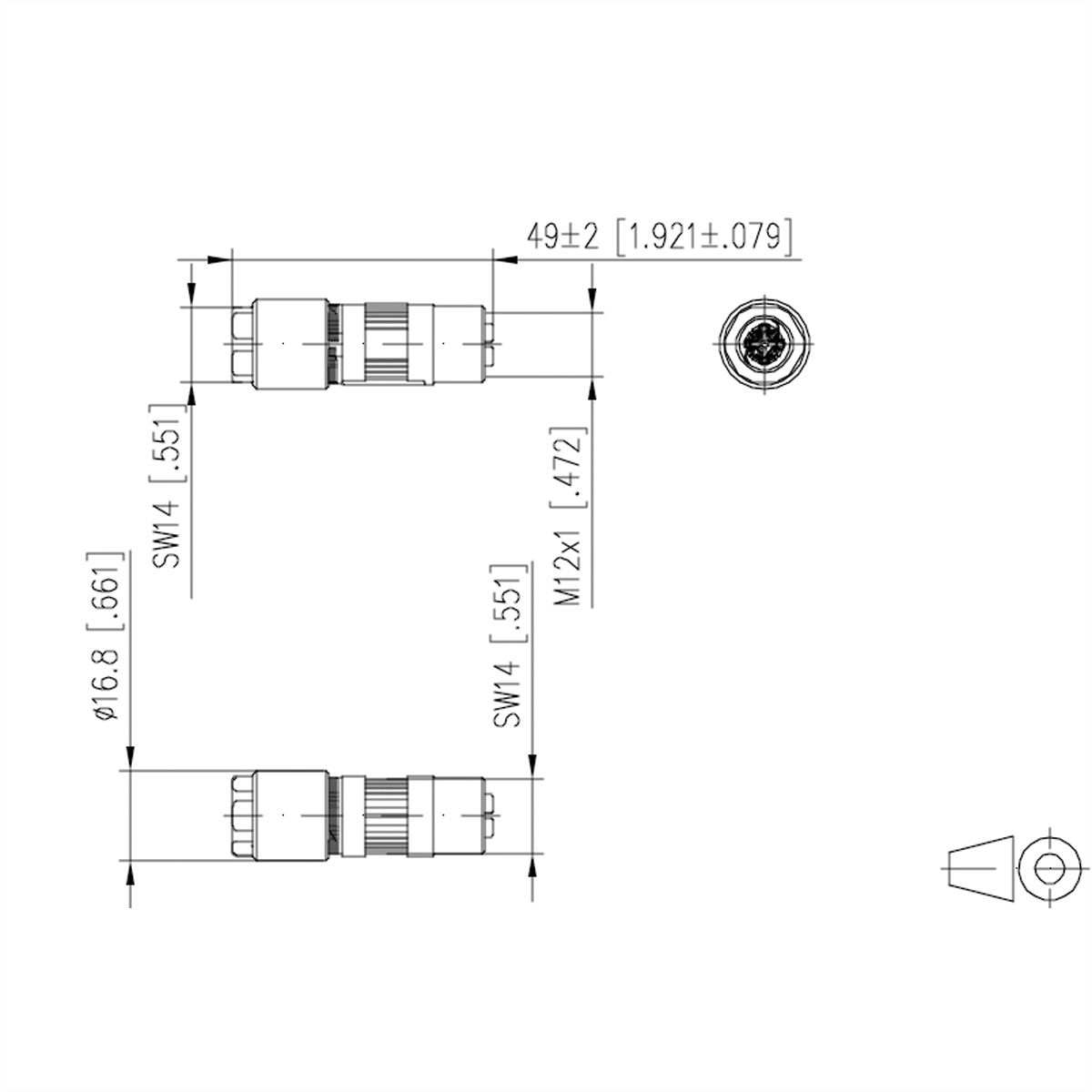

Height
16.8 mm
Width
16.8 mm
Depth
49 mm
Weight
30 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
40 mm
Depth of packaging (single piece)
50 mm
Package weight (single piece)
0.034 kg

Downloads

Manufacturer data sheet - Français (1.0 MB) Manufacturer data sheet - English (1.0 MB) Manufacturer data sheet - Deutsch (1,003.2 KB)
