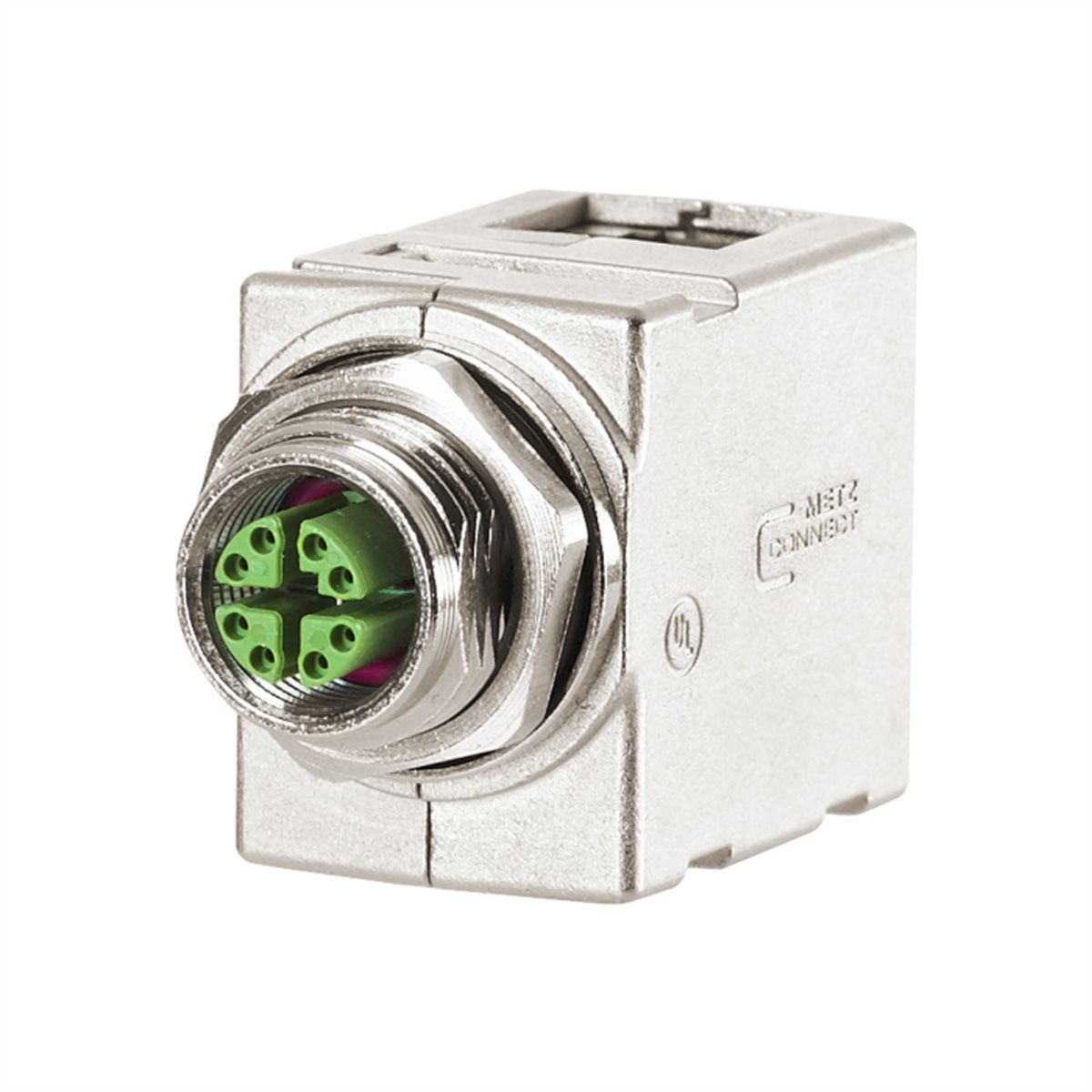

METZ CONNECT M12 Panel feed through adapters, X-coded, to RJ45 - angled

Item no. 26110802 Brand / Manufacturer METZ CONNECT Manuf. item no. MWN911A415 EAN 4250184157465 Item weight 0.066 kg

METZ CONNECT M12 Panel feed through adapters, X-coded, to RJ45 - angled

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 08/24/2026

Description

Panel feed-through adapter M12 to RJ45 for control cabinets

M12 jack X-coded, IP67, per IEC/PS 61076-2-109
RJ45 jack, IP20, per IEC 60603-7-51
suitable for 10 GBit per IEEE802.3an
Cat.6A
plug-in direction: angled
solid refined zinc die-cast housing
suitable for applications in the railway industry according to data sheet

Specifications

Manufacturer: METZ CONNECT
Product group: Network Components
Product type: Industrial Networking
Colour: silver
Shield type: Screened
Transfer quality: Cat6A / Class EA
Side 1 Connector Type: RJ-45
Side 1 Connector Gender: Female
Side 2 Connector Type: M12-X
Side 2 Connector Gender: Female
Connection direction: angled
Operating temperature min.: -25 °C
Operating temperature max.: 85 °C
Height: 7 cm
Width: 14 cm
Depth: 18 cm
Weight: 64 g
Height of packaging (single piece): 60 mm
Width of packaging (single piece): 120 mm
Depth of packaging (single piece): 100 mm
Package weight (single piece): 0.066 kg

Downloads

Manufacturer data sheet - Français (1.1 MB) Manufacturer data sheet - Deutsch (1.1 MB) Manufacturer data sheet - English (1.1 MB) Quick Installation Guide - Deutsch (2.1 MB) Quick Installation Guide - English (2.1 MB)
