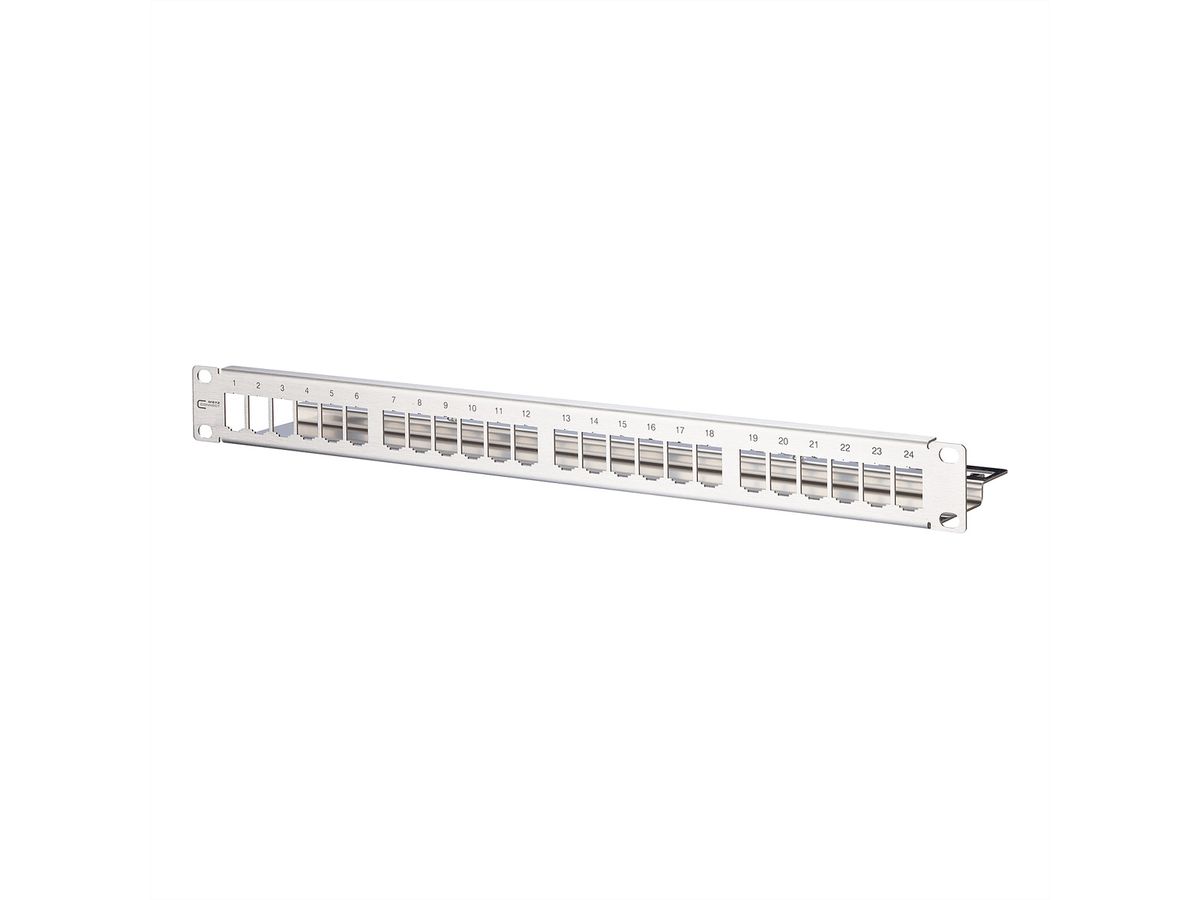

METZ CONNECT Modul 19 inch module frame 1RU, 24 port stainless steel unequipped

Item no. 26110606 Brand / Manufacturer METZ CONNECT Manuf. item no. 130921-00-E EAN 4250184106159 Item weight 0.826 kg
METZ CONNECT

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

19 inch 1RU stainless steel module frame for 24 individual modules, Modul design

  • optional strain relief on patch panel using cable ties
  • grounding bolt M6 x 10 with nut and lock washer
  • incl. 30 cm grounding cable
  • all fully shielded modules are connected by means of the stainless steel module frame

Specifications

Manufacturer
METZ CONNECT
Product group
Connection technology TP
Product type
patch panel
Colour
silver
Cabinet system
19"-Technique
Quantity of ports
24
Modular assembly
yes
Halogen free
yes
Height units
1 U
Operating temperature min.
-40 °C
Operating temperature max.
70 °C
Height
44.45 mm
Width
482.6 mm
Depth
100 mm
Weight
898 g
Height of packaging (single piece)
60 mm
Width of packaging (single piece)
130 mm
Depth of packaging (single piece)
540 mm
Package weight (single piece)
0.826 kg

Downloads

Manufacturer data sheet - Français (581.3 KB) Manufacturer data sheet - Deutsch (581.0 KB) Manufacturer data sheet - English (579.9 KB)
