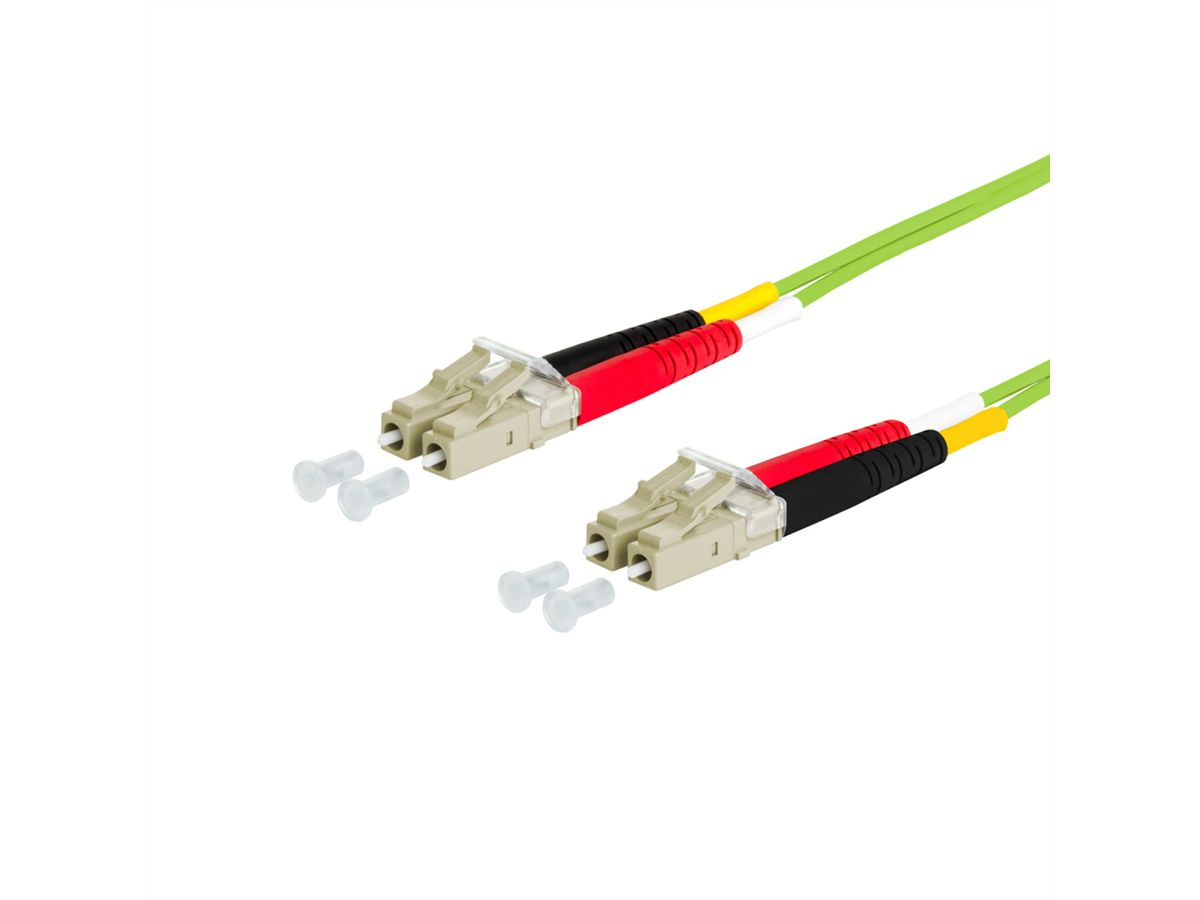

METZ CONNECT OpDAT patch cord, LC-D/LC-D OM5, 2 m

METZ CONNECT OpDAT patch cord, LC-D/LC-D OM5, 2 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 06/24/2024
Item no. 21061466
Brand / Manufacturer METZ CONNECT
Manuf. item no. 151R1JOJO20E
EAN 4251394601717
Colour
Length

Description

Multi mode patch cord I-V(ZN)H 50/125 OM5

  • multi mode patch cord I-V(ZN)H 50/125 OM5
  • laser-optimized, bend insensitive multimode fiber OM5, G50/125 µm according to IEC 60793-2-10 type A1a.4
  • outer diameter 2.0 x 4.2 mm
  • halogen-free LSHF-FR sheath with low smoke development, flame retardant
  • duplex cord as zipcord (figure 8) with two tight buffered cables and aramide strain relief
  • 100 % tested

Specifications

Manufacturer METZ CONNECT
Product group Fibre optic cable
Product type Fibre Optic Jumper Cables OM5
Colour green
Length 2 m
Cable type Duplex Cable
Fibre section 50/125µm OM5
Connection ports LC / LC
Side 1 Connector Type LC
Side 2 Connector Type LC
Aramid strain relief yes
Crossed yes
External cable diameter 2.0 x 4.2 mm
Cable LSOH yes
Operating temperature min. -10 °C
Operating temperature max. 60 °C

Downloads

Manufacturer data sheet - Deutsch (2.6 MB)

Download

Manufacturer data sheet - English (2.6 MB)

Download



The company METZ CONNECT was formed more than 10 years ago, bringing BTR and other brands together under one company roof.

With its BTR Netcom brand, METZ CONNECT is one of the technological market leaders in the passive network technology market. Anyone who wants to set up a high-quality data infrastructure is well advised to use the products of this company.
