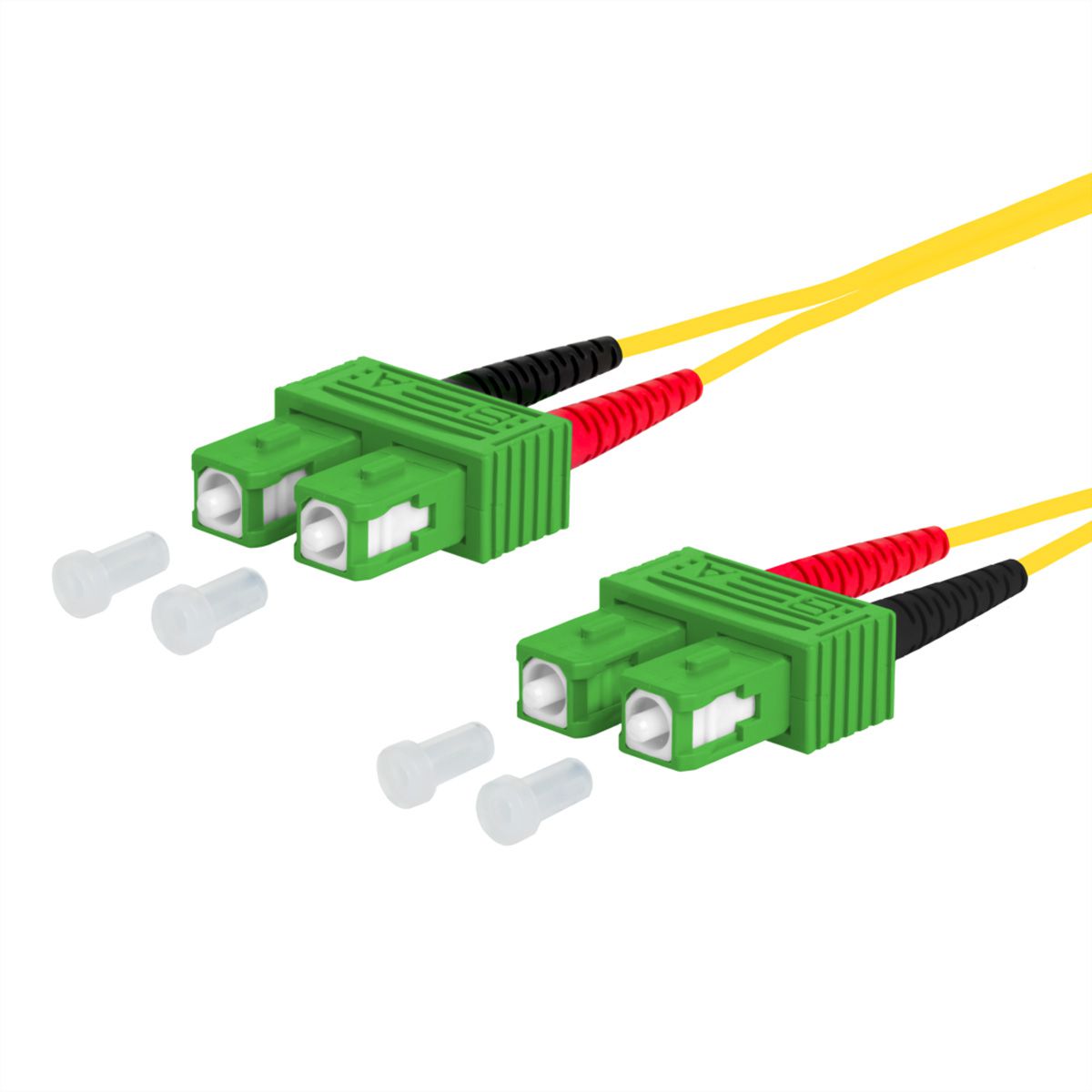

METZ CONNECT OpDAT patch cord, SC-D APC/SC-D APC OS2, 0.5 m

Item no. 21061349 Brand / Manufacturer METZ CONNECT Manuf. item no. 151P1EAEA05E EAN 4251394614052 Item weight 0.028 kg

Colour:

Length:

METZ CONNECT OpDAT patch cord, SC-D APC/SC-D APC OS2, 0.5 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Description

Single mode patch cord I-V(ZN)H E9/125 OS2

single mode fiber OS2, E9/125 µm, bend insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2, compatible to G.652.D
outer diameter 2.0 x 4.2 mm
halogen-free LSHF-FR sheath with low smoke development, flame retardant
duplex cord as zip-cord (figure 8) with two tight buffered fibers and aramide strain relief
100 % tested

Specifications

Manufacturer: METZ CONNECT
Product group: Fibre optic cable
Product type: Fibre Optic Jumper Cables OS2
Colour: yellow
Length: 0.5 m
Cable type: Duplex Cable
Fibre section: Single mode 9/125µm OS2
Connection ports: SC APC / SC APC
Side 1 Connector Type: SC APC
Side 2 Connector Type: SC APC
Bend insensitivity: yes
Aramid strain relief: yes
APC-version: yes
Crossed: yes
External cable diameter: 2.0 x 4.2 mm
Cable LSOH: yes
Flame retardant according to IEC 60332-1-2: yes
Low smoke according to IEC 61034-2: yes
Halogen free according to IEC 60754-2: yes
Max. insertion loss: 0.3 dB
Min. return loss: 65 dB
Operating temperature min.: -10 °C
Operating temperature max.: 60 °C
Storage temperature min.: -10 °C
Storage temperature max.: 60 °C
Weight: 20 g
Height of packaging (single piece): 30 mm
Width of packaging (single piece): 200 mm
Depth of packaging (single piece): 210 mm
Package weight (single piece): 0.028 kg

Downloads

Manufacturer data sheet - Français (3.2 MB) Manufacturer data sheet - Deutsch (3.3 MB) Manufacturer data sheet - English (3.2 MB)
