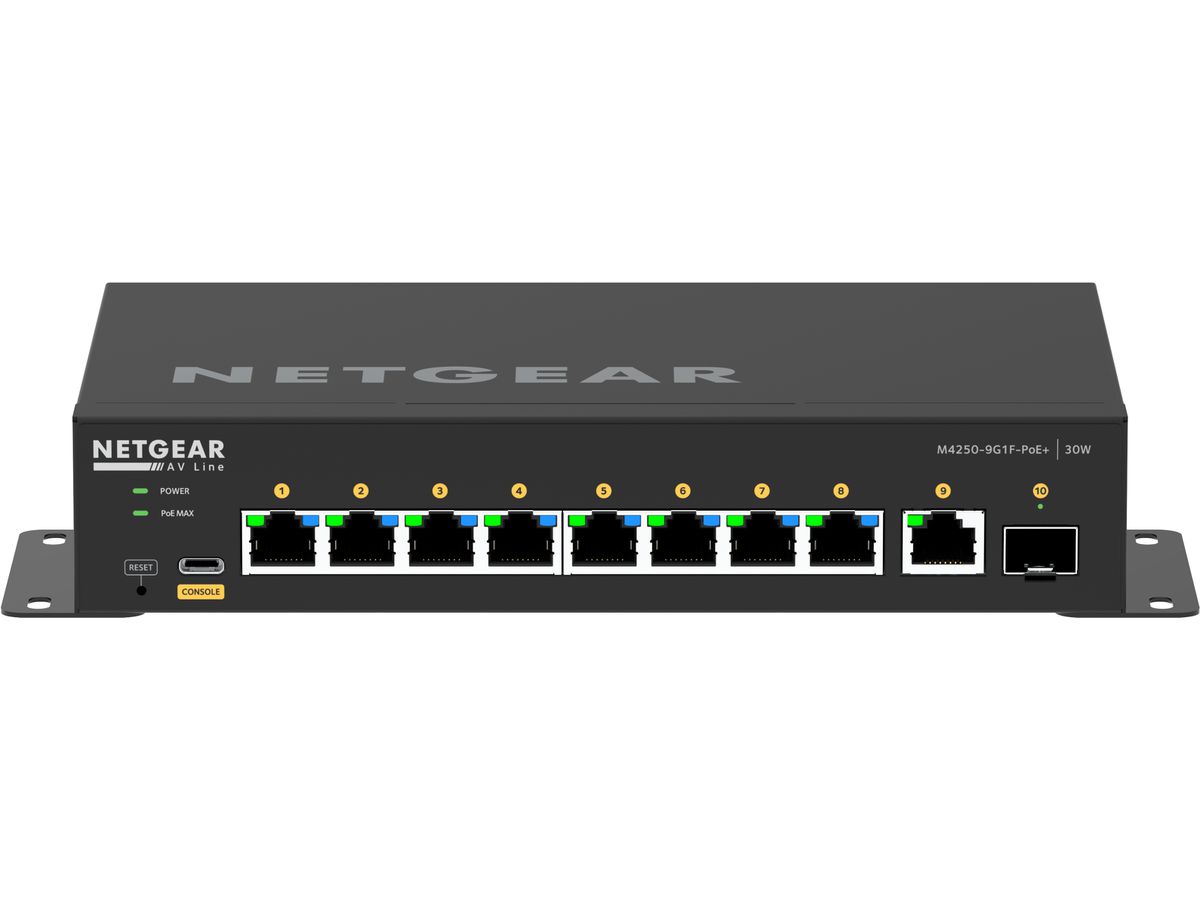

NETGEAR 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch
:strip_icc():strip_exif()/logos/netgear.png "NETGEAR")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription
NETGEAR 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting
Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!
POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Specifications
- Manufacturer
- NETGEAR
- Product type
- Network Switch
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Width
- 210 mm
- Depth
- 140 mm
- Height
- 40 mm
- Weight
- 967 g
- Power source
- AC/DC
- Power supply included
- Yes
- AC input voltage
- 220 - 240 V
- AC input frequency
- 50 - 60 Hz
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 3000 m
- Heat dissipation
- 559.555 BTU/h
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
- Full duplex
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- MAC address table
- 16000 entries
- Switching capacity
- 24 Gbit/s
- Store-and-forward
- Yes
- User guide
- Yes
- Manual
- Yes
- DHCP features
- DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
- Access Control List (ACL)
- Yes
- IGMP snooping
- Yes
- SSH/SSL support
- Yes
- Loop protection
- Yes
- BPDU filtering/protection
- Yes
- Authentication
- MAC-based authentication
- Authentication type
- RADIUS
- Switch type
- Managed
- Switch layer
- L2/L3
- Quality of Service (QoS) support
- Yes
- Rack mounting
- Yes
- Product colour
- Black
- LED indicators
- PoE, Power, Status
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 8
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 110 W
- Built-in processor
- Yes
- Processor model
- ARM Cortex-A9
- Processor frequency
- 1250 MHz
- Internal memory
- 2048 MB
- Noise level
- 30.06 dB
- Multicast support
- Yes
- IPv4 multicast entries
- 2000
